Common Problems in 2D Flooring Tile Layouts and How to Fix Them: A practical troubleshooting guide for fixing alignment, spacing, and measurement errors in 2D tile floor plans before installation begins.

Direct Answer

Most problems in a 2D flooring tile layout come from inaccurate measurements, misaligned tile grids, and poorly planned edge cuts. Fixing these issues early—by adjusting grid alignment, verifying room dimensions, and reviewing tile scale—prevents costly installation mistakes and wasted materials.

Quick Takeaways

1. Most 2D tile layout mistakes begin with incorrect room measurements.
2. Misaligned tile grids often occur when the layout doesn't start from a true centerline.
3. Poor edge planning leads to awkward tile cuts and visual imbalance.
4. Scale errors in drawings can cause installers to misinterpret tile spacing.
5. A final layout checklist dramatically reduces installation surprises.

Introduction

After working on residential and commercial flooring projects for more than a decade, I can confidently say that a bad tile installation almost always starts with a flawed plan. Specifically, a flawed 2D flooring tile layout.

Many homeowners and even junior designers assume tile issues happen during installation. In reality, most of them are baked into the drawing stage—long before the first tile touches the floor.

I’ve reviewed hundreds of tile plans where something small—a half-inch measurement error, a shifted grid line, or a poorly centered pattern—created thousands of dollars in rework.

If you're still learning how tile layouts are structured, it helps to first understand how accurate digital floor layouts are structured before drawing tile patterns. Once the foundation is right, troubleshooting becomes far easier.

In this guide, I’ll break down the most common 2D tile layout mistakes I see in real projects—and exactly how to fix them before installation begins.

save pin

Why Errors Happen in 2D Flooring Tile Layouts

Key Insight: Most layout errors happen because designers treat tile patterns as decoration rather than geometry.

Tiles follow strict spatial logic. When the geometry isn't respected, alignment problems appear across the entire floor.

In real projects, layout errors typically come from three sources:

1. Incorrect room measurements
2. Starting the tile grid from a wall instead of a centerline
3. Ignoring how tiles terminate at edges and transitions

A common mistake I see is starting tile placement directly from the longest wall. The assumption is that the wall is straight—but in older homes it's often slightly angled. That tiny deviation multiplies across the entire tile field.

Professional approach:

1. Always establish a center reference line
2. Build the tile grid outward from the center
3. Verify perpendicular alignment using 90° guidelines

This method dramatically reduces compounding alignment errors.

Misaligned Tile Grids and How to Correct Them

Key Insight: Grid misalignment usually starts with a shifted reference axis, not the tiles themselves.

When a tile grid drifts even slightly, the pattern begins to "walk" across the room. By the time it reaches the opposite wall, spacing inconsistencies become obvious.

How to fix tile grid alignment:

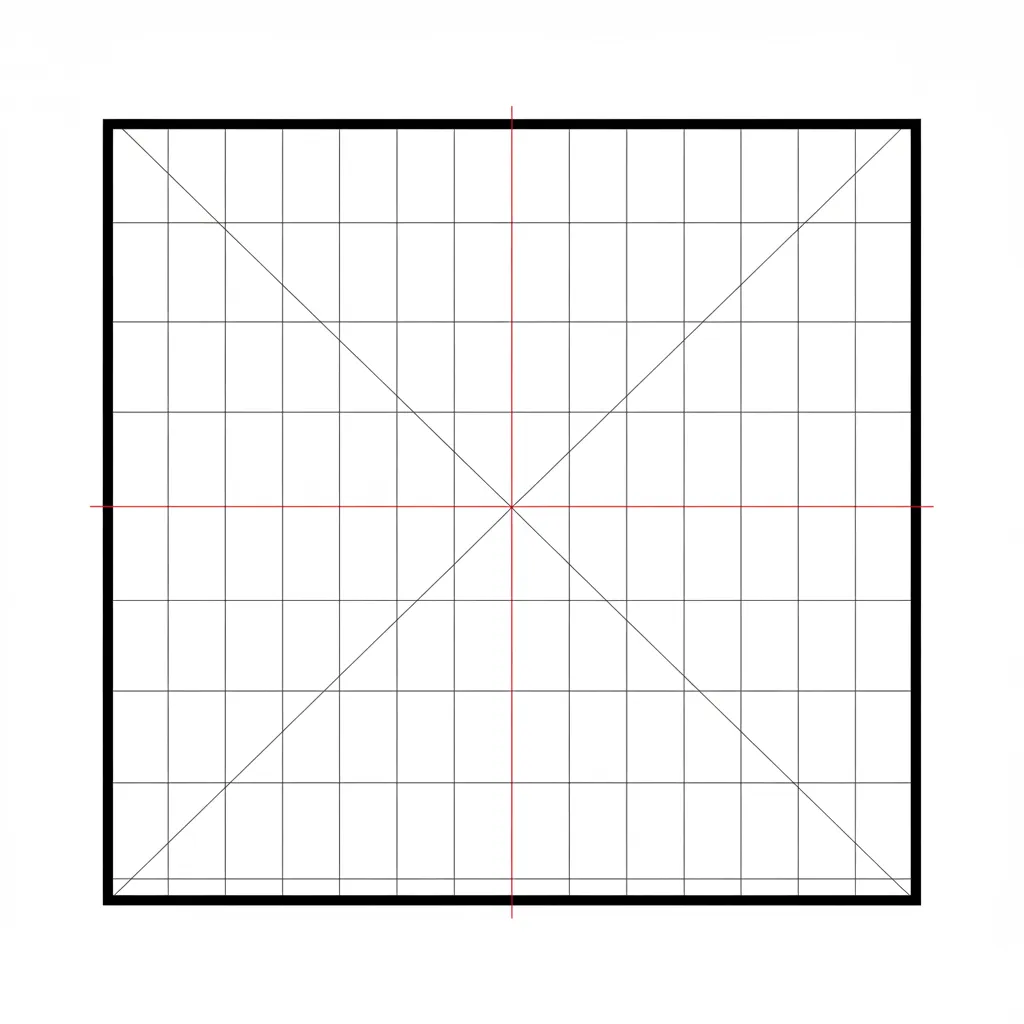

1. Create a central horizontal axis through the room.
2. Draw a perpendicular vertical axis.
3. Align the first tile intersection on that center point.
4. Extend grid spacing using exact tile dimensions plus grout joints.

For example, a 24" tile with a 1/8" grout joint should use a grid spacing of 24.125 inches. Missing this small detail is one of the most common 2D tile layout mistakesI encounter.

save pin

Incorrect Room Measurements in Tile Plans

Key Insight: Even a half-inch measurement error can force full tile rows to shift.

In professional interior design workflows, measurements are verified at least twice before drawing a layout.

However, DIY plans often rely on a single measurement pass.

Typical measurement mistakes include:

1. Ignoring wall irregularities
2. Measuring baseboards instead of wall surfaces
3. Assuming rooms are perfectly rectangular

Measurement verification checklist:

1. Measure both ends of every wall
2. Check diagonal measurements for squareness
3. Mark structural obstacles like columns
4. Confirm doorway thresholds

If you're planning layouts digitally, a reliable tool that converts real room measurements into accurate digital floor plans can prevent many of these issues.

Pattern Breaks and Visual Inconsistencies

Key Insight: Pattern disruptions usually happen when layout symmetry isn't checked across the entire room.

Designers often preview only one section of a tile pattern. But repeating patterns—like herringbone or staggered brick—must stay consistent across the full floor area.

Common pattern problems:

1. Half-patterns near room entrances
2. Uneven border spacing
3. Broken diagonal alignment

Professional review process:

1. Zoom out and evaluate the full layout
2. Check tile pattern intersections at all four walls
3. Confirm symmetry at major sightlines

One trick I often use: view the layout from the doorway perspective. If the pattern looks visually centered from that angle, the design usually feels balanced in real life.

save pin

Handling Tile Cuts at Edges and Corners

Key Insight: Good layouts hide tile cuts where people notice them the least.

Edge cuts are unavoidable, but poor planning makes them painfully obvious.

The biggest design mistake is leaving extremely thin tile slivers along walls.

Best practice for edge cuts:

1. Avoid cuts smaller than half a tile when possible
2. Center the layout to balance cuts on both sides
3. Place smaller cuts under cabinetry or fixtures

This is especially important in bathrooms and kitchens, where cabinets or islands create visual reference points.

Fixing Scale Issues in 2D Tile Drawings

Key Insight: Incorrect drawing scale causes installers to misinterpret tile spacing.

In many 2D drawings, tile shapes look visually correct but aren't drawn at real scale.

This becomes a major issue during construction.

Typical scale errors include:

1. Tiles drawn as approximate rectangles
2. Grout joints omitted from calculations
3. Patterns scaled visually instead of mathematically

Correct scaling workflow:

1. Set the drawing scale (e.g., 1/4" = 1').
2. Define exact tile dimensions.
3. Add grout spacing to grid calculations.
4. Lock the grid before pattern placement.

Designers working with digital planners can also visualize a complete tile layout inside a scaled room planning environment, which makes scale errors easier to catch early.

save pin

Checklist for Reviewing a 2D Tile Layout Before Installation

Key Insight: A five‑minute review checklist can prevent most tile installation problems.

Before approving a tile layout, I run through the same quick verification process used in professional design studios.

Tile layout review checklist:

1. Confirm room measurements and diagonals
2. Verify centerline alignment
3. Check grout spacing in grid calculations
4. Review tile cuts at all walls
5. Inspect pattern continuity
6. Ensure drawing scale matches tile size

Answer Box

The most common 2D flooring tile layout problems are grid misalignment, incorrect room measurements, scale mistakes, and poorly planned edge cuts. Correcting these during the planning stage prevents installation delays, uneven patterns, and wasted tile materials.

Final Summary

1. Most tile installation problems begin with flawed 2D layouts.
2. Always start tile grids from centerlines, not walls.
3. Verify room measurements before building the tile grid.
4. Balance tile cuts along room edges to maintain visual symmetry.
5. Accurate drawing scale prevents installer confusion.

FAQ

What are the most common 2D tile layout mistakes?

Misaligned grids, incorrect room measurements, missing grout spacing, and poorly planned edge cuts are the most frequent layout errors.

How do you fix tile grid alignment issues in floor plans?

Create horizontal and vertical centerlines, place the first tile intersection at the center, and extend the grid using exact tile and grout dimensions.

Why does my tile layout look uneven at the walls?

The layout likely started from a wall instead of the room center, causing uneven tile cuts as the pattern reaches the edges.

Should grout spacing be included in a 2D flooring tile layout?

Yes. Always add grout width to tile dimensions when building the grid. Ignoring it causes spacing errors across the floor.

How accurate should tile measurements be?

Measurements should be precise within at least 1/8 inch to prevent pattern drift in larger rooms.

What is the best way to center a tile layout?

Draw intersecting centerlines across the room and align the first tile intersection to that point.

Can digital planners help fix tile spacing problems?

Yes. Digital planning tools allow designers to test grid alignment and tile spacing before installation begins.

Why do patterns break in large tile floors?

Pattern breaks usually happen when layouts are previewed in small sections rather than evaluated across the full room.
