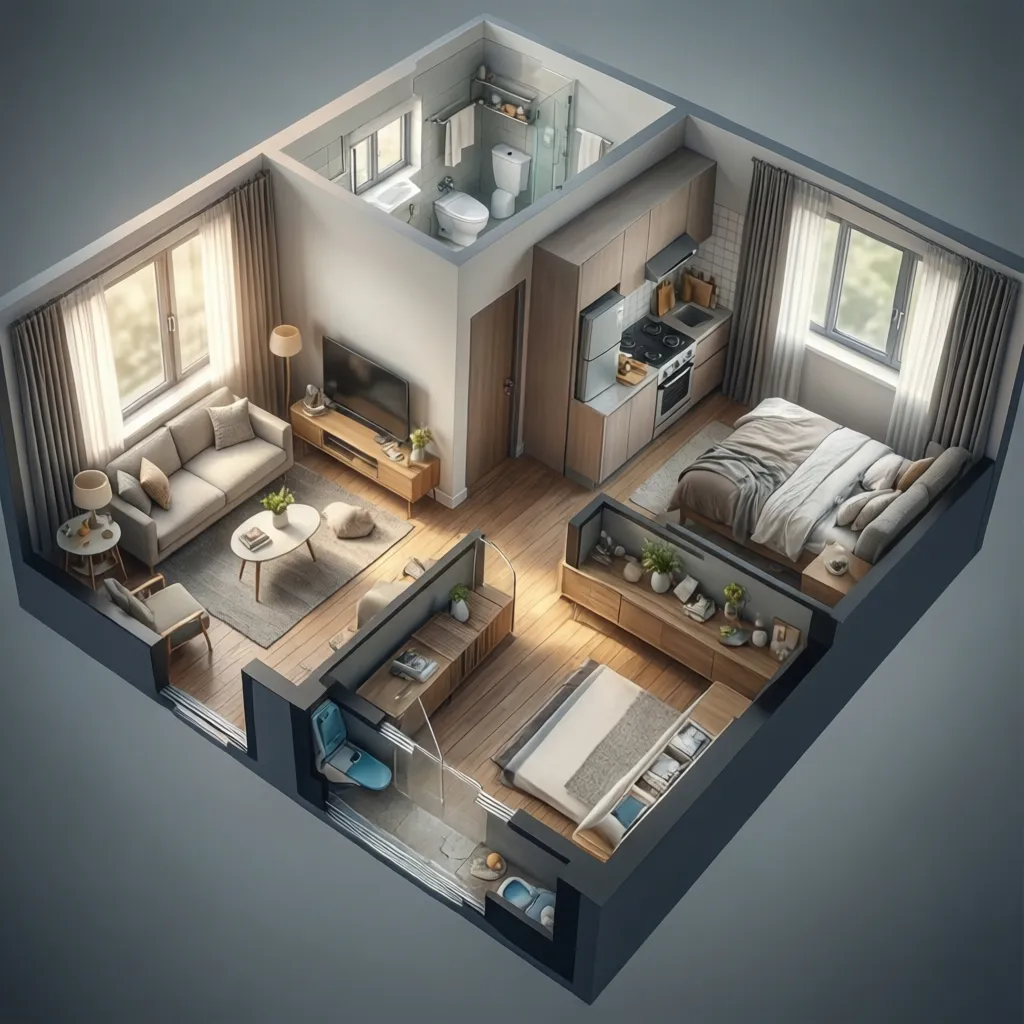

Common Problems When Creating 3D Images of a 480 Sq Ft Floor Plan: Practical fixes for scaling, perspective, and layout issues when visualizing small apartment floor plans in 3D

Direct Answer

The most common problems when creating 3D images of a 480 sq ft floor plan are scaling mistakes, distorted camera perspectives, overcrowded furniture layouts, and unrealistic lighting. Because the space is small, even minor measurement errors or wide‑angle camera settings can make rooms appear warped or poorly proportioned in 3D renderings.

Fixing these issues usually requires accurate dimension input, proper camera height and field of view, and simplified furniture layouts designed specifically for compact apartments.

Quick Takeaways

1. Small floor plans exaggerate perspective distortion when camera angles are too wide.
2. Incorrect wall measurements quickly break scale accuracy in a 480 sq ft layout.
3. Oversized furniture is the most common reason 3D plans look unrealistic.
4. Lighting placement often makes small apartments appear smaller than they are.
5. Simple layouts usually render more accurately than highly detailed ones.

Introduction

Creating 3D images of a 480 sq ft floor plan sounds straightforward, but in practice it's one of the trickiest visualization tasks in residential design. After working on dozens of micro‑apartment and studio projects over the last decade, I've noticed the same pattern: the smaller the layout, the easier it is for a 3D rendering to look "off".

Clients often tell me their 3D floor plan looks distorted, cramped, or strangely unrealistic—even when the measurements are technically correct. In most cases, the issue isn't the software. It's how the space is modeled, scaled, or visualized.

Many designers start with tools built for larger homes, which can lead to exaggerated perspectives or oversized furniture libraries. If you're building visualizations from scratch, a specialized workflow like this step‑by‑step approach for building accurate 3D floor layoutstends to produce much cleaner results.

In this guide, I'll break down the most common mistakes that appear when rendering small apartment layouts—and more importantly, how to fix them.

save pin

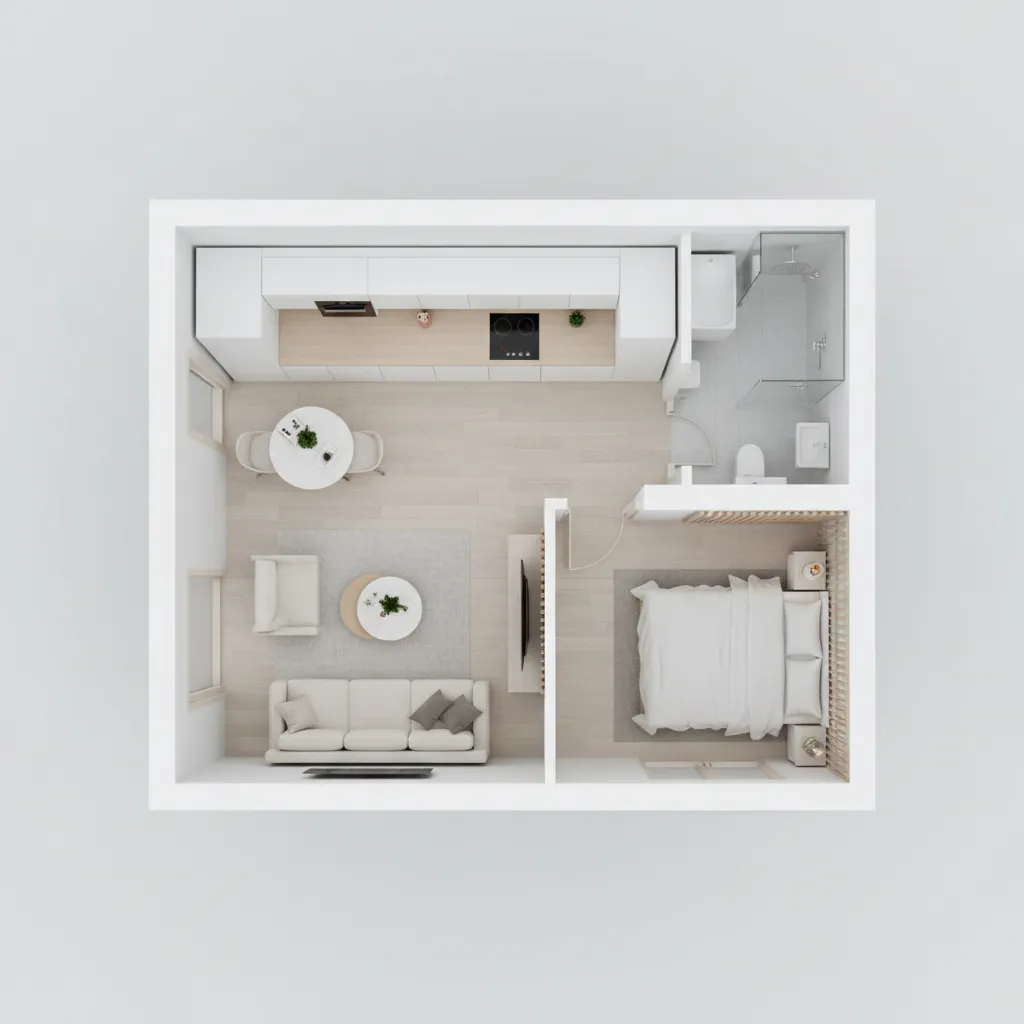

Why Small Floor Plans Look Distorted in 3D Images

Key Insight: Perspective distortion happens faster in small apartments because the camera is physically closer to every wall.

When visualizing a compact space like a 480 sq ft apartment, most people place the virtual camera too close to the room boundaries. The rendering engine compensates by widening the field of view, which stretches walls and corners.

In real architectural photography, professionals typically use a 24–35mm equivalent lens to avoid this exact issue. Many floor plan tools default to something much wider.

Common distortion triggers:

1. Field of view wider than 75°
2. Camera height below 4.5 feet
3. Camera placed in corners of the room
4. Rooms rendered with ultra‑wide perspective mode

Professional fix:

1. Set camera height around 5 ft (1.5 m)
2. Reduce field of view to 60–70°
3. Center the camera within the room
4. Avoid corner camera placement

These adjustments alone solve about half of the "distorted room" complaints I see in small‑apartment renderings.

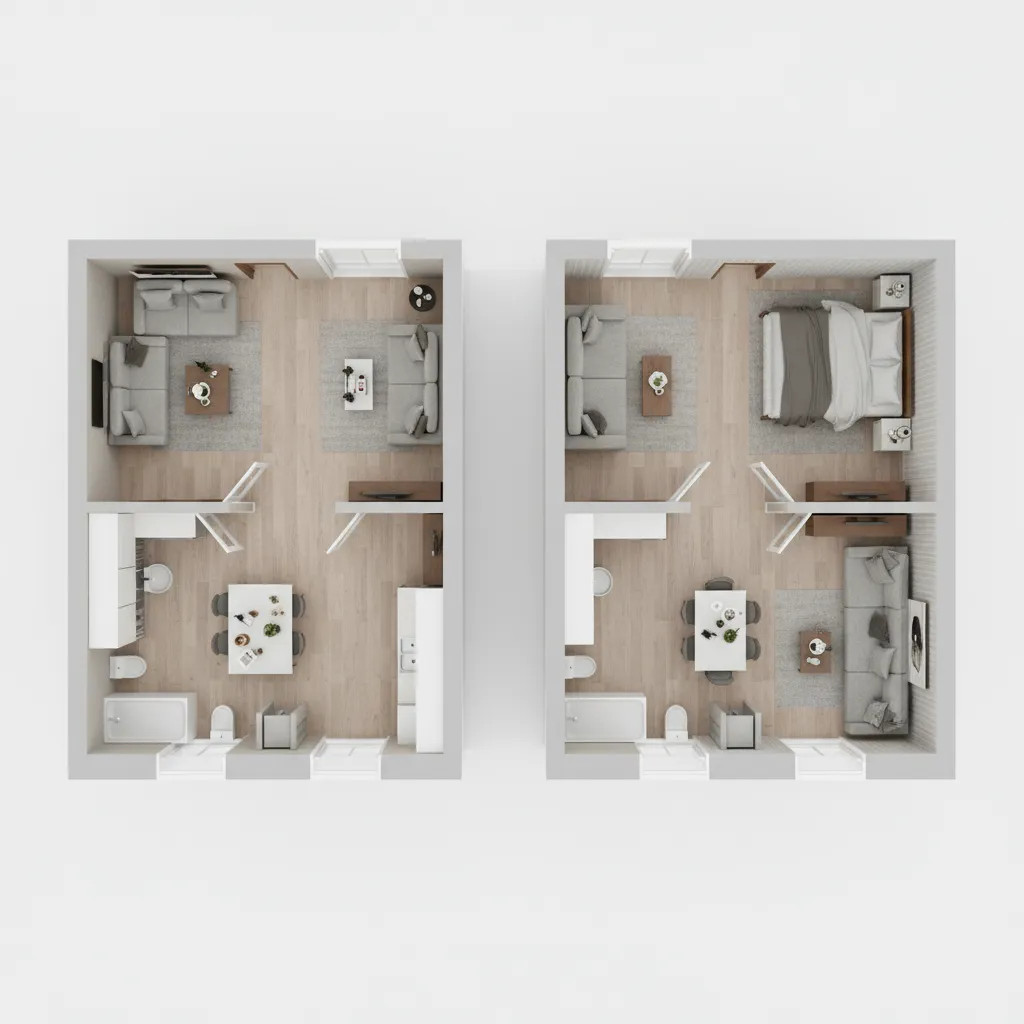

Common Scaling Errors in 480 Sq Ft Layout Models

Key Insight: A 2–3 inch measurement error can visibly break the proportions of a small floor plan.

In large houses, small measurement errors are barely noticeable. In a 480 sq ft apartment, they cascade quickly.

Typical scaling mistakes include:

1. Wall thickness entered incorrectly
2. Door widths set to default values
3. Incorrect ceiling heights
4. Imported floor plans scaled improperly

Real example from a studio project I reviewed last year:

1. Actual wall thickness: 5 inches
2. Model wall thickness: 10 inches

The result? The entire apartment visually shrank by nearly 20 square feet.

If you're building layouts digitally, starting with a structured layout workflow—like the one explained in this guide to building accurate digital floor plans from measurements—can prevent scaling errors before rendering even begins.

save pin

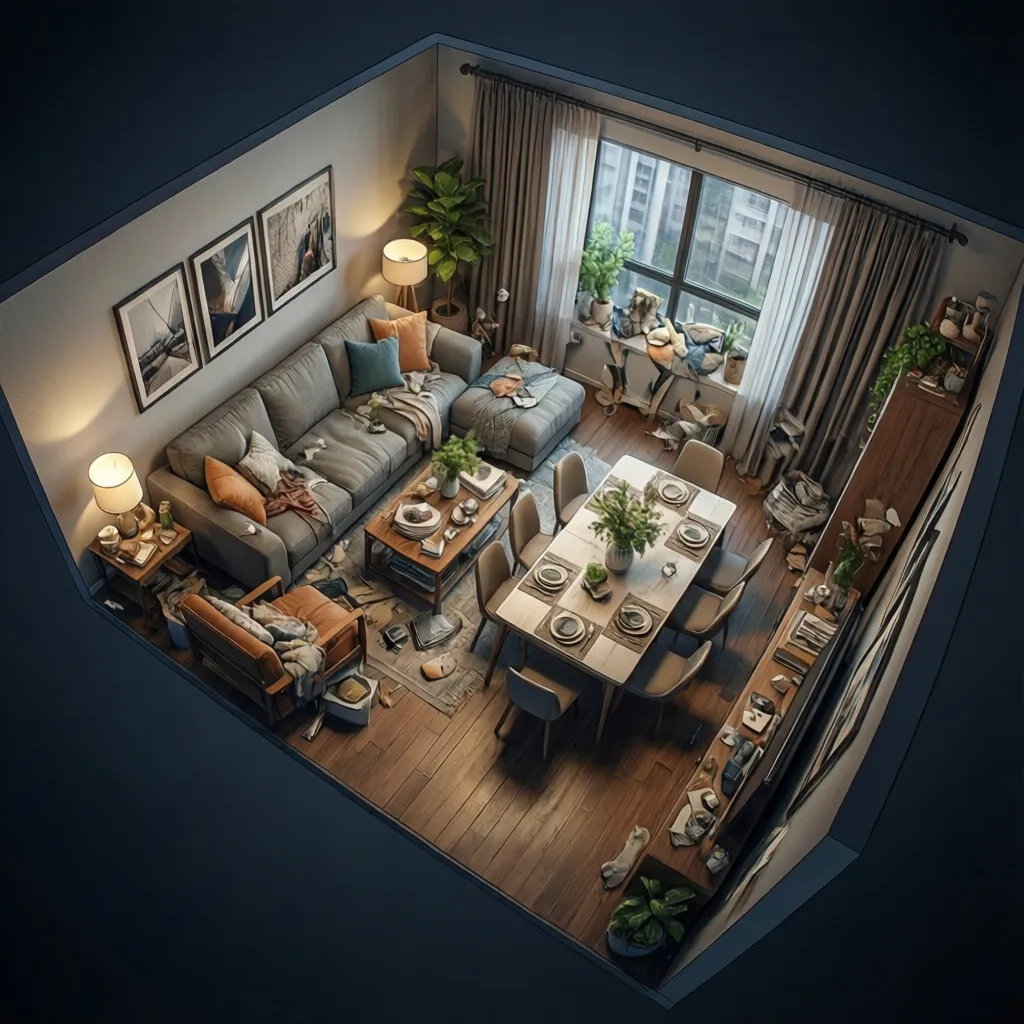

Furniture Placement Problems in 3D Floor Plans

Key Insight: Most 3D floor plans look unrealistic because furniture libraries default to suburban‑scale pieces.

This is one of the biggest hidden issues in small apartment visualization.

Many furniture assets are designed around larger homes. When dropped into a 480 sq ft layout, they quietly break spatial realism.

Common oversized furniture examples:

1. Sofas deeper than 40 inches
2. King beds in studio layouts
3. Oversized dining tables
4. Large sectional couches

What works better in compact layouts:

1. Apartment‑scale sofas (70–75 inches)
2. Round dining tables
3. Wall‑mounted desks
4. Storage beds
5. Open‑leg furniture

Designers who specialize in micro‑apartments often reduce furniture size by 10–15% compared with default library objects.

save pin

Lighting and Perspective Issues in Small Space Rendering

Key Insight: Poor lighting setups make compact spaces appear darker and smaller than they actually are.

Lighting problems in 3D floor plans usually come from relying on a single light source.

In real apartments, light bounces across surfaces, windows, and ceilings. In digital renders, that bounce must be simulated.

Typical rendering mistakes:

1. Only one ceiling light in the scene
2. No window daylight source
3. Overexposed window areas
4. Shadows set too dark

Better lighting setup for small apartments:

1. Primary daylight from windows
2. Soft ceiling lighting
3. Accent lights or lamps
4. Balanced shadow intensity

High‑quality visualization platforms designed for interior scenes—such as workflows used for creating photorealistic interior renderings for residential spaces—generally include global illumination systems that mimic natural light behavior.

save pin

How to Fix Unrealistic Room Proportions in 3D Plans

Key Insight: Room proportions look wrong when camera placement, ceiling height, and object scale are inconsistent.

When a 3D floor plan feels "off," it's usually a proportion mismatch between three elements:

1. Camera height
2. Ceiling height
3. Furniture scale

Here's a quick diagnostic checklist I use when reviewing renderings:

1. Camera height: around 5 feet
2. Ceiling height: typically 8–9 feet
3. Door height: 80 inches
4. Countertop height: 36 inches

If any of these numbers drift too far from reality, the entire space begins to feel distorted—even if the layout itself is accurate.

Answer Box

The most common cause of bad 3D images in a 480 sq ft floor plan is scale inconsistency between walls, furniture, and camera perspective. Accurate measurements, smaller furniture assets, and controlled camera angles usually solve the issue quickly.

Best Practices to Avoid Visualization Mistakes

Key Insight: A structured modeling workflow prevents most 3D floor plan errors before rendering even starts.

After years of reviewing design submissions and client renderings, these practices consistently produce the best small‑space visuals.

Recommended workflow:

1. Start with exact measurements
2. Build walls and structural elements first
3. Verify scale with standard furniture dimensions
4. Add lighting after layout is finalized
5. Set camera angles last

Most rendering problems appear when designers jump directly into decoration before validating spatial accuracy.

Final Summary

1. Perspective distortion is more visible in small apartments.
2. Incorrect wall thickness can break layout scale.
3. Oversized furniture causes unrealistic visual density.
4. Balanced lighting improves perceived space.
5. Accurate measurements prevent most 3D rendering problems.

FAQ

Why does my 3D floor plan look bigger than the real apartment?

This usually happens when furniture is underscaled or the camera field of view is too wide. Both exaggerate perceived space.

What causes distortion in small 3D floor plans?

Wide camera angles and incorrect wall measurements are the main causes of distortion in 3D floor plan visualization.

How accurate should a 480 sq ft floor plan model be?

Ideally within 1–2 inches for wall dimensions. Small layouts amplify measurement errors quickly.

What camera height works best for 3D interior images?

About 5 feet (1.5 m). This matches natural human eye level and keeps room proportions realistic.

Why do my 3D floor plan renderings look cramped?

Oversized furniture or incorrect scaling is usually the reason small apartments appear crowded.

Is lighting important in a 480 sq ft floor plan render?

Yes. Good lighting helps the space feel open and prevents overly dark corners in small layouts.

What is the most common 480 sq ft floor plan rendering error?

Incorrect furniture scale is the most common mistake in 480 sq ft floor plan rendering.

How can I troubleshoot 3D floor plan visualization problems?

Check wall measurements, furniture dimensions, camera angle, and lighting setup before adjusting design elements.
