Common Problems When Creating a 3D Keyboard Model and How to Fix Them: Practical fixes for misaligned keycaps, broken topology, scaling mistakes, and other issues that appear while modeling keyboards in 3D

Direct Answer

The most common problems when creating a 3D keyboard model are misaligned keycaps, inconsistent spacing, poor mesh topology, incorrect scaling, and overlapping geometry. These issues usually happen because the base grid, keycap duplication workflow, or unit scale was not set correctly at the start. Fixing them requires rebuilding the key grid, cleaning topology, and validating proportions before final export.

Quick Takeaways

1. Most keyboard 3D model problems originate from incorrect base grid setup.
2. Array duplication is safer than manual keycap placement.
3. Clean quad topology prevents shading artifacts during rendering.
4. Always validate keyboard dimensions against real hardware measurements.
5. Geometry intersections often appear after modifiers are applied.

Introduction

Creating a keyboard 3D model looks straightforward at first—just a rectangular board with rows of keys. But after working on dozens of product visualization and hardware modeling projects, I can say keyboards are deceptively tricky. The repetition of small components magnifies tiny mistakes.

A 0.5 mm spacing error might seem harmless on one keycap. Multiply that across 87 or 104 keys and suddenly the entire keyboard grid collapses. Misalignment becomes obvious, modifiers no longer fit, and the model starts behaving unpredictably during rendering or animation.

Many beginners follow a tutorial and everything works until about halfway through the build. Then spacing breaks, geometry overlaps, or shading artifacts appear. If you're following a full walkthrough like this step‑by‑step guide to create accurate 3D layouts for complex product structures, you’ll notice the same principle applies: the initial structure determines everything that follows.

In this troubleshooting guide, I’ll walk through the most common keyboard 3D model problems I’ve seen in real projects—plus the exact fixes professionals use to repair them without rebuilding the entire model.

save pin

Why Keyboard 3D Models Often Break During Creation

Key Insight: Most keyboard modeling failures come from incorrect grid planning before the first keycap is duplicated.

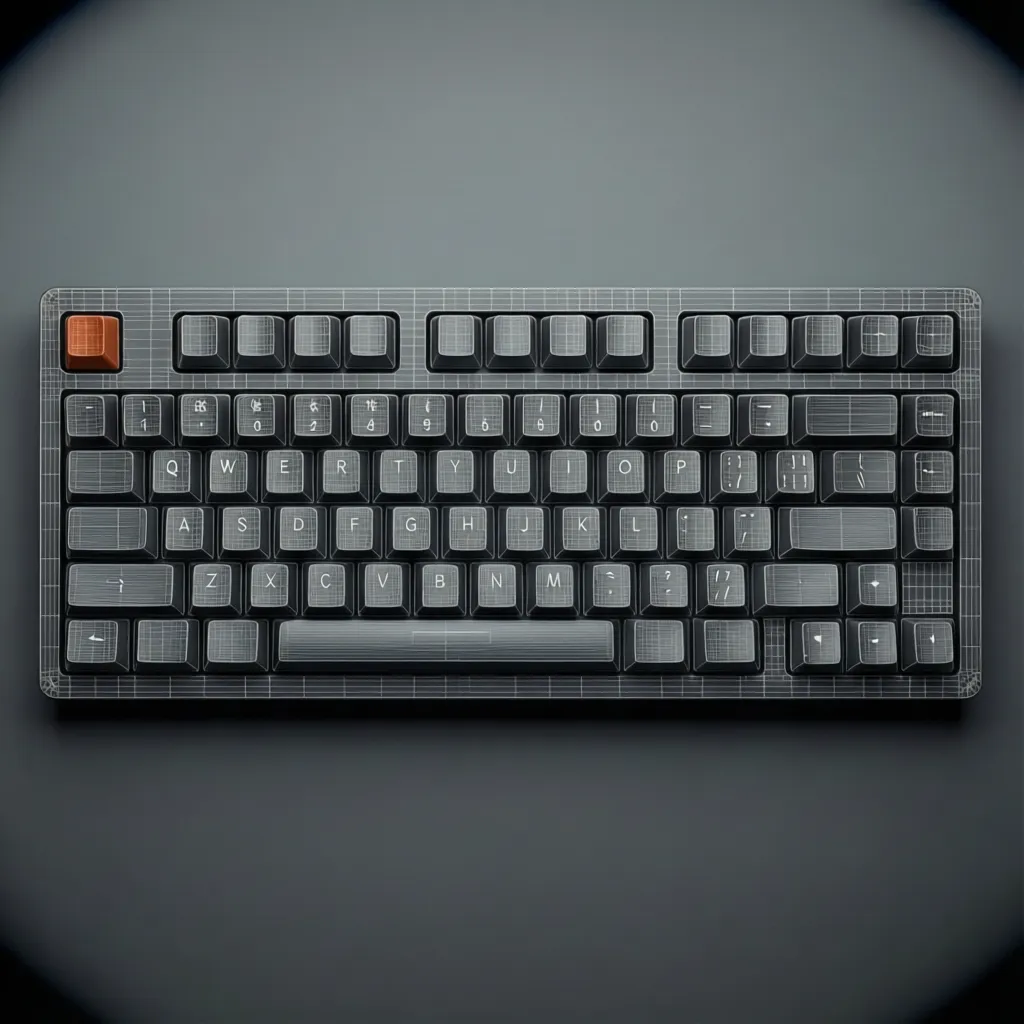

In professional modeling workflows, keyboards are built from a precise layout grid. Every keycap is aligned to that structure. When that grid is missing—or slightly off—small errors compound quickly.

Common root causes include:

1. Manual placement of keycaps instead of array duplication
2. Inconsistent unit scale settings
3. Incorrect reference measurements
4. Applying modifiers too early
5. Mixing different keycap models

Real keyboards follow strict measurements. For example:

1. Standard key pitch: 19.05 mm
2. Typical keycap height: 9–12 mm
3. Keyboard width for 104‑key layout: ~440 mm

If your base spacing isn't locked to these dimensions, the model will drift off grid as you continue building.

Fixing Misaligned Keycaps and Spacing Problems

Key Insight: Misaligned keycaps almost always happen when keys are duplicated individually instead of using grid arrays.

Manual duplication seems faster in the beginning, but it introduces tiny placement variations that accumulate across rows.

Professional workflow to fix spacing:

1. Delete duplicated keycaps that were manually placed.
2. Create one perfectly aligned master keycap.
3. Use an array modifier or grid duplication.
4. Set horizontal spacing to exactly 19.05 mm.
5. Duplicate rows using consistent vertical offsets.

Another overlooked mistake is forgetting that certain keys are wider than others.

Typical key widths:

1. Standard key: 1u
2. Tab: 1.5u
3. Caps Lock: 1.75u
4. Shift: 2.25u or 2.75u
5. Spacebar: 6.25u

When these are not accounted for correctly, row alignment breaks instantly.

save pin

Resolving Mesh Topology Errors in Keyboards

Key Insight: Poor topology causes shading glitches and rendering artifacts even when the keyboard shape looks correct.

I’ve reviewed many keyboard models where everything appears fine in solid view, but rendering reveals strange reflections or broken highlights. That’s almost always a topology issue.

Common topology mistakes include:

1. Ngons on curved keycap edges
2. Unnecessary subdivisions
3. Disconnected vertices
4. Overlapping faces

Best topology practices for keyboards:

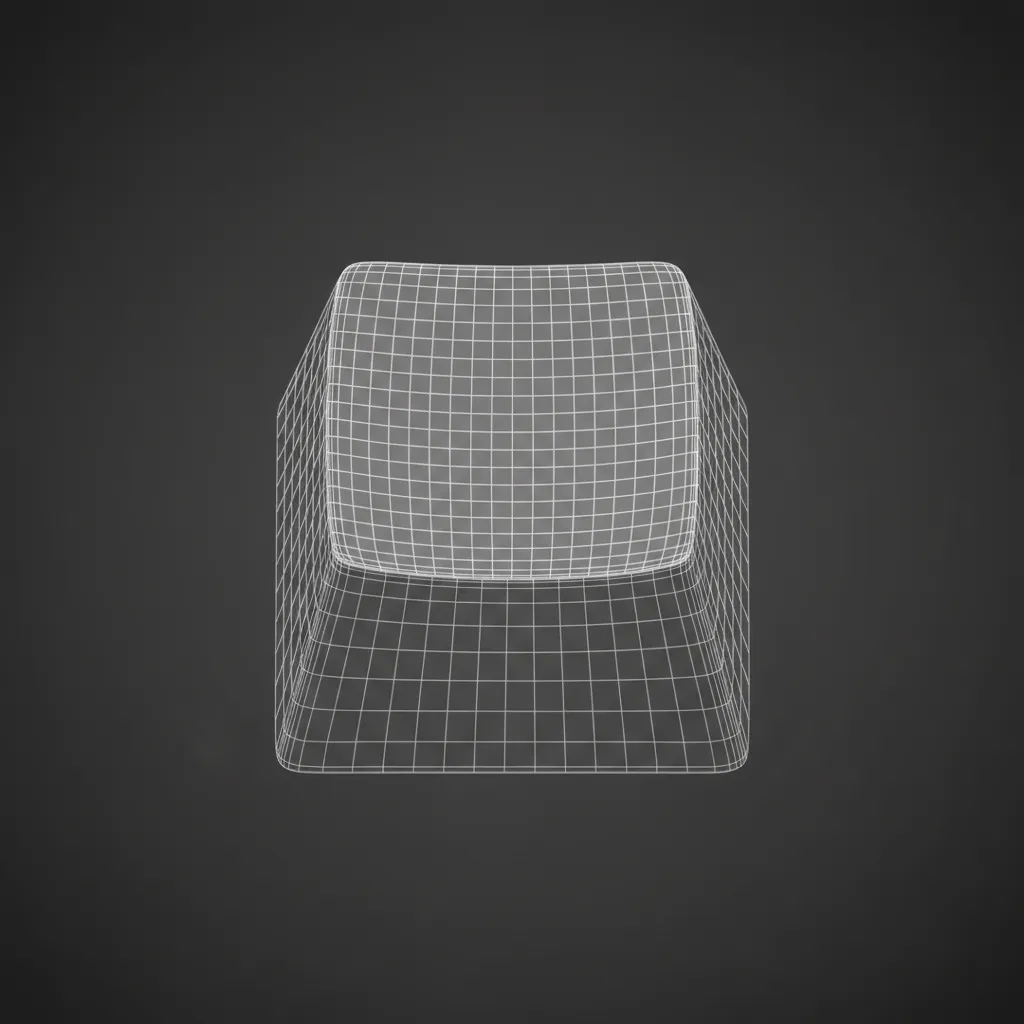

1. Use quad‑based geometry
2. Keep bevel segments minimal
3. Maintain consistent edge flow
4. Avoid excessive subdivision modifiers

Hardware visualization studios often keep keycaps under 2,000 polygons each for performance and stability.

If you're planning to visualize the keyboard in a larger environment—like a desk or workspace scene—you'll also benefit from tools designed to build accurate 3D room layouts for product renders.

save pin

Correcting Scale and Proportion Issues

Key Insight: Incorrect unit settings are the hidden reason many keyboard models feel visually "off" even when geometry is correct.

One subtle problem I often see is artists modeling in default units without checking real measurements. The keyboard ends up slightly too thick, too wide, or oddly tall.

Use these real‑world references:

1. Key pitch: 19.05 mm
2. Keycap height: 9–12 mm
3. Keyboard thickness: 18–25 mm
4. Desk clearance height: ~30 mm front edge

Fix process:

1. Set modeling units to millimeters.
2. Measure a single keycap width.
3. Scale the entire model proportionally.
4. Re‑validate row spacing.

This step alone fixes a surprising number of keyboard 3D model problems.

Answer Box

The fastest way to fix keyboard 3D model issues is to rebuild the base key grid using correct 19.05 mm spacing, clean quad topology, and real hardware dimensions. Once the grid is correct, most alignment and geometry errors disappear.

Cleaning Up Overlapping Geometry and Artifacts

Key Insight: Overlapping meshes often appear after modifiers are applied or when components are duplicated incorrectly.

These problems usually become visible during rendering, especially with reflective materials.

Typical artifact sources:

1. Boolean operations on the keyboard case
2. Duplicated keycaps inside each other
3. Unapplied mirror modifiers
4. Hidden internal faces

Cleanup checklist:

1. Apply modifiers before export
2. Merge duplicate vertices
3. Delete hidden interior faces
4. Recalculate normals
5. Run mesh cleanup tools

save pin

Testing and Validating Your Final Keyboard Model

Key Insight: Validation prevents small modeling errors from becoming major rendering problems later.

Before considering a keyboard model finished, professionals run a quick verification pass.

Final validation steps:

1. Check spacing across all rows
2. Test lighting reflections on keycaps
3. Verify real‑world dimensions
4. Confirm mesh is manifold
5. Inspect shading in high‑contrast lighting

If the keyboard will appear in a product visualization scene, it’s also helpful to test it within a realistic environment. For example, you can generate high‑quality 3D interior render scenes for product visualization to evaluate reflections, scale perception, and lighting behavior.

Final Summary

1. Keyboard modeling errors usually start with incorrect grid spacing.
2. Array duplication prevents misaligned keycaps.
3. Clean quad topology eliminates rendering artifacts.
4. Real hardware measurements ensure accurate proportions.
5. Final validation catches hidden geometry issues.

FAQ

Why do my keycaps look uneven in a keyboard 3D model?

Uneven keycaps usually result from manual placement instead of grid duplication. Rebuild the layout using a consistent 19.05 mm key pitch.

What spacing should I use for a keyboard 3D model?

The standard key spacing (key pitch) is 19.05 mm between key centers for most mechanical keyboards.

Why does my keyboard model have shading artifacts?

Shading issues typically come from poor mesh topology such as ngons, overlapping faces, or inconsistent normals.

How do I fix overlapping geometry in a keyboard model?

Merge duplicate vertices, remove internal faces, and ensure modifiers are applied before exporting or rendering.

What polygon count is good for a keyboard 3D model?

For visualization projects, individual keycaps usually stay under 2,000 polygons to balance detail and performance.

What are common keyboard 3D model problems beginners face?

Common issues include incorrect spacing, misaligned rows, broken topology, overlapping meshes, and inaccurate scaling.

Should I model every keycap individually?

No. Use a master keycap and duplicate it using array or grid systems to maintain perfect alignment.

How can I verify if my keyboard model dimensions are correct?

Measure the key pitch (19.05 mm) and compare the overall keyboard width with real hardware specifications.
