Common Problems When Creating a 3D Safety Pin Model and How to Fix Them: A practical troubleshooting guide for fixing geometry errors, scale issues, and broken pin mechanisms in small mechanical 3D models.

Direct Answer

Most problems in a 3D safety pin model come from curve misalignment, incorrect scale, overlapping geometry, or poorly defined hinge mechanics. Fixing them usually requires rebuilding clean curves, maintaining real‑world proportions, and ensuring the clasp joint has proper rotational constraints.

Because safety pins are thin, curved metal objects, even tiny modeling inaccuracies can create distorted meshes or export failures.

Quick Takeaways

1. Most safety pin modeling errors start with inaccurate curve paths.
2. Always model using real‑world scale to avoid distorted proportions.
3. Overlapping meshes often break renders and exports.
4. Clasp mechanisms require a defined pivot and clearance gap.
5. Clean topology matters more for small metal objects than complex shapes.

Introduction

After building dozens of small mechanical assets over the years, I've learned that the 3D safety pin model is deceptively tricky. On the surface it looks simple: one bent wire and a clasp. But in practice, curved metal geometry combined with extremely thin proportions causes a lot of unexpected problems.

Designers often tell me their model suddenly looks warped, the clasp won’t rotate properly, or the mesh collapses during export. Those issues rarely come from the rendering stage—they usually start much earlier in the modeling workflow.

In professional projects, I always check scale, curve accuracy, and mesh cleanliness before moving forward. The same principles that help designers plan accurate layouts in tools like a step‑by‑step 3D layout visualization workflowalso apply to small product models: start with precise structure before worrying about visuals.

Below are the most common modeling problems I see with safety pins, along with the fixes that consistently work in Blender, Fusion 360, SolidWorks, and similar tools.

save pin

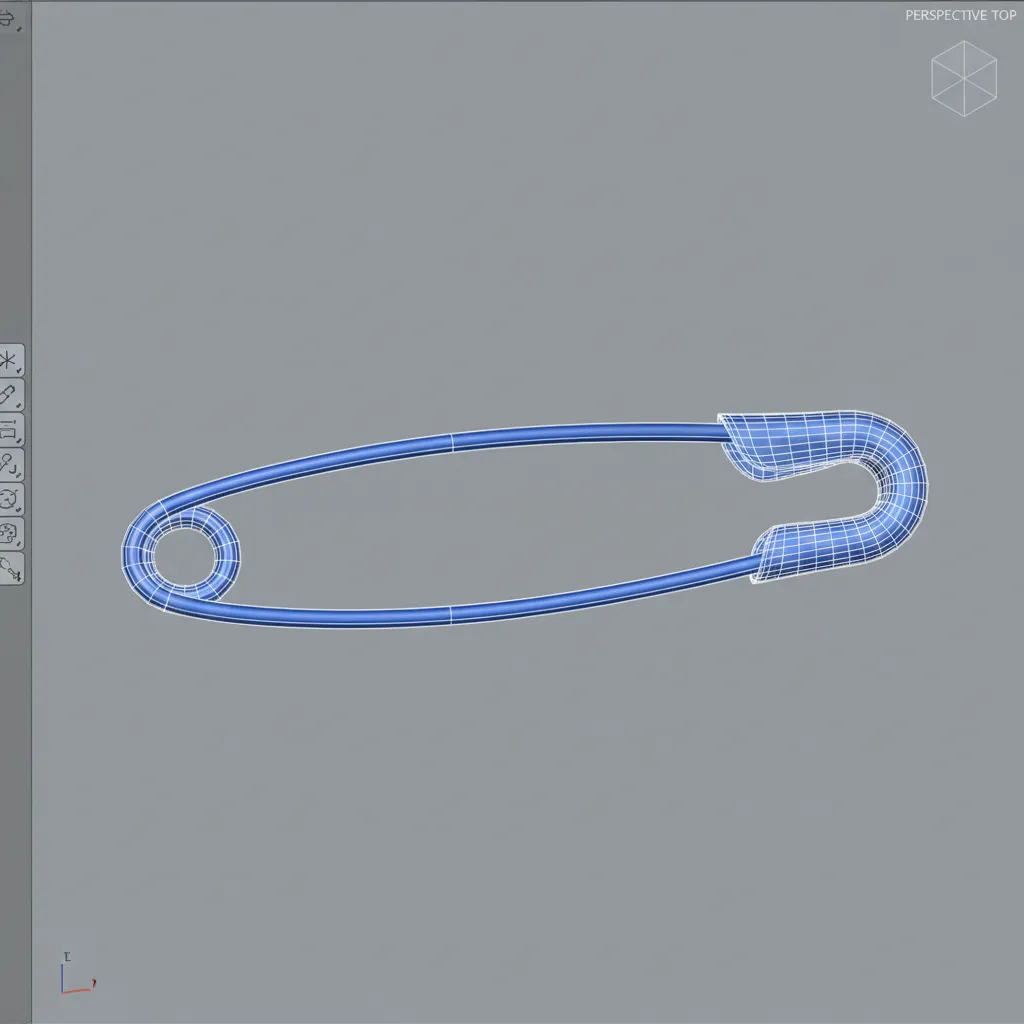

Why 3D Safety Pin Models Often Break During Modeling

Key Insight: Safety pin models break because thin curved geometry amplifies even tiny alignment or topology mistakes.

A safety pin is essentially a long continuous wire bent into multiple tight curves. When those curves are built using inconsistent splines or low‑resolution paths, the mesh becomes unstable during subdivision, beveling, or smoothing.

In real manufacturing, safety pins are produced from a single metal wire. Replicating that logic in 3D modeling dramatically reduces problems.

Common causes of broken models:

1. Multiple disconnected curve segments
2. Uneven spline resolution
3. Sharp bends with insufficient edge loops
4. Non‑uniform scaling applied after modeling

Industry modeling guidelines for product visualization typically recommend starting with a single spline path and applying a consistent bevel profile. This approach keeps curvature mathematically smooth and prevents distortions.

Fixing Curve and Wireframe Alignment Issues

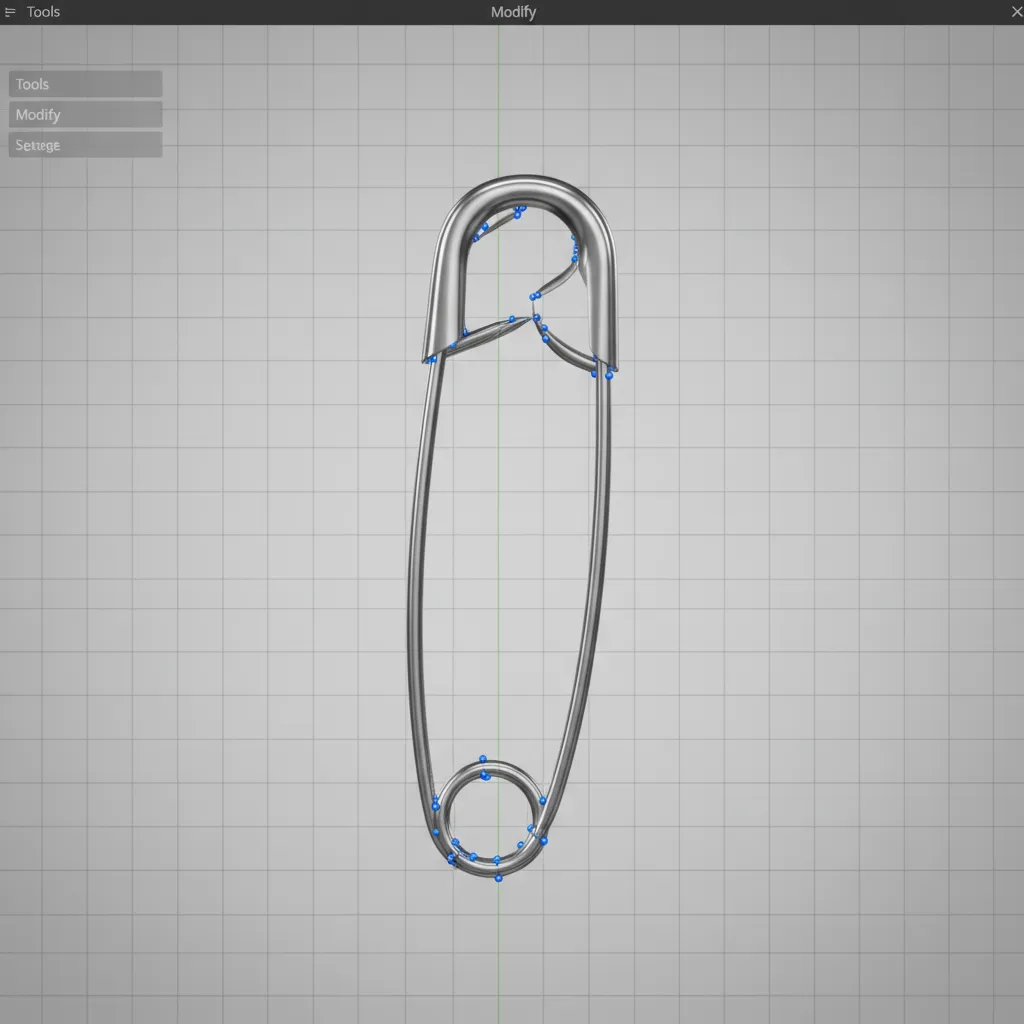

Key Insight: If the safety pin wire looks crooked, rebuild the base curve instead of trying to repair the mesh.

Many designers attempt to fix alignment problems by editing vertices after the mesh is created. That usually makes the geometry worse.

The cleaner solution is rebuilding the spline or path used to generate the wire.

Recommended workflow:

1. Create a single continuous curve for the entire pin shape.
2. Use reference dimensions from a real safety pin.
3. Apply a circular bevel profile for the wire thickness.
4. Convert to mesh only after the curve is finalized.

One mistake I see frequently is mixing multiple curve objects for different pin sections. That causes visible seams when rendered.

save pin

Resolving Geometry Overlaps and Mesh Errors

Key Insight: Overlapping wire segments cause rendering artifacts and export failures in small mechanical models.

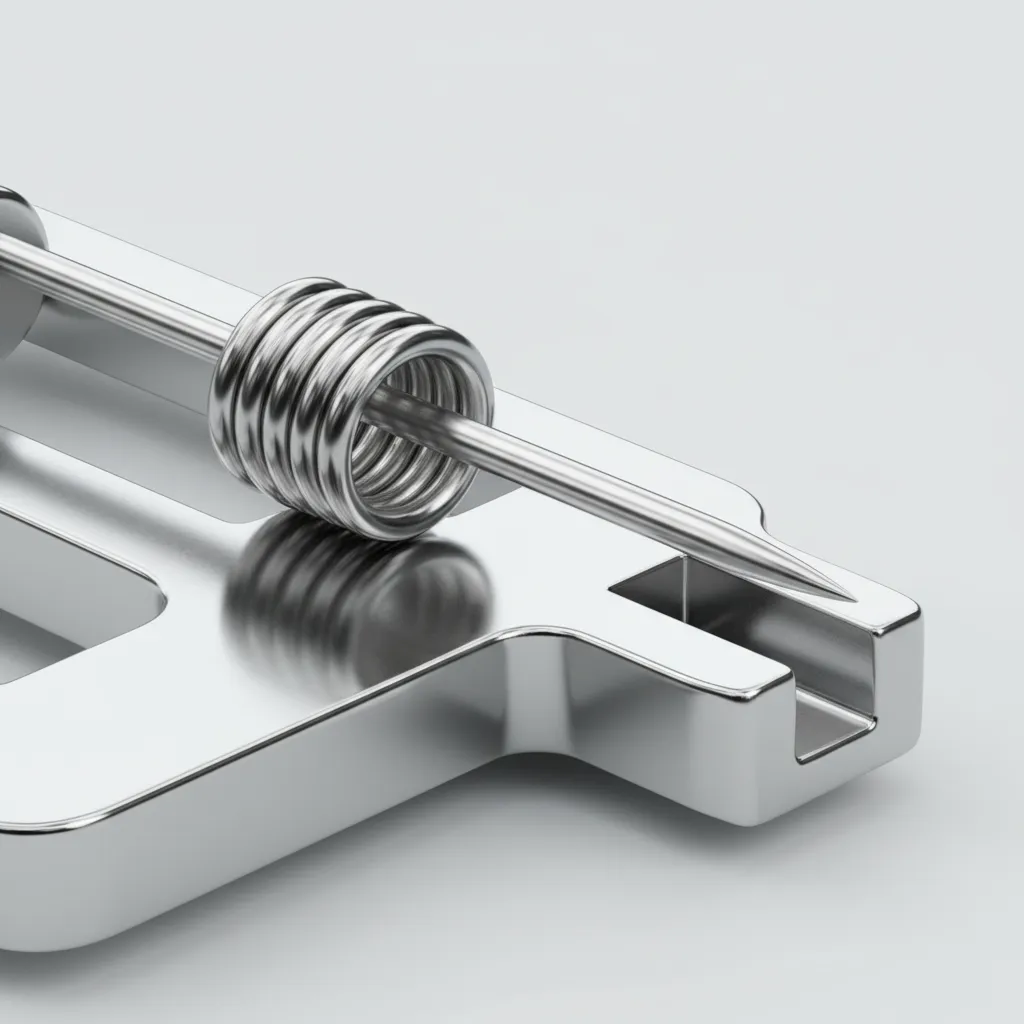

The clasp area of a safety pin is where mesh errors usually appear. Designers often intersect two pieces of geometry instead of leaving a small clearance.

Typical mesh problems include:

1. Z‑fighting where surfaces occupy the same space
2. Non‑manifold edges near the clasp
3. Hidden internal faces
4. Boolean artifacts

Professional product modelers usually maintain a tiny mechanical gap between moving parts.

Recommended spacing guidelines:

1. 0.2–0.4 mm gap for small mechanical hinges
2. Avoid direct mesh intersections
3. Use "Merge by Distance" or cleanup tools

If you frequently encounter mesh artifacts, reviewing examples from a structured AI‑assisted modeling workflow for complex shapescan help clarify how clean geometry improves downstream rendering.

save pin

Correcting Scale and Proportion Problems

Key Insight: Incorrect scale is the hidden reason many 3D safety pin models look distorted.

Because safety pins are extremely small objects, beginners often model them at arbitrary sizes and scale them later. That causes bevel widths, curve resolution, and subdivision levels to behave unpredictably.

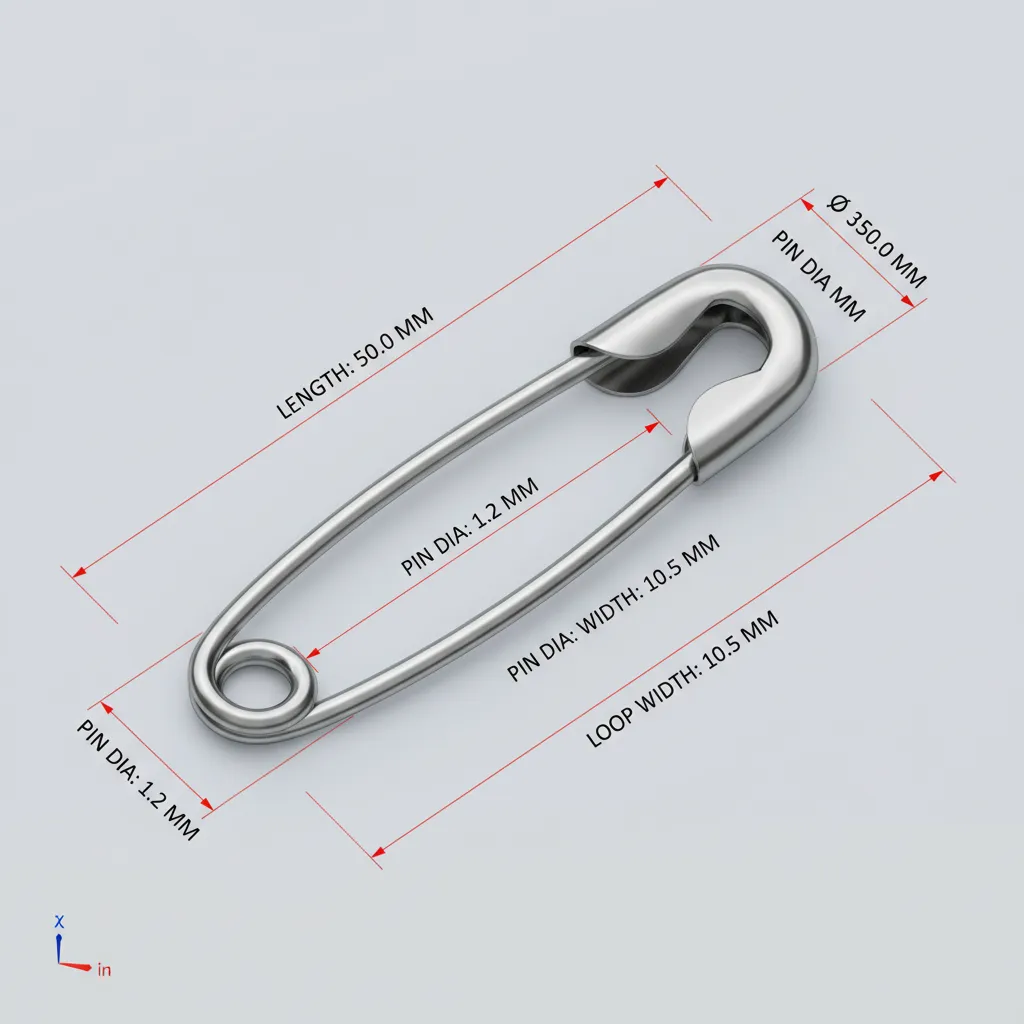

A typical safety pin size reference:

1. Small pin: 19–22 mm length
2. Standard pin: 27–30 mm length
3. Large pin: 38–45 mm length
4. Wire thickness: ~0.7–1.2 mm

Modeling directly at real-world dimensions ensures curves maintain correct proportions and metal thickness remains believable.

save pin

Making the Pin Clasp Mechanism Work Properly

Key Insight: A working clasp requires a defined pivot point and a realistic bending radius.

The clasp mechanism is where most functional errors occur. Many models visually resemble a safety pin but cannot rotate or animate correctly.

The hinge section must follow basic mechanical logic.

Key requirements:

1. A circular coil or loop that acts as the hinge
2. A pivot aligned to the center of that loop
3. Clearance for the pin tip to slide into the clasp

Mechanical reference photos are extremely helpful here. Real pins rely on tension in the bent metal wire, which your model should visually reflect.

Answer Box

The fastest way to fix a broken 3D safety pin model is rebuilding the base curve, maintaining real‑world scale, and leaving small gaps between mechanical parts. Clean curves and proper hinge structure prevent most mesh and export errors.

Export Errors When Saving a 3D Safety Pin Model

Key Insight: Export errors usually happen because thin meshes or non‑manifold geometry break the file structure.

When exporting small mechanical models to formats like STL, OBJ, or FBX, tiny geometry flaws become much more noticeable.

Before exporting, run this checklist:

1. Apply scale transforms
2. Remove internal faces
3. Check normals orientation
4. Confirm the mesh is manifold

If your pipeline includes rendering or layout staging, workflows similar to a complete 3D render preparation process for product visualization help ensure geometry stays stable across tools.

Final Summary

1. Safety pin models fail mainly due to poor curve construction.
2. Real‑world scale prevents distortion in small objects.
3. Mechanical clearance avoids overlapping mesh artifacts.
4. A proper hinge pivot is essential for a realistic clasp.
5. Clean topology ensures smooth exporting and rendering.

FAQ

Why does my 3D safety pin model look distorted?

Distortion usually comes from uneven curve resolution or scaling the model after adding thickness. Build the curve first, then apply a consistent bevel profile.

How do I fix mesh problems in a safety pin 3D model?

Check for overlapping faces, non‑manifold edges, and internal geometry. Cleaning the mesh and rebuilding the base curve often solves the issue.

What software is best for modeling a 3D safety pin?

Blender works well for spline modeling, while Fusion 360 or SolidWorks provide precise parametric control for mechanical accuracy.

Why does the clasp mechanism not rotate correctly?

The pivot point is usually misaligned. Place the rotation axis at the center of the hinge coil.

How do I correct scale in small 3D objects?

Always model using real‑world units like millimeters. Avoid scaling after bevel or subdivision modifiers are applied.

What file format is best for exporting a 3D safety pin model?

OBJ and FBX work well for rendering pipelines, while STL is common for manufacturing or 3D printing.

Why do export errors happen with small mechanical models?

Tiny geometry exaggerates mesh flaws. Non‑manifold edges and extremely thin surfaces often break exports.

How much gap should exist in the clasp area?

Around 0.2–0.4 mm clearance usually prevents mesh intersection while keeping the model visually realistic.
