Common Problems When Downloading CAD Parts from 3DPartLib (And How to Fix Them): Practical troubleshooting tips to solve CAD download errors, compatibility issues, and broken model files from 3DPartLib.

Direct Answer

Most 3DPartLib download problems happen because of file format mismatches, incomplete geometry, or incorrect import settings in CAD software. The good news is that these issues are usually fixable by choosing the right file format, verifying geometry integrity, and adjusting import parameters. With a few quick checks, most CAD models can be repaired or imported successfully.

Quick Takeaways

1. Most CAD download failures are caused by incompatible file formats or incorrect import settings.
2. STEP files are usually the most reliable format across different CAD software platforms.
3. Broken geometry often results from translation errors during export.
4. Previewing model structure before import saves significant troubleshooting time.
5. Simple validation checks can prevent hours of downstream modeling issues.

Introduction

If you've ever downloaded a model from a CAD library and watched your software throw an error message, you're not alone. I see this constantly when working with engineers and product designers who rely on component libraries. The reality is that 3DPartLib download problems usually aren't caused by the library itself—they happen during file translation between different CAD systems.

After a decade working with design teams and digital modeling pipelines, I've noticed the same pattern: the model downloads perfectly, but the import process fails, geometry breaks, or features disappear. That’s especially common when users jump between parametric and mesh-based environments.

Before digging into fixes, it helps to understand how CAD data behaves across platforms. If you're working with spatial planning or design visualization alongside engineering assets, tools that let you visualize layouts and spatial planning in 3D before importing modelscan reveal geometry issues earlier in the workflow.

In this guide, I'll break down the most common CAD library download issues I see in real projects, why they happen, and the fastest ways to fix them without rebuilding the model from scratch.

save pin

Why CAD Library Downloads Sometimes Fail

Key Insight: CAD downloads rarely fail because of the file itself—failures usually occur during file translation between modeling kernels.

Different CAD platforms rely on different geometry engines (Parasolid, ACIS, CGM, and others). When a model moves from one system to another, the software must translate the geometry structure. That translation step is where most errors occur.

Typical failure causes include:

1. Unsupported file format
2. Export settings that strip feature data
3. Version incompatibilities between CAD systems
4. Corrupted geometry during conversion

From experience, STEP files tend to survive cross‑platform transfers better than native formats. In many engineering teams I’ve worked with, STEP has quietly become the "universal handshake" between tools.

Industry groups like NIST have also documented that geometry translation remains one of the most persistent interoperability challenges in digital manufacturing workflows.

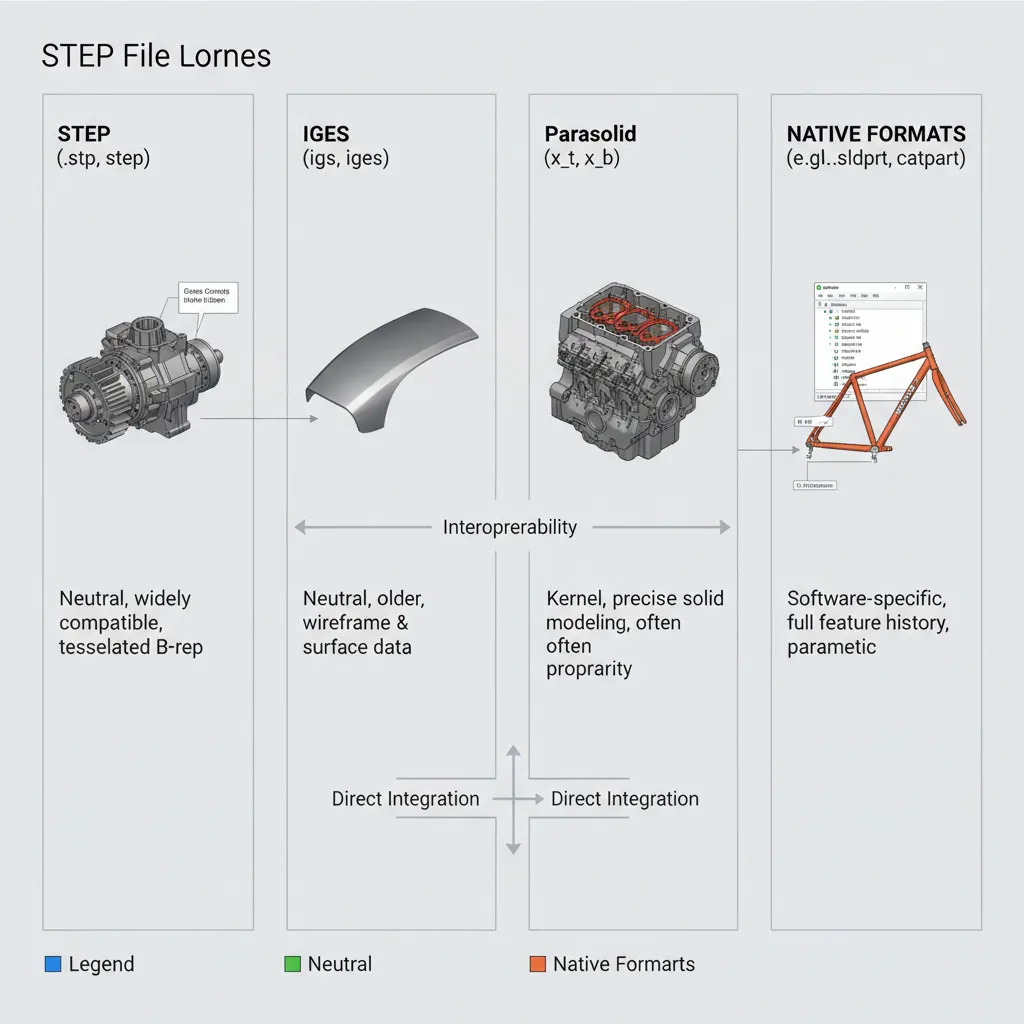

File Format Compatibility Issues

Key Insight: Choosing the wrong file format is the fastest way to trigger CAD import errors.

Most CAD libraries offer several export formats. Many users instinctively download the native format of another platform, assuming it will contain richer data. Ironically, that often makes compatibility worse.

Here’s a simplified reliability hierarchy I often recommend to teams:

1. STEP (.step / .stp) — best universal compatibility
2. Parasolid (.x_t / .x_b) — excellent for Parasolid‑based software
3. IGES (.igs) — older but sometimes necessary
4. Native CAD files — highest risk when crossing platforms

Common mistake designers make:

1. Downloading SolidWorks native files for use in Fusion or Inventor
2. Importing IGES when STEP would preserve surfaces better
3. Opening mesh STL files expecting parametric features

When compatibility matters, STEP almost always wins.

save pin

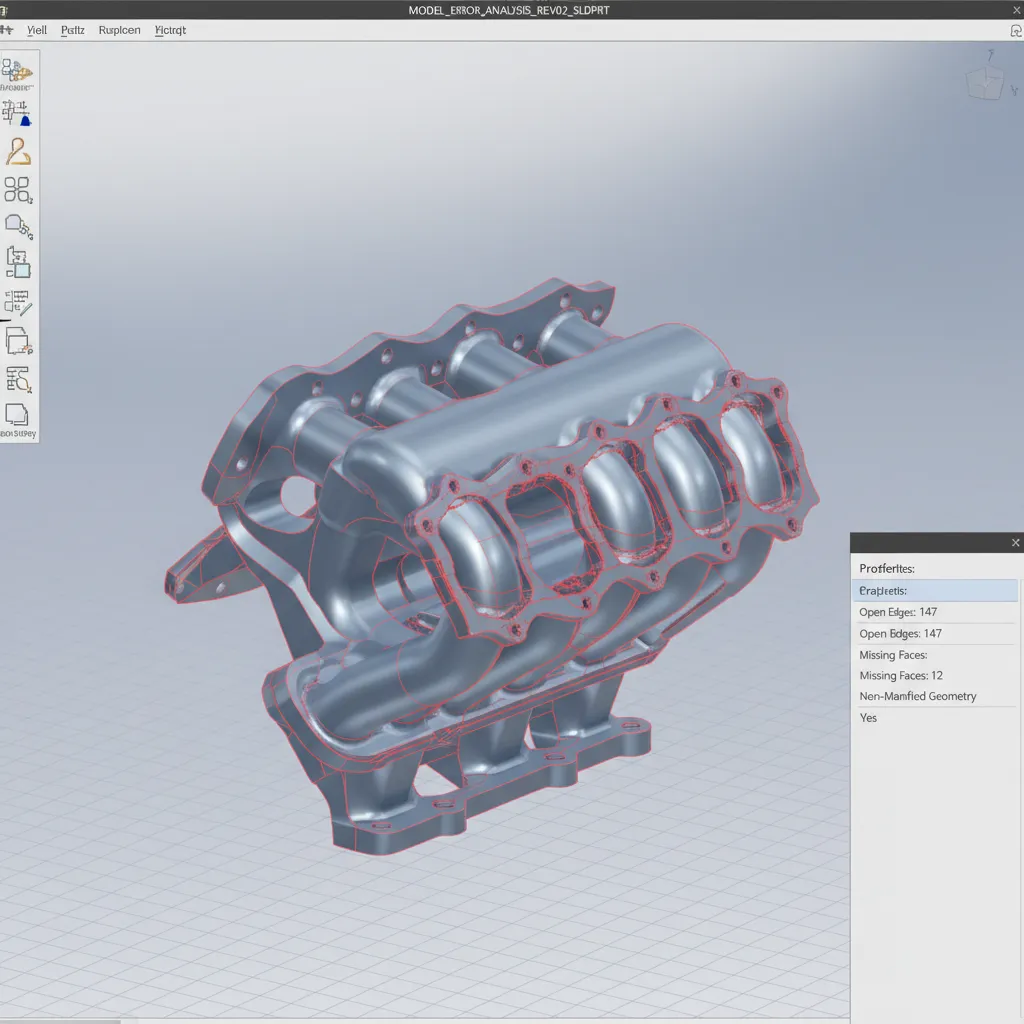

Missing Geometry or Broken CAD Models

Key Insight: Missing surfaces usually indicate translation gaps in trimmed surfaces or tolerance mismatches.

This is one of the most frustrating CAD issues: the model loads, but pieces are missing.

In my experience, the problem often comes from:

1. Tiny tolerance differences between CAD kernels
2. Improperly stitched surfaces
3. Export settings that simplify geometry
4. Boolean operations that didn't fully resolve

Quick fixes that work surprisingly often:

1. Run "Heal Geometry" tools inside your CAD software
2. Stitch surfaces manually
3. Re‑import using different tolerance settings
4. Download the model again in STEP instead of IGES

Visualization environments can sometimes reveal geometry problems earlier. For example, teams reviewing layouts using tools that quickly preview spatial arrangements and object placementoften notice broken models before the engineering stage.

save pin

Import Errors in Popular CAD Software

Key Insight: Import failures usually come from incorrect unit settings or feature recognition attempts.

Different CAD software behaves differently when importing neutral files.

Typical software‑specific problems include:

1. SolidWorks: Feature recognition attempts slow imports or fail
2. Fusion 360: Cloud translation delays or mesh conversions
3. Inventor: Unit scaling mismatches
4. Rhino: Surface trimming inconsistencies

Three troubleshooting steps I recommend:

1. Disable automatic feature recognition.
2. Check unit settings before importing.
3. Import geometry as a solid body first.

One overlooked issue: some CAD systems try to rebuild parametric history from neutral files. That sounds useful, but it frequently breaks imported geometry.

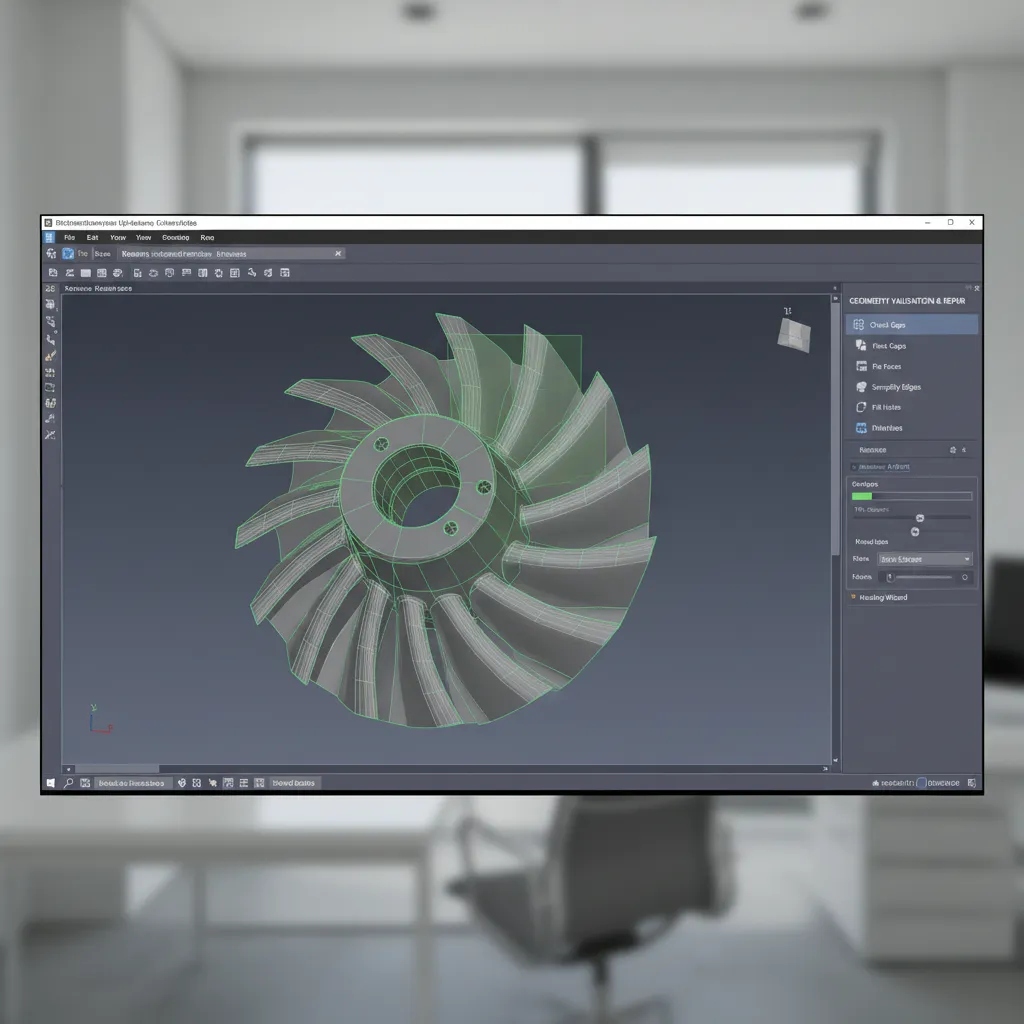

How to Verify Model Integrity Before Use

Key Insight: A 30‑second geometry validation check can prevent hours of downstream modeling errors.

Before integrating downloaded parts into a project, run a quick integrity check.

My typical checklist:

1. Check for open edges
2. Confirm solid body status
3. Validate unit scale
4. Inspect face normals
5. Look for duplicate surfaces

Visualization also helps confirm real‑world proportions. When presenting assemblies or layouts, some teams generate quick previews using tools that produce realistic 3D environment renders for design validationbefore committing to final modeling.

save pin

Answer Box

The fastest way to fix most CAD library download issues is to use STEP files, verify unit settings before import, and run geometry healing tools after loading the model. These three steps resolve the majority of compatibility and broken‑geometry problems.

Best Practices to Avoid Download Problems

Key Insight: Preventing CAD download problems is easier than repairing broken models later.

After working with hundreds of CAD assets across design teams, a few habits consistently reduce import failures.

Recommended workflow:

1. Always download STEP files first
2. Keep CAD software updated
3. Run geometry validation immediately after import
4. Store original downloaded files as backups
5. Avoid editing imported surfaces until validation is complete

One counterintuitive insight: rebuilding small components manually can sometimes be faster than repairing a broken imported model. If a part is simple, reconstruction may take minutes while repair attempts can drag on for hours.

Final Summary

1. STEP format provides the most reliable cross‑platform CAD compatibility.
2. Most import failures come from translation errors, not bad downloads.
3. Geometry healing tools fix many broken models automatically.
4. Unit mismatches are a surprisingly common cause of CAD errors.
5. Quick model validation prevents downstream design problems.

FAQ

Why are my downloaded CAD models not opening?

Most failures happen because the CAD software cannot read the file format or version. Try downloading the STEP format instead.

What causes 3DPartLib download problems?

Common causes include incompatible file formats, broken geometry during export, and incorrect import settings inside the CAD software.

Which file format is safest for CAD downloads?

STEP files generally provide the best compatibility across most CAD platforms.

How do I fix incompatible CAD model files?

Import the file using STEP format and run geometry healing tools available in most CAD systems.

Why do CAD models import with missing surfaces?

Surface trimming errors or tolerance mismatches during file translation often cause missing geometry.

Can broken CAD geometry be repaired?

Yes. Many CAD programs include "heal geometry" or "repair body" tools that automatically fix common issues.

Why does my CAD model import at the wrong scale?

Unit mismatches between export and import settings are usually responsible.

Are free CAD libraries reliable for professional work?

Yes, but models should always be validated before integrating them into production assemblies.
