Common Problems When Installing Double Doors in Small Spaces (And How to Fix Them): A practical troubleshooting guide to solve clearance, hinge stress, and layout conflicts when fitting double doors into tight interiors.

Direct Answer

Double doors in small spaces often fail because of limited swing clearance, poor frame alignment, and uneven hinge load. These issues prevent the doors from opening fully or cause long‑term structural stress. Most problems can be solved by adjusting hinge placement, reducing swing angles, or redesigning the surrounding layout.

Quick Takeaways

1. Most small‑space double door issues come from swing clearance miscalculations.
2. Improper frame alignment can cause both doors to bind or close unevenly.
3. Heavy door leaves place excessive stress on hinges in narrow openings.
4. Compact hinges and door stops often solve clearance conflicts.
5. Early layout planning prevents most installation mistakes.

Introduction

Double doors look elegant in architectural drawings, but in real projects they can become surprisingly tricky when space is tight. After designing and supervising dozens of residential remodels, I've seen the same pattern repeat: homeowners love the idea of double doors, yet once installed in a compact hallway or small entry, they suddenly realize the doors can't open fully or collide with nearby walls and furniture.

This is where most double door problems in small spaces begin. The issue is rarely the door itself—it’s usually the surrounding geometry. In narrow interiors, even a few inches of miscalculated clearance can make the doors awkward or unusable.

When planning layouts for clients, I often simulate door movement early using a visual floor layout that reveals door swing conflicts before construction. That simple step alone prevents many of the problems people only discover after installation.

Below are the most common installation issues I encounter with compact double doors—and practical ways to fix them without tearing everything apart.

save pin

Why Double Doors Can Be Challenging in Small Areas

Key Insight: Double doors require almost twice the swing clearance of single doors, which makes them difficult to integrate into compact layouts.

Architecturally, double doors work best in wide openings where both panels can swing freely. But in apartments, small homes, or tight corridors, the door leaves often compete with nearby walls, furniture, or circulation paths.

In practice, the main spatial challenges include:

1. Two simultaneous swing arcs instead of one
2. Reduced clearance near walls or cabinets
3. Limited walking space when doors are open
4. Structural limitations in narrow frames

In several renovation projects I worked on in Los Angeles condos, the original plan included double doors for visual symmetry. But once we modeled the actual swing arcs, we realized one door would block a hallway completely.

The lesson: double doors amplify small layout mistakes.

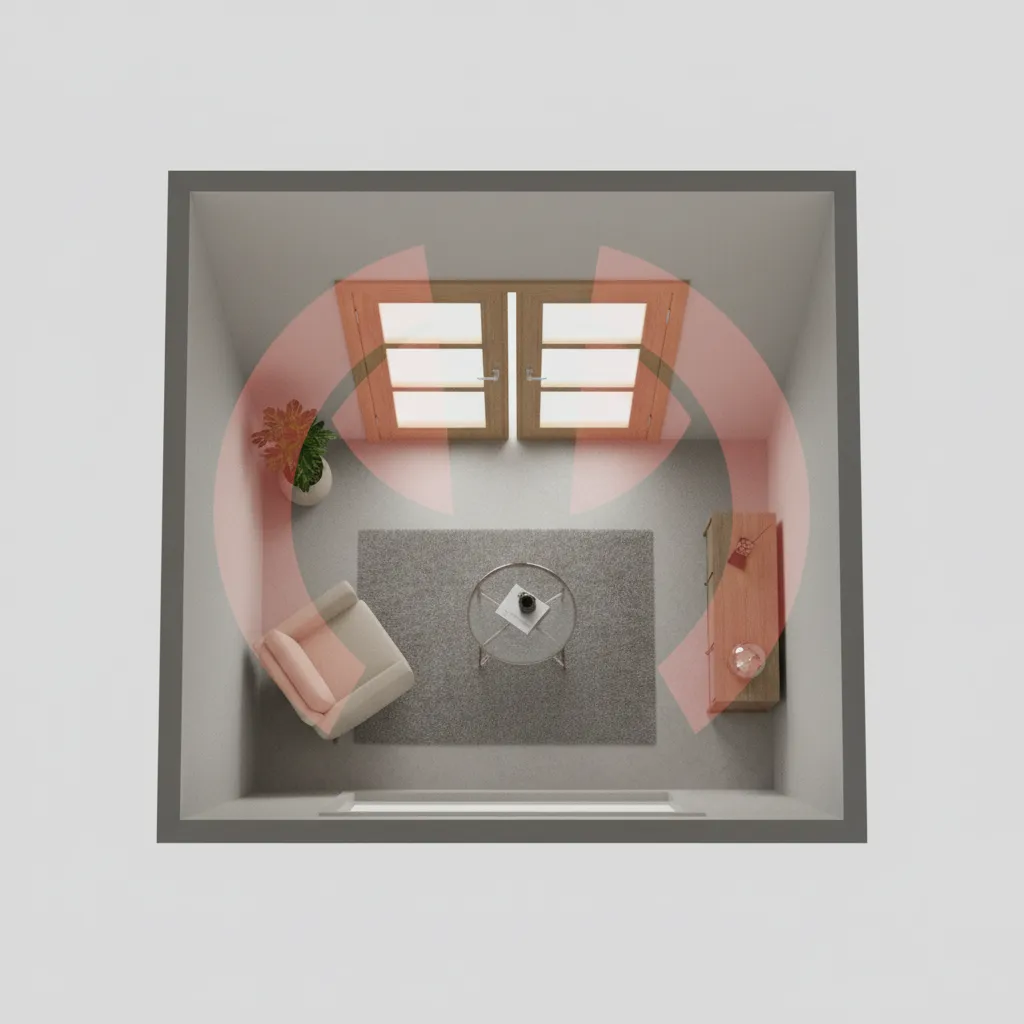

Door Swing Collisions With Walls or Furniture

Key Insight: The most common reason double doors don't open fully in small rooms is swing arc collisions.

Many installers measure the doorway but forget to calculate the full swing radius. When both leaves open, their arcs often hit nearby walls, cabinets, or furniture.

Typical collision scenarios include:

1. Door hitting a perpendicular wall
2. Door leaf colliding with built‑in cabinets
3. Furniture blocking one door panel
4. Doors clashing with each other due to misalignment

One practical fix is redesigning the surrounding layout. During planning stages, using a room layout simulation that tests door swing paths helps identify these conflicts early.

When the doors are already installed, solutions may include:

1. Installing door stops to limit swing angles
2. Reversing hinge orientation
3. Repositioning nearby furniture
4. Replacing hinges with offset or swing‑clear hinges

save pin

Frame Alignment Issues in Narrow Openings

Key Insight: Slight frame misalignment becomes much more noticeable with double doors than with single doors.

In tight openings, installers sometimes force the frame into walls that are not perfectly square. With a single door, this might go unnoticed. With double doors, however, even a small tilt can cause one panel to rub the floor while the other leaves a gap.

Signs of frame alignment problems:

1. Uneven gap between the two doors
2. Doors that drift open or closed
3. Bottom edge scraping the floor
4. Latch misalignment

Fixing alignment typically involves:

1. Adjusting hinge shims
2. Re‑squaring the frame
3. Reinstalling strike plates
4. Checking level and plumb across both sides

Professional installers often use laser levels to ensure the two door leaves meet perfectly in the center.

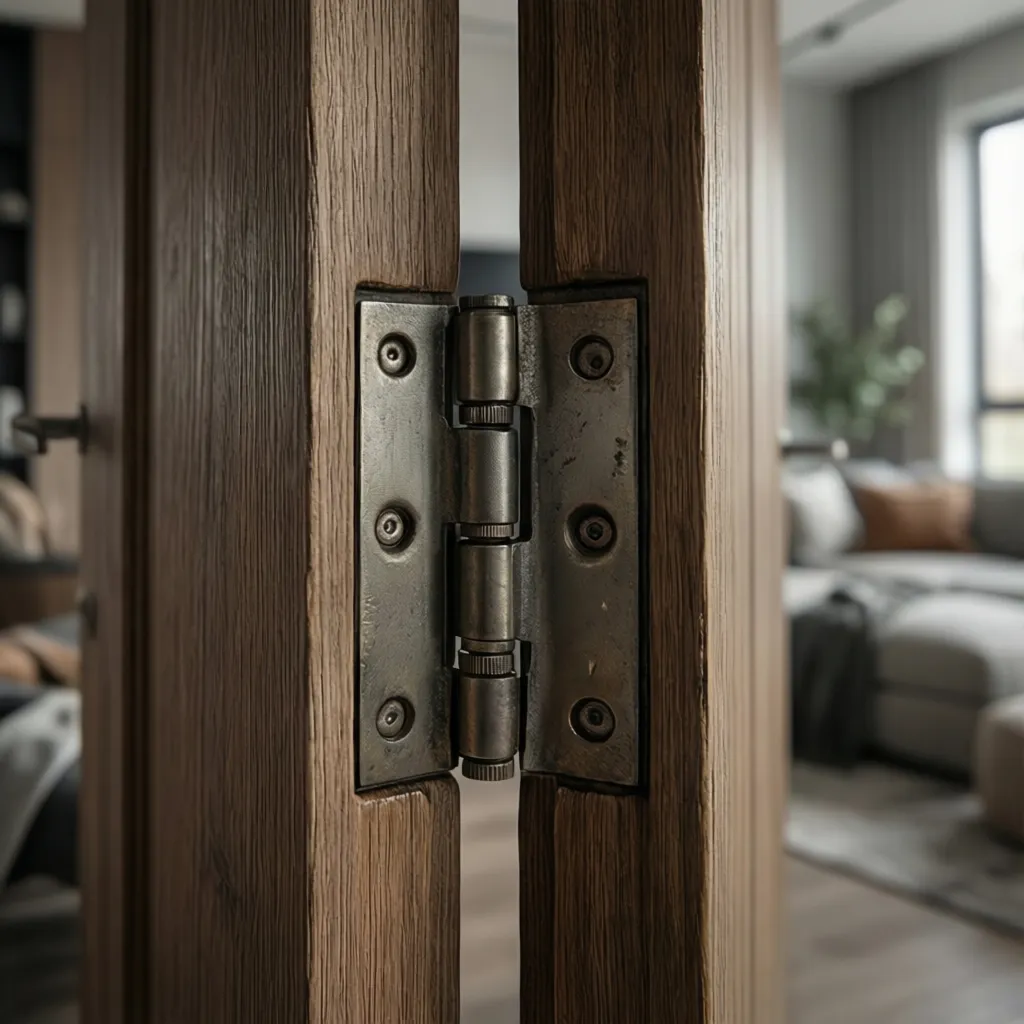

Uneven Door Weight and Hinge Stress

Key Insight: In small openings, heavier door leaves place disproportionate stress on hinges and frames.

Many homeowners choose solid wood double doors for aesthetics, but in compact frames these doors can weigh significantly more than the hardware was designed to handle.

Over time this leads to:

1. Sagging doors
2. Loose hinge screws
3. Doors rubbing against the frame
4. Difficulty closing both panels evenly

A practical rule from my own installations:

1. Doors under 80 lb: standard three hinges
2. Doors 80–120 lb: heavy‑duty hinges
3. Doors above 120 lb: reinforced hinge plates

Skipping this step is one of the most common double door installation mistakes in small entry layouts.

save pin

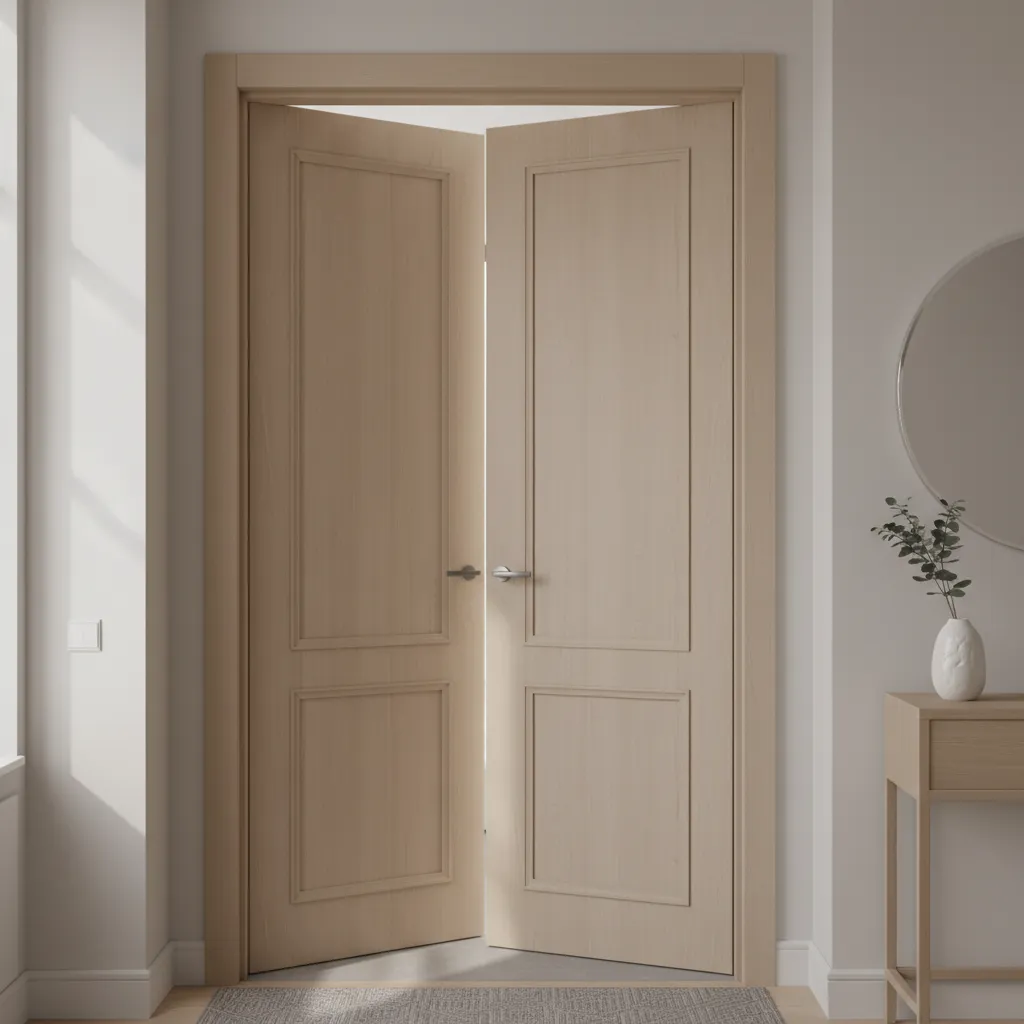

Poor Clearance and Accessibility Problems

Key Insight: Even when double doors technically fit, poor clearance can make them inconvenient to use daily.

I've seen many projects where the doors open correctly but block walkways or make it hard to carry items through the doorway.

Accessibility problems usually appear when:

1. Both doors must be opened for normal passage
2. Furniture restricts entry width
3. Door handles hit adjacent walls
4. One door becomes permanently fixed

In compact homes, a better solution may involve designing one active door and one passive leaf that opens only when needed.

Answer Box

Most double door issues in small spaces come from incorrect clearance planning rather than faulty doors. Adjusting hinge types, limiting swing angles, and correcting frame alignment usually resolves the problem without replacing the doors.

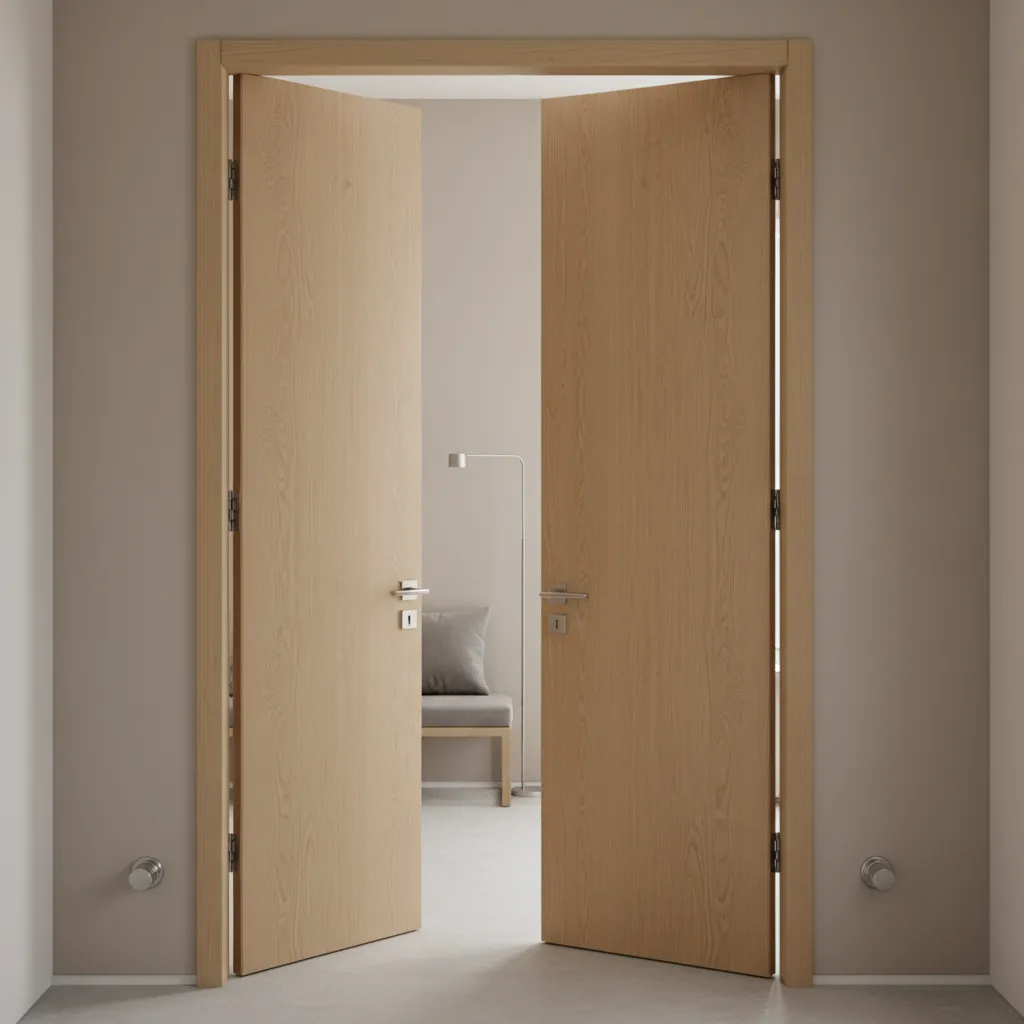

Fixes Using Compact Hinges and Stops

Key Insight: Specialized hardware can dramatically improve how double doors function in tight spaces.

Hardware upgrades are often the fastest fix when structural changes aren't possible.

Recommended solutions include:

1. Swing‑clear hinges – allow doors to open wider without increasing clearance
2. Offset hinges – shift the pivot point outward
3. Magnetic door stops – prevent collisions with walls
4. Soft‑close hinges – reduce impact stress

In several compact apartment projects, switching to swing‑clear hinges increased doorway clearance by nearly two inches—enough to solve daily usability issues.

Preventing Future Installation Mistakes

Key Insight: Most compact double door problems are avoidable with proper layout planning before installation.

Professional designers rarely rely on rough measurements alone. Instead, we simulate circulation paths and door movement before construction begins.

A reliable planning process typically includes:

1. Mapping full door swing arcs
2. Checking clearance against furniture layouts
3. Verifying structural wall width
4. Testing accessibility scenarios

When working on remodels, I strongly recommend creating a simple floor plan that tests door placement before installation. It takes minutes but can prevent expensive reconstruction later.

save pin

Final Summary

1. Double doors require significantly more swing clearance than single doors.
2. Most installation issues stem from layout miscalculations.
3. Frame alignment errors quickly affect door performance.
4. Heavy doors need stronger hinges in narrow openings.
5. Proper planning prevents nearly all small‑space double door problems.

FAQ

Why do double doors not open fully in small rooms?

Usually because the swing arc hits walls, furniture, or cabinets. Limited clearance is the most common reason.

How do you fix double door clearance issues?

Install swing‑clear hinges, adjust hinge positions, or limit the door swing using stops.

What are common double door problems in small spaces?

Frame misalignment, hinge stress, swing collisions, and reduced walkway clearance are the most frequent issues.

Can double doors work in narrow hallways?

Yes, but careful planning is required. Often one door leaf is fixed while the other handles daily traffic.

Do double doors require stronger hinges?

Yes. Each door leaf carries its own weight, so heavy doors should use reinforced hinges.

Are double doors practical for small apartments?

They can work visually, but functional space must be carefully evaluated before installation.

How much clearance do double doors need?

Ideally, the full door width plus additional swing space on each side.

What hardware helps with tight double door installations?

Swing‑clear hinges, offset hinges, and adjustable door stops are the most effective solutions.
