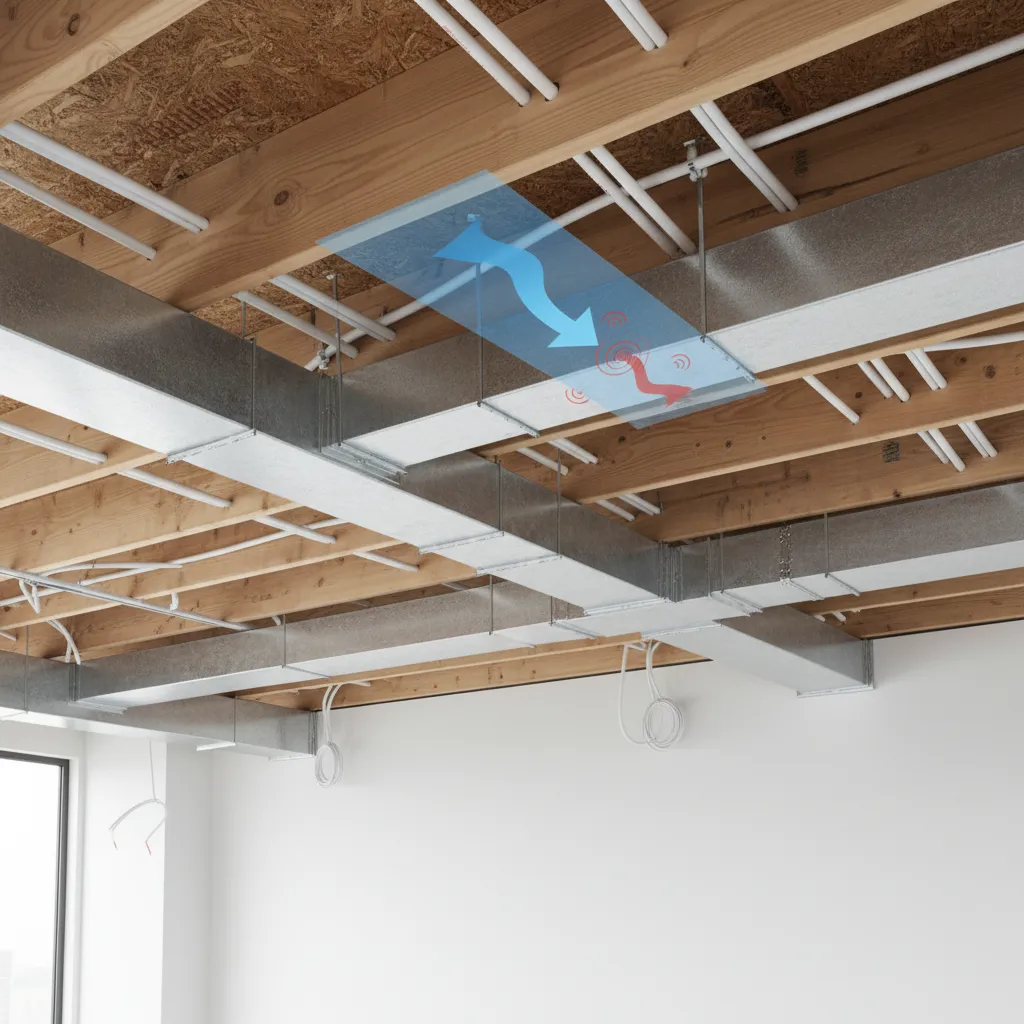

Common Risks of Using an Undersized HVAC Duct: How small ductwork quietly damages airflow, comfort, and energy efficiency in residential HVAC systems

Direct Answer

An undersized HVAC duct restricts airflow, forcing the system to operate under higher static pressure. This leads to weak airflow at vents, increased energy consumption, excess noise, and long‑term strain on HVAC components.

Over time, small ducts can reduce comfort, shorten equipment lifespan, and significantly lower overall system efficiency.

Quick Takeaways

1. Undersized ducts increase static pressure and force HVAC equipment to work harder.
2. Restricted airflow often causes noisy vents, uneven temperatures, and weak air delivery.
3. Small ducts reduce energy efficiency and increase operating costs.
4. Early signs include whistling vents, hot and cold spots, and longer HVAC cycles.
5. Proper duct sizing and airflow planning prevent most of these system risks.

Introduction

After working on residential HVAC-related interior renovation projects for more than a decade, I've noticed that duct sizing problems are surprisingly common. The issue usually appears when a duct looks "good enough" on paper but ends up undersized once the system actually starts moving air.

An undersized HVAC duct doesn't just reduce airflow—it changes how the entire system behaves. Rooms become uneven in temperature, vents get noisy, and energy bills slowly climb without homeowners realizing why.

In many homes I’ve evaluated, the root problem wasn't the HVAC unit itself. It was the ductwork struggling to carry the required airflow through spaces that were never properly planned. When planning layouts for mechanical paths, tools like visualizing airflow routes within a detailed home layoutcan reveal conflicts long before construction starts.

In this guide, I’ll break down the real risks of undersized ducts, how to recognize the symptoms early, and what practical solutions actually fix the problem.

save pin

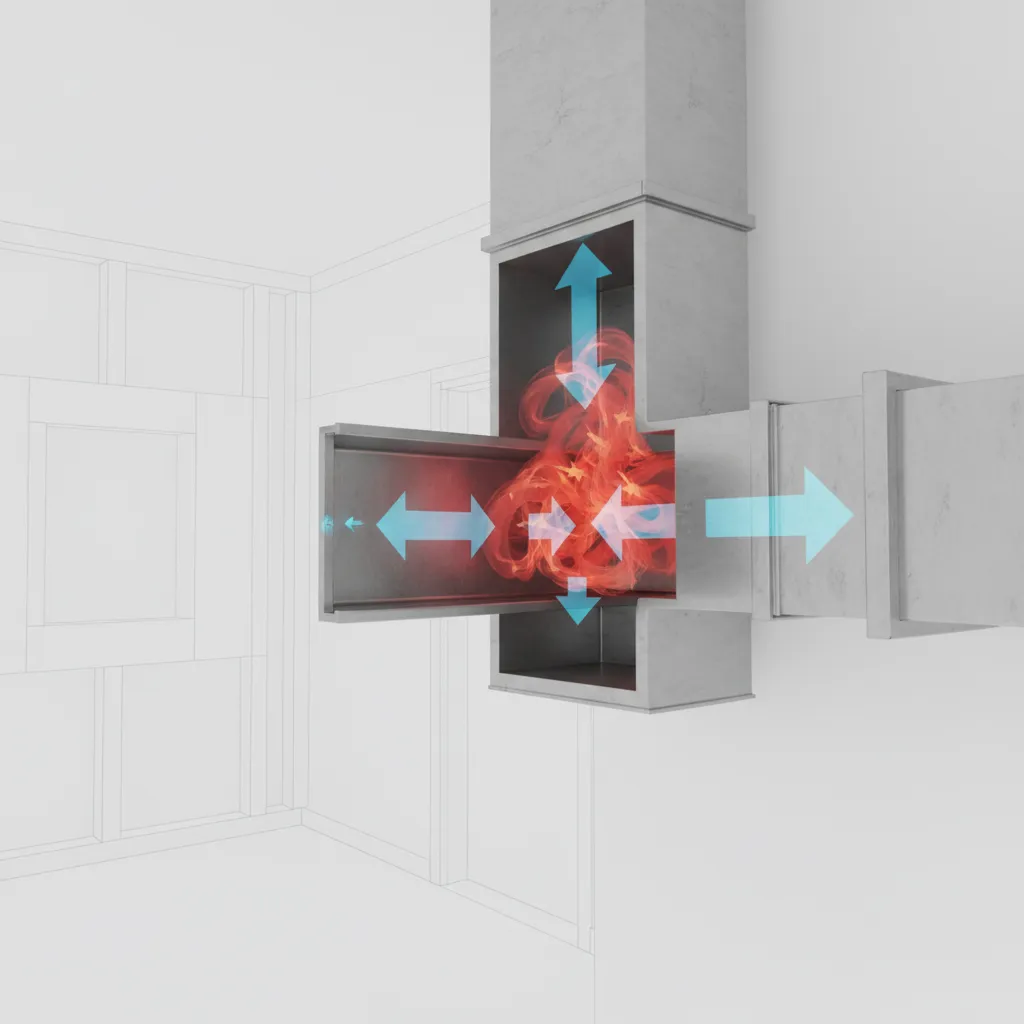

What Happens When a Duct Is Too Small for the Required Airflow

Key Insight: When a duct is too small, airflow volume drops while system pressure rises, creating an inefficient and unstable HVAC system.

HVAC systems are designed around a required airflow rate measured in cubic feet per minute (CFM). If the duct diameter cannot support that airflow, the air encounters resistance, similar to water trying to pass through a narrow pipe.

This restriction creates several cascading problems.

1. Reduced airflow at supply vents
2. Uneven heating or cooling between rooms
3. Higher blower workload
4. Frequent system cycling

For example, a typical bedroom may require around 100–150 CFM of airflow. If the installed duct can only deliver 70–80 CFM efficiently, the system compensates by increasing fan speed and pressure.

ASHRAE design guidelines emphasize that airflow capacity must match both duct diameter and run length. When these factors are ignored, performance drops quickly.

Static Pressure and HVAC System Strain

Key Insight: Undersized ducts increase static pressure, which is one of the most common hidden causes of HVAC equipment failure.

Static pressure is the resistance air faces when moving through ductwork. Every system has a recommended operating range. When ducts are too small, pressure rises beyond that range.

Excessive static pressure affects the system in several ways:

1. Blower motors run hotter and wear out faster
2. Air filters clog more quickly
3. Cooling coils receive insufficient airflow
4. Heating systems experience inefficient heat exchange

Technicians often refer to this as a "high static system." According to HVAC design training materials from ACCA (Air Conditioning Contractors of America), static pressure above 0.8 inches of water column can significantly reduce system efficiency.

In extreme cases, compressors or heat exchangers can fail prematurely because airflow never reaches design levels.

save pin

Noise, Vibration, and Comfort Issues

Key Insight: Air forced through small ducts creates turbulence, which produces noise and inconsistent comfort throughout the home.

One of the earliest signs of undersized ductwork is sound. Homeowners often describe it as:

1. Whistling vents
2. Rushing air sounds
3. Rattling duct sections
4. Vibration near registers

This happens because air velocity becomes too high inside narrow ducts. Instead of flowing smoothly, the air becomes turbulent.

In design practice, comfortable residential airflow usually targets air velocities around:

1. 700–900 feet per minute in main trunks
2. 500–700 feet per minute in branch ducts

Undersized ducts can push velocities well beyond 1200 feet per minute, which dramatically increases sound levels.

Beyond noise, turbulence also causes uneven room temperatures—some rooms receive too much air while others barely receive any.

Energy Efficiency Loss from Restricted Airflow

Key Insight: Restricted airflow forces HVAC systems to consume more energy while delivering less heating or cooling.

Energy loss is one of the most overlooked consequences of small ductwork. When airflow is restricted, the HVAC system compensates by operating longer cycles.

Common efficiency losses include:

1. Longer cooling or heating runtimes
2. Higher blower energy consumption
3. Reduced heat pump or AC efficiency
4. Lower seasonal energy performance

Studies referenced by the U.S. Department of Energy indicate that poorly designed duct systems can reduce HVAC efficiency by up to 20–30% in some homes.

During early layout planning, mapping equipment space and duct corridors using tools like planning room layouts with integrated mechanical space considerationshelps avoid these constraints before installation begins.

save pin

How to Identify an Undersized Duct Early

Key Insight: Most undersized duct problems reveal themselves through airflow imbalance and unusual system behavior.

In real residential inspections, the warning signs are often subtle at first.

Common symptoms include:

1. Weak airflow at supply registers
2. Rooms that never reach thermostat temperature
3. Loud vents when the system starts
4. High static pressure readings during testing
5. HVAC running longer than expected

Technicians typically confirm the issue using airflow hoods and static pressure gauges. If airflow numbers fall well below design CFM levels, the duct size is usually the limiting factor.

Early detection matters because small fixes—like adjusting branch ducts or adding additional runs—are far easier before walls or ceilings are closed.

save pin

Safe Solutions for Correcting Duct Sizing Problems

Key Insight: The safest fix for undersized ductwork is increasing airflow capacity rather than forcing the HVAC system to compensate.

Several solutions can address undersized duct issues depending on the situation.

Common correction strategies include:

1. Installing larger diameter ducts
2. Adding additional supply branches
3. Reducing duct length or sharp turns
4. Adding return air pathways
5. Upgrading duct layout design

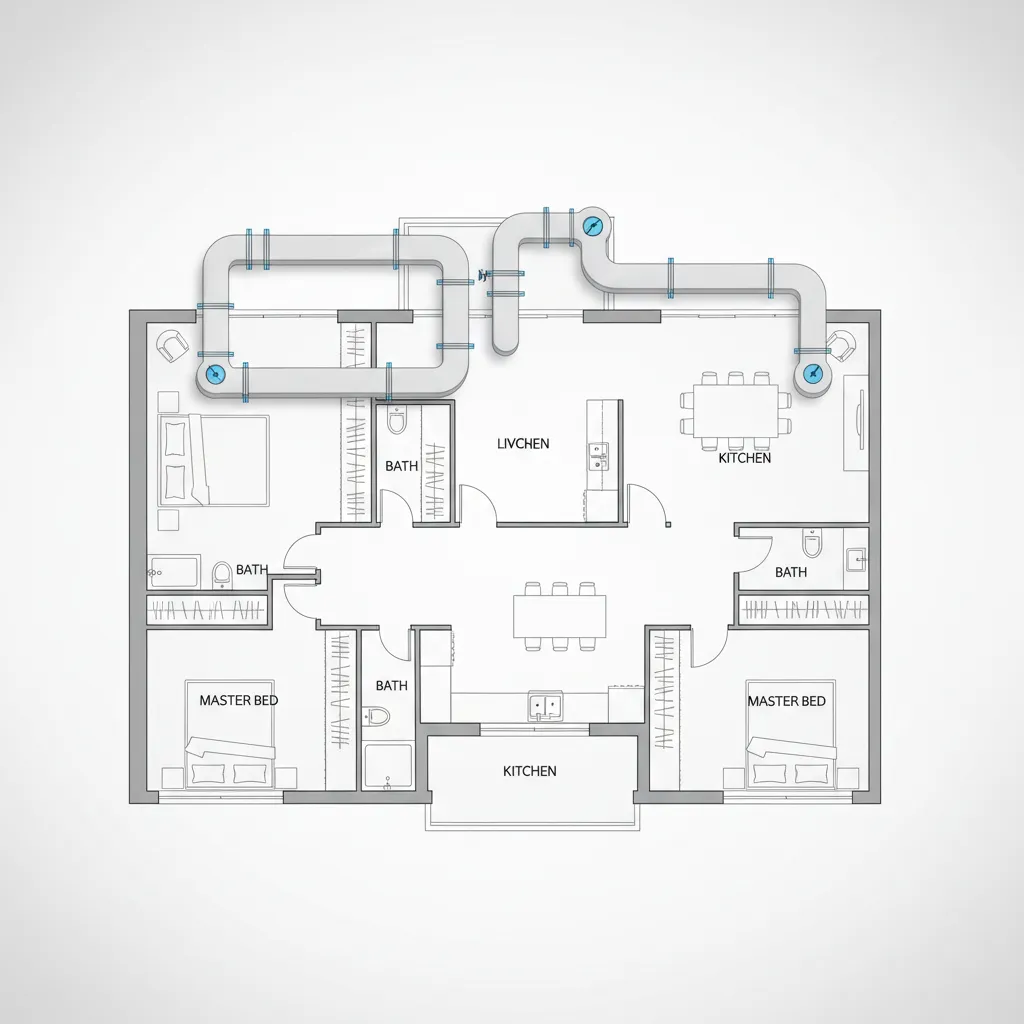

In renovation projects, careful planning is essential before modifying walls or ceilings. Visualizing mechanical routes using mapping duct paths inside a detailed floor plan before renovation helps avoid structural conflicts and ensures correct airflow capacity.

Most importantly, corrections should follow Manual D duct design principles used by HVAC professionals.

Answer Box

Undersized HVAC ducts restrict airflow, raise static pressure, and force HVAC equipment to work harder. This leads to noise, uneven temperatures, reduced efficiency, and faster equipment wear.

Final Summary

1. Undersized ducts restrict airflow and increase system pressure.
2. High static pressure accelerates HVAC component wear.
3. Small ducts often cause noise and uneven temperatures.
4. Restricted airflow reduces overall energy efficiency.
5. Proper duct design prevents most of these problems.

FAQ

What happens if an HVAC duct is too small?

Airflow becomes restricted, causing higher static pressure, weak airflow at vents, system noise, and reduced HVAC efficiency.

What are common symptoms of an undersized HVAC duct?

Signs include noisy vents, uneven room temperatures, weak airflow, and HVAC systems running longer than normal.

Can small ducts damage HVAC equipment?

Yes. High static pressure from undersized ducts can strain blower motors, compressors, and heat exchangers.

Does an undersized HVAC duct increase energy bills?

Yes. Restricted airflow forces the HVAC system to run longer cycles, which increases energy consumption.

How do professionals detect undersized ducts?

Technicians measure airflow (CFM) and static pressure using airflow hoods and pressure gauges.

Can adding more vents fix a small duct problem?

Sometimes. Additional supply runs can improve airflow distribution, but the main duct capacity must also be sufficient.

Is replacing ductwork the only solution?

Not always. Adjusting duct layout, adding return air paths, or installing larger branch ducts may resolve the issue.

Are undersized HVAC ducts common in homes?

Yes. They often occur in renovations or additions where duct capacity wasn’t recalculated.

References

1. ASHRAE HVAC Systems and Equipment Handbook
2. ACCA Manual D Residential Duct Systems
3. U.S. Department of Energy – Duct System Efficiency Guidelines
