Common Space Planning Problems in Small Bungalow Bathrooms and How to Fix Them: Practical layout fixes designers use to make compact bungalow bathrooms feel functional and comfortable

Direct Answer

Small bungalow bathroom layout problems usually come from poor fixture placement, door conflicts, and inefficient circulation paths. The most effective fixes include repositioning fixtures along a single plumbing wall, replacing swinging doors with sliding options, and simplifying the layout to create a clear movement path.

In most renovation cases, the solution is not adding space but reorganizing the existing footprint more intelligently.

Quick Takeaways

1. Most small bungalow bathroom issues come from fixture placement rather than room size.
2. Door swings often waste more usable space than homeowners realize.
3. Keeping plumbing on one wall simplifies layout and reduces renovation cost.
4. Clear movement paths improve usability more than adding extra storage.
5. Strategic layout changes can fix most problems without a full remodel.

Introduction

After designing and renovating dozens of small bungalow bathrooms over the past decade, I've noticed something interesting: the biggest problems rarely come from the size of the room. Instead, they come from how the space was originally planned.

Many early bungalow homes were built when plumbing standards and lifestyle habits were different. Bathrooms were smaller, fixtures were spaced inefficiently, and doors often opened directly into circulation areas. The result is what many homeowners experience today: cramped layouts, awkward movement, and fixtures that feel like they were randomly placed.

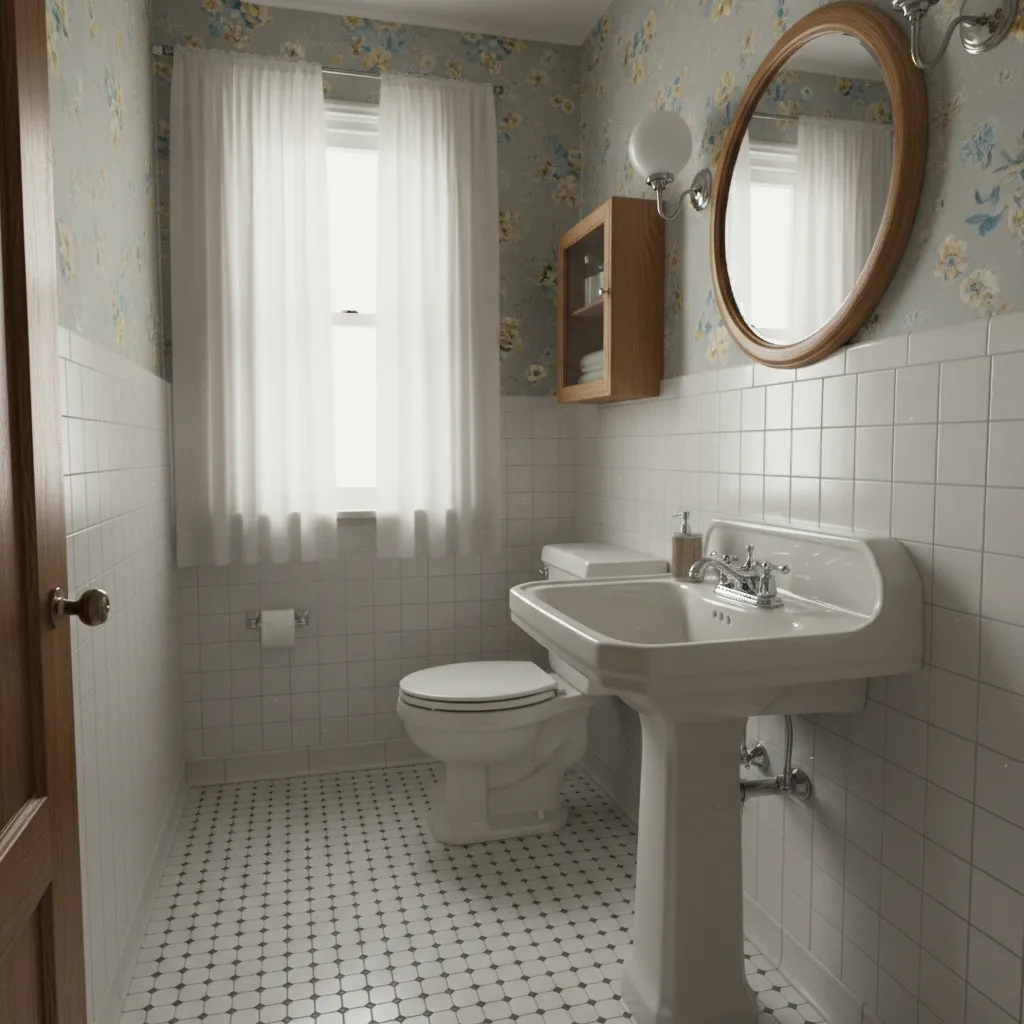

These small bungalow bathroom layout problems show up repeatedly in projects I review. Toilets placed directly in traffic paths. Vanities blocking entryways. Shower corners that make the entire room feel tighter than it actually is.

Before any renovation begins, I always recommend mapping the current layout visually. A simple planning tool like this interactive layout builder for visualizing small bathroom floor planscan reveal circulation conflicts and wasted space in minutes.

In this guide, I'll walk through the most common layout mistakes I see in compact bungalow bathrooms and the practical fixes that consistently work in real renovations.

save pin

Why Bungalow Bathrooms Often Have Space Constraints

Key Insight: Many bungalow bathroom issues originate from historical construction patterns rather than poor renovation decisions.

Most bungalows built between the 1910s and 1940s were designed when indoor plumbing was still evolving. Bathrooms were squeezed into leftover floor space rather than being central design elements.

That historical context creates several structural limitations:

1. Bathrooms often share walls with kitchens for plumbing efficiency.
2. Layouts were built around smaller fixtures than modern standards.
3. Door placements were not optimized for modern circulation.
4. Storage was rarely included in the original footprint.

According to guidance from the National Kitchen and Bath Association (NKBA), modern bathroom clearances require significantly more movement space than older homes provided. For example:

1. At least 30 inches of clear width for fixture access
2. 21 inches of clearance in front of toilets
3. 24 inches of walkway space for comfortable circulation

Older bungalow bathrooms frequently violate all three.

This mismatch between historic design and modern expectations explains why many homeowners feel their bathroom is "too small" even when the square footage is actually workable.

Poor Fixture Placement and How to Correct It

Key Insight: Misaligned fixtures create wasted space and awkward circulation even in bathrooms that technically meet size requirements.

The most common mistake I see is fixtures scattered across multiple walls without a clear spatial logic. This forces users to zigzag through the room.

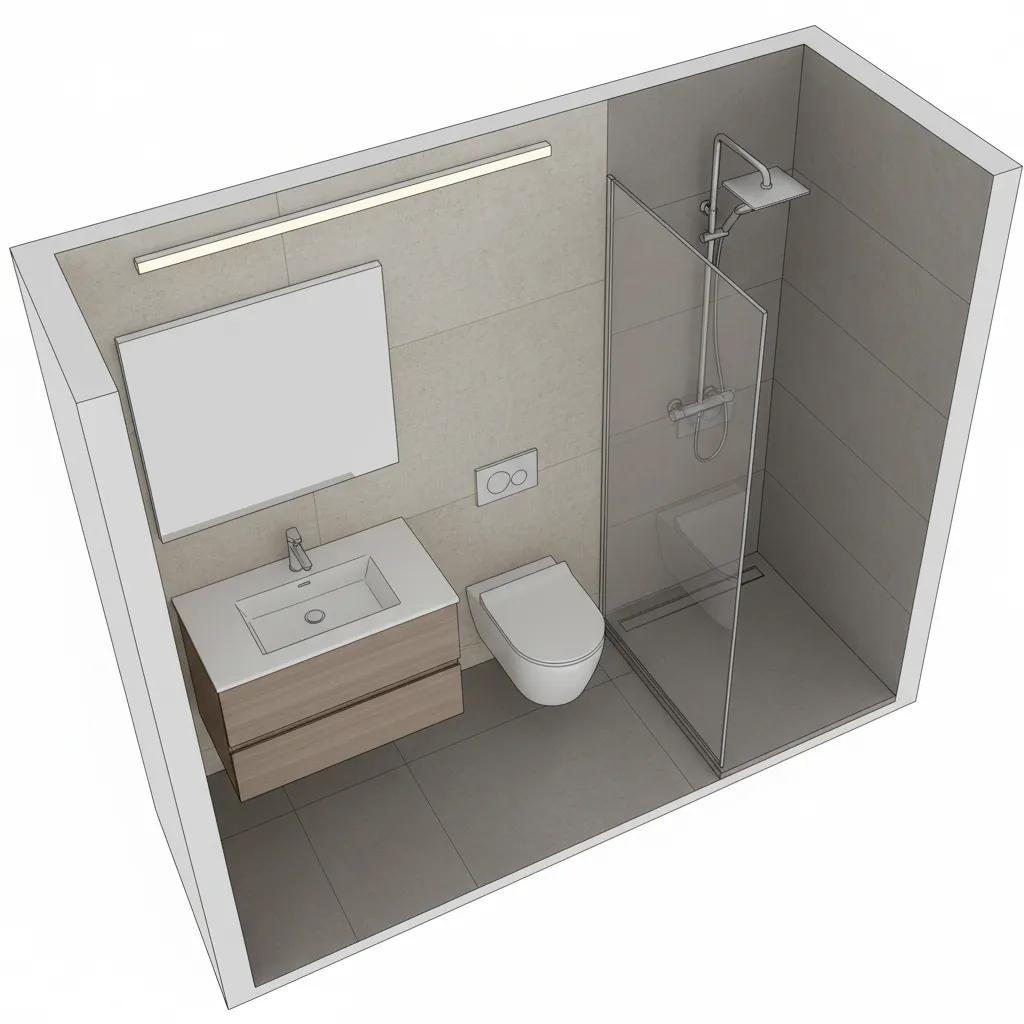

A more efficient layout strategy is grouping fixtures along one main plumbing wall.

Typical problematic layout:

1. Toilet on one wall
2. Vanity on opposite wall
3. Shower in diagonal corner

Improved layout approach:

1. Vanity near the entry
2. Toilet centered along plumbing wall
3. Shower or tub at the far end

This arrangement creates a natural visual flow and keeps movement pathways open.

When I review renovation layouts, I often recommend sketching the bathroom using a simple room layout planner for testing fixture placement ideas. Seeing the fixtures aligned along one wall often reveals how much circulation space can be recovered.

save pin

Fixing Tight Entryways and Door Conflicts

Key Insight: In very small bathrooms, the door swing often wastes more usable area than any other single design element.

One hidden design flaw in bungalow bathrooms is the inward swinging door colliding with fixtures or blocking the vanity.

Common door-related problems include:

1. Door hitting the toilet
2. Door blocking sink access
3. Door interrupting circulation space

Three practical solutions usually work:

1. Replace the door with a pocket door
2. Use a sliding barn-style bathroom door
3. Reverse the door swing direction

In several bungalow renovations I've worked on in Los Angeles, switching to a pocket door instantly freed up nearly 6 square feet of usable floor space.

That's a huge gain in a 35–40 square foot bathroom.

Solving Awkward Corner and Plumbing Layouts

Key Insight: Corner fixtures can either save space or completely disrupt the layout depending on how the plumbing wall is structured.

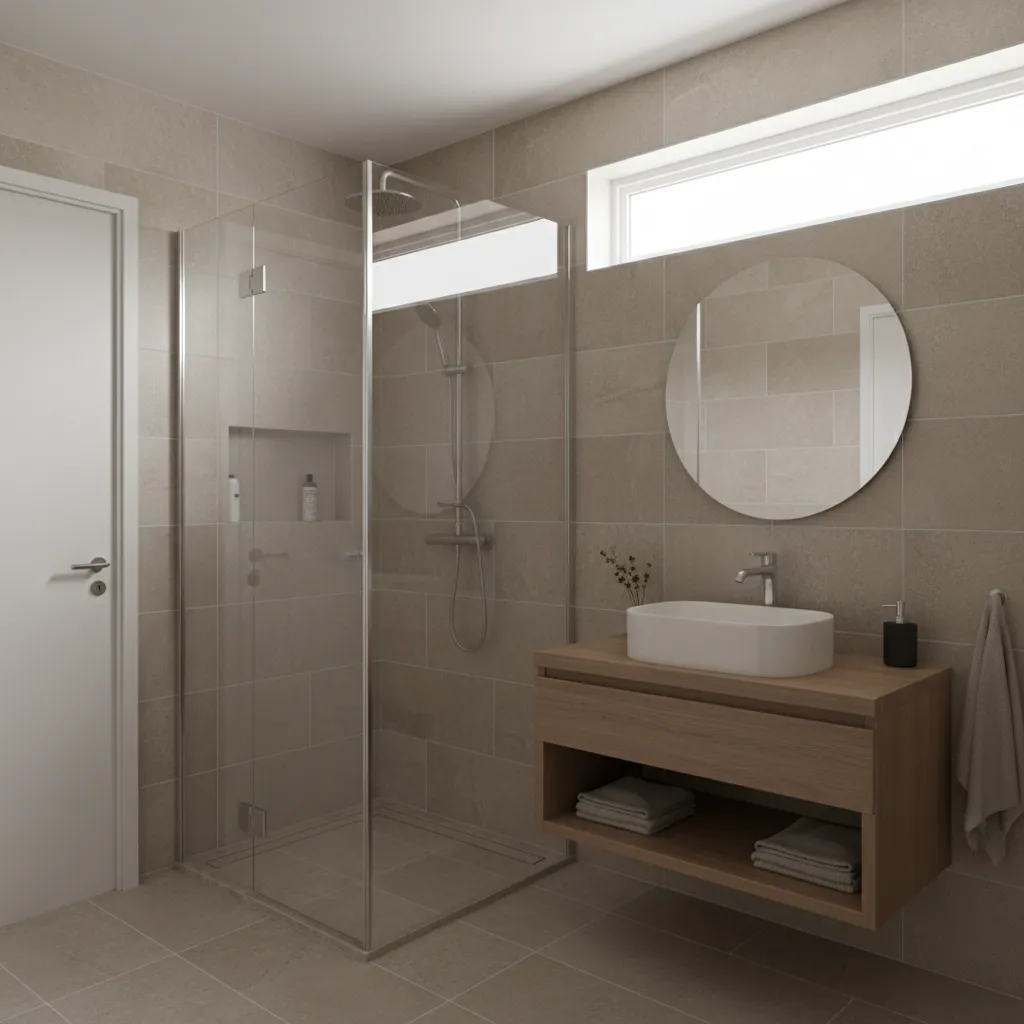

Corner sinks and corner showers became popular in bungalow renovations because they appear space-saving. In practice, they sometimes create awkward movement paths.

Situations where corner fixtures work well:

1. Bathrooms under 35 square feet
2. Irregular wall geometry
3. When plumbing stacks limit relocation

Situations where they create problems:

1. When the corner interrupts circulation
2. When the vanity becomes too small
3. When shower entry blocks movement

Before committing to a corner layout, I recommend testing circulation using a 3D bathroom floor plan visualizer to test movement paths. This makes it easy to see whether corners actually improve the layout.

save pin

How to Improve Movement Flow in Small Bathrooms

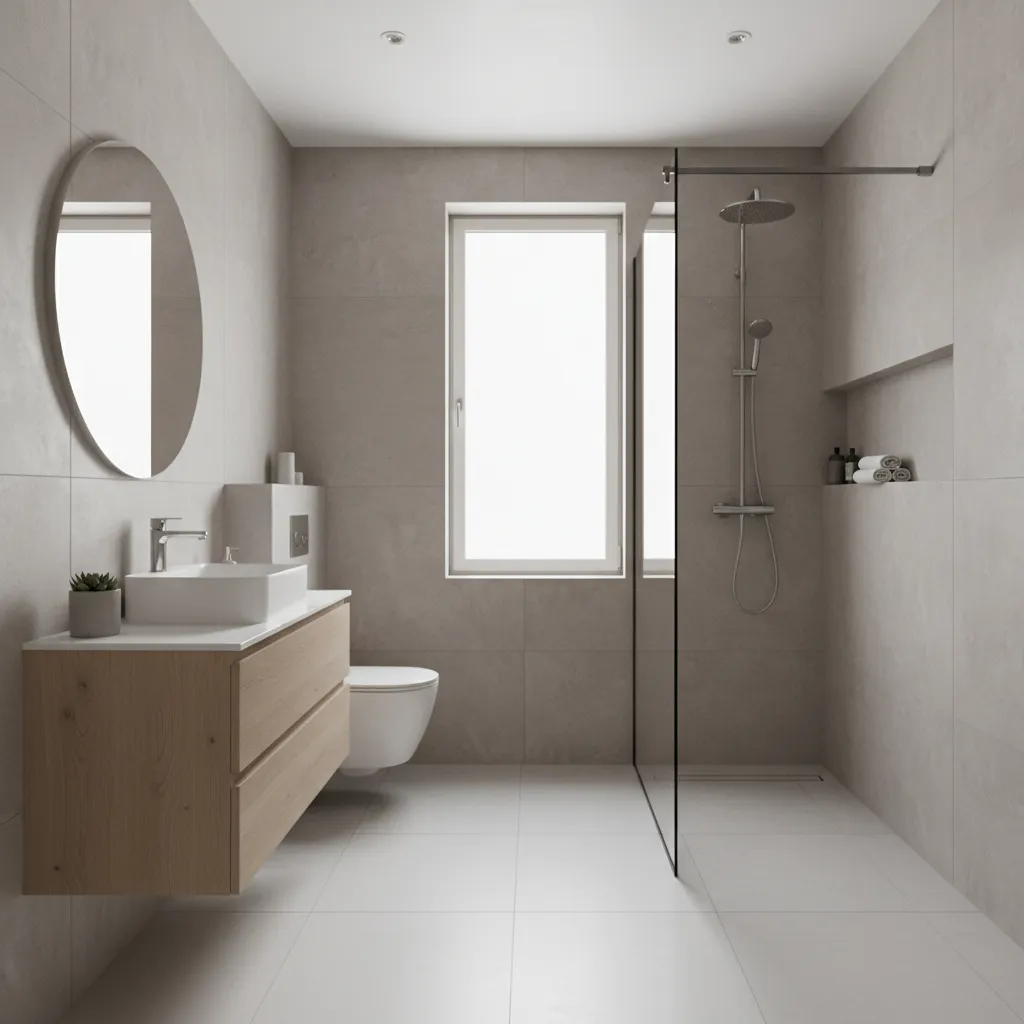

Key Insight: A clear movement path from door to vanity to shower dramatically improves usability in small bathrooms.

One design principle I follow in every compact bathroom project is what I call the "three‑step flow."

The idea is simple: users should be able to move naturally between the three primary zones without obstacles.

Typical movement sequence:

1. Entry and sink access
2. Toilet access
3. Shower or bath area

If the circulation path crosses itself or forces people to sidestep fixtures, the layout needs improvement.

Practical flow improvements include:

1. Floating vanities to open visual space
2. Wall‑mounted toilets
3. Glass shower panels instead of bulky frames
4. Consistent walkway widths

These changes don't increase square footage, but they dramatically change how the room feels to use.

save pin

Answer Box

The most effective way to fix small bungalow bathroom layout problems is reorganizing fixtures along one wall, removing door swing conflicts, and prioritizing clear circulation paths. Most usability issues can be solved without expanding the bathroom footprint.

Quick Renovation Fixes Without Full Remodeling

Key Insight: Strategic upgrades often solve layout frustration without requiring a complete renovation.

Homeowners often assume they need a full remodel when their bathroom feels cramped. In many cases, targeted changes solve the biggest issues.

High‑impact upgrades include:

1. Replacing bulky vanities with wall‑mounted models
2. Installing sliding or pocket doors
3. Using large mirrors to expand visual space
4. Switching tubs to walk‑in showers
5. Installing recessed storage niches

In small bungalow bathrooms, these relatively simple changes often improve functionality more than expensive structural renovations.

Final Summary

1. Most bungalow bathroom problems come from inefficient layouts, not room size.
2. Grouping fixtures along one wall improves space efficiency.
3. Door swing conflicts are a major hidden layout issue.
4. Clear movement paths dramatically improve usability.
5. Targeted upgrades can fix many problems without full remodeling.

FAQ

Why are bungalow bathrooms so small?

Many were built when plumbing standards were different and bathrooms were secondary spaces in the home layout.

What is the biggest small bungalow bathroom layout problem?

Poor fixture placement and door swing conflicts are the most common causes of cramped layouts.

How do you fix a tiny bungalow bathroom layout?

Reorganize fixtures along one plumbing wall, remove door conflicts, and maintain a clear circulation path.

Is a corner sink good for a small bathroom?

Sometimes. It works best in bathrooms under 35 square feet or where plumbing relocation is difficult.

What layout works best for small bungalow bathrooms?

A linear layout placing vanity, toilet, and shower along one wall usually maximizes usable space.

Can you remodel a bungalow bathroom without moving plumbing?

Yes. Many layout improvements involve repositioning fixtures along the existing plumbing wall.

How can I improve flow in a small bathroom space?

Use floating fixtures, glass shower panels, and maintain at least 24 inches of walkway clearance.

What are common bungalow bathroom design mistakes?

Oversized vanities, inward swinging doors, and poorly aligned fixtures are frequent design issues.
