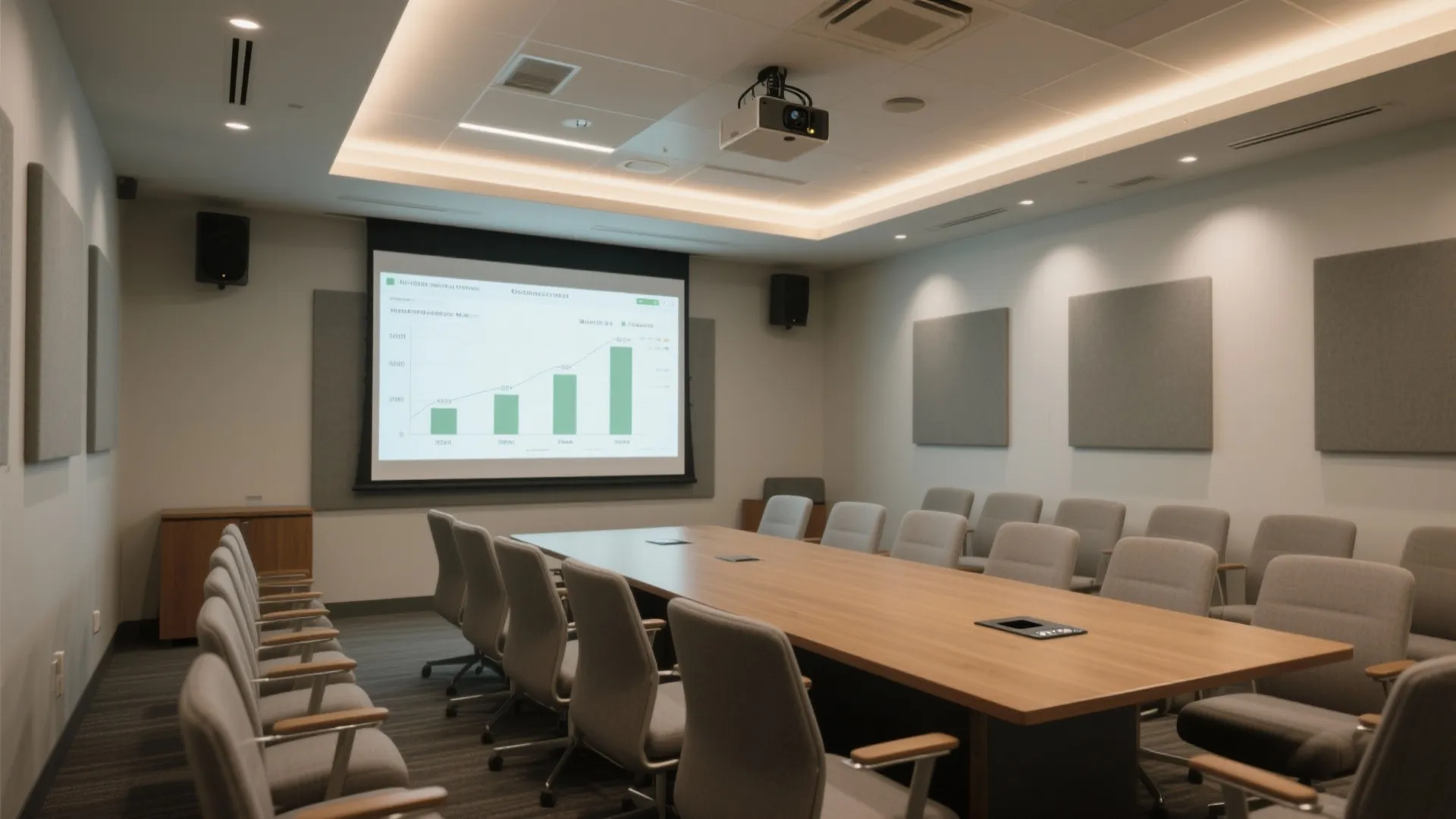

Conference Room Projector Setup: The Essential Guide: 1 Minute to Understand the Best Projector Choices for Meeting Spaces

I approach conference room projector setup as a balance of image clarity, seating ergonomics, lighting control, and intuitive workflow. The goal is simple: every seat sees vividly, every voice is heard, and every presenter feels in control. In recent projects, I’ve leaned on measured standards and behavioral insights to remove guesswork. For instance, Steelcase research indicates that 70% of workers report better engagement when visibility and seating comfort are optimized together, a reminder that screens and chairs are a single experience. WELL v2 also highlights the role of controllable glare and lighting for cognitive performance, linking light quality with visual comfort and alertness.

Size and sightlines start with data. A practical viewing rule used across AV planning: the furthest viewer should sit within six times the image height for detailed content (charts, small type), while the closest viewer should be at least 1.5 times the image width to avoid excessive head movement. I layer this with room acoustics and light: IES recommendations drive vertical illuminance targets around the screen to maintain contrast while avoiding specular glare on the projection surface. On the ergonomics side, Herman Miller research on seated posture underscores that prolonged viewing angles beyond 30° off axis can elevate discomfort, so I align seating arcs to minimize neck rotation.

Screen Size, Throw, and Seating Geometry

For a typical mid-size conference room (20–30 seats), I specify a 110–130 inch diagonal projection screen when the back row sits 18–22 feet from the image plane. Short-throw lenses help in tight rooms but demand precise keystone and geometry control; long-throw lenses reduce presenter shadowing and cable clutter. I lay out seats in staggered arcs to keep sightlines under 30° off center and maintain minimum 18–22 inches shoulder width per seat for comfort. When adjusting seating or table shapes, a layout simulation tool like Coohom’s room layout tool can visualize angles, pinch points, and viewing cones before installation.

Ambient Light, Contrast, and Glare Control

Projection thrives on contrast. I target 30–50 foot-candles ambient around the room and lower vertical illuminance on the screen wall to preserve dark levels. Dimmable LED fixtures with 3000–3500K color temperature maintain natural skin tones and reduce eye fatigue. Add zoned lighting: task lights at tables, wall washers on side walls, and blackout or dual-layer shades to tame daylight. Glare management is critical—use matte wall paints, avoid high-gloss tables near the projection path, and keep downlights off the screen plane. WELL v2’s guidance on light zones and controls aligns closely with these choices, supporting comfort and attentional focus. For broader workplace design context, Gensler’s research reports continued demand for hybrid collaboration spaces, where lighting flexibility directly influences perceived productivity.

Projector Technology: Brightness, Resolution, and Color

Brightness is not a vanity metric; it’s a function of screen size and ambient light. In a controlled environment, 3,000–4,000 lumens is sufficient for a 110–120 inch screen. In brighter rooms or daylight-heavy spaces, 5,000+ lumens may be necessary. Choose 1080p for general decks; opt for 4K when detailed CAD, data dashboards, or fine typography are routine. Laser light engines provide stable brightness over time, faster start-up, and lower maintenance versus lamp-based models. Color accuracy matters—look for projectors that support sRGB or Rec.709 and pair them with neutral screens to avoid color tint. I calibrate white balance and gamma after installation, then save presets for "Presentation" and "Video" modes to maintain consistency.

Screen Type and Placement

Fixed-frame screens deliver the most stable geometry; tensioned pull-downs are a practical alternative. Choose a gain between 1.0 and 1.2 for balanced brightness and viewing angles. Place the screen with its center roughly 42–48 inches from finished floor, adjusting to the average seated eye height. Avoid mounting over reflective credenzas. If the room is long and narrow, consider a slightly higher gain and ensure the projector is ceiling-mounted with precise lens shift rather than relying on heavy keystone corrections, which can degrade image fidelity.

Acoustics, Microphones, and Noise

Projection is only half the story; intelligibility seals the experience. I aim for RT60 reverberation times around 0.5–0.7 seconds in conference rooms, using acoustic panels, carpet tiles, fabric seating, and soft wall finishes. Table array microphones or ceiling beamforming mics must be placed outside projector exhaust paths to avoid fan noise contamination. If HVAC registers are near the projector, use diffusers and lower velocity to keep NC levels under 35–40. Balanced audio with small distributed speakers reduces hotspots and prevents the back row from being blasted.

Connectivity, Cables, and Control

Reliable connectivity begins with redundant paths: ceiling HDMI for fixed setups, a table hub with USB-C/HDMI, and a wireless option for guest devices. I leverage professional switchers to keep cable runs clean and shielded; please avoid ultra-long HDMI without active repeaters. Add a simple touch control panel: inputs, volume, lighting presets, and a blank screen button. I label every port and store a short printed quick guide near the presenter station. Cable management under the table protects posture—no knees tangled in wires—and preserves the clean line of sight across the room.

Ergonomics and Human Factors

Comfort translates to attention. Seats should allow neutral posture while viewing; screens should not force head tilt beyond 10–15° for extended sessions. I follow human factors cues: clear circulation paths, easy reach to power, and consistent table heights. Color psychology plays a subtle role—muted blues and greens calm, while a warm accent promotes energy without distracting from the screen. Avoid saturated reds on the front wall; they can reduce perceived image sharpness and heighten arousal incorrectly for long meetings.

Setup Checklist I Use

- Confirm throw distance, screen size, and lens shift within manufacturer specs.

- Verify brightness against ambient light; measure foot-candles at tables and screen wall.

- Align seating arcs to minimize off-axis angles; test back-row legibility with small type.

- Calibrate color and geometry; store presets for presentation and video.

- Program lighting zones and glare control; test shades at midday.

- Set microphone gain and echo cancellation; measure background NC levels.

- Label inputs and provide a quick-use guide; test wireless casting with guest devices.

- Run a full mock meeting and gather feedback from front, middle, and back rows.

Common Pitfalls and Fixes

- Washed-out image: increase contrast by dimming front-zone lights and checking screen gain.

- Shadows on screen: shift to ceiling-mounted projector or adjust presenter standing zone.

- Keystone artifacts: rely on lens shift and proper mounting rather than digital corrections.

- Cable chaos: use under-table channels and a single tabletop hub to reduce clutter.

- Audio echo: add soft finishes and tweak DSP profiles for speech clarity.

- Eye strain: drop color temperature to 3000–3500K and reduce glare on front wall.

FAQ

What screen size works best for a 20-foot viewing distance?

A 110–120 inch diagonal typically keeps fine text legible, aligning with the rule that the furthest viewer sits within ~6x image height for detailed content.

How many lumens do I need for a daylight-heavy conference room?

Plan for 5,000+ lumens with a 110–130 inch screen, combined with controllable shades and zoned lighting for contrast.

Is 4K necessary for business presentations?

1080p covers most slide decks. Choose 4K when you regularly present dense data, CAD drawings, or small typography that benefits from higher pixel density.

How do I prevent glare on the projection wall?

Use matte paint, avoid downlights aimed at the screen, and set color temperature around 3000–3500K. Shades or dual-layer blinds manage daytime glare.

What seating angle is comfortable for long meetings?

Keep viewing angles within 30° off axis and head tilt under 10–15°. Ergonomic seating and staggered layouts reduce neck rotation and visual fatigue.

Do short-throw projectors reduce shadows?

They can, but presenter movement near the screen can still cause shadows. Ceiling mounting and controlled presenter zones are more reliable.

How should I handle cables for multiple devices?

Provide a table hub with USB-C/HDMI, a ceiling input for fixed sources, and a wireless casting option. Label everything and use under-table channels.

What acoustic targets improve speech clarity?

Aim for RT60 around 0.5–0.7 seconds with soft finishes. Keep background noise under NC 35–40 and position mics away from projector exhaust or HVAC.

Does screen gain matter?

Yes. A gain of 1.0–1.2 balances brightness and viewing angles for most rooms. Higher gain can help long, bright rooms but may narrow viewing cones.

Any standards I can consult for lighting and wellness?

WELL v2 provides guidance on glare control and light zoning, and IES standards inform illuminance and contrast considerations for visual comfort.
