Control Room Design for Dangal TV: Optimizing Small Broadcast Spaces: 1 Minute to Fast-Track Your Dangal TV Control Room Upgrade

I’ve designed and upgraded compact broadcast control rooms for a decade, and the constraints are always the same: limited square footage, heat loads from equipment, sightlines to multiple displays, and the human requirement to sustain focus for long shifts. For Dangal TV’s small control room, the goal is to align spatial ratios, ergonomics, and acoustic control so directors, technical operators, and graphics teams can make split-second decisions without fatigue.

Focus and reaction time are not just about talent; they’re shaped by the environment. The WELL v2 Comfort concept points to managing noise, glare, and thermal comfort as core drivers of cognitive performance, while IES recommends luminance balance and glare control to avoid visual strain in task-oriented environments. Steelcase’s research on cognitive load suggests that environments with controlled sensory input enable faster error detection and reduce task switching costs—critical during live broadcast.

Small rooms demand precise layout logic. In my projects, the most effective footprint often falls between 1.4:1 and 1.6:1 length-to-width ratios, maintaining direct sightlines across the primary display wall. If you’re modeling scenarios or testing operator reach zones and camera paths, a layout simulation tool like the room layout tool can help you visualize equipment adjacency and operator flow before you commit to millwork or wiring.

Core Spatial Strategy

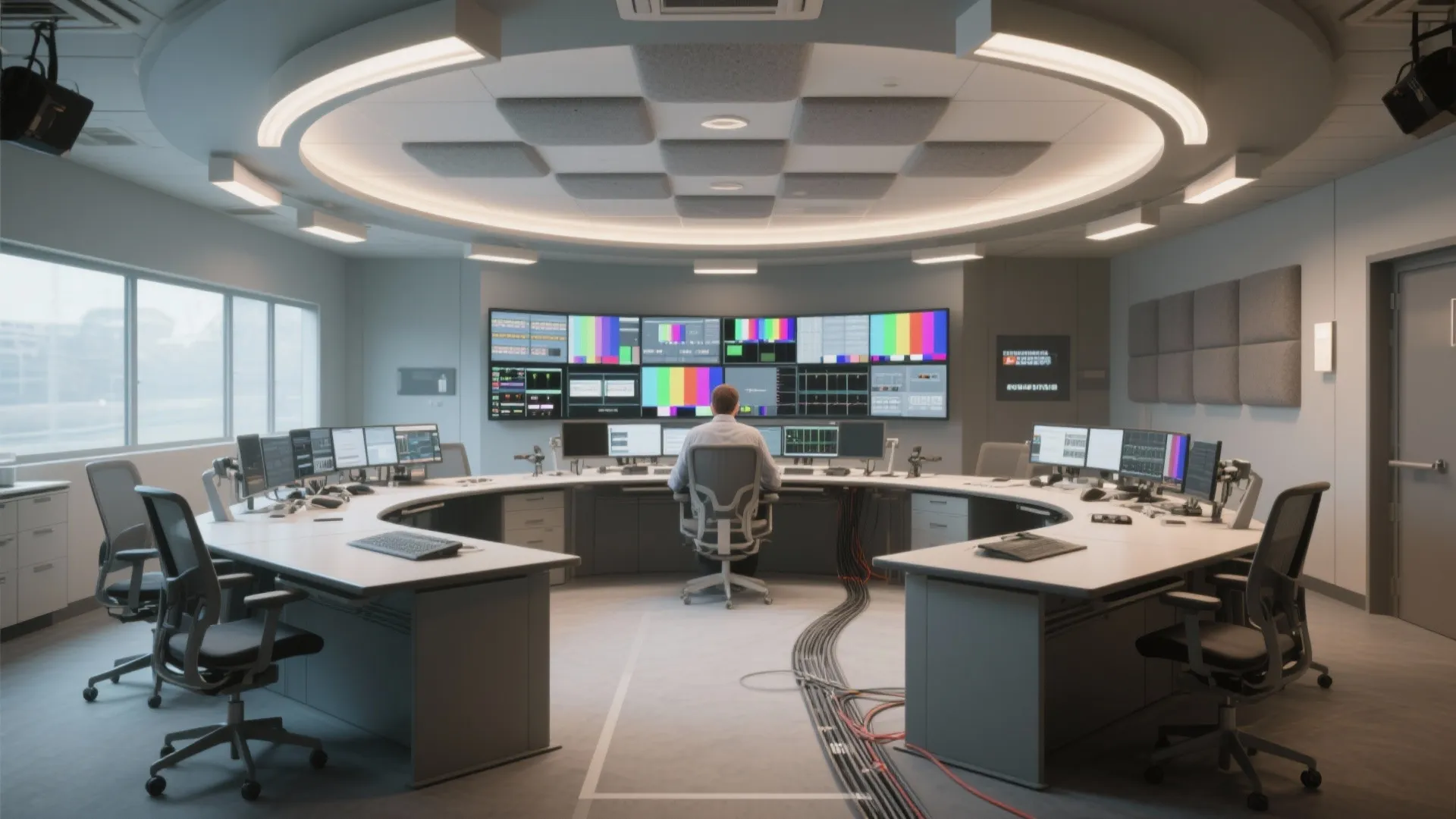

In a compact control room, start with a linear or shallow U-shaped console array. Place the director at the visual apex with uninterrupted lines to program and preview feeds, tally indicators, and intercom status lights. Technical directors typically sit central-left to align with switcher ergonomics, while audio operators benefit from a slightly decoupled niche with controlled reverberation. Keep the maximum operator reach at 600–700 mm for high-frequency controls, and reserve 900–1,000 mm for occasional-access equipment to maintain posture neutrality and reduce shoulder elevation.

Ergonomics and Operator Health

Long shifts punish poor ergonomics. I specify sit-stand consoles with anti-glare surfaces and rounded front edges to reduce wrist compression. Monitor centers should align within 10–15° below eye level, with top edges no higher than eye height to reduce neck extension. For critical viewing, maintain a primary monitor distance of 600–800 mm depending on pixel density, and angle multi-monitor arrays to keep off-axis viewing within 30°. Cable management and adjustable arms must allow quick reconfiguration without wobble.

Lighting: Visual Precision Without Glare

Broadcast control rooms require layered lighting: low-reflectance ambient, task lighting with controlled beam spreads, and accent lighting for safe circulation during dim operations. Keep horizontal illuminance at 200–300 lux for the room, with task zones at 300–500 lux—balanced to avoid washing out displays. Use fixtures with UGR < 19 where operators face screens. Warm-neutral color temperatures (3,500–4,000 K) help maintain alertness while avoiding the harshness of cooler light on skin tones viewed on monitors. Eliminate specular finishes near screens; matte surfaces and baffles reduce reflected glare.

Acoustic Comfort and Communication

You need crisp voice transmission for intercom and director calls, but also low ambient noise. Aim for NC-25 to NC-30 in steady-state operation. Apply broadband absorption at first reflection points and behind operators to limit flutter echoes. Integrate acoustic panels in millwork and ceiling clouds; the trick is to keep absorption where chatter and equipment noise concentrate, while preserving a slightly live front zone for clarity of speech.

Thermal and Power Management

Heat loads in small rooms escalate quickly with switchers, servers, and multiviewers. Separate equipment racks behind a perforated, acoustically treated partition with dedicated exhaust and make-up air. Provide redundant circuits and clearly labeled power rails. Maintain cool aisle/warm aisle logic even at micro scale; it prevents hotspots and protects uptime.

Workflow Zoning and Wayfinding

Divide the room into three functional bands: front command (director, technical director), mid operations (graphics, playback), and rear support (audio niche or rack access). Keep walkways at 900 mm minimum and avoid right-angle pinch points near cable runs. If the existing shell is irregular, prioritize straight sightlines to the display wall and nudge consoles to align operator heads on a shared arc for synchronized attention.

Color Psychology and Visual Fatigue

Use desaturated, cool-neutral palettes to reduce visual fatigue. Accents can be controlled, vivid hues sparingly applied at zones needing rapid identification (recording status, emergency stop). Color coding on edge-lit controls is useful, but surfaces around screens should stay low-chroma to keep perceived contrast stable during long broadcasts.

Display Wall Geometry

The display wall should center on the director’s cone of vision, typically spanning 45–60° horizontally. Place critical program and preview feeds within the inner 30°, and ancillary monitors outward. Keep bezel gaps predictable; asymmetry invites eye saccades and increases cognitive strain.

Human Factors: Micro-Routines That Preserve Focus

Build micro-rest affordances: a standing corner for quick stretch, a dimmable task lamp to reset focus, and an acoustic screen to dampen cross-chatter. Provide lockable personal drawers for operators; reducing desk clutter has a measurable effect on error rates and changeover speed.

Materials and Sustainability

Choose low-VOC materials, matte laminates, and breathable ergonomic task chairs. Cable trays and panels should be serviceable from the front to avoid downtime during live operations. Sustainable choices aren’t just PR; well-ventilated rooms with low off-gassing keep cognition sharper over time.

Commissioning and Testing

Before handover, run a full broadcast simulation with realistic heat loads and operator shifts. Verify sightlines for different operator heights, test glare at multiple light levels, and record NC curves during peak equipment runs. The goal is an environment that stays stable when everything else is moving fast.

Trusted Guidance for Small Control Rooms

For environmental performance benchmarks, the WELL v2 Comfort concept offers guidance on acoustics, light, and thermal comfort, and Steelcase’s research provides evidence on cognitive load and focus in work environments. Use these to calibrate the room’s sensory inputs and protect operator performance.

FAQ

Q1: What’s the ideal layout for a compact control room?

A linear or shallow U-shaped console array with the director at the visual apex. Maintain 1.4:1 to 1.6:1 room proportion if possible, with clear sightlines to a centered display wall. If you need to test options, a room layout tool helps simulate adjacency and reach zones.

Q2: How bright should the lighting be?

Keep ambient at 200–300 lux, task areas at 300–500 lux, and use fixtures with UGR < 19 to avoid glare on screens.

Q3: What monitor arrangement reduces eye strain?

Top edges at or below eye height, centerlines 10–15° below eye level, viewing distances around 600–800 mm, and multi-monitor arcs keeping off-axis viewing within 30°.

Q4: How do we handle noise without compromising communication?

Target NC-25 to NC-30, add broadband absorption at first reflection points, and keep a slightly live front zone for speech clarity. Acoustic clouds and panel-integrated millwork work well in tight rooms.

Q5: What about heat and power?

Separate hot equipment racks, dedicate exhaust and make-up air, and use redundant, labeled circuits. Micro-scale cool aisle/warm aisle logic prevents hotspots.

Q6: Which colors help operators stay focused?

Desaturated cool-neutrals for walls and consoles, with minimal vivid accents only for critical visual cues.

Q7: How can workflow be organized in a small footprint?

Front command for director/TD, mid band for graphics/playback, rear niche for audio or racks. Maintain 900 mm clear walkways and align heads on a shared arc to synchronize attention.

Q8: What commissioning tests matter most?

Simulate a live broadcast with realistic heat loads, verify sightlines for different heights, test glare at various dim levels, and map NC curves during peak runs.

Q9: Are sit-stand consoles really necessary?

For long shifts, yes. They reduce static posture strain, improve circulation, and help maintain alertness across multi-hour broadcasts.

Q10: How do I future-proof cabling?

Use generous cable trays, front-service panels, and label all power/data runs. Plan spare capacity near graphics and playback stations for evolving formats.
