Convert 2D Floor Plan Image to DWG: From Image to Editable CAD File Step by Step

The Fast Answer

To convert a 2D floor plan image (JPG, PNG, PDF) into a DWG file, the process typically involves:

1. Importing the image into a CAD-compatible tool
2. Detecting or tracing walls and structure
3. Converting raster lines into vector geometry
4. Exporting the result as a DWG file

Modern tools now combine AI recognition with CAD export, making this process faster and more accurate than manual drafting.

If you want to start quickly, use an online floor planner that supports image import and structured layout editing.

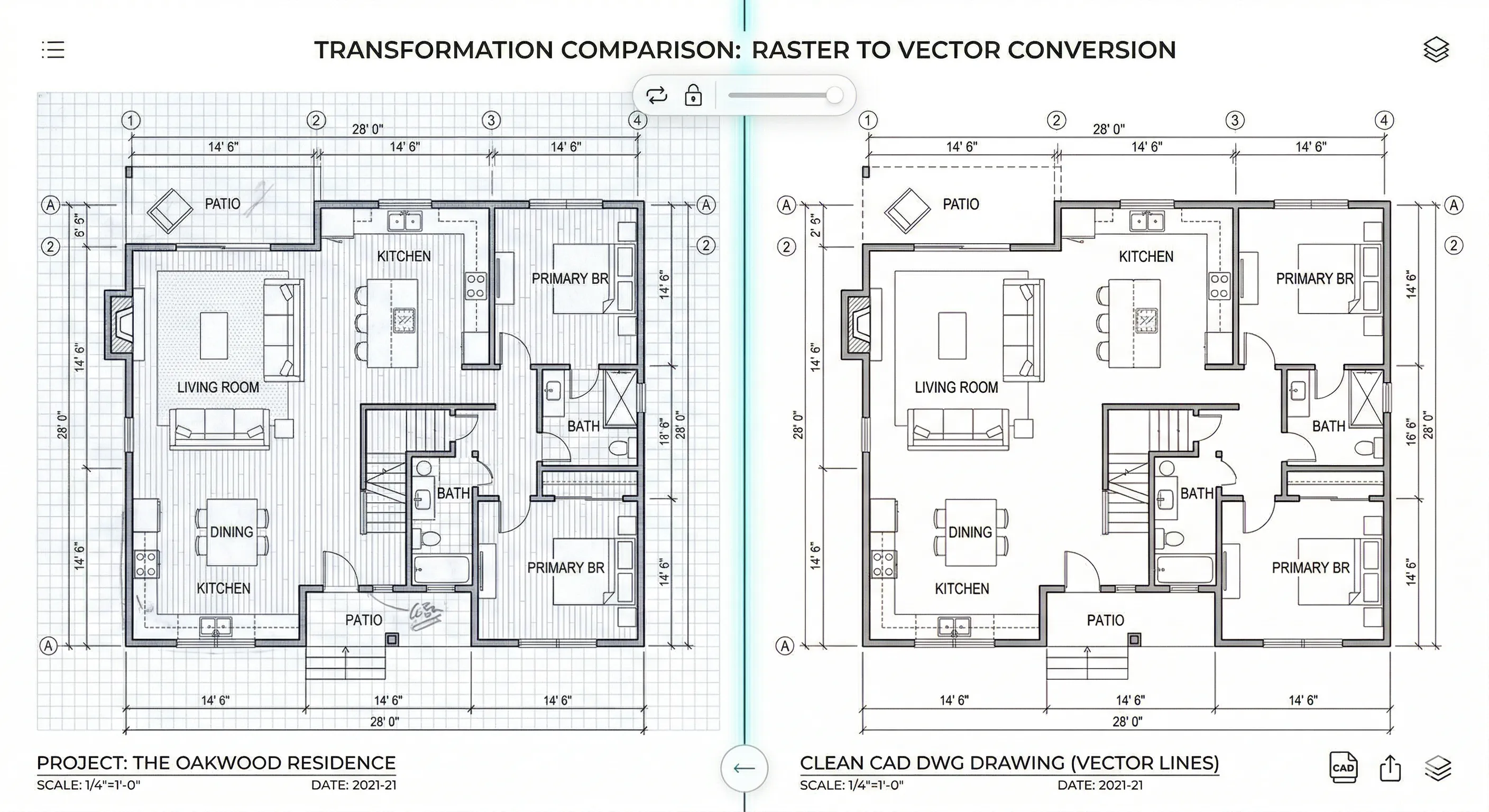

What Converting an Image to DWG Really Means

A floor plan image is a raster file (pixels).

A DWG file is a vector file (lines, geometry, editable elements).

So the process is:

Image → Recognized structure → Vector geometry → Editable CAD file

This is why traditional workflows required manual tracing.

In 2026, tools can automatically detect walls, doors, and layout elements, reducing hours of work into minutes.

Step-by-Step: Convert Floor Plan Image to DWG

Step 1 — Prepare Your Floor Plan Image

Input quality determines output quality.

Make sure your image:

1. Is high resolution
2. Has clear wall lines
3. Is properly aligned

Low-quality images reduce detection accuracy.

Step 2 — Import the Image into a Floor Planner

Upload your file into an online floor planner or compatible tool.

Most modern platforms support:

1. JPG / PNG / PDF upload
2. Drag-and-drop interface
3. Automatic layout detection

Step 3 — Detect or Trace Walls

Two approaches:

Manual (Traditional CAD)

1. Trace walls line by line
2. High accuracy
3. Time-intensive

AI-Assisted (2026 Standard)

1. Auto-detect walls
2. Generate layout instantly
3. Editable after conversion

Most modern tools now use AI-assisted detection to speed up this step.

Step 4 — Convert Raster to Vector Geometry

This is the core transformation step.

The system converts:

1. Pixels → Lines
2. Shapes → CAD elements
3. Layout → Editable structure

Using a structured floor planner helps ensure clean geometry before export.

Step 5 — Adjust Scale and Dimensions

Before exporting:

1. Set real-world measurements
2. Adjust wall thickness
3. Fix alignment

Skipping this step leads to inaccurate DWG files.

Step 6 — Export as DWG File

Once the layout is finalized:

1. Export to DWG format
2. Open in AutoCAD or similar software
3. Continue editing if needed

Some tools also support DXF export and layered CAD outputs.

Why Converting to DWG Matters

CAD Compatibility

DWG is widely used in:

1. Architecture
2. Construction
3. Engineering

Editable Precision

DWG files allow:

1. Accurate measurements
2. Scalable geometry
3. Layer-based editing

Workflow Integration

Converted files can be used in:

1. AutoCAD
2. BIM workflows
3. Construction documentation

2026 Insight: AI Is Replacing Manual CAD Tracing

Traditionally:

1. Designers manually traced floor plans
2. Conversion took hours

Today:

1. AI detects structure automatically
2. Generates editable layouts instantly
3. Reduces errors and production time

This is why combining image upload + layout recognition + CAD export is now the standard workflow.

Common Mistakes to Avoid

Low-Quality Images

Blurry or cluttered plans reduce recognition accuracy.

Skipping Scale Calibration

Even AI-generated layouts require dimension correction.

Exporting Too Early

Always verify layout structure before exporting to DWG.

Expecting Full Automation

Even advanced tools still require:

1. Minor adjustments
2. Manual validation

Tool Reality in 2026

Traditional CAD Tools

1. High precision
2. Manual workflow
3. Steep learning curve

Modern Floor Planning Tools

1. AI-assisted recognition
2. Faster workflow
3. Beginner-friendly

For most users, starting with an online floor planner is significantly more efficient than manual CAD tracing.

Try It Yourself

If you want to convert your own floor plan image into a DWG file:

Start with an online floor planner to:

1. Upload your floor plan image
2. Generate layout automatically
3. Adjust structure and dimensions

Then:

1. Validate layout using a room planner
2. Finalize and export with a home design software

FAQ

Can a floor plan image (JPG, PNG, or PDF) really be converted into a DWG file?

Yes. The image is imported into a CAD-compatible or AI-assisted floor planning tool, where the raster image is traced or automatically recognized and converted into vector geometry that can be exported as a DWG file.

Do I need AutoCAD to convert a floor plan image to DWG?

Not necessarily. Many modern online floor planners and AI-based tools can import images, detect layout structures, and export the result directly as a DWG or DXF file without requiring AutoCAD during the conversion process.

How accurate is AI floor plan recognition when converting images to DWG?

AI recognition can detect walls, doors, and room layouts quickly, but the final result usually requires small manual adjustments such as correcting wall thickness, fixing alignment, and setting accurate scale measurements.

What type of image works best for converting a floor plan to DWG?

High-resolution images with clear wall lines, minimal noise, and proper alignment work best. Blurry or low-quality images make it harder for detection tools to recognize the structure correctly.

Why is converting a floor plan image to DWG useful?

DWG files are vector-based and editable, allowing architects, engineers, and designers to modify layouts, measure dimensions accurately, organize layers, and integrate the plan into CAD or BIM workflows.
