DIY Arcade Cabinet Kit: 5 Creative Ideas: Hands-on tips, budget notes, and small-space tricks for building your own arcade cabinet kit

I’ll never forget the time I built a beautiful arcade cabinet only to realize it was two inches too tall for my living room doorway — my cat gave me side-eye and my wife reminded me that roughed-up corners are not a design statement. That low-key disaster taught me to pause and actually visualize every dimension before cutting wood, so now I start by designing the cabinet shell designing the cabinet shell in 3D even for quick DIY arcade cabinet kits.

1. Bartop Bliss: Small footprint, big fun

I love bartop kits because they’re cheap, fast, and they fit on a countertop or a narrow console table. They’re perfect when space is tight — you get desktop play without committing to a floor model, though the screen size is limited and ergonomics can feel cramped for long sessions.

Tip: use a shallow monitor and a slightly angled control panel to keep wrist strain down. Budget note: expect a comfortable build under $200 if you reuse parts.

save pin

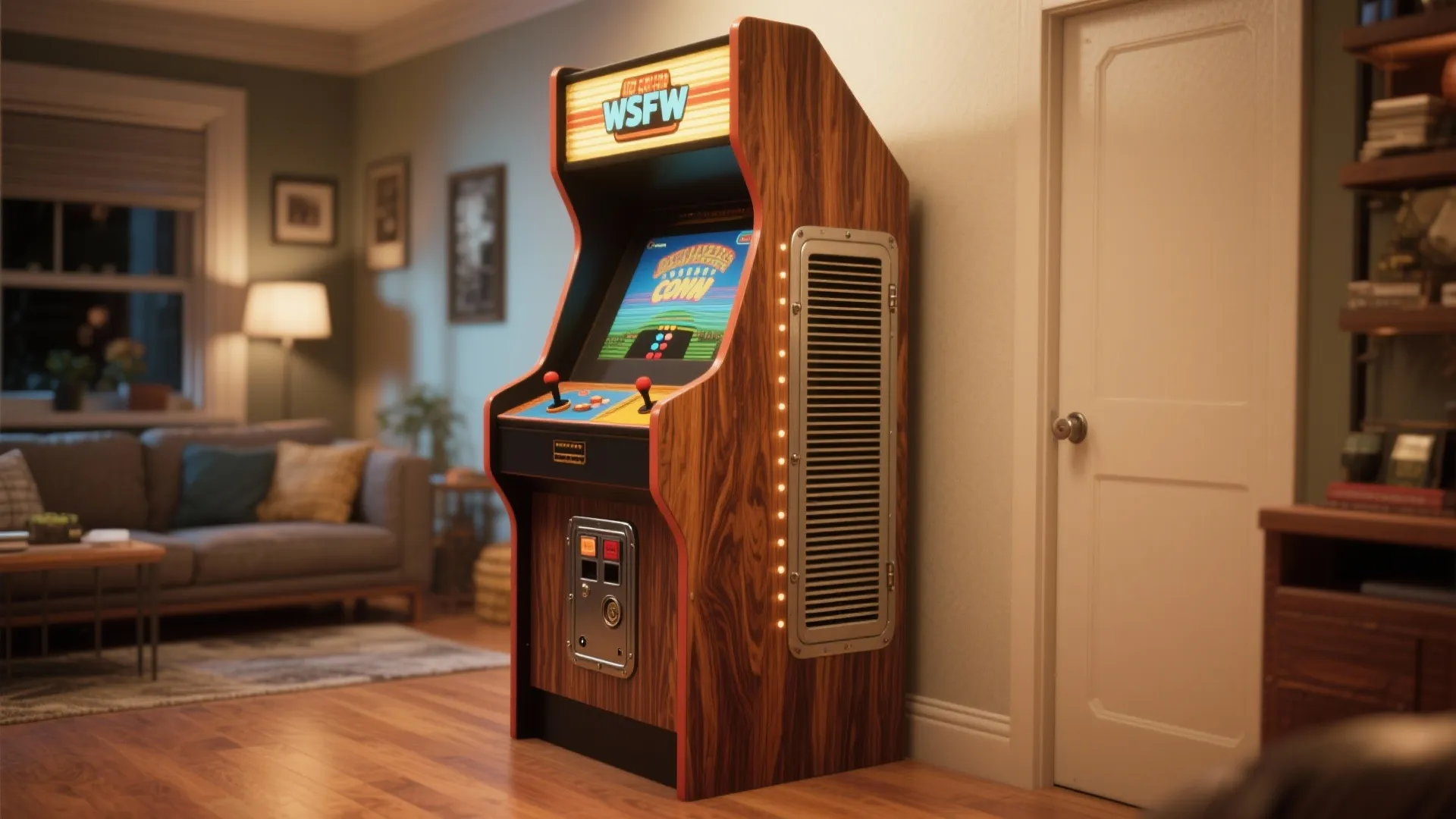

2. Full-size Retro: Go for the nostalgia

When clients ask for authenticity, I recommend a full upright kit with marquee, coin door aesthetics, and wood veneer. The advantage is presence: it becomes a centerpiece, but it eats floor space and needs sturdier construction — which raises costs and build time.

A small challenge is ventilation for modern PC guts; plan vent locations early and consider a removable back panel for maintenance.

save pin

3. Cocktail Cabinet: Social and stylish

Cocktail cabinets double as coffee tables and are perfect for two-player face-to-face sessions. I usually sketch how the control areas mirror each other and think through monitor height so drinks don’t threaten the screen.

For tight ergonomics, I lay out button spacing and joysticks on paper, or better yet use a mockup to test reachability and sightlines — it helps when planning the control panel layout control panel layout. Downsides: cocktail tops need extra reinforcement and you’ll want a sealed finish to handle spills.

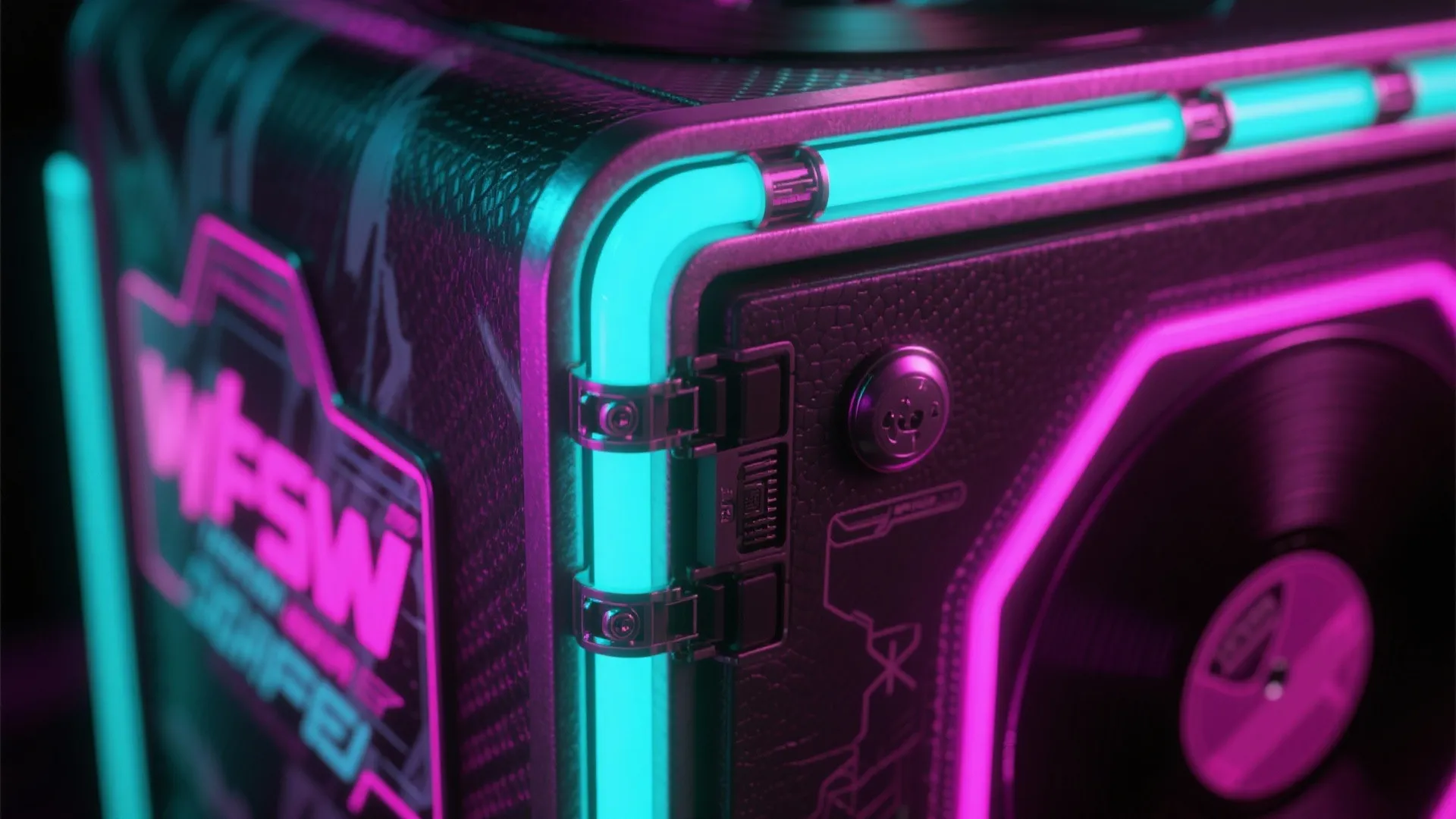

4. Themed Builds: Art, lighting, and personality

One of my favorite client requests was a neon cyberpunk cabinet with LED strips and vinyl art. Themed kits let you express personality; they’re great conversation pieces. The trade-off is that custom artwork and lighting add cost and can complicate access for repairs.

Practical tip: design removable side panels and route LED power through quick connectors so you can swap artwork or lighting without rewiring the whole cabinet.

save pin

5. Modular & Portable: Kits that evolve

If you want to move your arcade between rooms or events, modular kits with detachable legs and a foldable control panel are brilliant. I often prototype dimensions on the floor first to see how it fits the living room flow, then mock up the arcade proportions mock up the arcade proportions in cardboard before committing to plywood.

Modular builds might sacrifice some stability or add connection hardware, but they win on flexibility — and they’re easier to ship if you ever sell or give the kit away.

FAQ

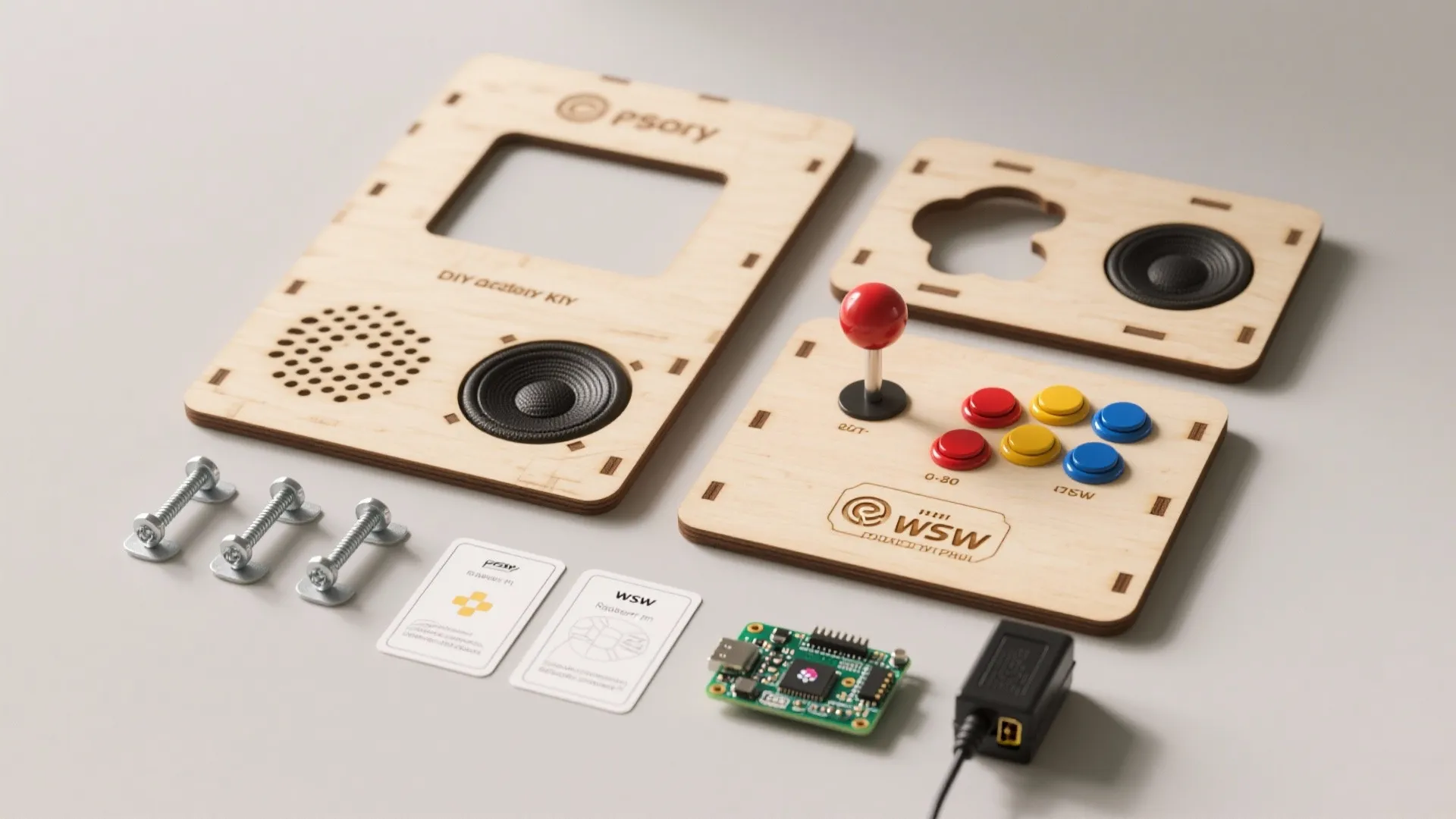

Q: What parts typically come in a DIY arcade cabinet kit?

A: Most kits include pre-cut MDF or plywood panels, control board or joystick mounts, buttons, and sometimes speaker holes. Screens, PC or Raspberry Pi, and joysticks/buttons may be optional depending on the kit.

Q: How much should I budget for a basic DIY arcade cabinet kit?

A: A simple bartop kit can be built for $150–$350 using budget components; full upright builds usually start around $400 and go up depending on screen and PC choices.

Q: Is woodworking skill required?

A: Basic kits are beginner-friendly with pre-cut panels and straightforward assembly, but you’ll need basic tools like a drill and clamps. If you want custom cuts or curves, expect a learning curve.

Q: How do I handle ventilation and heat?

A: Plan ventilation for any active electronics and leave accessible panels for cleaning dust. For strict safety standards, follow guidance from Underwriters Laboratories (UL) on consumer electronics ventilation and clearance (see ul.com for details).

Q: Can I use a Raspberry Pi as the brain of the cabinet?

A: Yes — Raspberry Pi is popular for emulation projects due to its low cost and community software like RetroPie. It’s great for classic arcade ROMs but limited for demanding PC-era titles.

Q: What finish should I use on MDF or plywood?

A: Use a primer sealed coat first, then durable paint or vinyl wrap. MDF soaks moisture, so sealing edges and using an enamel or lacquer finish helps with longevity.

Q: Any tips for wiring and electronics safety?

A: Keep power and signal wiring separate, use properly rated connectors, and mount any power supplies away from exhaust vents. If you’re unsure about mains wiring, consult a licensed electrician.

Q: Where can I find inspiration and layout ideas?

A: Browse community builds, maker forums, and gallery sites to see diverse approaches and copy tested layouts; inspiration helps refine your ergonomics and aesthetic choices.
