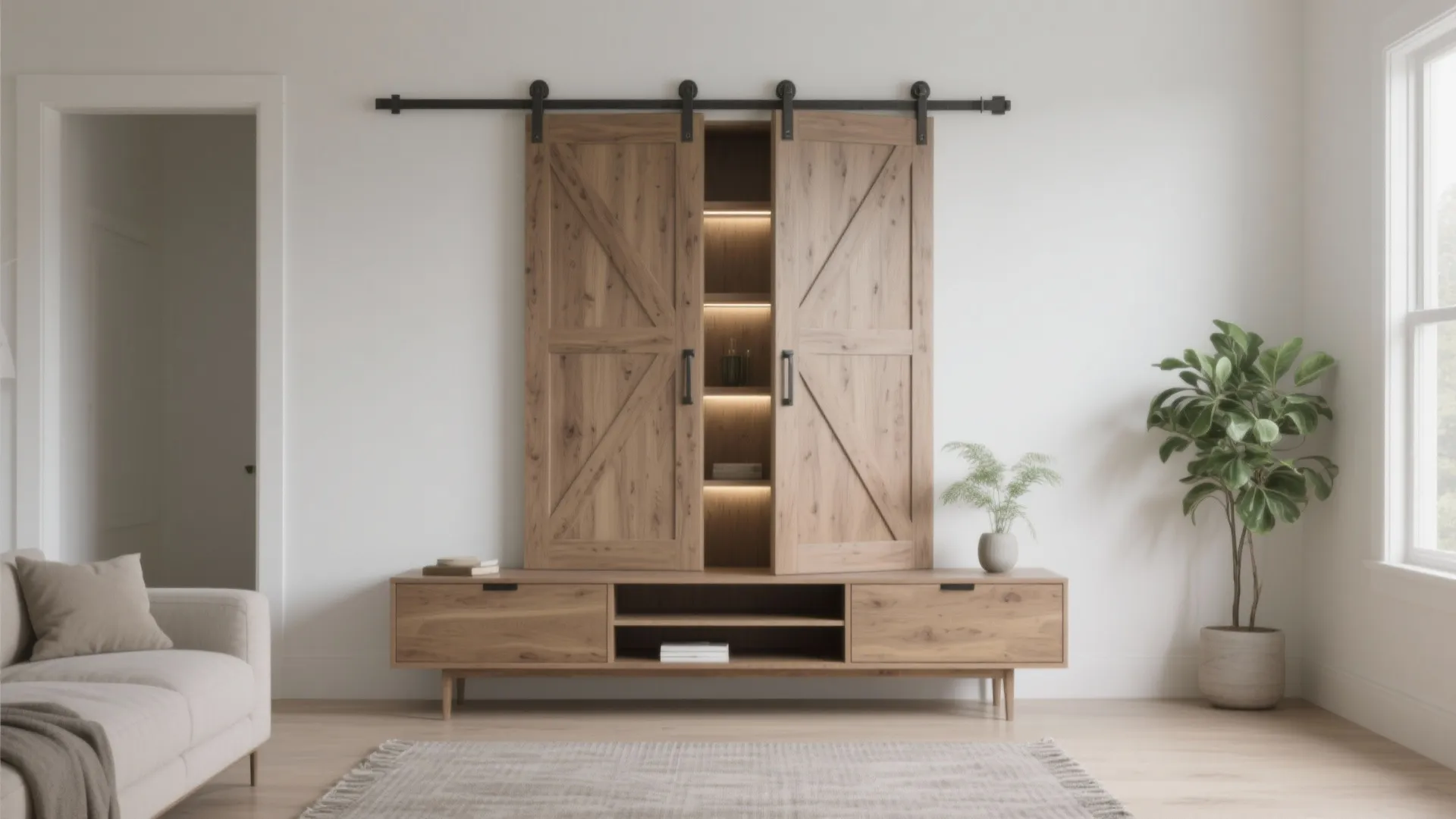

DIY Barn Door Cabinet: Stylish Storage for Any Space: Fast-Track Guide to Building Your Own Barn Door Cabinet

Sliding barn doors add effortless character while saving swing clearance—a win in tight entries, living rooms, and home offices. I designed this DIY barn door cabinet to offer concealed storage, display space, and flexible access without blocking pathways. In small homes, saving even 12–18 inches of door swing can unlock better circulation and sightlines. Steelcase research notes that clutter and visual noise increase perceived stress and reduce focus; a cabinet that lets you edit what’s visible helps calm a room and improve attentional control (Steelcase Workplace Research).

From a functional standpoint, WELL v2 recommends task surfaces between 28–30 inches high for typical seated work, with a comfortable reach envelope of 20–25 inches; I adapt those ranges when sizing cabinet depths and handles so daily use feels intuitive (WELL v2). When integrating lighting, I follow IES guidance to aim for roughly 150–300 lux for ambient living areas, ensuring the interior shelves aren’t gloomy when you slide doors open (IES standards). For readers who like digging into evidence-based design, here’s a useful reference from WELL v2 on ergonomics, and from Steelcase on clutter’s impact on cognition.

Design Intent and Proportions

I keep the overall footprint compact—typically 48–60 inches wide, 16–18 inches deep, and 30–34 inches high for a console-style cabinet. This scale balances storage capacity with visual lightness and avoids dominating a wall. Doors get a 1–1.5 inch overlap at midline to prevent light leaks and dust visibility. Rails and stiles in a classic barn profile (3–4 inch stiles, 1.5–2 inch rails) create enough structural rigidity without heavy bulk. If you’re placing the cabinet along a circulation route, maintain at least 36 inches of clear passage; it’s an ergonomic threshold that feels natural for most households.

Material Selection and Sustainability

For the carcass, I use formaldehyde-free plywood or solid hardwood (maple, ash, or sustainably sourced pine) at 3/4 inch thickness. Shelves can step down to 5/8 inch on spans under 30 inches; longer spans benefit from a center divider or a subtle front lip to limit deflection. Finishes: a waterborne polyurethane or plant-based hardwax oil keeps VOCs low and the grain tactile. Hardware in powder-coated steel or brushed stainless holds up to daily sliding without scuffs. Felt-backed stops and soft-close dampers help reduce vibration and noise—an acoustic detail that pays off in open-plan spaces.

Sliding Hardware and Track Details

The sliding system is the cabinet’s heart. I specify a top-mounted track with concealed rollers rated for at least 1.5× the door weight. For a typical 24-inch-wide, 3/4-inch-thick door with added trim, the weight falls in the 15–25 lb range, so 40–60 lb-rated rollers provide margin. Keep track standoff 1/2–3/4 inch from the face to clear trim. Integrated anti-jump tabs are non-negotiable. Bottom guides can be a discreet U-channel or twin floor pins set 1/4 inch proud—both stabilize lateral movement without advertising themselves. Alignment matters: strike a consistent 1/8–3/16 inch reveal around doors for clean lines.

Ergonomics and Daily Use

Handles sit at 36–42 inches from the floor for adult reach, with a 3–4 inch gripping length. I avoid snag-prone protrusions in tight rooms; recessed pulls or low-profile D handles are kinder to clothing and circulation. Inside the cabinet, frequently used items live between knee and shoulder height. If the cabinet doubles as a media console, cut cable grommets just above shelf midlines and protect edges with rubber grommet liners to avoid cable abrasion.

Light, Color, and Visual Balance

Warm-neutral colorways (think desaturated oak, charcoal, soft white) keep the piece versatile. From a color psychology angle, Verywell Mind notes that blues and balanced neutrals can reduce perceived stress, which aligns with the cabinet’s calming intent (VerywellMind color psychology). I pair it with 2700–3000K LED strips inside niches to gently illuminate displayed objects when the doors slide open, aiming for minimal glare. Matte finishes reduce specular highlights and maintain a grounded feel, while a rhythmic shelf spacing (10–12 inches, then a deeper 14–16 inch bay) supports varied storage without visual clutter.

Cut List and Core Dimensions

For a 54W × 18D × 32H cabinet: two side panels 32H × 18D × 3/4T; top and bottom 54W × 18D × 3/4T; back panel 54W × 32H × 1/2T (ply); center divider 30H × 17.25D × 3/4T; adjustable shelves (4 pcs) 26W × 16.75D × 3/4T. Doors: two at 27W × 30H × 3/4T with applied trim. Rail: 60W track with 4 roller hangers, 2 anti-jump brackets, and soft stops. If you’re iterating the internal bays, a room layout tool can help visualize shelf spacing and door clearances before you cut.

room layout tool

Joinery and Assembly Sequence

I favor pocket screws and glue for the carcass, backed by corner blocks. Dry-fit components, square the box, then add the back to lock geometry. Install the track on the top panel before mounting the carcass to avoid awkward overhead drilling. Hang doors, set reveals, and fine-tune guides last. For flooring that’s slightly out of level, shim beneath the cabinet’s base to keep the track perfectly plumb—sliding systems magnify even minor racking.

Finishing and Texture

Sand to 180–220 grit, raise the grain with a damp wipe, then finish. For a farmhouse look, I’ll wire-brush softwoods to accentuate latewood grain, then apply a tonal wash under a matte topcoat. In modern interiors, a flat, pore-filled finish in muted hues keeps things crisp. Use painter’s tape to create razor-clean breaks between stiles, rails, and panel fields if you’re color-blocking.

Placement, Clearance, and Integration

Place the cabinet where a sliding door’s lateral movement won’t conflict with adjacent handles or wall switches. Keep 4–6 inches clearance to outlet plates so the door doesn’t scrape. In narrow corridors, test door travel and hand clearance; a simple cardboard mock-up can prevent surprises. If you’re integrating the cabinet under a window, respect sill height and ensure the top surface doesn’t turn into glare bounce for nearby screens.

Budget and Timeframe

Material costs vary by region, but using formaldehyde-free ply, solid trim, and mid-grade hardware, I typically land between $280–$520 for this size range. With a track system and proper finishing, plan on a weekend build: day one for cutting, assembly, and first finish coats; day two for hardware, hang, and touch-ups.

Common Pitfalls and Fixes

Doors binding: check that the track is level and guides aren’t pinching. Sagging shelves: add a front lip or a center support. Loud travel: verify roller lubrication and add felt dampers. Misaligned reveals: loosen hanger bolts, shim behind track brackets, and re-square. Finish blotching on softwoods: use a conditioner, then apply your stain in thinner coats.

FAQ

What cabinet depth works best for sliding barn doors?

For living areas, 16–18 inches keeps proportions tidy and prevents the doors from feeling monolithic. Deeper cabinets can work for media storage but benefit from center dividers to limit shelf deflection.

How high should I place the cabinet for ergonomic use?

Console-height at 30–34 inches feels natural for most tasks. These dimensions align with WELL v2’s general recommendations for comfortable reach and use.

Do I need bottom guides if I have a high-quality top track?

Yes. Bottom guides prevent lateral sway and keep doors from chattering. A discreet U-channel or twin pins will do.

What lighting level is ideal inside the cabinet?

Aim for approximately 150–300 lux in adjacent ambient zones per IES guidance, with subtle LED strips inside to avoid harsh shadows when doors slide open.

Which wood species are most durable for daily sliding?

Maple and ash are resilient and take finishes well. Pine is workable and economical; just pre-drill and consider a harder clear coat.

How do I minimize noise from the sliding mechanism?

Use felt-backed stops, soft-close dampers, and verify the track is level. A drop of silicone lubricant on rollers can reduce chatter.

Can I convert this design into a wall-mounted unit?

Yes, but confirm wall studs and load capacity. Use a continuous cleat and ensure the track is fastened into structural members.

What finish resists fingerprints and smudges?

Matte waterborne polyurethane or hardwax oils with a low sheen hide fingerprints better than gloss. Dark, desaturated hues also mask minor smudges.

How do color choices affect mood in small spaces?

Balanced neutrals and cool undertones can reduce visual noise and perceived stress, aligning with insights from color psychology.

What’s the safest way to route cables in a media version?

Use rubber grommets and chamfered holes to protect cables; keep openings above shelf midlines to avoid dust collection and snagging.
