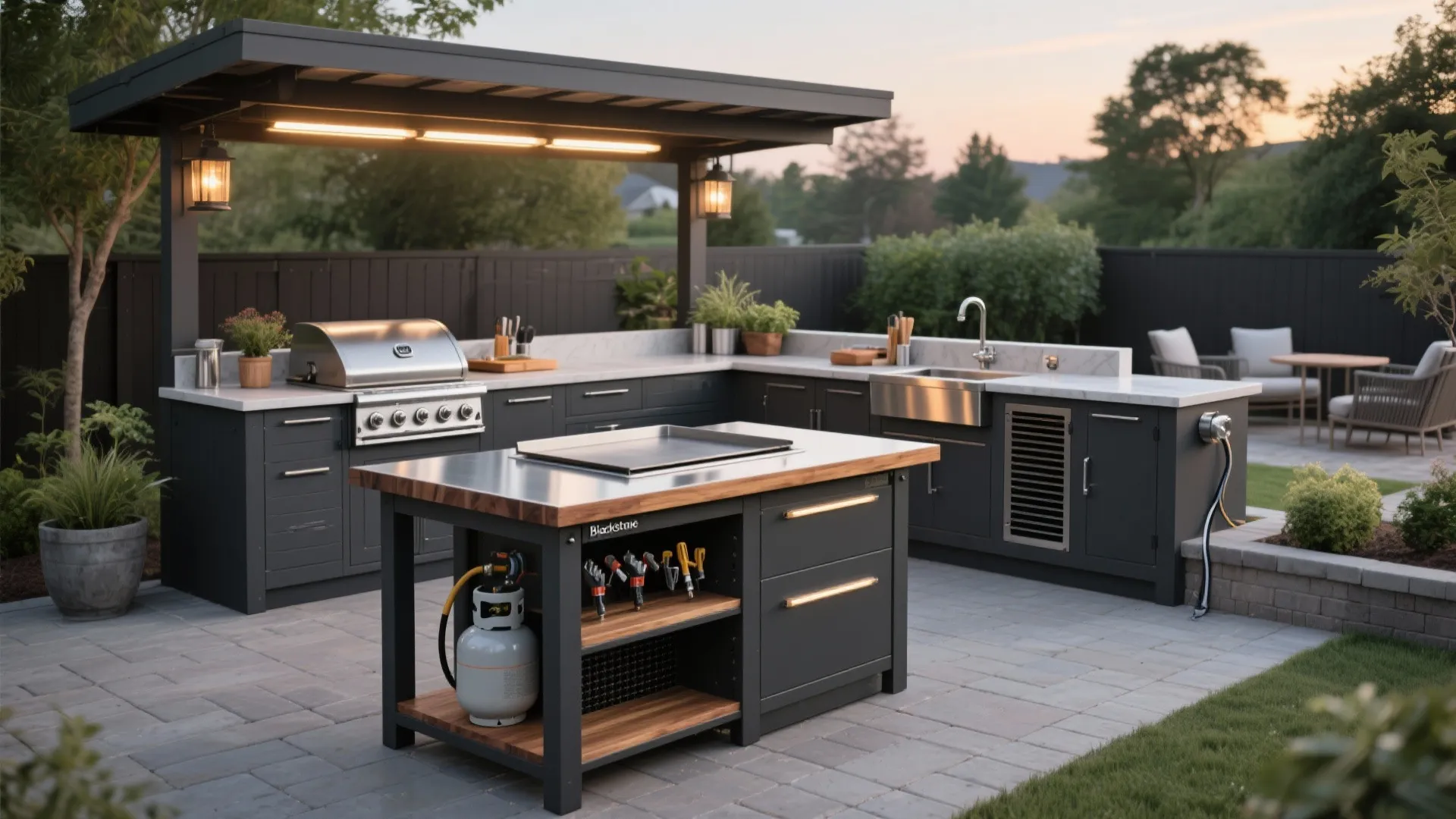

DIY Blackstone Griddle Table: Build the Perfect Outdoor Cooking Station: 1 Minute to Unlock Space-Saving Tricks for Your DIY Griddle Table

I’ve built and refined more than a few outdoor cooking stations over the years, and a custom Blackstone griddle table remains one of the highest-impact upgrades you can make to a backyard kitchen. A well-designed table does more than hold a griddle—it streamlines prep, stabilizes heat performance, improves safety, and creates a social hub around the cook. Done right, it balances weatherproof materials, ergonomic heights, smart storage, and clean cable/gas management.

Ergonomics and workflow matter as much outdoors as they do in a pro kitchen. Research from Herman Miller shows that reducing unnecessary reaches and optimizing counter height can cut task time and discomfort significantly; their ergonomics insights indicate ideal standing work surface heights of roughly 36–38 inches for average users, minimizing wrist extension and shoulder elevation. Lighting is equally critical at dusk cookouts. The IES recommends task lighting in the 300–500 lux range for food prep to reduce errors and eye strain; pairing warm ambient light (2700–3000K) with a neutral task strip near the griddle gives accurate color rendering for doneness while keeping glare in check. For color strategy around the station, Verywell Mind’s color psychology notes warm hues (like muted terracotta or honeyed wood tones) can increase perceived warmth and sociability—use them sparingly against cooler, soot-resistant finishes.

Outdoor stations often fail because moisture, grease, and heat aren’t managed holistically. A table engineered for the Blackstone’s footprint should incorporate ventilation slots around the appliance bay, a heat shield panel behind the griddle, and corrosion-resistant fasteners to combat thermal cycling. The WELL v2 guidelines emphasize hand-washing access and cleanable surfaces for hygiene; translate that outdoors with a stainless prep zone, a pull-out trash insert, and sealed storage for utensils to prevent cross-contamination. For layout planning across patios or small decks, a compact U or L configuration keeps prep, cook, and serve zones within a 4–6 foot reach envelope. If you’re testing configurations before building, a room layout tool can quickly simulate clearances and traffic flow: layout simulation tool.

Core Dimensions and Structure

Start with a rigid, weather-tolerant frame. I recommend 1.5"–2" square steel tubing (powder-coated) or marine-grade plywood on a hardwood frame if you prefer timber. Target a finished counter height of 36–37" for general use; taller cooks can push to 38". Allow at least 2–3" of perimeter clearance around the Blackstone for airflow and thermal expansion. A lower shelf supports the propane tank and stabilizes the base; set the tank shelf at 10–12" off the ground with a retainer strap and a quick-release buckle. Specify heavy-duty locking casters—two swivel locks front, two fixed rear—rated for outdoor use to keep the station mobile yet anchored.

Materials That Hold Up Outdoors

Countertops: 304 or 316 stainless steel resists corrosion and cleans fast. For a warmer feel, dense hardwoods like ipe or garapa work beautifully if oiled and edge-banded, but keep them away from the immediate heat path. Cementitious options (concrete with a penetrating sealer) add mass and stability, but ensure thermal break pads under the griddle. Fasteners: stainless or hot-dip galvanized only. Panels: fiber-cement or high-pressure compact laminate (HPL) for weatherproof cladding. Avoid softwoods near high heat—they scorch and warp.

Heat, Grease, and Venting Management

Integrate a removable drip trough aligned with the Blackstone’s grease channel, sloped 1–2% toward a stainless catch can. Place a perforated rear panel (or side vents) to break up heat accumulation and prevent cabinet baking. A thin ceramic or aluminum heat shield between the griddle bay and adjacent cabinets keeps storage areas under 120°F during sustained high-heat sessions. If you add a hood, include a simple baffle filter you can drop in the dishwasher. Keep combustible materials at least 12" from the griddle edges; label clearances inside the cabinet so future accessories don’t creep into the danger zone.

Ergonomics and Prep Workflow

Set the primary prep zone to the left or right of the griddle (dominant hand side) with 18–24" of uninterrupted counter for slicing and staging. Place serving platters on the opposite side to keep inbound and outbound traffic separate. A shallow stainless pull-out just below the counter holds spatulas and scrapers; tongs and probes can live on a magnetic strip near eye level. Ergonomic guidance from workplace studies suggests frequently used tools within 18" reach and rarely used items outside the primary sweep—this minimizes micro-fatigue over long sessions.

Lighting and Evening Performance

Blend glare-free task light and ambient glow. A slim IP65 LED bar mounted under a shallow canopy provides 300–500 lux on the prep area. Choose 3000–3500K with high CRI (90+) for accurate food color. Add a low, indirect lantern or linear strip under the lower shelf for soft orientation lighting. Control glare by limiting direct view of diodes and angling fixtures 30–45° off the work plane. If you host frequently, dimmable drivers let you step down intensity during conversation without sacrificing clarity at the grill.

Storage, Power, and Gas Management

Divide storage into clean, hot, and dirty zones. Clean: sealed bins for towels and gloves; hot: metal-only drawer for sizzling spatulas; dirty: pull-out trash and a lined compost pail. Route propane with a protected channel and grommeted pass-through; add a quick-disconnect fitting for fast tank swaps. If you run a griddle light or thermometer, integrate a GFCI outlet in a weatherproof box with cable clips along the underside to prevent snagging. Keep the tank ventilated with louvered panels—never seal it inside a tight cabinet.

Surface Finishes and Color Psychology

Balance dark, grease-concealing finishes with enough contrast to spot spills. A matte charcoal powder coat on the frame pairs nicely with satin stainless and a warm wood accent. Subtle warm tones near the social edge of the station cue comfort, while cool neutrals around the hot zone help signal utility. This mix mirrors findings in color psychology literature, where warm hues encourage sociability and cooler shades support focus—use the palette to choreograph behavior around the station.

Acoustics and Social Flow

Outdoor cooking can get noisy—sizzling, conversation, music. Introduce soft materials where you can: a weather-resistant rug under the serving edge, fabric cushions on nearby seating, and planters that break up sound reflections. Keep circulation clear behind the cook; a 36" minimum walkway is comfortable, 42" is ideal if you expect guests to pass through. For compact patios, sketch options and test clearances using an interior layout planner before committing: room layout tool.

Step-by-Step Build Outline

1) Measure the Blackstone footprint and mark a 2–3" thermal clearance perimeter. 2) Fabricate the frame: cut square tubing, weld or bolt corner brackets, test for racking. 3) Add lower shelf with tank strap mounts; fit locking casters. 4) Install heat shield panels and vent cutouts. 5) Fit countertop with a removable service panel for easy access. 6) Route grease to the trough; test slope and flow. 7) Mount storage: pull-outs, magnetic strip, trash insert. 8) Wire GFCI outlet if needed; mount cable clips. 9) Install lighting and dimmer. 10) Seal all wood; test for wobble and heat clearance across a 30-minute high-heat run.

Maintenance and Longevity

After each cookout, clear the grease trough, wipe counters with a mild degreaser, and inspect fasteners. Quarterly, re-oil wood, check caster locks, and clean filters. Yearly, touch up powder coat chips and re-seal concrete if used. Keep a spare regulator and hose on hand; they’re inexpensive and can save a night.

Safety Checklist

- Maintain clearances: 12" from combustibles, full ventilation around the tank. - Test for leaks with soapy water at every connection. - Keep a Class B fire extinguisher within reach. - Use heat-resistant gloves and store them in the clean zone. - Confirm lighting and outlets are outdoor-rated (IP65 fixtures, weatherproof boxes).

Design Variations

- Compact cart: 36" wide with fold-down prep wings, perfect for small decks. - Entertainer’s island: 72"+ with seating ledge and under-shelf ambient light. - Modular add-ons: clip-on cutting board, herb rail, secondary burner bay. Each variation still respects the same principles—ergonomic reach zones, heat control, and durable materials.

FAQ

What is the best counter height for a Blackstone griddle table?

For most users, 36–37 inches is comfortable; taller cooks can go up to 38 inches. This aligns with ergonomic guidance for standing tasks to reduce wrist and shoulder strain.

How much ventilation does the propane tank area need?

Use louvered or perforated panels on at least two sides. Avoid sealing the tank in a closed cabinet; ensure free airflow and easy access to the regulator.

What lighting levels work for evening cooking?

Provide 300–500 lux on the prep surface and 200–300 lux ambient. Choose 3000–3500K LED with high CRI for color accuracy and angle fixtures to reduce glare.

Which countertop materials handle heat and grease best?

304/316 stainless steel is the most forgiving for cleaning and heat resistance. Concrete with a penetrating sealer is stable but needs thermal breaks. Oiled hardwoods are fine for side zones, not right up against the griddle.

How do I manage grease safely?

Install a sloped drip trough aligned with the griddle’s channel, leading to a removable stainless catch can. Empty and clean after each session to prevent buildup and pests.

Can I make the table mobile without losing stability?

Yes—use a wide base, heavy-duty casters with front locks, and a lower shelf that adds mass. Lock the front casters during use and position the tank low for stability.

What clearances should I keep from combustible materials?

Maintain at least 12 inches from the griddle perimeter to any wood or fabric. Inside cabinets, mark no-go zones to keep accessories from migrating too close to heat.

How should I organize tools for efficient workflow?

Store frequently used tools within 18 inches of the main prep zone—magnetic strip for tongs and spatulas, shallow pull-out for scrapers, and a separate hot drawer for high-temperature tools.

Is a hood necessary for a griddle station?

Outdoors, it’s optional. If you add one, use a simple baffle filter and ensure adequate clearance and venting to avoid pulling smoke across the seating area.

What finish colors work best around a griddle?

Matte dark finishes hide smudges, while stainless provides a clean prep feel. Introduce warm accents at guest-facing edges to boost comfort and keep cooler neutrals near the cook zone.

How do I plan my patio layout around the station?

Keep a 36–42 inch walkway behind the cook, stage serving to one side, and test U or L shapes to tighten the cook-prep-serve triangle. If you want to visualize options, use a room design visualization tool to check clearances.

For deeper workplace and task-comfort insights that translate well to outdoor stations, I often reference Herman Miller’s research on ergonomics and Steelcase’s work on user behavior and reach zones; both highlight how small placement changes improve comfort and performance.
