DIY Cabinet Making Plans: 5 Practical Ideas: Smart, small-space cabinet plans I use after a decade of kitchen makeovers

Once I built a cabinet so tight that my client joked it was a prison cell for plates — lesson learned: measure twice, cut once, and always visualize the workflow. I now start every DIY cabinet project by sketching a detailed cabinet layout to avoid those horror stories, and that small ritual has saved me hours and a few swear words.

Small spaces can spark big ideas, and in this piece I’ll share 5 DIY cabinet making plans and inspirations I actually use on jobs. These are practical, budget-aware approaches with tool tips and real-life caveats from my studio.

1. Modular Box Cabinets (Flat-Pack Friendly)

I love modular box cabinets because they let you build in stages: make a stack of identical carcasses, then customize doors or drawers later. The upside is speed and repeatability; the downside is you need consistent jigs and a reliable cutting setup or your pieces won’t stack perfectly.

Quick tip: use a simple shop-made jig for dados and rabbets to keep tolerances tight; it costs time up front but makes assembly almost pleasant. Budget-wise, plywood carcasses + MDF doors hit a sweet spot for cost vs. finish.

save pin

2. Face Frame Basics for Classic Looks

Face frames add rigidity and hide imperfect cuts — I use them when clients want a traditional feel without a full cabinet shop price. They’re forgiving during installation but add material and labor, so expect slightly higher costs and more time on the table saw.

Case story: I switched to wide stile face frames on a rental unit for durability; renters banged doors open and the frames protected the carcass for years. If you’re working solo, pre-sand stiles and rails before assembly to save effort later.

save pin

3. Integrated Appliance Cabinets for Tight Kitchens

When kitchens are small, integrating appliances into cabinets keeps sightlines clean and maximizes usable counters. Planning these needs early — measured openings, ventilation, and panel-ready doors — is essential or you’ll end up with gaps or overheating electronics.

For functional planning I map out the kitchen workflow and appliance clearances; it takes effort but prevents redesigns. Pro tip: leave a 2–3mm gap around panel doors for seasonal wood movement if you’re using solid wood.

save pin

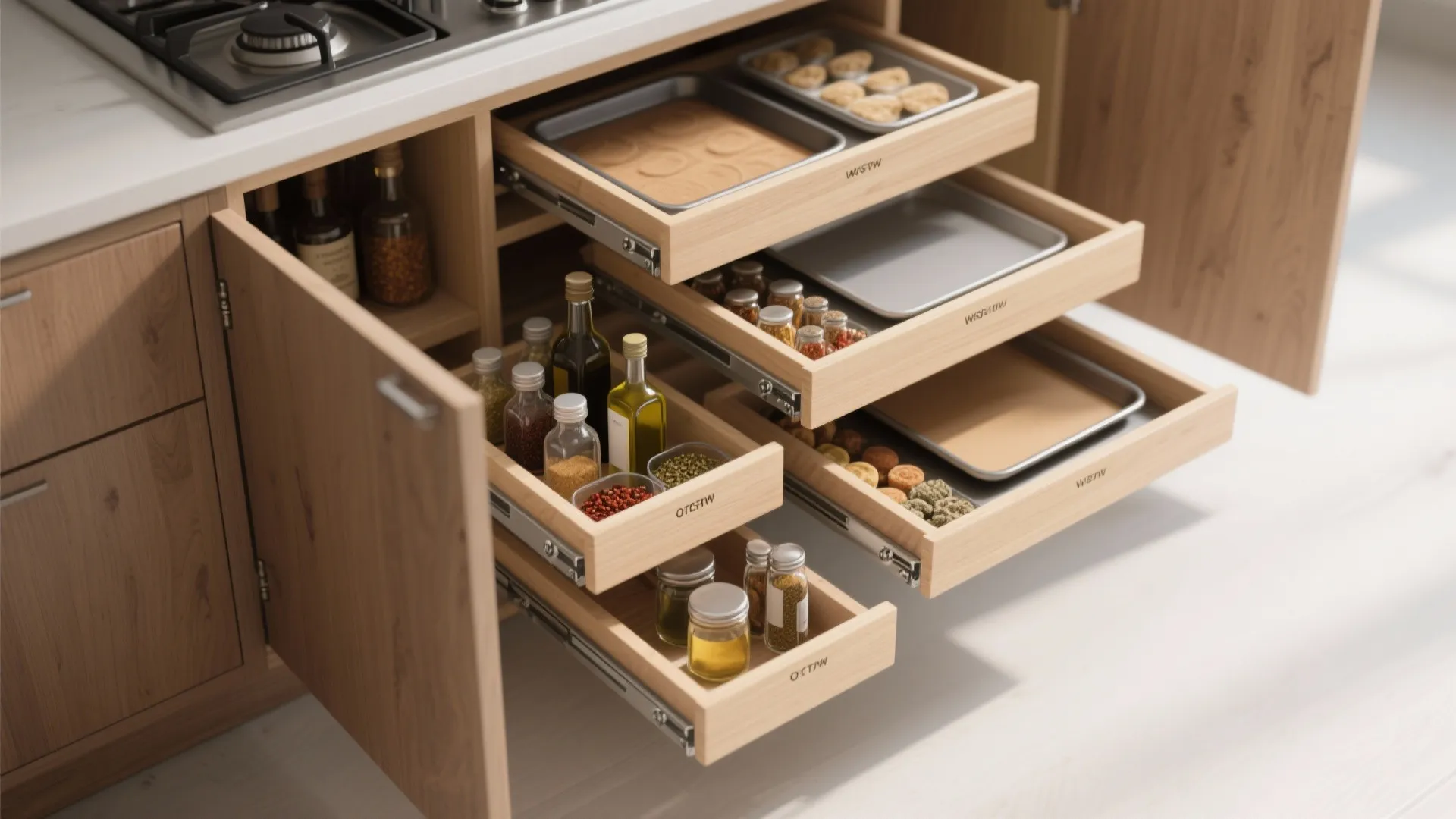

4. Pull-Out Organizers and Vertical Storage

Pull-outs and tall narrow cabinets convert dead space into highly usable storage. I often design 3–4 deep pull-out trays for oils, spices, or baking sheets — they’re a little fiddly to build but make everyday life much easier for clients.

These systems can add cost for hardware, so I balance budget by choosing one or two high-impact pull-outs rather than outfitting every cabinet. Remember to test the glide hardware load ratings with full shelves before final assembly.

save pin

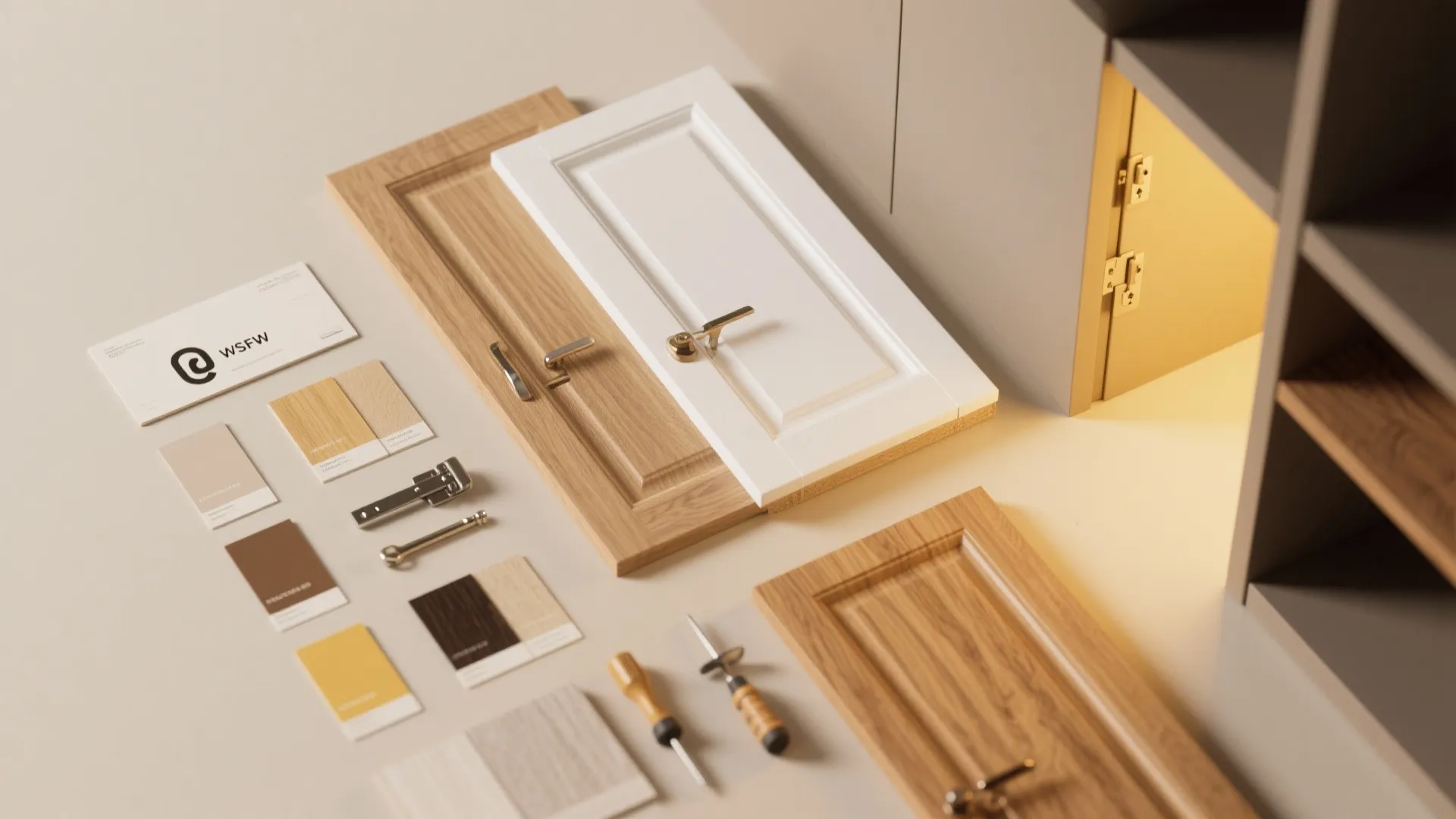

5. DIY Overlay Doors with Photo-Finish Tricks

If you want a high-end look on a DIY budget, overlay doors combined with a well-executed paint or veneer finish can look custom. The challenge is door fitting — overlays require consistent gaps and good hinge selection — but the visual payoff is big.

To preview finishes, I often make a small mockup and render the look to clients using photo-realistic renders so expectations stay realistic. It’s a small extra step that wins approvals and avoids rework.

save pin

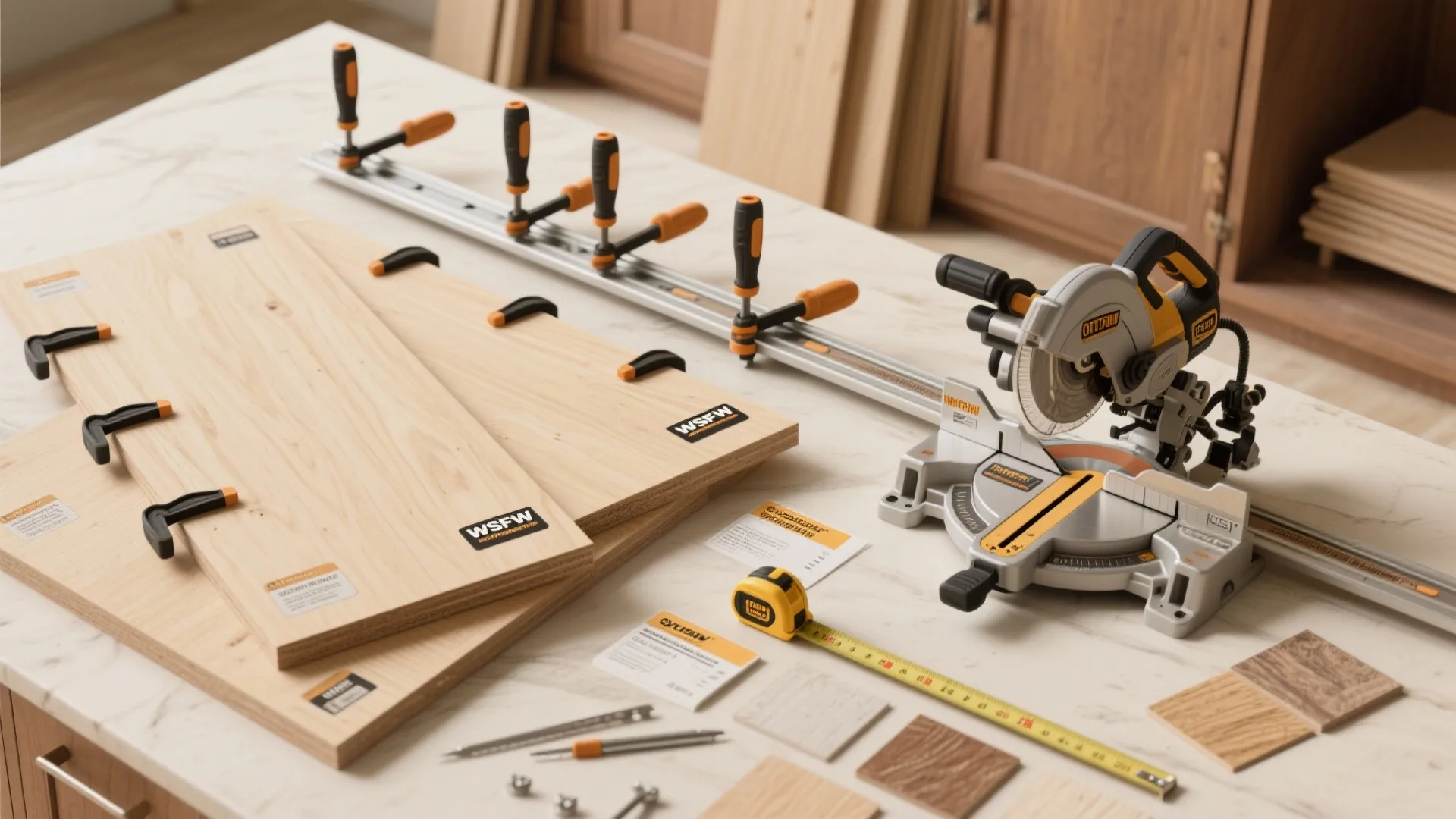

Tips 1:

Budget reminder: plywood cores (cabinet-grade) for carcasses, solid wood or thermofoil for faces depending on finish and durability needs. Time-savers: build in batches, use parallel cuts on the track saw, and label every panel to avoid mystery pieces at assembly.

If you need a quick spatial mock-up while planning joinery and appliance fits, I sometimes start with a simple online plan to confirm dimensions before committing to cuts — it’s a sanity check that stops mistakes early.

save pin

FAQ

Q1: What basic tools do I need to build cabinet boxes?

Essential tools are a circular saw or track saw, table saw (helpful), drill/driver, clamps, measuring tools, and a router with straight bits. A good set of clamps and a cam lock jig or pocket hole jig speeds assembly considerably.

Q2: What materials make the best DIY cabinets?

Cabinet-grade plywood for carcasses and either MDF or solid wood for doors are common choices; plywood resists racking and MDF paints smoothly. For a balance of cost and durability, 3/4" plywood carcasses with MDF or veneered doors are my go-to.

Q3: How do I plan cabinet dimensions for appliances?

Measure the appliance exact model and add manufacturer-recommended clearances for ventilation and door swing. Always double-check on-site measurements before cutting face frames or panels to avoid costly mistakes.

Q4: Are full overlay doors harder to fit than inset doors?

Full overlay doors are generally easier for DIYers because they hide minor carcass inconsistencies; inset doors require much tighter tolerances and more precise routing. If you’re new, start with overlays and move to inset once you’ve mastered consistent box builds.

Q5: How do I ensure cabinets don’t warp or gap over time?

Allow for seasonal wood movement, use plywood for stability, seal all panels, and leave small gaps where solid wood faces meet frames. Proper glue and screw patterns plus a good finish prevent many long-term issues.

Q6: Can I visualize cabinet layouts before cutting?

Yes — I often create a quick layout to test clearances and workflow; mapping a detailed cabinet layout early saves wasted cuts and frustration. For a deeper kitchen planning exercise, consider referencing a kitchen workflow case study to confirm spacing and appliance relationships: kitchen workflow.

Q7: Where can I find reliable guidance on plywood grades and joinery?

Authoritative woodworking resources like FineWoodworking offer detailed articles on material selection and joinery; see FineWoodworking for in-depth, tested advice (https://www.finewoodworking.com). Their articles helped me choose plywood grades for damp environments and heavy use.

Q8: How do I present my DIY cabinet idea to clients or partners?

Make a small mockup or draw a scaled diagram and supplement with a render — I often use photo-realistic renders to set expectations and avoid rework. If you want high-quality render examples to show clients, I’ve used photo-realistic renders to great effect.
