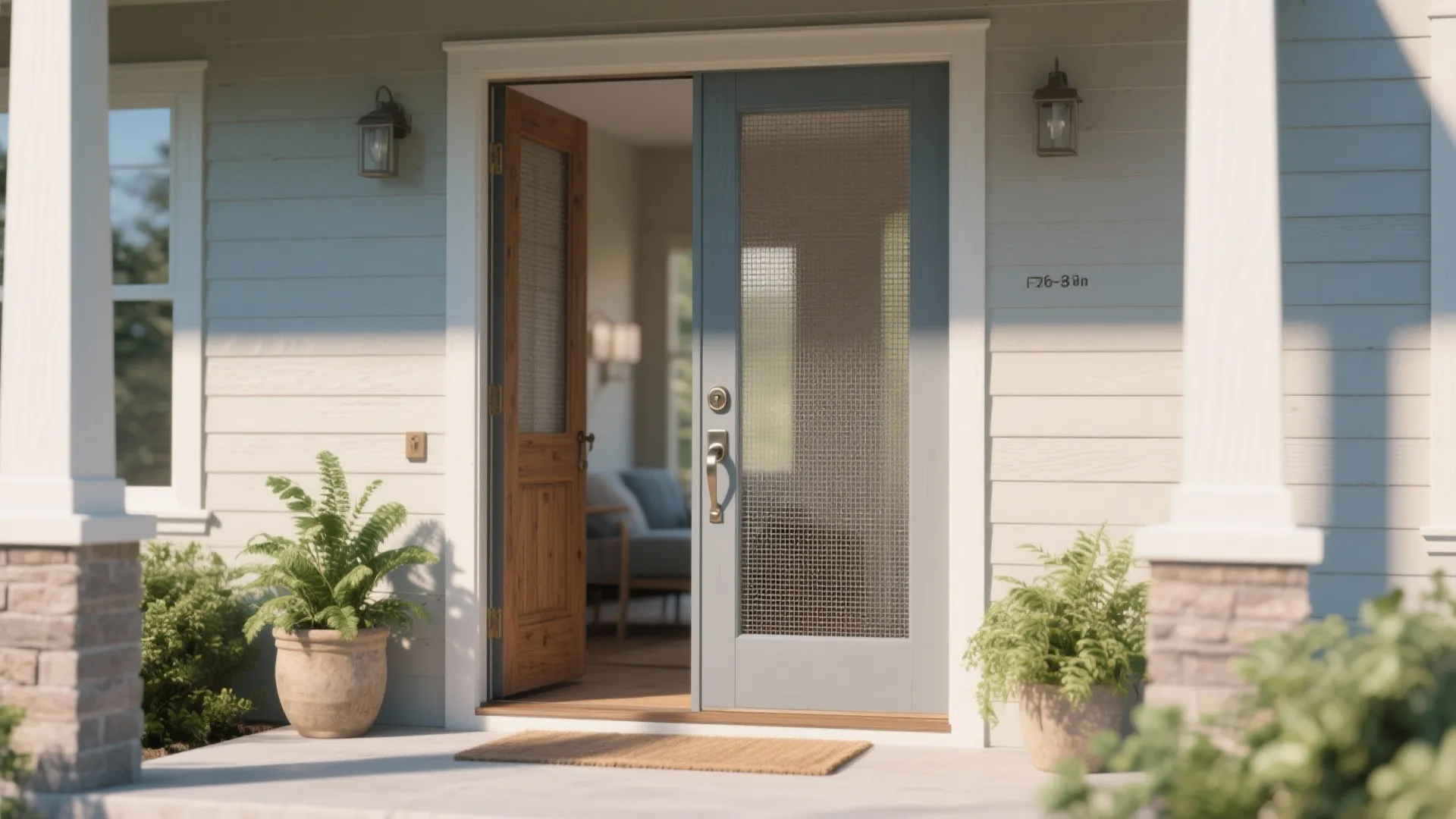

DIY Door Screen: Easy Steps for a Fresh, Breezy Home: 1 Minute to a Bug-Free Entryway—A Fast DIY Screen Door Guide

I love how a well-built door screen can change the rhythm of a home—fresh air rolling in, summer sounds softened, and the subtle sense of openness without sacrificing privacy. A custom DIY screen is more than a weekend project; it’s an ergonomic, acoustic, and visual upgrade you feel every day. In warm months, natural ventilation can lower reliance on mechanical cooling. Gensler’s workplace research notes ventilation and air quality as top factors in perceived comfort, and WELL v2 includes operable windows and filtration under its Air concept—fresh airflow is not just a luxury; it’s tied to wellbeing. One practical metric: Steelcase research highlights that better environmental comfort (including thermal and air movement) correlates with higher satisfaction and performance in occupied spaces.

There’s a simple, durable way to build a screen that fits your door precisely, keeps insects out, and complements your façade. According to IES recommendations, glare control and daylight balance improve visual comfort when doors are open; pairing a screen with a light, matte finish near the entry helps soften contrast. WELL v2 also emphasizes particulate filtration and ventilation strategies; a tight screen mesh (approx. 18×16 or 20×20 fiberglass) blocks most insects while maintaining airflow. I lean on these standards to choose mesh and finishes that feel good and perform for years. For design intent and spatial planning, you can test sightlines and swing clearance with a room layout tool to confirm your door and threshold area won’t pinch circulation.

Plan the Build

I measure the existing door frame, not the slab, and note hinge side, latch side, and swing direction. The target is a 3–5 mm gap around the screen frame to prevent binding while allowing weatherstrip compression. I sketch the stile and rail sizes (usually 1×3 or 1×4 cedar or pine for a light but stable panel) and decide on a central cross-rail for racking resistance. If your door receives strong sun, choose a UV-stable fiberglass mesh; if pets are a factor, stainless or polyester pet mesh resists claws. For coastal areas, consider marine-grade hardware to avoid corrosion.

Materials and Tools

• Lumber: 1×3 or 1×4 clear cedar/pine for frame

• Mesh: 18×16 or 20×20 fiberglass (general use), stainless/poly pet mesh (high durability)

• Spline: 0.125–0.140 inch depending on groove

• Spline roller, utility knife, square, clamps

• Waterproof wood glue, exterior screws or pocket screws

• Corner brackets (optional) and metal screen retainer for long spans

• Primer/sealer and exterior paint or spar varnish

• Hardware: self-closing hinges, latch set, pull handle, magnetic catch (optional)

• Weatherstrip and threshold sweep

Cut and Assemble the Frame

I cut stiles and rails to the net size minus the desired clearance. Dry-fit with a carpenter’s square to check squareness. Glue and screw joints—pocket screws make the back tidy. Add a mid-rail at handle height (approx. 36–38 inches from finished floor) for stiffness and ergonomic reach. If the span exceeds 36 inches, I’ll use hidden corner brackets to keep the frame from twisting over time. Sand edges lightly, break sharp corners, and seal end grain before final finish.

Grooves, Spline, and Mesh Prep

Route or chisel a 3–4 mm deep groove along the interior perimeter to hold the spline. Test-fit the spline with a small mesh offcut; you want resistance without tearing. Roll the mesh out flat, tape the edges to keep tension, and leave 25–30 mm overhang around the frame to trim later. I prefer fiberglass mesh for its balance of airflow and ease of installation; stainless mesh holds shape but needs careful tension to avoid ripples.

Install the Mesh

Start at one long side, press the spline and mesh into the groove with a roller, keeping even tension—like stretching a drum skin but gentler. Move to the opposite side, then top and bottom, alternating to prevent diagonal skew. Trim excess mesh flush with a sharp utility blade. If you’re screening a large opening, a metal retainer strip along the mid-rail prevents sagging. Always check square again; an out-of-square frame will bind at the hinge.

Finish: Seal, Paint, or Varnish

I seal all faces with exterior primer or spar varnish, prioritizing end grain—this is where moisture sneaks in. For sunny elevations, a light, low-gloss finish reduces glare at the threshold and helps visual comfort when transitioning indoors. Color psychology matters here: muted greens and desaturated blues can subtly cue calm at entries, while warm neutrals feel welcoming without visual noise. Verywell Mind’s color psychology notes blues are associated with calm and reliability; I often pair a pale slate with brushed nickel hardware for a balanced, grounded look.

Hinges, Latch, and Alignment

Mount three hinges for full-height doors or two for shorter panels. I mark hinge locations to align with the main door hinges to distribute loads. Pre-drill to avoid splitting, set the screen in place with shims, and check for swing clearance and latch engagement. A magnetic catch improves usability if small children are around, but I still install a positive latch for security. Add a sweep at the bottom to deter bugs and dust; keep a 6–8 mm clearance over exterior pavers for smooth motion.

Weather, Noise, and Comfort

Aside from airflow, screens slightly dampen high-frequency outdoor noise and create a psychological barrier that feels secure yet open. From an ergonomics standpoint, the handle height and the ease of closure are key—no wrist strain or awkward reach. If your entry faces a busy street, I’ll specify a denser mesh to reduce visual distraction, at the expense of a small airflow drop. For sunset glare, a bronze-tinted mesh softens luminance; pairing it with a matte threshold finish can cut veiling reflections per IES visual comfort guidelines.

Maintenance and Longevity

A gentle vacuum or soft brush removes pollen and dust without stretching the mesh. Inspect spline channels seasonally—UV and heat can loosen tension. If pets damage a panel, swap just the mesh; the frame should last years if sealed correctly. Hardware gets a light silicone lubricant annually, and any finish nicks on the bottom rail should be spot-sealed to block moisture.

Layout Considerations

Before mounting, I like simulating door swing arcs, step-in zones, and porch furniture clearance to keep circulation intuitive. If you want a quick visualization of hinge side, sightlines, and screen footprint relative to adjacent furniture, try an interior layout planner to test door swing and landing areas: room layout tool.

Common Mistakes to Avoid

• Skipping end-grain sealing—frames wick moisture and warp

• Over-tightening spline—mesh will ripple at corners later

• Misaligned hinges—creates binding and premature wear

• Glossy dark finishes near bright exteriors—amplifies glare at the threshold

• No mid-rail on wide doors—frame racking and latch misalignment

Quick Build Steps

1) Measure door opening and plan 3–5 mm clearance

2) Cut and assemble frame with mid-rail at 36–38 inches

3) Route or chisel spline grooves

4) Fit mesh and spline, alternating sides for even tension

5) Trim mesh, seal, and finish the frame

6) Install hinges, latch, sweep, and adjust swing

7) Test comfort: glare, airflow, handle height, and closure force

FAQ

Q1: What mesh count is best for general insect control?

A: 18×16 fiberglass is the common standard for airflow and bug control. If you need finer filtration, 20×20 reduces small pests but slightly lowers airflow.

Q2: How do I keep glare under control when the door is open?

A: Use a matte, light finish around the threshold, and consider bronze-tinted mesh. IES visual comfort guidance favors reduced specular reflections and balanced luminance near transitions.

Q3: What handle height is most ergonomic?

A: 36–38 inches from finished floor keeps the wrist neutral and works for most adults, minimizing reach strain.

Q4: Which materials last longer outdoors?

A: Cedar or well-sealed pine frames with stainless or marine-grade hardware resist weathering. Use exterior primer or spar varnish to protect end grain.

Q5: Can a screen improve comfort beyond airflow?

A: Yes—screens reduce insect intrusion, soften outdoor noise slightly, and create a psychological sense of openness. WELL v2’s Air concept validates the role of ventilation in perceived comfort.

Q6: How do I prevent the screen from sagging?

A: Add a mid-rail and ensure spline tension is consistent. For oversized panels, a metal retainer along the middle supports the span.

Q7: What’s the best way to plan door swing and clearance?

A: Map the hinge side, swing arc, and landing area. A room design visualization tool helps you test circulation and avoid conflicts with porch furniture.

Q8: How do I maintain the mesh over time?

A: Vacuum gently with a soft brush, inspect spline channels each season, and re-tension or replace mesh if edges loosen due to UV exposure.

Q9: Are pet-resistant screens worth it?

A: If you have dogs or cats, polyester or stainless pet mesh resists claw damage and saves you from frequent repairs.

Q10: What finish color feels welcoming at entries?

A: Soft neutrals, muted greens, or desaturated blues cue calm and approachability. Color psychology research often links blues with reliability and calm.

Q11: How much clearance should I leave at the bottom?

A: Typically 6–8 mm above exterior pavers for smooth motion and to avoid dragging; pair with a sweep to block dust and insects.

Q12: Any tips for coastal climates?

A: Use marine-grade stainless hardware, thorough sealing, and fiberglass or stainless mesh to resist salt corrosion. Check hinges annually for oxidation.
