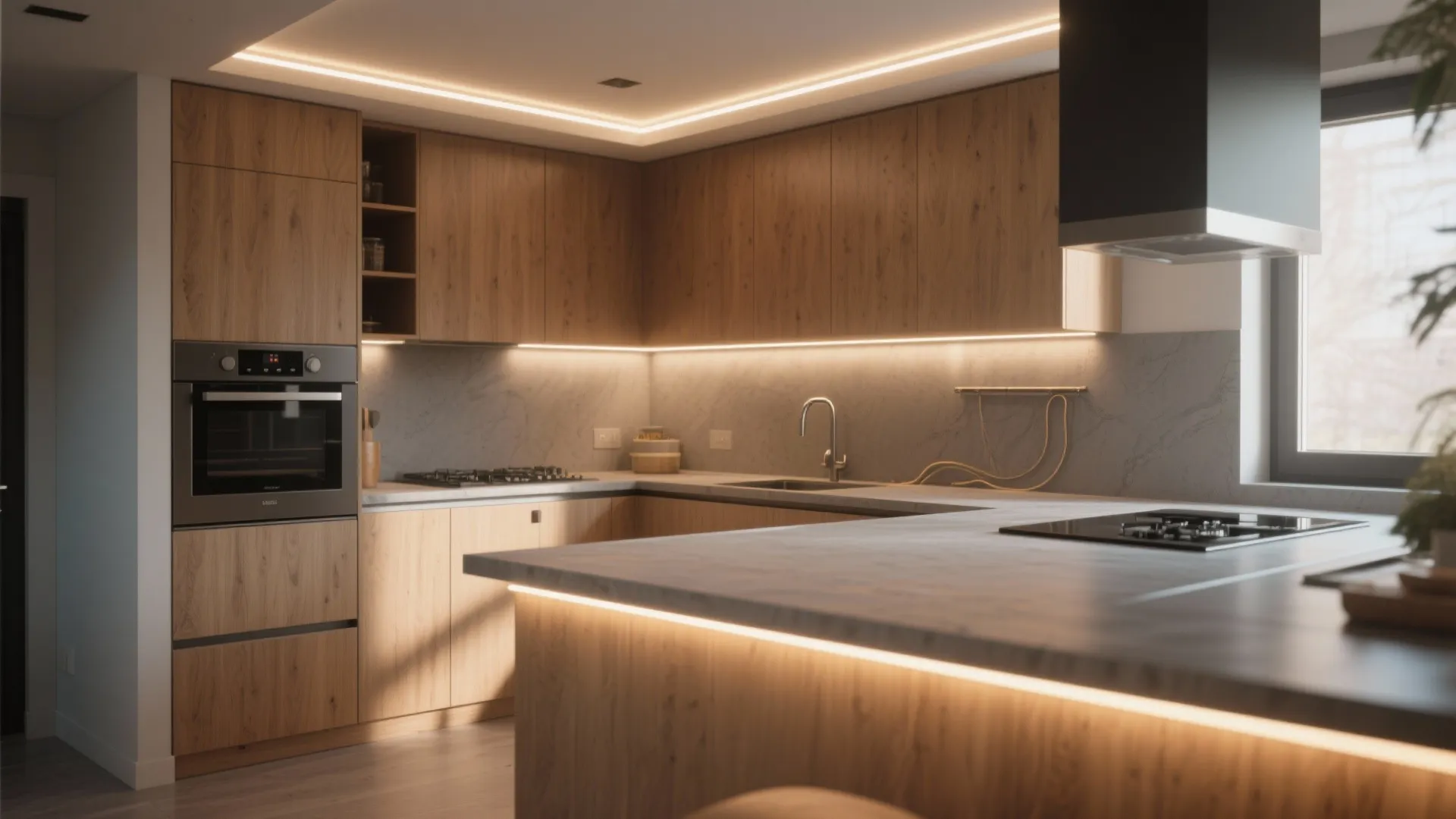

DIY LED Tape Light: 5 Creative Ideas: Five practical, small-space friendly creative ideas for installing DIY LED tape light

I once had a client ask me to line the underside of every single cabinet with LED tape so their kitchen would look like a spaceship — I obliged, and learned that a little strip of light can change the vibe of a room more than a full remodel. Early on I also fried a 12V driver by daisy-chaining too many runs; lesson learned: plan power and load first. For those tiny apartments or tricky corners where real fixtures feel too heavy, these small ideas show how DIY LED tape light can make a big impact — and if you need spatial planning help, check out small space lighting tricks to visualize your layout.

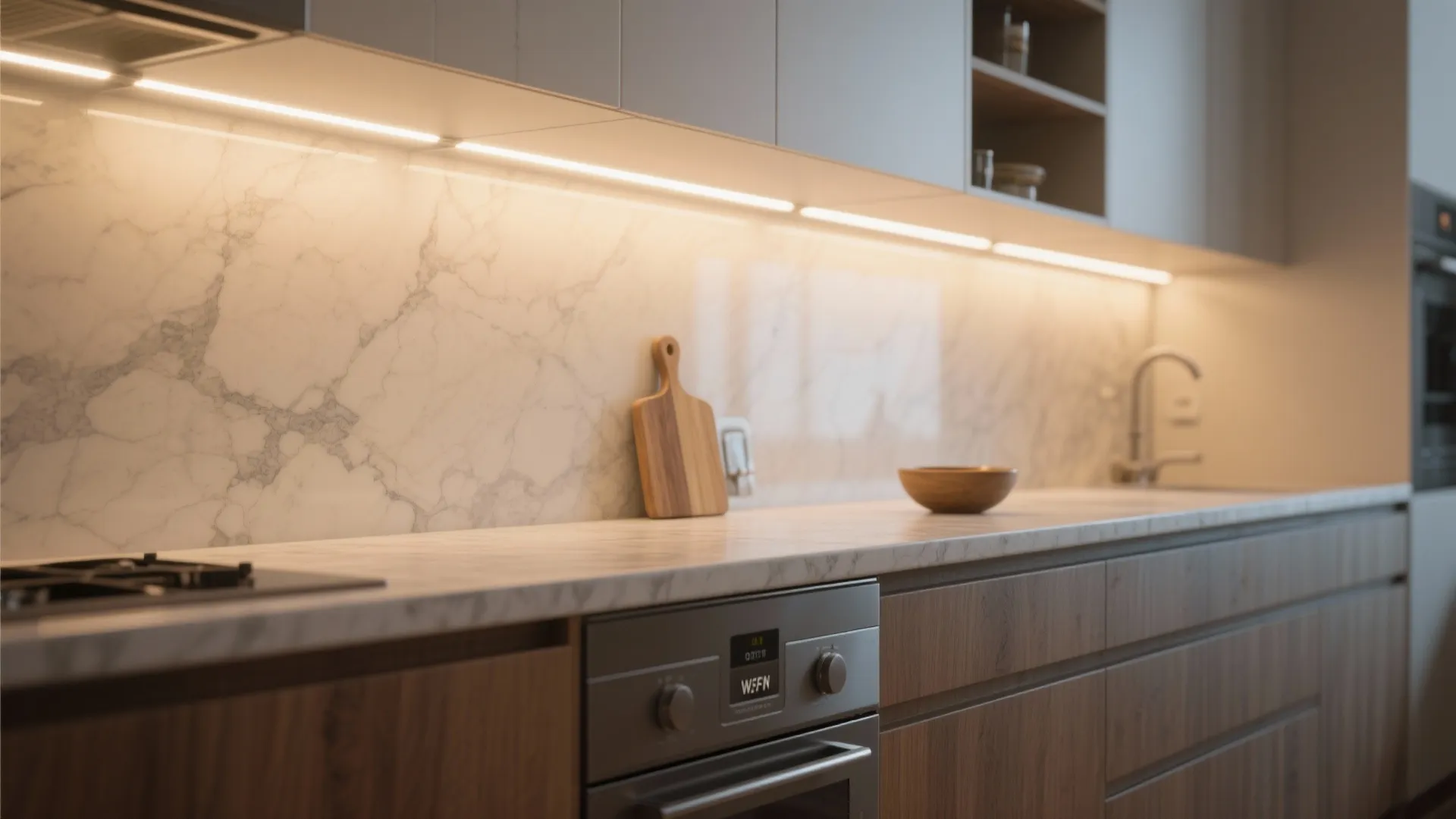

1. Under-cabinet halo for kitchens

I love using warm white LED tape under cabinets to create a soft countertop halo that feels luxurious without a big budget. It’s great for task light and mood control; the downside is that poor adhesion or uneven backs can make segments look patchy, so prep the surface and use aluminum channels with diffusers for a neat finish.

save pin

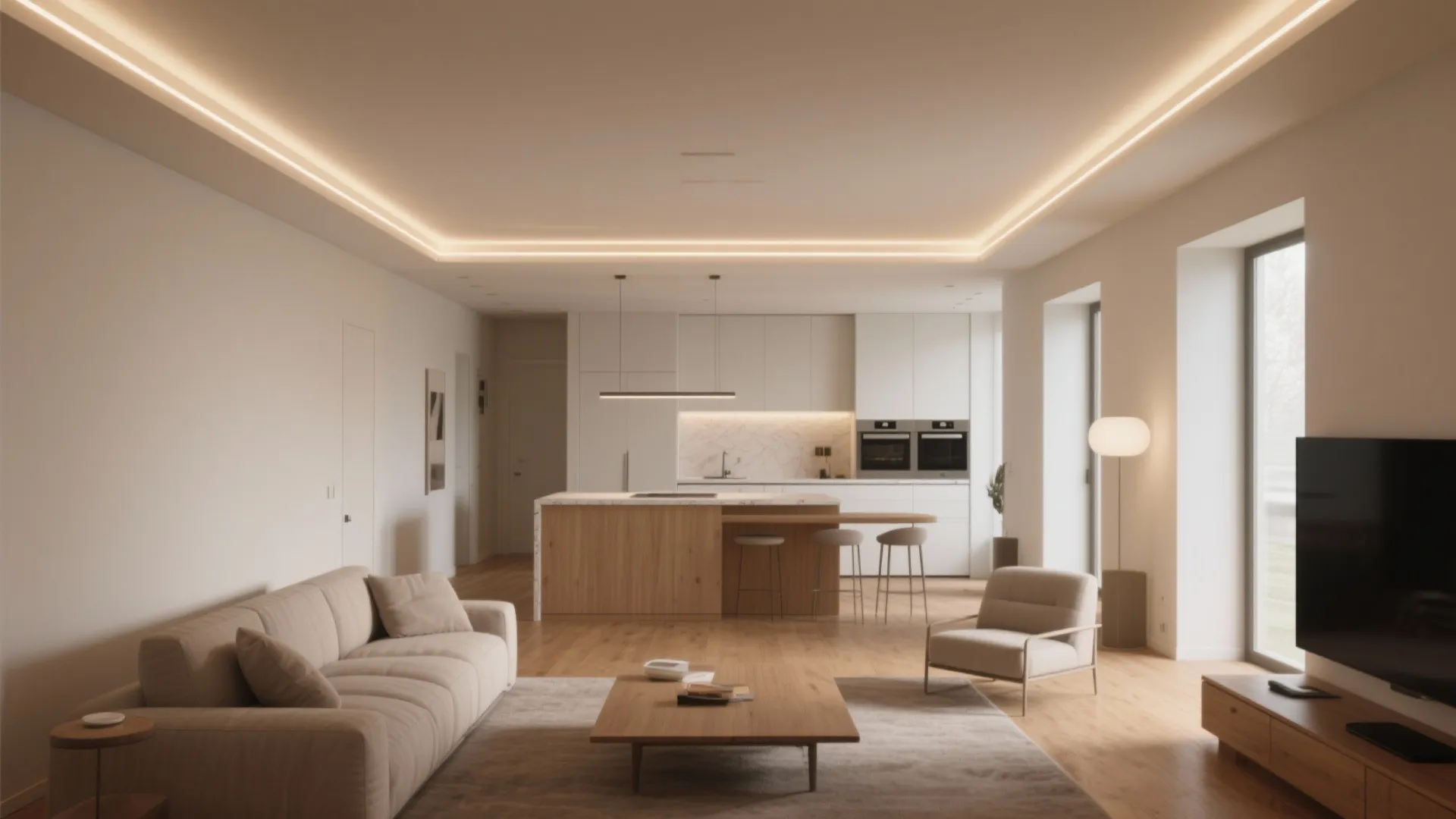

2. Cove ceiling wash to visually raise a room

Running LED tape in a shallow cove around the perimeter is one of my favorite tricks to make ceilings read higher. You get even indirect light and a calming glow; the challenge is routing the wiring neatly and choosing the right color temperature so the wash doesn’t read cold. For kitchen zones I sometimes pair this with accent strips over islands — think of them as subtle kitchen accent bands that guide the eye.

save pin

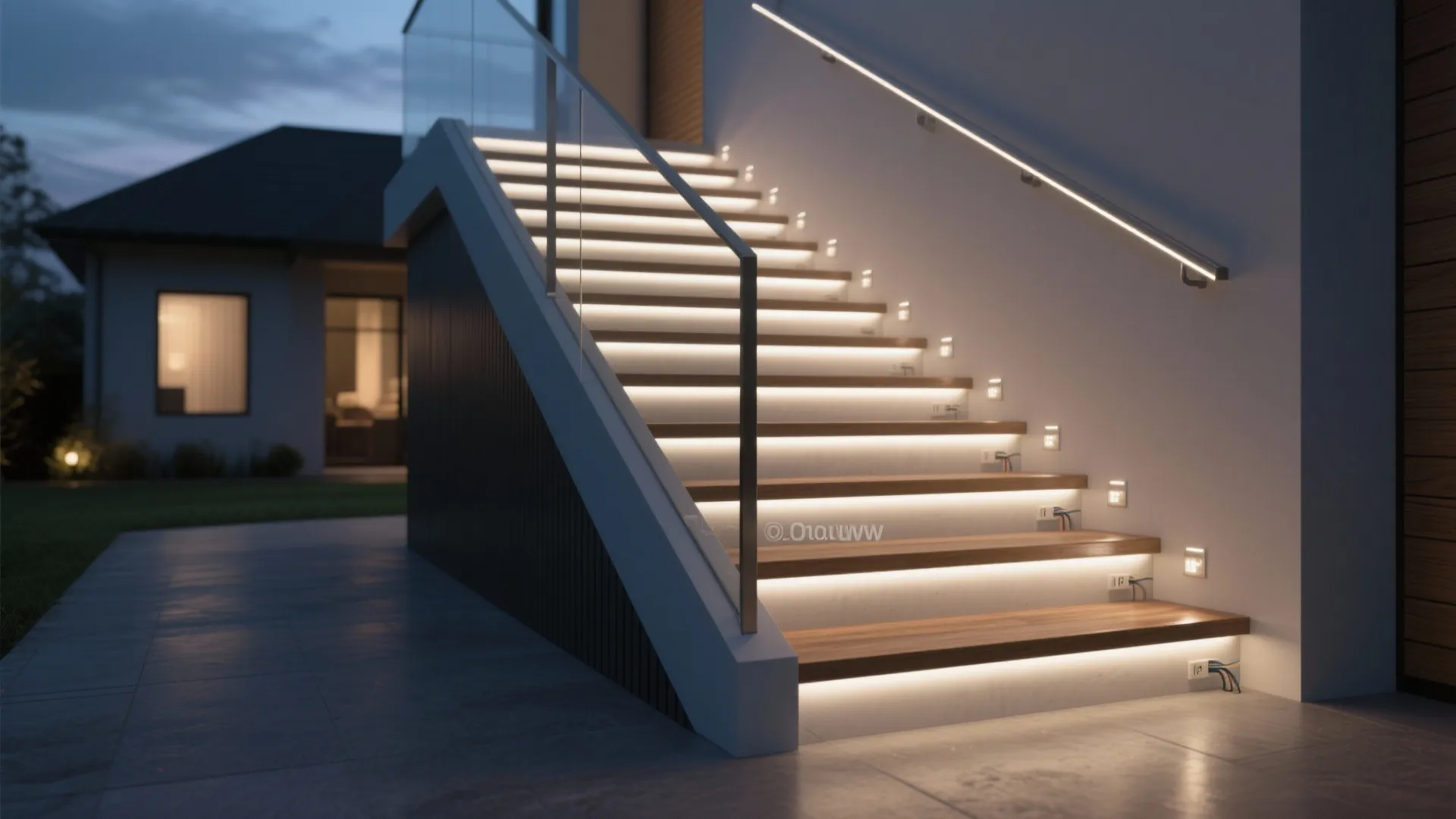

3. Stair treads and toe-kick safety lighting

Low-level LED tape along stair risers or toe-kicks adds safety and drama without glare. It’s a low-cost upgrade, but make sure to choose IP-rated strips for any exposed locations, and keep runs short or use multiple feed points to avoid voltage drop that dims the far end.

save pin

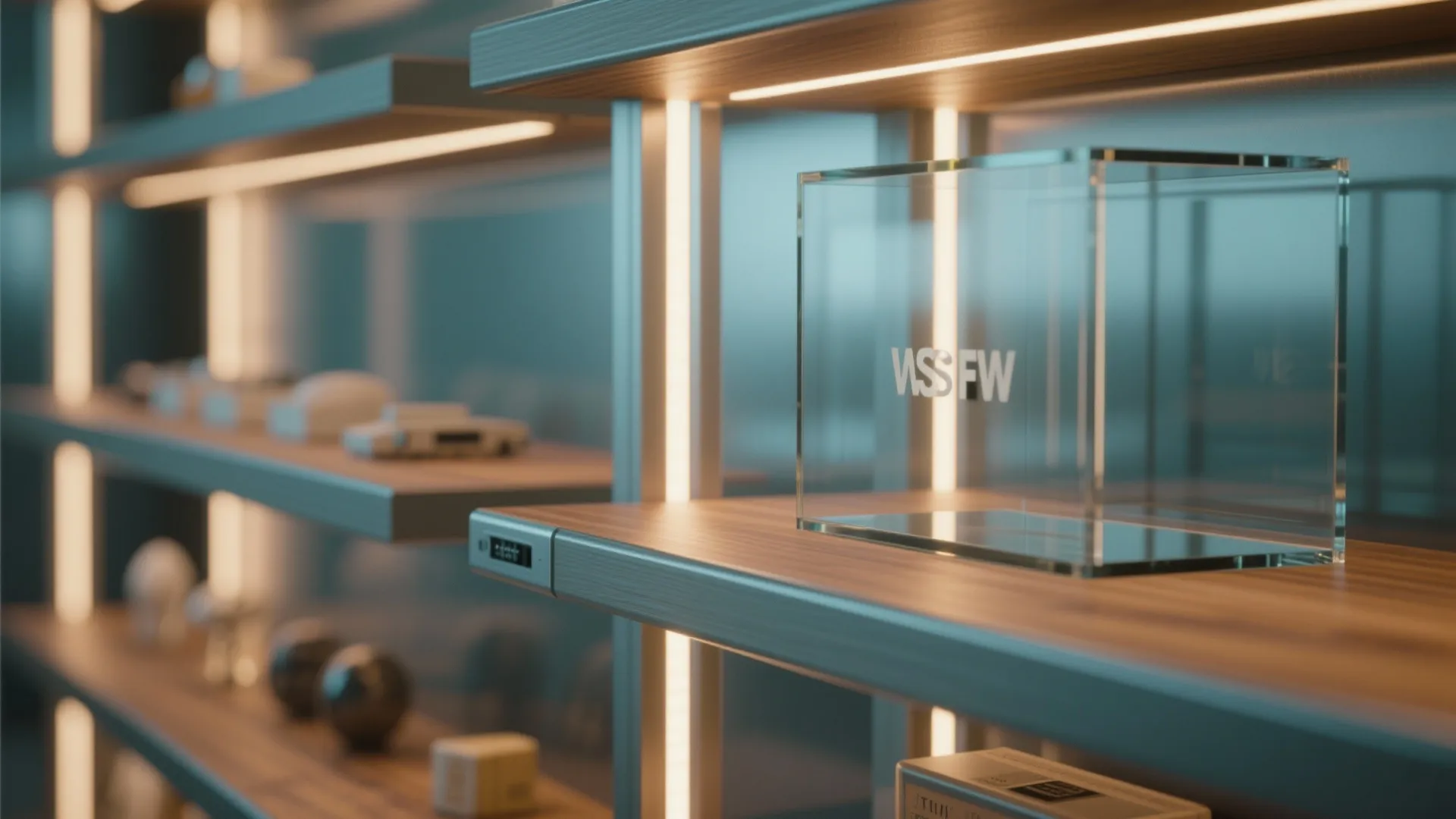

4. Backlit shelves and display cases

LED tape behind shelves or inside glass cabinets turns objects into small focal points and can be a lifesaver in compact studios where decorative storage is also stage lighting. The trade-off is heat buildup in tight enclosures, so use strips with good thermal contact to aluminum profiles and add a dimmer to protect delicate items and tune moods.

save pin

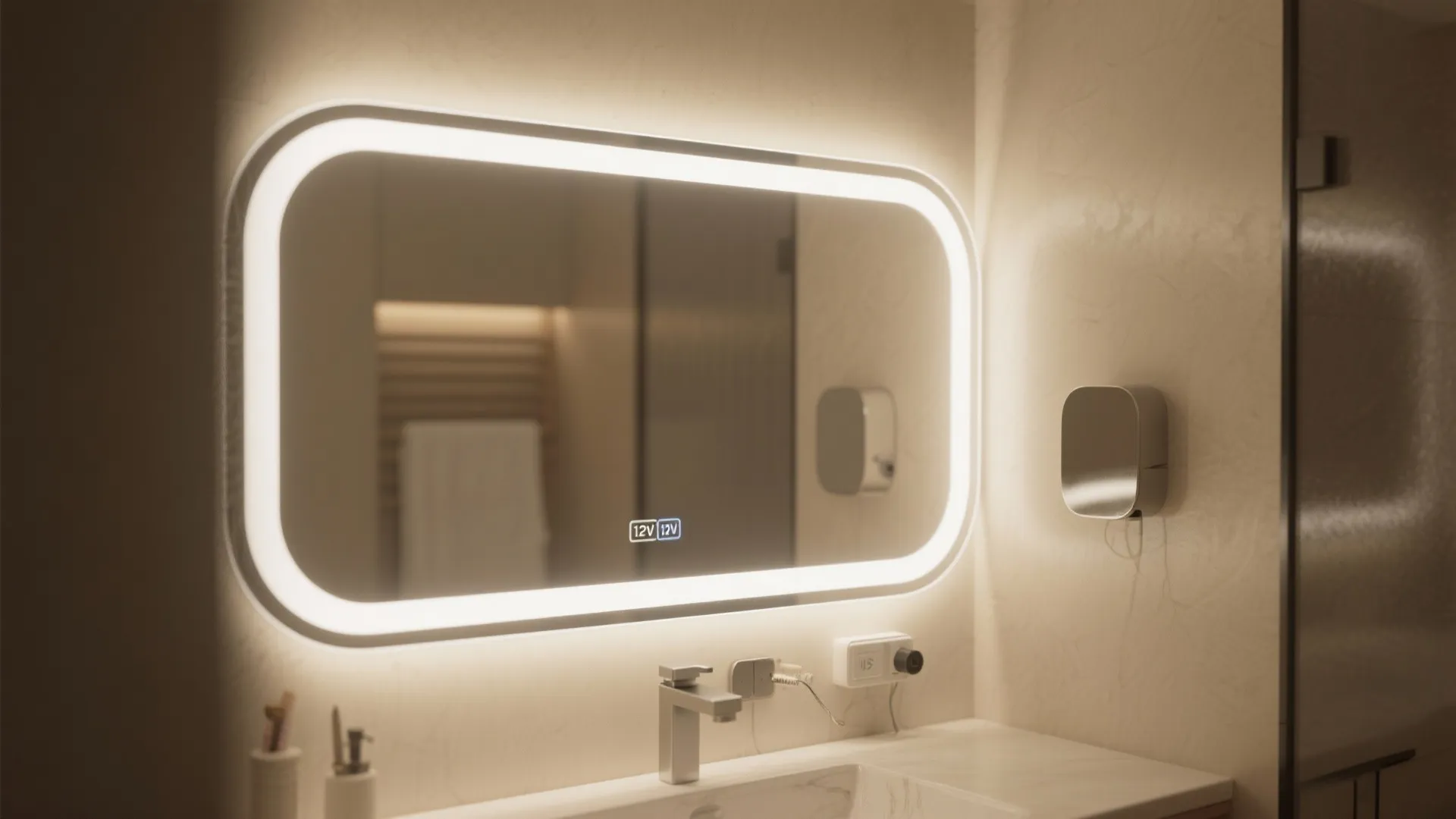

5. Mirror and vanity edge lighting for bathrooms

Edge-lit mirrors with LED tape give clean, flattering light for grooming and small bathrooms feel larger with the even glow. You’ll need waterproof-rated strips and often a 12V driver placed in a dry zone; installation can be fiddly behind mirrors but the result is sleeker than bulky sconces — and if you want to preview the effect in 3D before cutting anything, try a rendered lighting mockup.

save pin

Practical tips and budget notes

Plan power first: calculate the total wattage and choose a driver with 20% headroom. Use high-CRI (≥90) strips for true color rendition in kitchens and bathrooms; cheap strips save money upfront but can look harsh. Channels, diffusers, and quality connectors add cost but make a DIY install look pro-level — I keep a kit of connectors and a spare dimmer in my van for this reason.

save pin

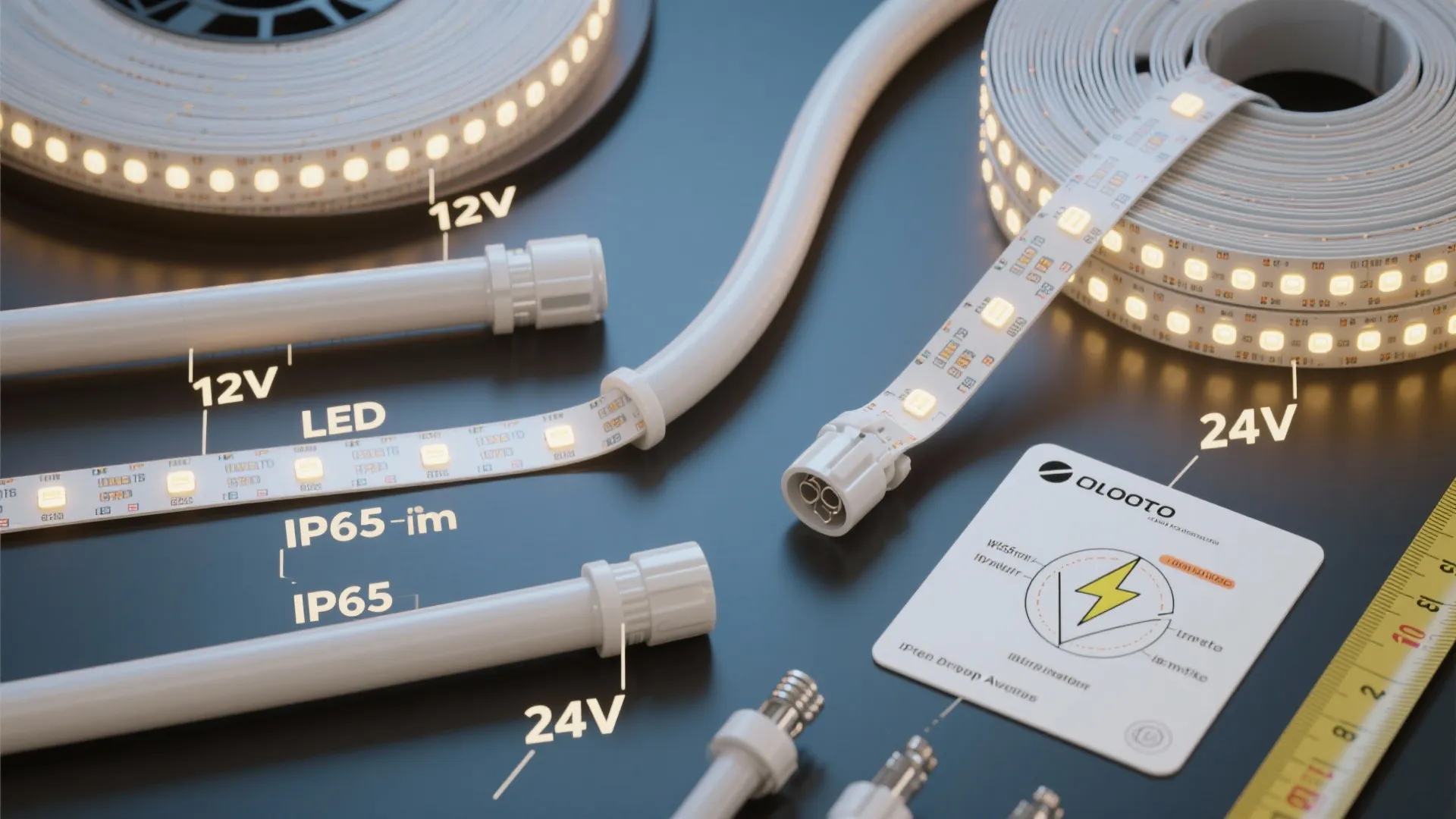

FAQ

Q1: What voltage do most LED tape lights use?

A: Most common LED tape lights are 12V or 24V. 24V runs allow longer continuous lengths with less visible voltage drop, but require a compatible driver and connectors.

Q2: Can I cut LED tape light myself?

A: Yes — LED tape has designated cut marks (usually every LED or every few LEDs). Cut only at those marks and reseal ends with silicone if the strip is in a damp area.

Q3: Are LED tape lights safe in bathrooms?

A: They can be, if you choose strips with the appropriate IP rating (IP65 or higher for exposed wet zones) and place the power supply in a dry, ventilated area away from splashes.

Q4: How do I prevent color mismatch between strips?

A: Buy all strips from the same batch and supplier, choose consistent CCT (e.g., 2700K or 3000K), and check CRI values; mixing different manufacturers often yields visible color differences.

Q5: Do LED tape lights save energy?

A: Yes, LEDs are far more efficient than incandescent and halogen sources. According to ENERGY STAR, LED lighting uses up to 90% less energy than traditional bulbs in comparable applications (source: https://www.energystar.gov).

Q6: How do I avoid dimming issues with long runs?

A: Use a higher-voltage tape (24V), supply mid-point feeds for long runs, or split the layout into multiple runs with their own feeds so voltage drop doesn’t cause visible dimming.

Q7: Can I use smart RGB LED tape with home automation?

A: Absolutely — many RGB and RGBW controllers are compatible with common smart home platforms, but check the protocol (Wi‑Fi, Zigbee, Z‑Wave) and ensure the driver/controller supports the total strip wattage.

Q8: What are common beginner mistakes?

A: Underpowering (wrong driver size), skipping aluminum channels, and ignoring IP ratings are the top three. Measure twice, test connections on a bench, and keep spare connectors; it saves headaches and returns your time investment faster.
