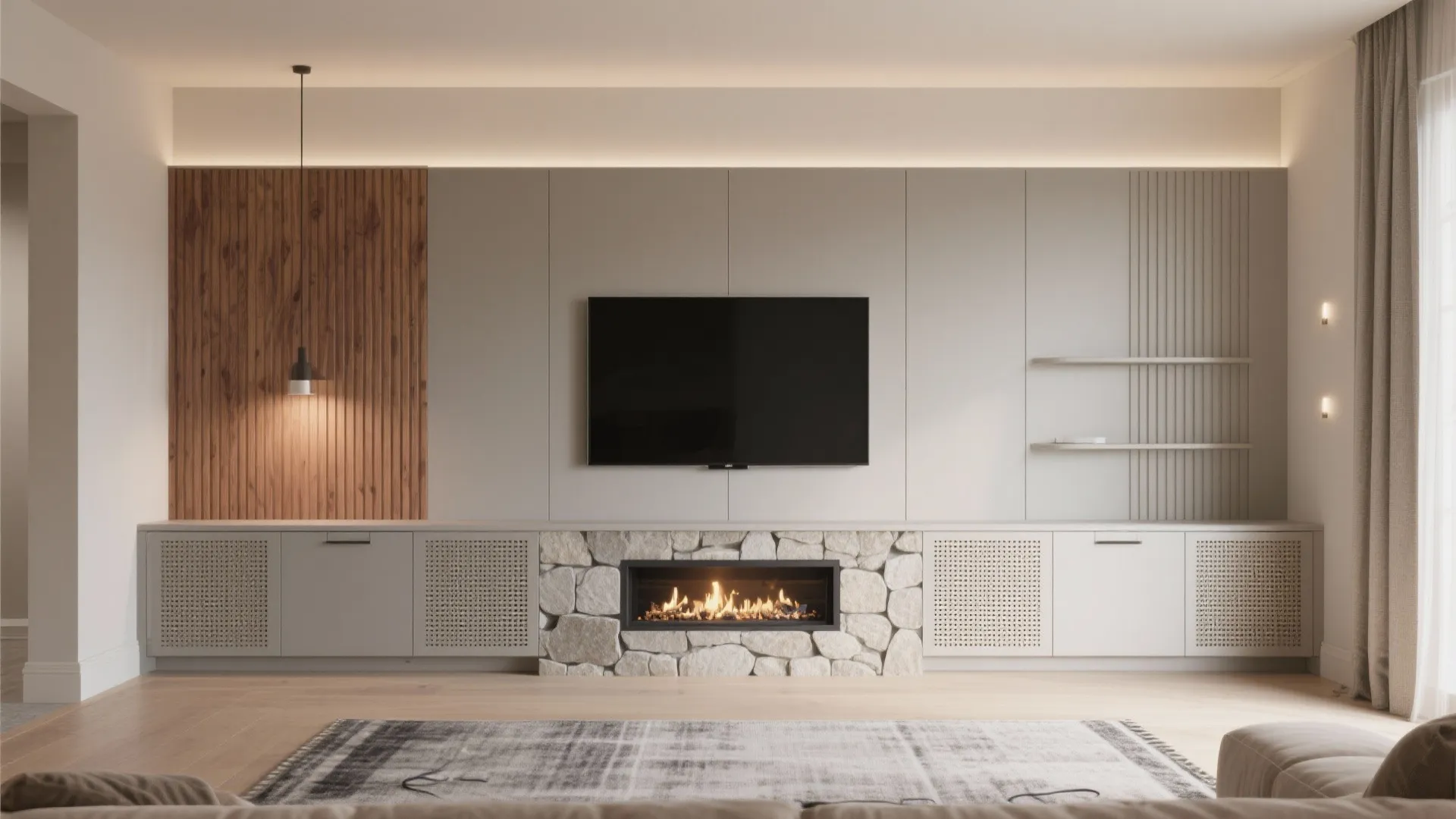

DIY Media Wall with Fireplace: The Ultimate Guide: 1 Minute to Plan Your Dream DIY Media Wall with Fireplace

I’ve designed and overseen dozens of media walls with integrated fireplaces for clients who wanted a warm focal point without sacrificing performance. A successful build balances heat management, sightlines, acoustic control, cable routing, and finishes—while staying realistic about DIY scope.

Comfort and safety shape the blueprint. The WELL Building Standard notes that thermal comfort strongly influences perceived well-being and productivity, and its guidance aligns with maintaining stable temperatures around seating zones. On viewing geometry, Herman Miller’s research on human factors shows that neutral neck angles and clear sightlines reduce fatigue during extended screen time, which is invaluable when your fireplace and TV share the same axis. I keep the TV’s center roughly at seated eye level (about 42–48 inches from floor, depending on furniture) and ensure glare control via layered lighting.

Materials and ergonomics matter as much as layout. Steelcase research on work settings highlights the impact of acoustic treatment on concentration; translating that at home, a media wall should manage reflections from hard surfaces and speaker placement to minimize echo. For color, Verywell Mind’s overview of color psychology supports using muted, warm neutrals to foster calm, with restrained accent hues around the firebox to avoid visual overstimulation. These considerations shape paint sheen, panel selection, and the rhythm of vertical and horizontal lines across the wall.

Plan the Layout and Sightlines

Start with a scaled plan and elevations. I align the TV center to the main seating axis, keep 7–10 degrees of upward tilt at most, and avoid placing the screen higher than the mantle unless clearances force it. If your room is asymmetrical, offset the TV and fireplace into distinct zones to preserve sightlines. When planning wall studs, niches, and wiring, a room layout tool helps visualize clearances, cable runs, speaker positions, and viewing distances before you cut any lumber.

Select the Right Fireplace

For DIY builds, electric units are the least complex and safest—no combustion air requirements, simpler clearances, and easier integration with TV components. Choose a unit with front-vent or down-vent discharge to protect electronics. Aim for programmable heat output and thermostat control. Check the manufacturer’s minimum clearance above the firebox to any electronics; I typically maintain 8–12 inches, plus a heat deflector or mantle ledge to redirect warm air away from the TV.

Thermal Management and Clearances

Protect electronics by introducing a mantle or baffle that breaks the vertical heat plume. If your fireplace vents from the front, a 2–3 inch projecting trim can deflect air. Keep cable cavities separated from heat zones; use fire-rated foam around penetrations and route low-voltage lines in cool chases. WELL guidance on thermal comfort encourages stable, controllable temperatures—so avoid oversizing the heater. Electric models in the 4,000–5,000 BTU range suit many living rooms; supplement with base heating rather than relying solely on the wall unit.

Frame, Niche, and Storage Strategy

Frame with kiln-dried studs, verify plumb, and integrate blocking for mounts and shelves. Add a recessed niche for the TV if depth allows, or surface-mount on a full-structure backing panel with a load-rated bracket. Include ventilated compartments for media boxes and gaming consoles; perforated panels or discreet slots at the rear promote convection. Balance vertical and horizontal lines so the wall doesn’t feel top-heavy—open shelves staggered with closed cabinets maintain a comfortable visual rhythm.

Wiring, Power, and Cable Management

Plan separate circuits for the fireplace and AV equipment to reduce breaker trips. Use in-wall rated HDMI and speaker cables with grommets and brush plates. Place an accessible service panel or hinged door at one side for upgrades. I mount a power strip with surge protection inside a ventilated cabinet and keep low-voltage lines away from mains to reduce interference. Label every run; it saves hours later.

Lighting: Layered, Dimmable, and Low-Glare

Media walls thrive on layered lighting. Add dimmable ambient lighting across the room, wall washing to soften textures, and task lighting for reading zones. Follow IES recommendations for living areas with target illuminance around 100–300 lux, then drop to 50–100 lux in movie mode to control glare. Backlighting (bias lighting) behind the TV reduces eye strain; use 2700–3000K LEDs around the wall to maintain a warm, cohesive tone with the fireplace.

Acoustic Comfort and Speaker Placement

Hard finishes can bounce sound; integrate soft elements—fabric panels, rugs, or acoustic art—to manage reflections. Avoid placing speakers in enclosed cavities without breathing room; leave 2–3 inches around sides and rear ports. A center channel should land near ear height; wall-mounting behind acoustically transparent fabric can hide hardware without dulling output. Keep subwoofers decoupled from the frame with isolation feet to prevent rattles.

Finish Materials: Texture, Color, and Durability

Balance tactile and smooth surfaces. Stone or porcelain slabs around the firebox deliver heat resistance and gravitas; fluted MDF or wood slats add rhythm and diffuse sound. Use satin or matte paints to temper glare. Color psychology supports calm neutrals—warm greige, oatmeal, or clay—paired with a single deeper accent like umber or petrol blue. Choose heat-tolerant sealants and verify adhesive ratings near the firebox.

Safety and Code Considerations

Confirm local electrical and fire codes; use appropriate gauge wiring and UL-listed components. Maintain manufacturer clearances religiously. Provide an accessible shutoff and test the fireplace before fully closing the wall. If any gas work is involved, defer to licensed professionals; DIY should focus on electric units for reliability and safety.

Step-by-Step Build Outline

1) Measure and mark wall centers, stud locations, and TV height. 2) Frame the wall: vertical studs, cross-blocking for the mount, and a box-out for the fireplace with specified clearances. 3) Run electrical and low-voltage lines; install dedicated outlets. 4) Test-fit the fireplace and mount; add ventilation slots to cabinets. 5) Close with fire-rated drywall or cement board near heat zones. 6) Install finishes: mantle or heat baffle, cladding, shelves, and panels. 7) Mount TV, route cables, and calibrate speakers. 8) Aim lighting, set dimmer scenes, and balance color temperature. 9) Test heat output and airflow with the TV running to confirm safe operation.

Budget and Timeline

DIY budgets vary widely. A streamlined electric-media wall with painted finish may run modestly on materials, while stone cladding, custom millwork, and integrated lighting raise the total. Plan 3–5 weekends of work for framing, wiring, finishing, and punch-list, depending on complexity and your tools.

Maintenance and Future-Proofing

Design for access: removable panels, hinged doors, and cable slack for upgrades. Keep ventilation clear, dust intake grilles, and re-seal stone as needed. Choose modular shelving so you can adjust for new devices, consoles, or soundbars without re-framing.

FAQ

Q1: How high should I mount the TV above a fireplace?

A1: Aim for the screen center at or slightly below seated eye level (roughly 42–48 inches from floor, depending on couch height). If clearances force a higher mount, add a slight downward tilt and a mantle to deflect heat.

Q2: Can an electric fireplace damage my TV?

A2: If you maintain manufacturer clearances and use a heat-deflecting mantle or baffle, the risk is minimal. Keep vents unobstructed and verify that hot air doesn’t flow directly onto the TV.

Q3: What lighting setup reduces eye strain during movies?

A3: Use dimmable ambient lighting and bias backlighting behind the TV at 2700–3000K. Keep overall illuminance near 50–100 lux for viewing to minimize glare, aligning with IES guidance for visual comfort.

Q4: How do I hide cables while keeping access?

A4: Route in-wall rated cables to a ventilated cabinet with brush plates and grommets. Add a side access panel or hinged door so you can service equipment without removing finishes.

Q5: What materials are safe close to the firebox?

A5: Cement board underlayment, porcelain or stone cladding, and heat-rated adhesives are reliable. Avoid low-melt plastics or high-gloss paints directly adjacent to vents.

Q6: How can I improve sound without seeing acoustic panels?

A6: Integrate fabric-wrapped sections or perforated wood over acoustic batting. Rugs, upholstered seating, and fluted wall profiles also tame reflections discreetly.

Q7: Is a dedicated circuit necessary for the fireplace?

A7: It’s strongly recommended. Separate the fireplace from AV gear to prevent nuisance trips and interference. Verify amperage and follow local code.

Q8: What color scheme works best around a fireplace and TV?

A8: Warm neutrals with matte finishes reduce glare and visual noise. Add a single deeper accent for contrast, consistent with color psychology that associates warm, muted palettes with calm and comfort.

Q9: How do I keep the wall cool?

A9: Use front-vent or down-vent electric units, add a projecting mantle, and ventilate cabinetry. Don’t block air paths, and size the unit appropriately rather than overspecifying BTUs.

Q10: Can I integrate smart controls?

A10: Yes—pair dimmers, smart plugs, and thermostat controls for scenes like “Movie Night.” Keep hubs and receivers in ventilated compartments and provide cable slack for upgrades.
