I once tried to hide a 55-inch TV in a cedar box that looked great — until I forgot ventilation and the screen fogged after one summer BBQ. Lesson learned the hard way: small outdoor projects can blow up fast, but they also teach the best tricks for making compact designs work. If you want to plan the layout plan the layout before you cut wood, you’ll save time and avoid my rookie mistakes.

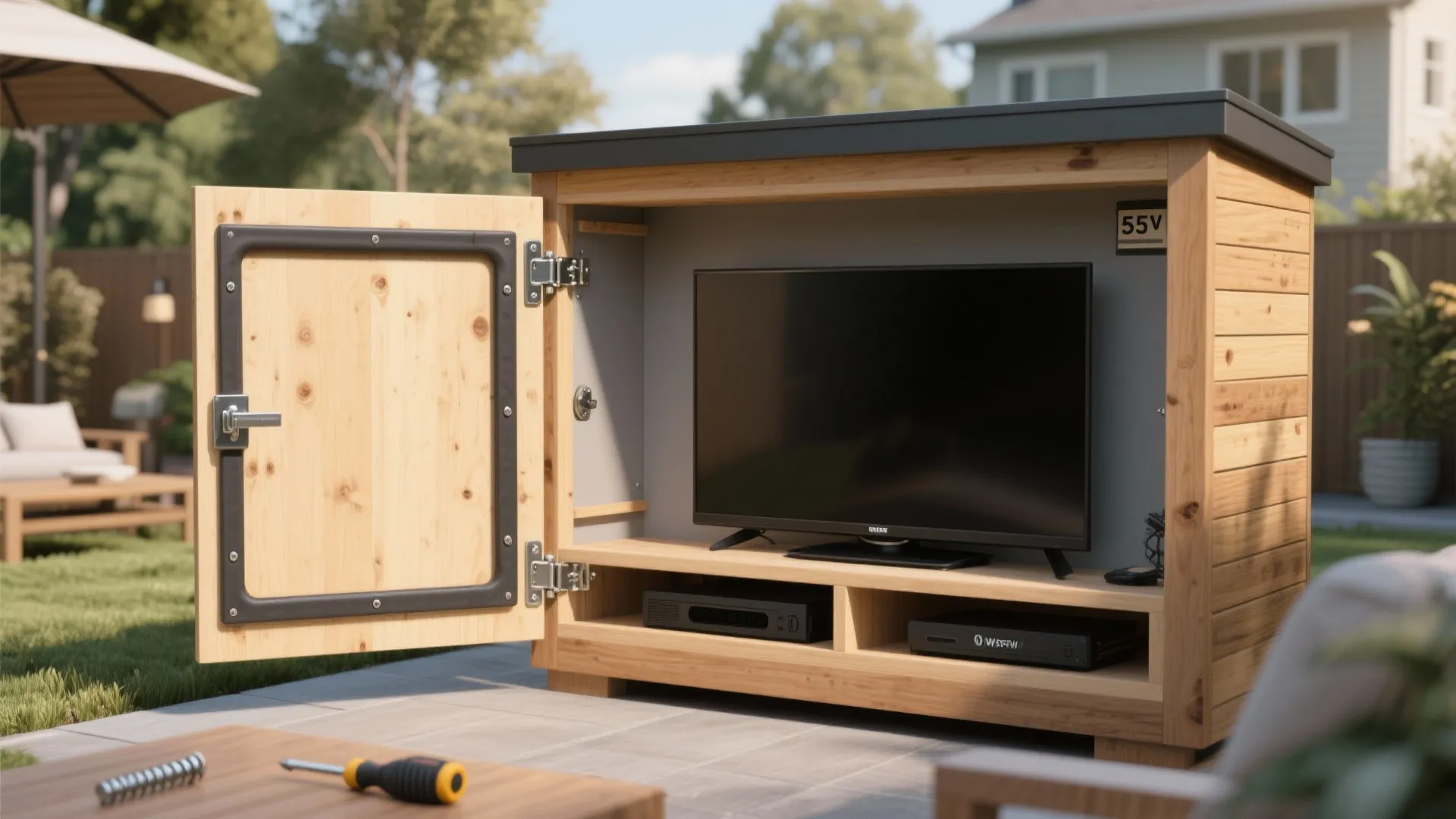

1. Weatherproof cabinet with a removable face

I like starting with a simple box made from exterior-grade plywood or marine plywood and cedar cladding. The removable front face (hinged or magnetic) gives easy access for maintenance and keeps the TV sealed during storms. Advantage: durable and clean look; challenge: hinge hardware and seals add cost but are worth the longevity.

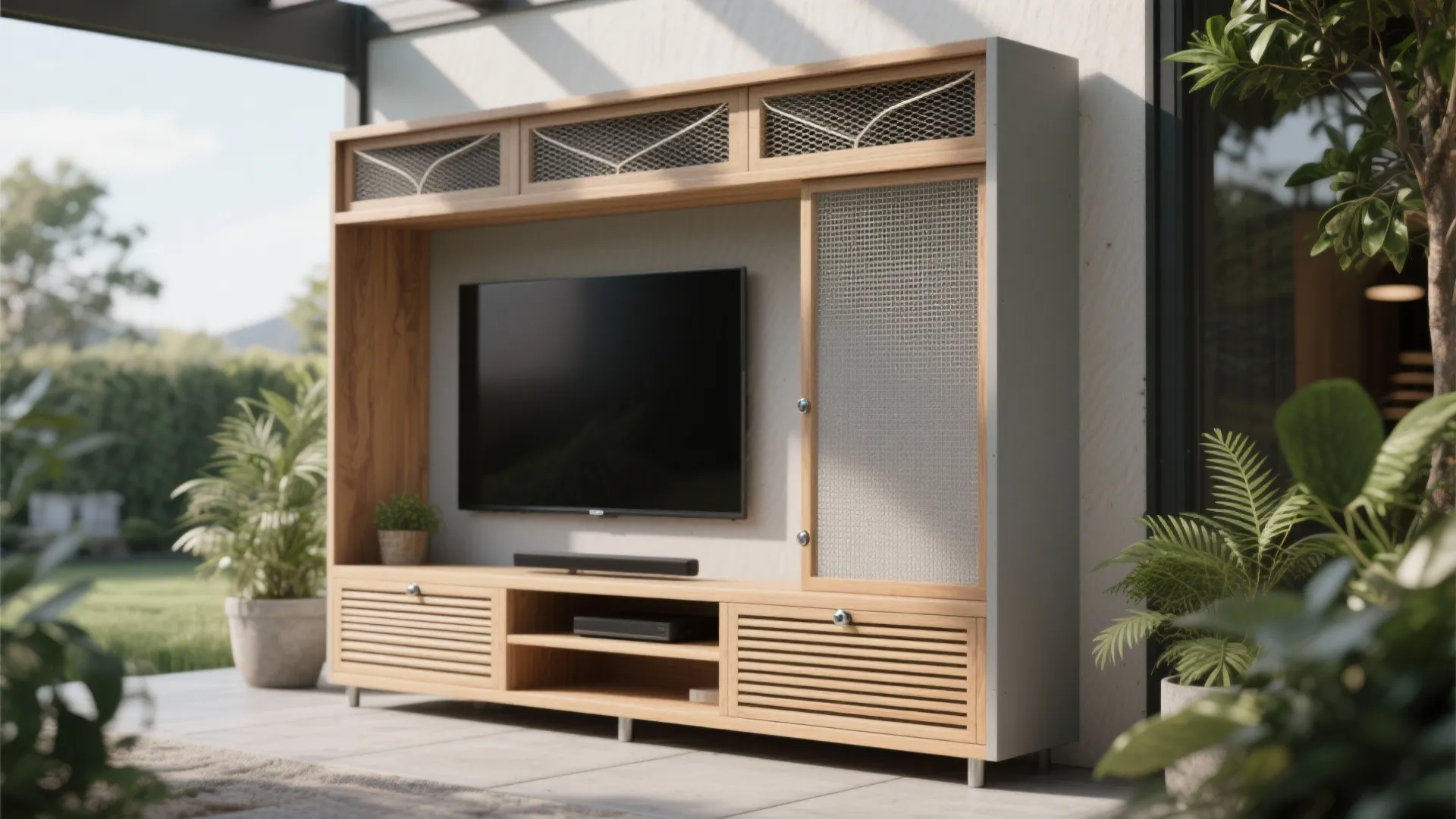

2. Ventilated cabinet with passive airflow

Heat kills electronics faster than rain, so I design passive vents at the top and bottom with insect mesh. The airflow keeps components cool without noisy fans. It’s low-maintenance and energy-free, though you must hide vents visually so the cabinet still reads as furniture.

save pin

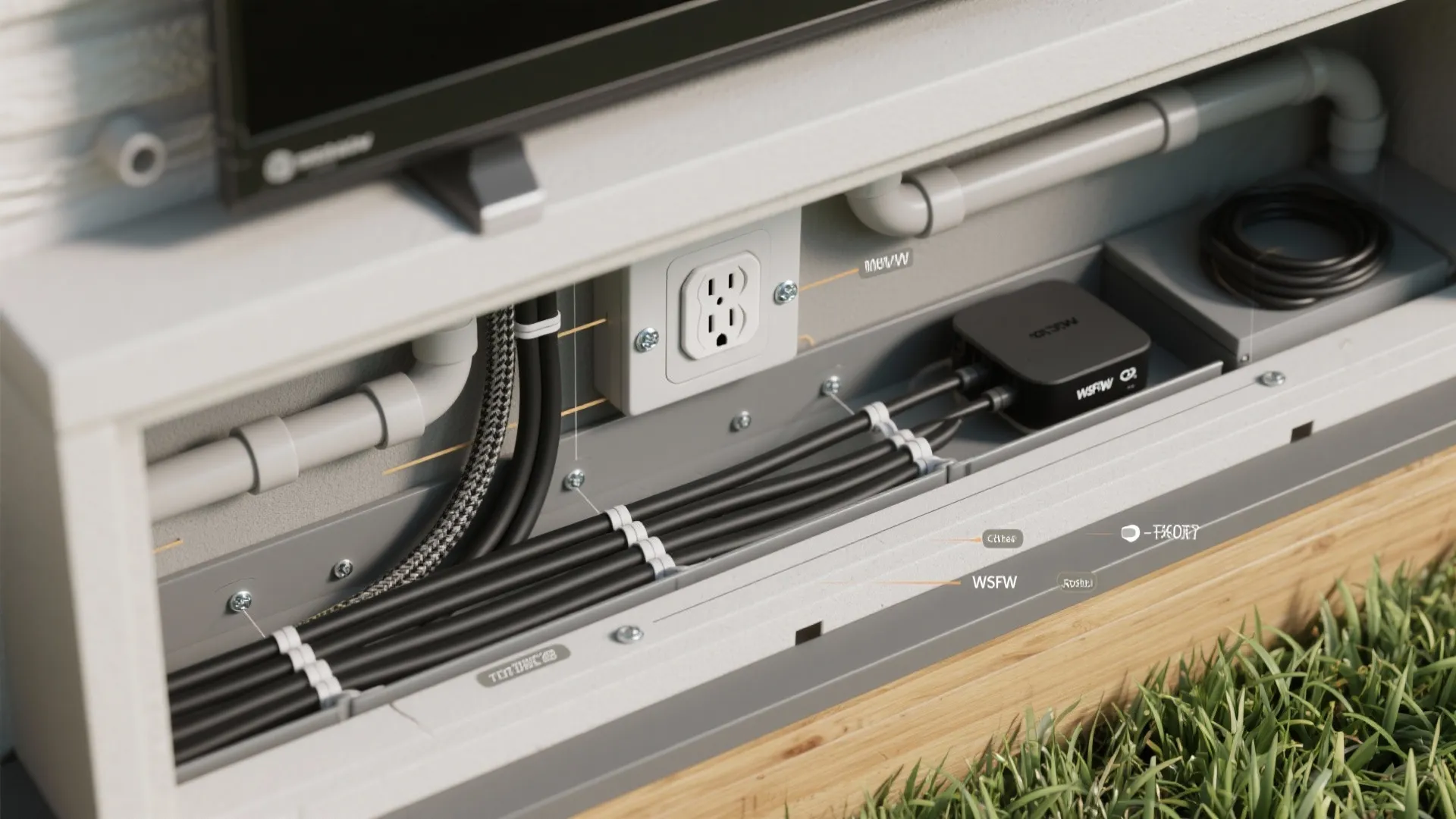

3. Cable management and weatherproof electrical box

Running power and signal outdoors needs a dedicated weatherproof outlet box and conduit. I route cables through a sealed chase and add a small cable tray inside the cabinet for surge protectors and streaming boxes. If you want to preview the look before building, drop a quick 3D render to confirm clearances and access points.

save pin

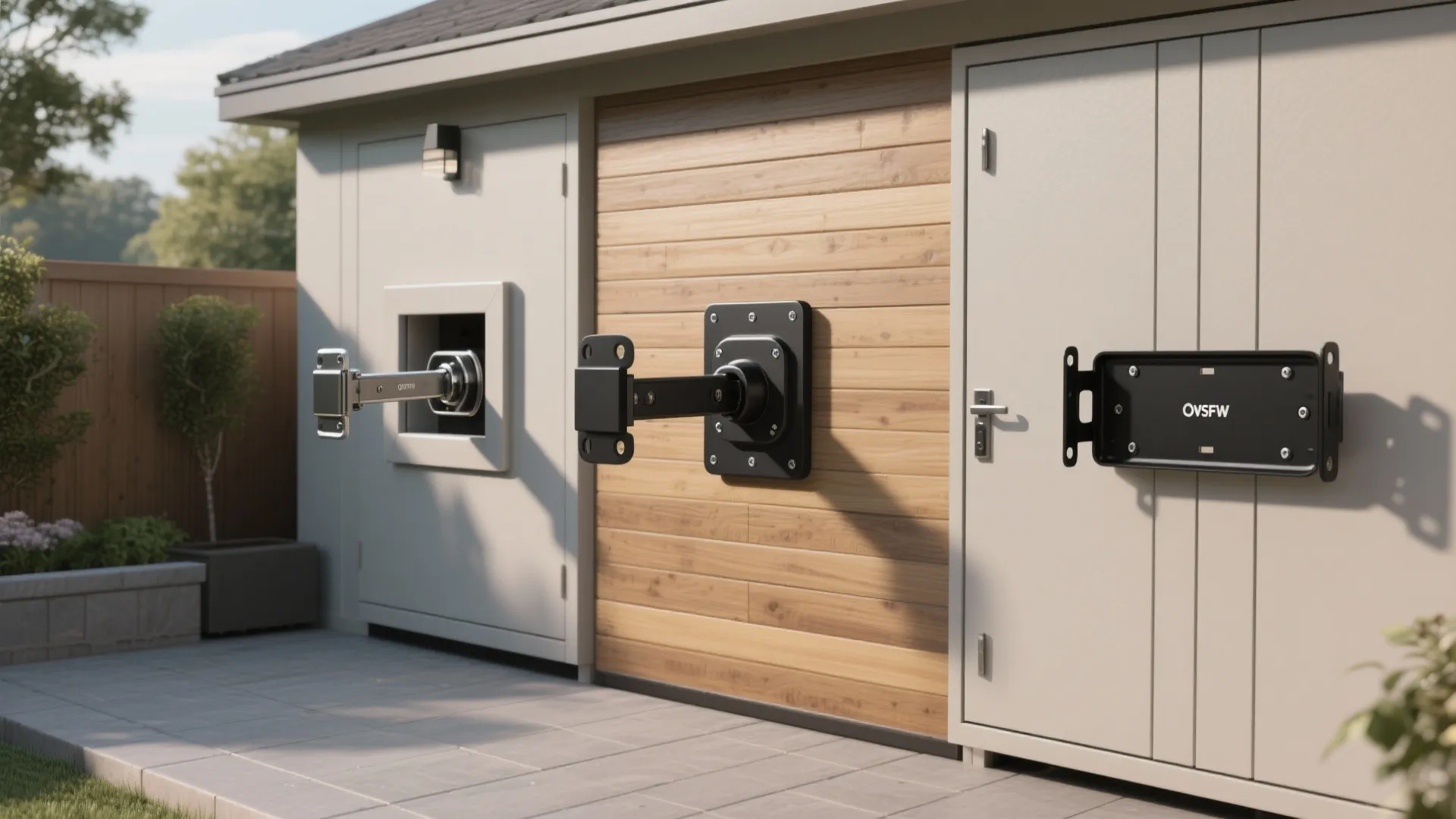

4. Mounting solutions: swivel, retractable, or fixed

Mount type depends on viewing angles and space. I’ve installed recessed mounts for a flush look, swivel arms for flexible viewing, and simple fixed mounts when budget is tight. Swivels feel luxurious and are great for patios, but they need a stronger back panel and careful fasteners.

save pin

5. Finishes, camouflage and budget-friendly hacks

Paint, teak slats, or faux stone veneer turn a cabinet into a design feature. My favorite cheap trick: use exterior-rated peel-and-stick tiles on the face for pattern without heavy labor. Budget note: weatherproofing materials and good gaskets are non-negotiable; skimping there looks cheap fast. Before cutting plywood, sketch the footprint with a quick floor sketch quick floor sketch to ensure the cabinet won’t block doors or sightlines.

save pin

FAQ

Q1: What size cabinet should I build for my outdoor TV?

I usually add 2–3 inches on each side and 4–6 inches above and below the TV for ventilation and wiring. Measure the VESA mount and depth of any devices you’ll store.

Q2: Which materials hold up best outdoors?

Marine plywood, cedar, pressure-treated lumber, and composite decking materials resist rot and UV. Use exterior-grade screws and stainless hardware to avoid corrosion.

Q3: Do I need special ventilation for an outdoor TV cabinet?

Yes — passive vents top and bottom are often enough. In very hot climates, add a quiet, thermostatic fan to prevent overheating.

Q4: Can I put speakers and a soundbar inside the cabinet?

Yes, but place speakers behind acoustic-permeable fabric or grille and provide extra ventilation. Consider a small acoustic port to keep sound clear while protecting components.

Q5: How do I handle electrical safety outdoors?

Run power through conduit to a GFCI-protected outdoor outlet and mount all electronics in a weatherproof enclosure. For authoritative guidance, consult the National Electrical Code (NFPA 70) at the National Fire Protection Association (https://www.nfpa.org/).

Q6: What about waterproofing the TV itself?

Most TVs aren’t fully waterproof; use a weatherproof TV rated for outdoor use when possible, or ensure the cabinet provides a sealed, dry space with controlled airflow.

Q7: How long does a DIY outdoor TV cabinet last?

With exterior materials, good sealing, and annual maintenance (re-sealing and checking gaskets), expect 8–15 years depending on exposure and care.

Q8: Any quick build tips for first-timers?

Start with a mockup using cardboard or a simple frame to verify dimensions and sightlines. Keep joints simple (butt and glue with screws) and prioritize tight seals where water can enter.
