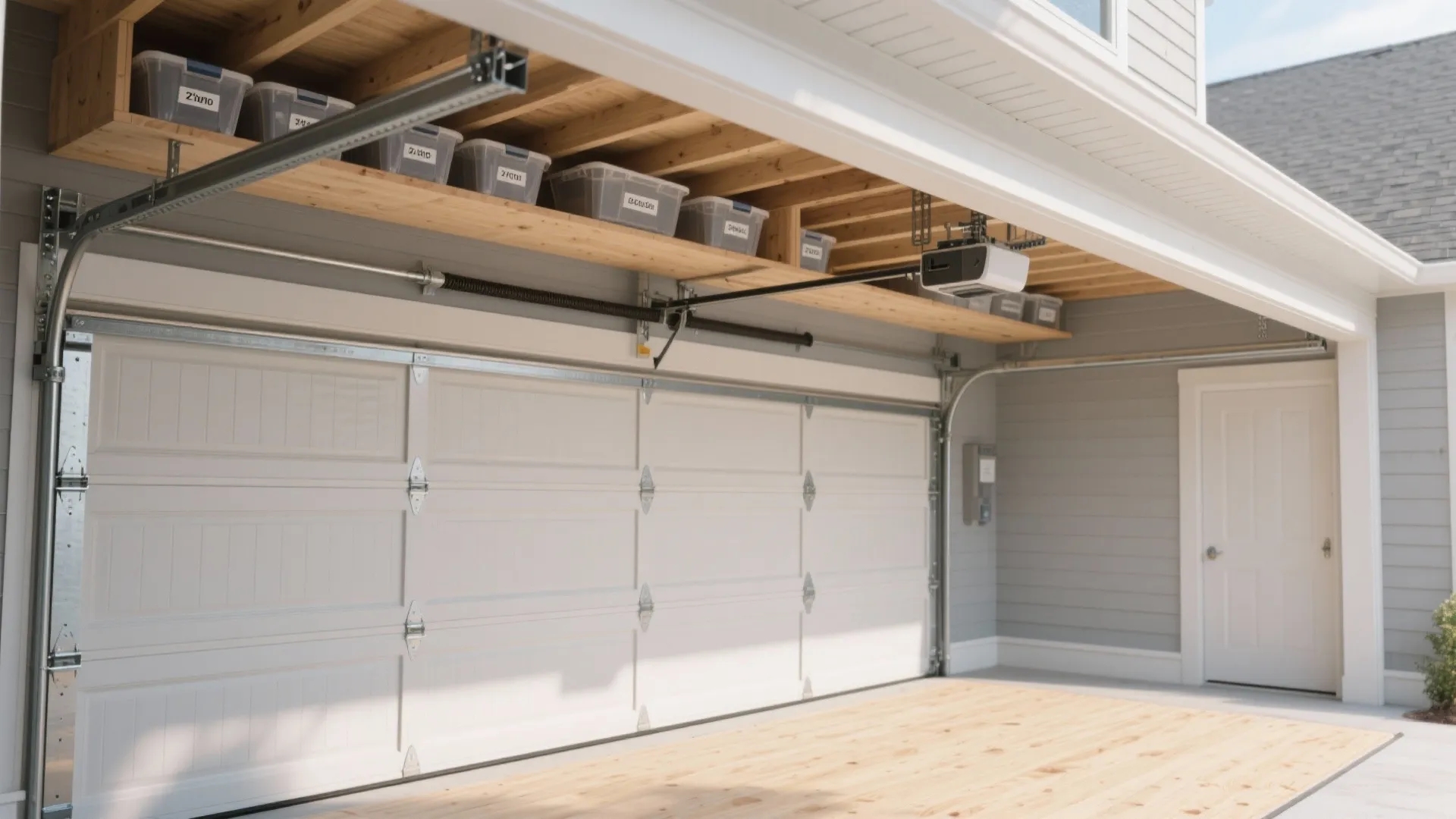

DIY Over Garage Door Storage: Space-Saving Guide: 1 Minute to Maximize Unused Garage Space with Over Door Storage

I’ve designed and built several over-garage-door storage systems for clients who needed every cubic inch of space. That void above the sectional door tracks is often 16–24 inches high and stretches the full bay length—prime real estate when planned correctly. The key is balancing structural integrity, clearance heights, and safe access so you gain storage without compromising the door’s movement or the opener.

Clearances drive this solution. Most residential garage doors require at least 12 inches of headroom for torsion spring assemblies and 3–5 inches of side room for tracks. Steelcase’s workplace research notes that reducing unnecessary reach and awkward postures can cut musculoskeletal strain significantly, reinforcing why easy access matters even in a garage. WELL v2 also emphasizes safe reach ranges and reducing fall risk, reminding me to keep storage zones within stable access heights and to add task lighting near ladders or steps for visibility.

From my builds, the best-performing systems use anchored steel angles or timber ledgers tied into studs or joists, a continuous deck, and a guard lip to prevent items migrating into track paths. Gensler’s research on behavior and flow shows that clear, unobstructed pathways boost task efficiency; I apply that by maintaining a 2–3 inch buffer above moving components and by dedicating zones for lightweight, seasonal items only. If you’re planning the wall layout adjacent to the door tracks, a room layout tool can help visualize shelf depth versus door hardware: room layout tool.

Assess Your Garage Door System

Identify the type: sectional roll-up with torsion spring, extension spring, or low-headroom tracks. Measure headroom from the top of the door opening to the ceiling joists; most track kits work with 12–15 inches of headroom, but low-headroom kits may sit closer to ceiling lines. Confirm opener rail height and the arc of any hinges while the door cycles. I always run a full open/close cycle and mark the swing envelope so no shelf edge intrudes.

Load Planning and Safety Factors

Only stow light-to-medium loads overhead—holiday decor, camping gear, empty suitcases, and plastic bins. I keep live loads under 25–35 lb per linear foot unless an engineer reviews the structure. A 2x ledger anchored to every stud with structural screws and supported by vertical hangers from joists spreads loads safely. Maintain at least a 2-inch clearance above moving parts. If your garage ceiling uses engineered trusses, avoid cutting or drilling; use strap hangers or consult the manufacturer.

Materials and Hardware

For timber framing: kiln-dried 2x4/2x6 ledgers, 3-inch structural screws, joist hangers, and a 3/4-inch plywood deck. For metal: 1-1/2 inch steel angle, slotted Unistrut, and through-bolts with lock nuts. I add 1-1/2 inch guard lips along the shelf front to stop bins from migrating. Choose moisture-resistant finishes since garages swing in humidity. Material selection matters: plywood with exterior glue (APA-rated) resists delamination; galvanized steel helps in coastal climates.

Ergonomics and Access

Design access without awkward reaches. Herman Miller research on ergonomics highlights that keeping frequently used items within neutral reach reduces strain; apply that by placing rarely used items above the door and keeping heavier gear on lower shelves. Integrate a stable ladder, wall-mounted step, or a small platform. Add a handhold near the access point. Label bins clearly so retrieval is quick and safe.

Lighting and Visibility

Task lighting near the access zone reduces missteps. Aim for 300–500 lux at the shelf face; a slim LED strip on the ceiling joist or a magnetic light near the opener rail works well. Control glare so you can read labels without squinting. If your opener has a single bulb, it rarely delivers adequate illumination across the span—install a dedicated fixture on a separate switch.

Acoustic and Vibration Considerations

Over-door storage should not amplify opener vibration. Decouple decking from opener rails; use rubber washers under metal brackets when close to mechanicals. Keep loose items in latching bins to avoid rattles during door movement. Quiet operation reduces startle risk when someone is on a ladder.

Clearance Rules You Should Not Break

- Keep a minimum 2-inch gap between shelf edges and any moving track, cable drum, or hinge arc.

- Do not obstruct safety sensors or the opener travel path.

- Preserve the torsion spring service zone—technicians need access.

- Provide at least 6’8” of head clearance for walking paths under the shelf when applicable.

Step-by-Step Build Sequence

1) Map the door movement: run the door, mark hinge arcs and rail extents.

2) Locate structure: find studs and joists; mark anchor points every 16 inches on center.

3) Install side ledgers: level 2x ledgers or steel angles parallel to tracks, staying clear of movement envelopes.

4) Add cross members: tie into joists with hangers or Unistrut straps; check level and deflection.

5) Decking: fasten 3/4-inch plywood; add a front guard lip.

6) Test cycle: open and close the door multiple times, observing clearances.

7) Load gradually: start with light bins; watch for any vibration or rubbing.

Organization Strategy

Store lighter, bulky, low-frequency items up high. Color-code bin lids to align with seasonal use; Verywell Mind’s color psychology insights show that consistent color cues improve wayfinding and memory recall. I use blue for winter gear, green for garden, and orange for camping. Create a simple inventory list taped near the ladder to avoid overloading the space.

Sustainability and Materials

Opt for FSC-certified timber and low-VOC finishes. Reuse existing steel angles or shelving components when possible. Ventilate during installation. Durable materials cut replacement cycles and waste.

Maintenance Checklist

- Quarterly: cycle the door, listen for rubbing, tighten fasteners.

- Semiannual: inspect for corrosion, check bin weights, confirm labels.

- Annual: re-seal timber if humidity is high, replace damaged bins.

When to Call a Pro

If you have torsion springs under high tension, complex low-headroom tracks, or engineered truss ceilings with unclear load paths, consult a garage door technician or a structural professional. Safety first—especially where moving parts and overhead loads meet.

Research References Embedded

For ergonomics and safe reach ranges, WELL v2 guidance provides a useful framework for access and fall risk mitigation: WELL v2. For human-centered workflow and unobstructed movement, Gensler’s research on behavior and space informs clear path planning: Gensler Research.

FAQ

Q1: How much weight can an over-door storage shelf safely hold?

A1: For DIY builds without engineering review, limit to 25–35 lb per linear foot, distributed evenly. Use continuous ledgers, joist ties, and guard lips. Heavier loads require professional assessment.

Q2: What clearance is required above the tracks?

A2: Maintain at least a 2-inch buffer from any moving part, plus the manufacturer’s headroom requirement (often 12–15 inches). Run full door cycles to confirm no interference.

Q3: Which materials are best for the deck?

A3: 3/4-inch exterior-grade plywood for stiffness and durability, or metal grating for moisture tolerance. Timber ledgers with structural screws or Unistrut steel frames work well.

Q4: How do I improve visibility when accessing high bins?

A4: Provide 300–500 lux task lighting at the shelf, reduce glare, and add a switch near the ladder. LED strips along joists are compact and effective.

Q5: Can I install storage above low-headroom garage doors?

A5: Yes, but clearances are tighter. Use shallow shelves (8–12 inches), prioritize lightweight items, and carefully map the hinge arc. Professional review is advisable.

Q6: How do I minimize vibration and noise?

A6: Decouple shelf components from opener rails, use rubber washers near brackets, and keep items in latching bins. Regular maintenance of the door system also reduces noise.

Q7: What’s the safest way to access overhead storage?

A7: Use a sturdy ladder or wall-mounted step with a handhold. Keep heavier items at waist height elsewhere, and place only light, infrequent-use items overhead. Follow ergonomic neutral-reach guidelines.

Q8: Should I anchor into studs or joists?

A8: Both, depending on orientation. Side ledgers should hit wall studs; cross members should tie into ceiling joists or be hung from them. Never rely on drywall anchors.

Q9: How do I keep items from sliding into the track area?

A9: Install a 1–2 inch guard lip or a front rail and use closed bins. Keep a designated no-storage buffer above the tracks.

Q10: Is color-coding bins actually useful?

A10: Yes. Consistent color cues aid quick identification and memory recall. Assign colors to categories so you don’t overreach or spend time searching.

Q11: What maintenance schedule should I follow?

A11: Quarterly door cycles and fastener checks, semiannual corrosion and load audits, and annual surface maintenance. Update labels as categories change.

Q12: When is professional help necessary?

A12: Complex torsion systems, engineered truss ceilings, unusually heavy loads, or any uncertainty about structural capacity warrant a pro’s evaluation.
