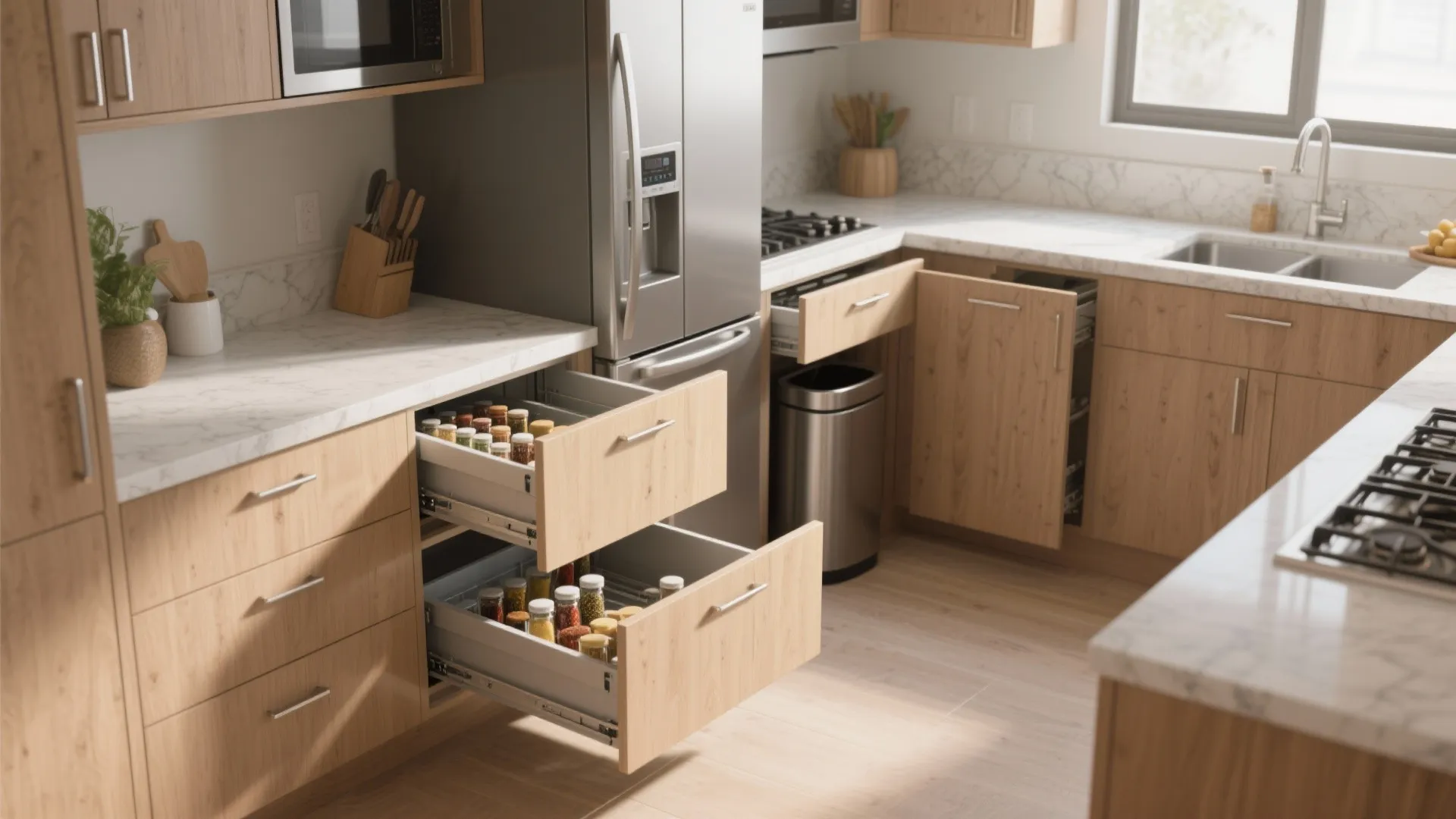

DIY Pull-Out Shelves for Cabinets: 5 Smart Ideas: Practical, budget-friendly pull-out shelf ideas I’ve used in small kitchens and cabinets

I once agreed to install pull-out shelves for a client who declared, dead serious, that arming her cabinets with sliding trays would "change her life" — and she wasn’t wrong. While sketching solutions, I realized that good kitchen layout planning kitchen layout planning makes retrofitting pull-outs faster and far less painful than you’d expect. Small spaces force creativity, and that’s exactly what I’ll share: five DIY pull-out shelf inspirations I’ve used on real projects.

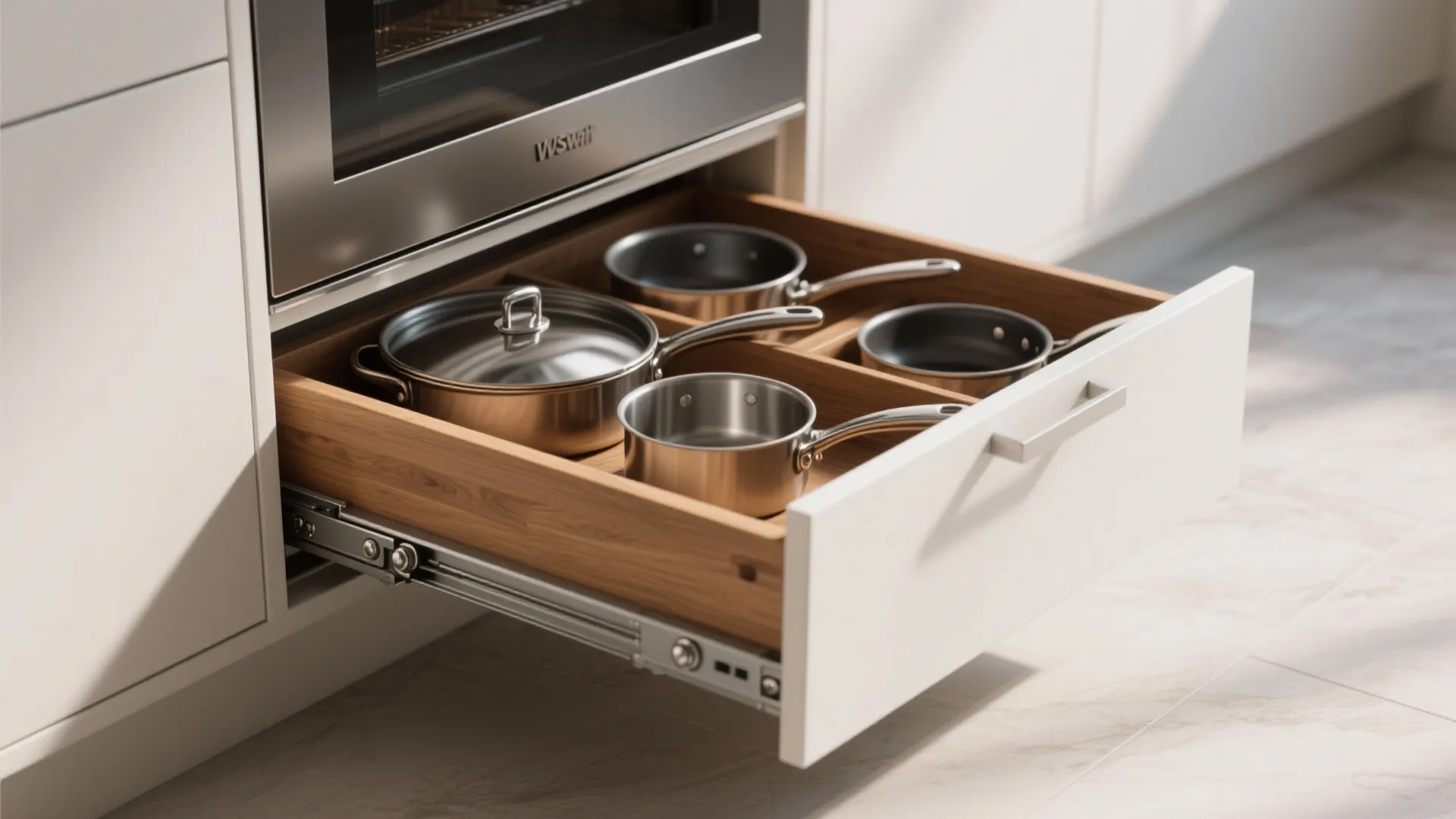

1. Full-extension bottom drawers (convert a deep cabinet)

I converted a problematic deep base cabinet into a full-extension drawer using heavy-duty ball-bearing slides. You get nearly 100% access to contents, which feels like magic the first time you pull it out. The upside is accessibility; the downside is you need good runners and careful measurement — but it’s one of the most rewarding upgrades for a medium budget.

save pin

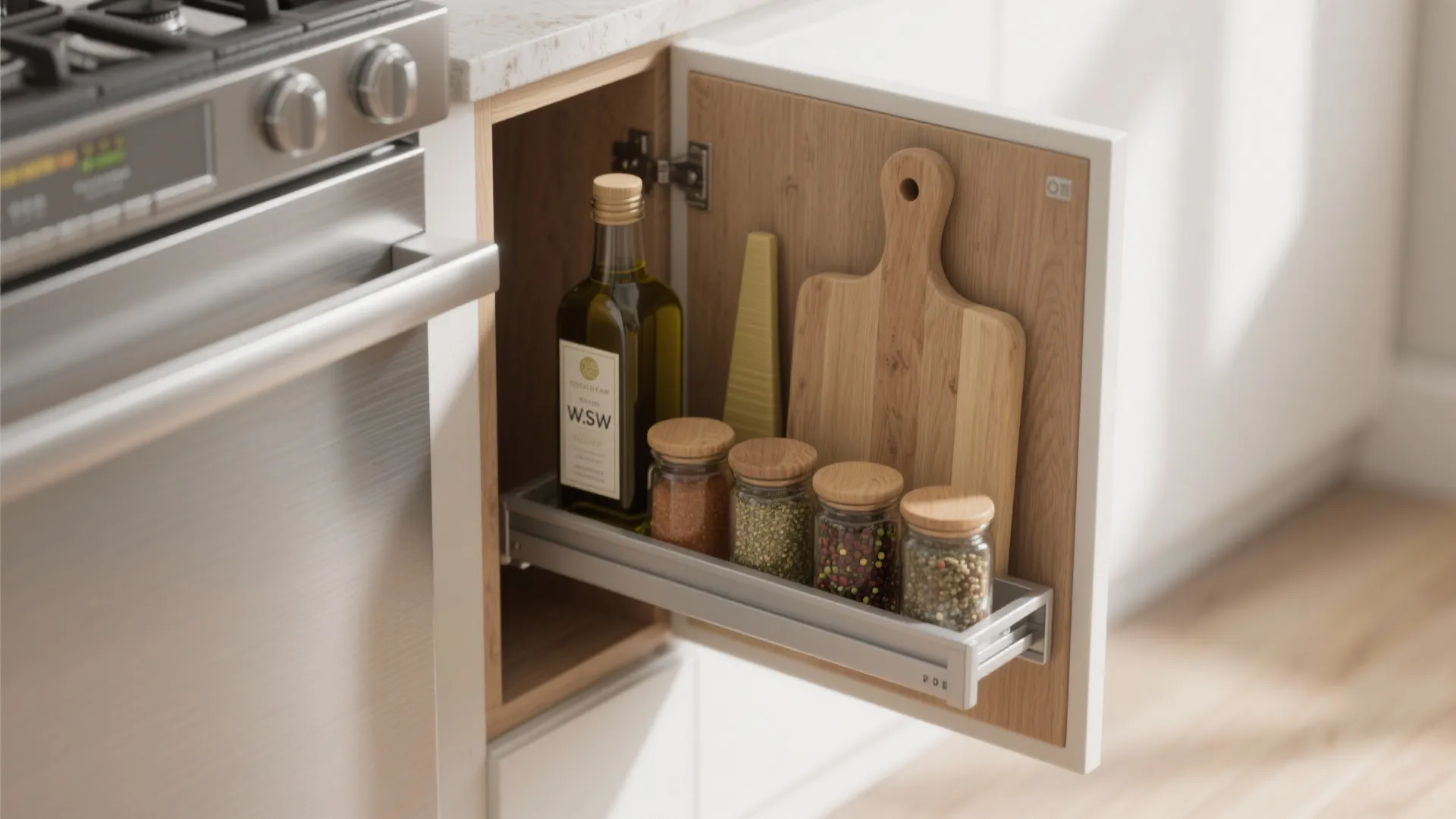

2. Narrow vertical pull-outs for spices and oils

For gaps between appliances or beside the fridge, I make 3–6" vertical pull-outs that hold spices, oils, and cutting boards. They’re cheap to build and save countertop clutter, though they’re limited in width and best for light items. I once solved a spice avalanche with a 4" tray and some cabinet-grade plywood — simple and satisfying.

save pin

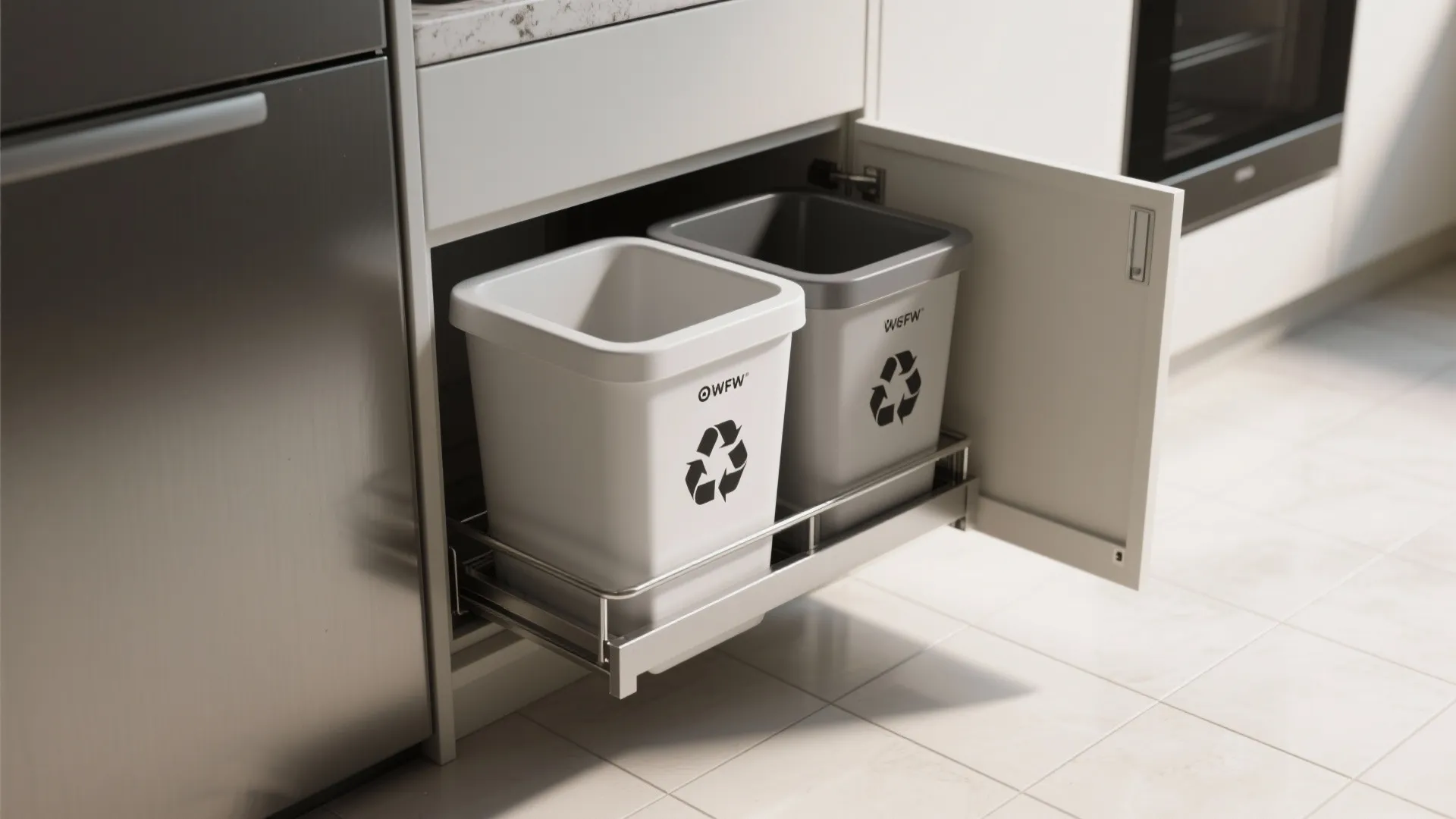

3. Pull-out trash and recycle station

Hiding bins behind a cabinet front keeps the kitchen tidy and smells contained. I usually mount a slide-mounted frame that fits two bins; it’s not glamorous but it’s extremely practical. The challenge is ventilation and occasional spills, so line the bins and allow clearance for lids when planning the height.

save pin

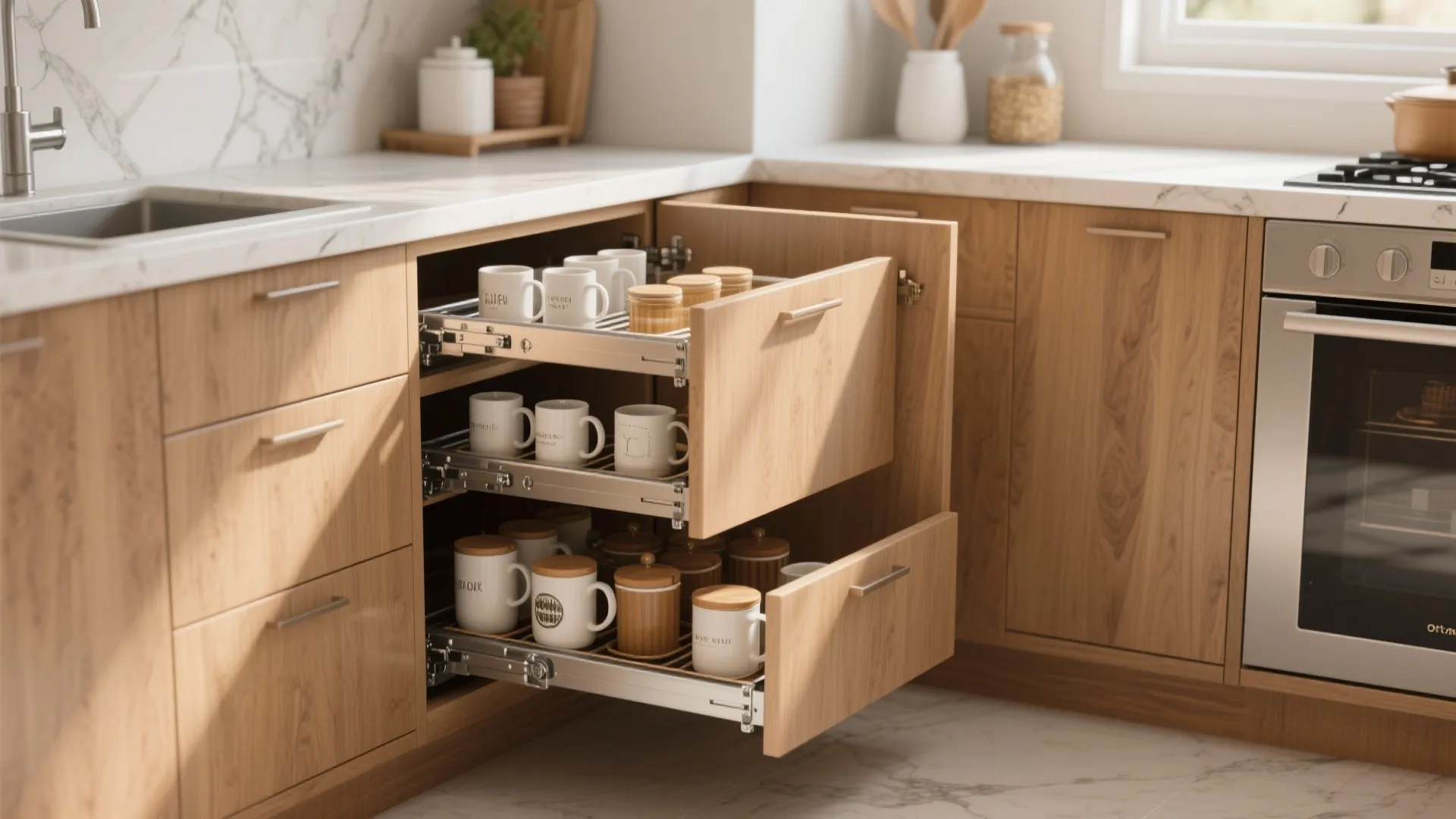

4. Corner pull-out systems for blind corners

Corners can be a black hole, so I either install a bi-fold pull-out or a half-moon tray mechanism to bring items into reach. These systems can be a bit fiddly to install and sometimes pricier than straight drawers, but they transform wasted space into useful storage. On one project a corner pull-out saved an awkward coffee station and made morning routines smoother.

save pin

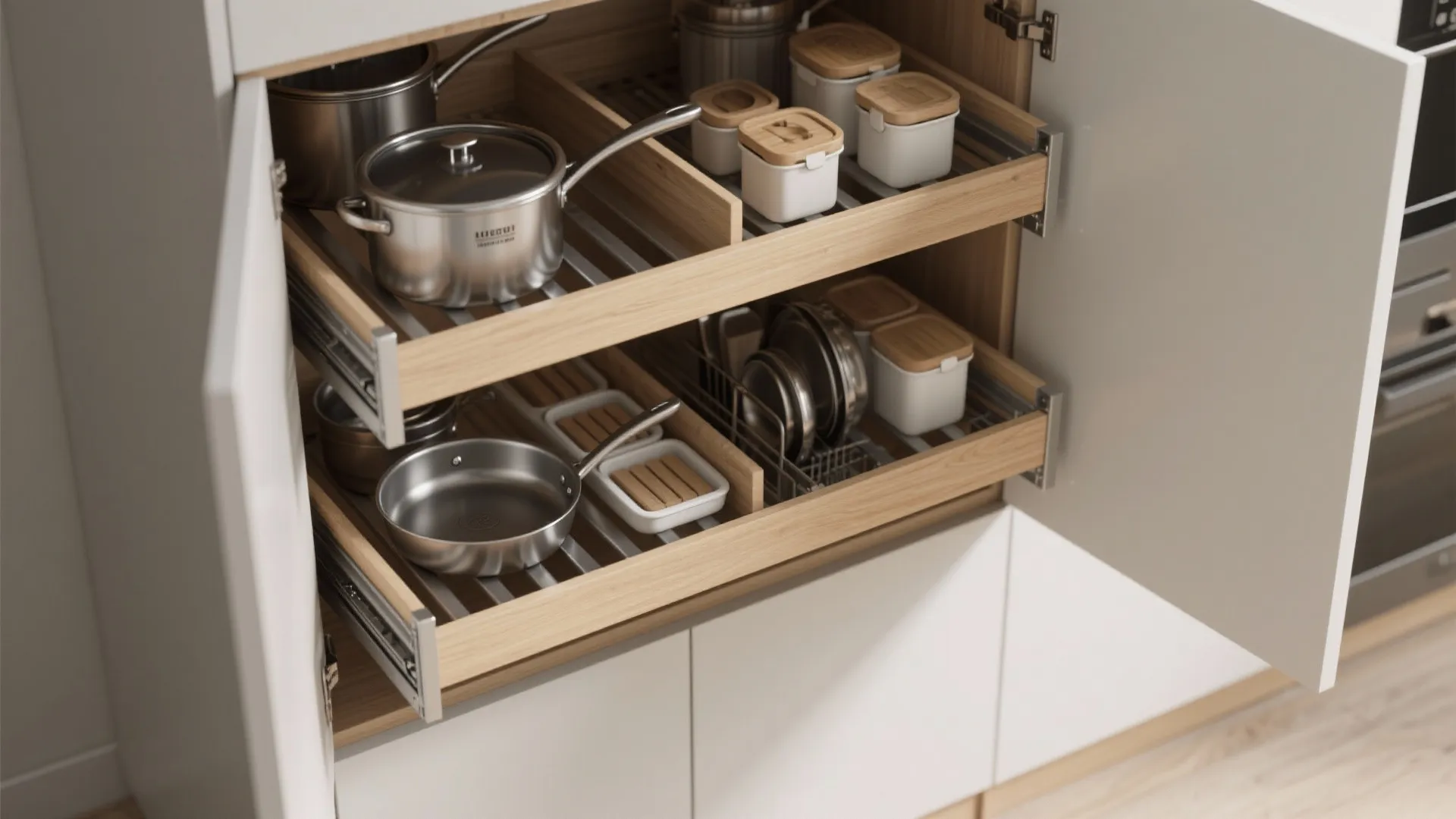

5. DIY layered pull-out shelves with organizers

I like building two-tier pull-out trays inside a tall cabinet so smaller containers don’t get swallowed. Add dividers for pans or tupperware and you’ve basically got a custom organizer without custom prices. It’s a flexible option — lightweight materials are easy to handle, but if you overload them they’ll sag, so budget for quality slides if you store heavy items.

save pin

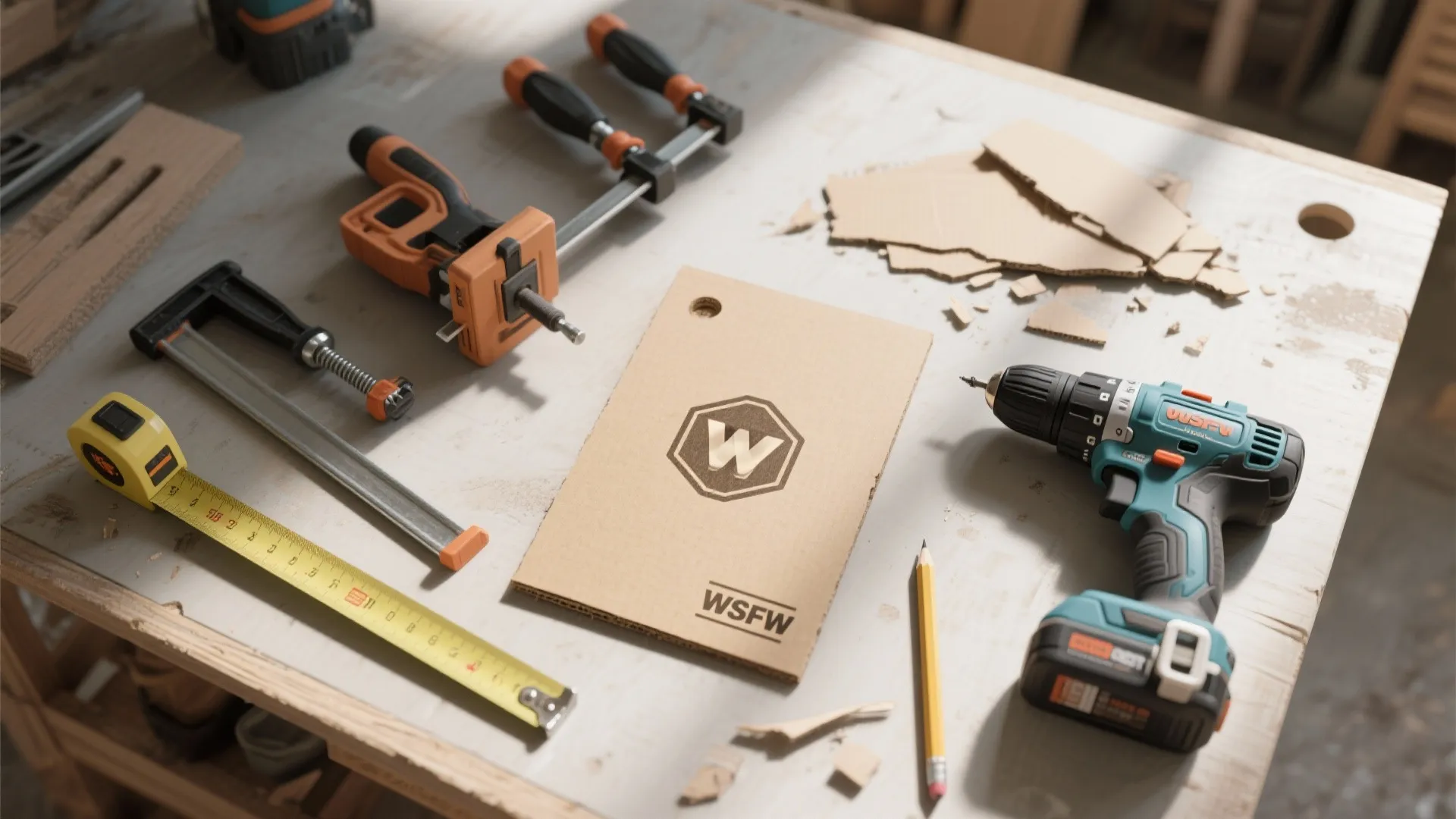

Practical tips and a quick tool list

Measure twice and check drawer slide spec sheets — small mistakes here make big headaches later. I usually carry a cordless drill, pocket hole jig, bar clamps, and a scrap of plywood to mock-up the fit. If you’re visual, try a 3D layout to test clearance before cutting (I often recommend a 3D floor planner to preview tight fits).

save pin

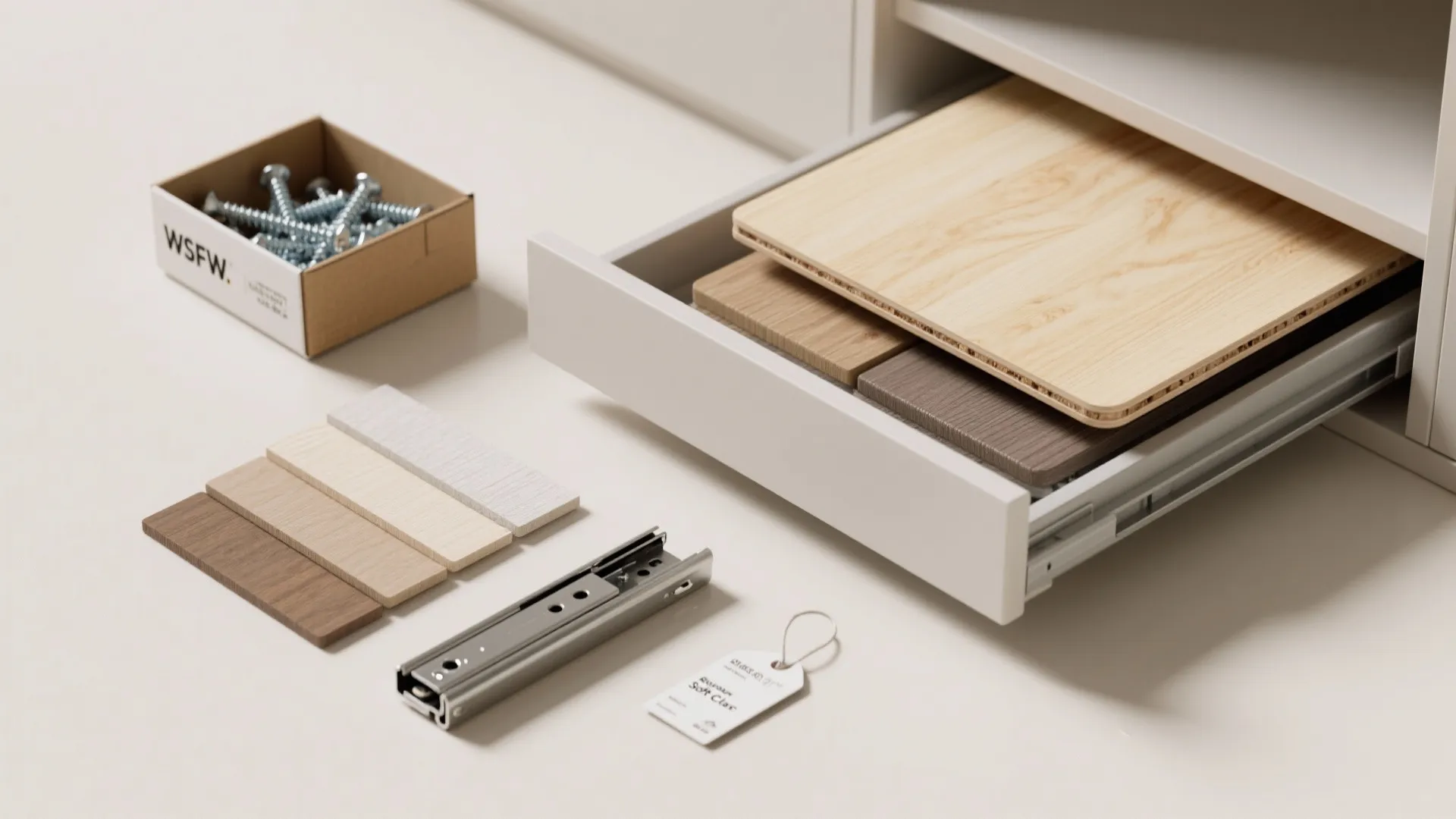

Budget and material notes

You can DIY a functional pull-out for $30–$80 using basic slides and plywood; deluxe soft-close or undermount slides boost the price but feel premium. I keep a small “failure” kit of extra screws and hinge plates — trust me, they save a return trip. For framed cabinets, add a face-frame adapter; for frameless cabinets, mount directly to the side panel.

save pin

Final installation tips

Test-clearances with a cardboard mock-up and label everything during disassembly — I once reinstalled a door upside-down and learned the hard way. If the cabinet floor is uneven, shim under the runners. And if you want to visualize the end result in context of the whole room, try using a room planner like I do with clients to confirm style and swing clearances room planner.

save pin

FAQ

Q1: How hard is it to install pull-out shelves?

I’d say moderately easy if you’re handy: basic installs take 1–3 hours per cabinet. The trickiest parts are accurate measuring and ensuring level mounting.

Q2: What types of slides should I pick?

I usually recommend full-extension ball-bearing slides for heavy use and soft-close undermounts for a clean look; check weight ratings on the packaging. Higher-end slides last longer and reduce wobble.

Q3: Can I retrofit pull-out shelves into old framed cabinets?

Yes — you often need a face-frame adapter or a cleat to mount the slides. I build simple adapters from plywood when the frame blocks direct screw-in access.

Q4: What tools are essential?

A drill/driver, spirit level, tape measure, clamps, and a jigsaw or circular saw are the baseline. A pocket-hole jig isn’t essential but speeds up strong joints.

Q5: How much weight can a DIY pull-out shelf hold?

Load depends on the slide rating: many good ball-bearing slides support 75–100+ lbs. According to manufacturers like Accuride and Blum, choose slides rated above your expected load for safety (see Accuride technical resources for specifics: https://www.accuride.com/).

Q6: Any tips for corner cabinets?

Install a mechanism designed for corners (bi-fold or rotating trays) rather than improvising; these systems solve access problems more reliably. They’re pricier but usually worth it for the usable space gained.

Q7: How do I handle ventilation for pull-out trash bins?

Leave a small gap at the back for airflow and use odor-control liners; if smells are a concern, consider a dedicated trash drawer with a sealed lid. Regular cleaning is the simplest preventive measure.

Q8: Can I design and test ideas before buying materials?

I always mock up in cardboard and, when possible, use a simple floor planner or 3D preview to check clearances and aesthetics before buying hardware. It saves money and frustration down the line.
