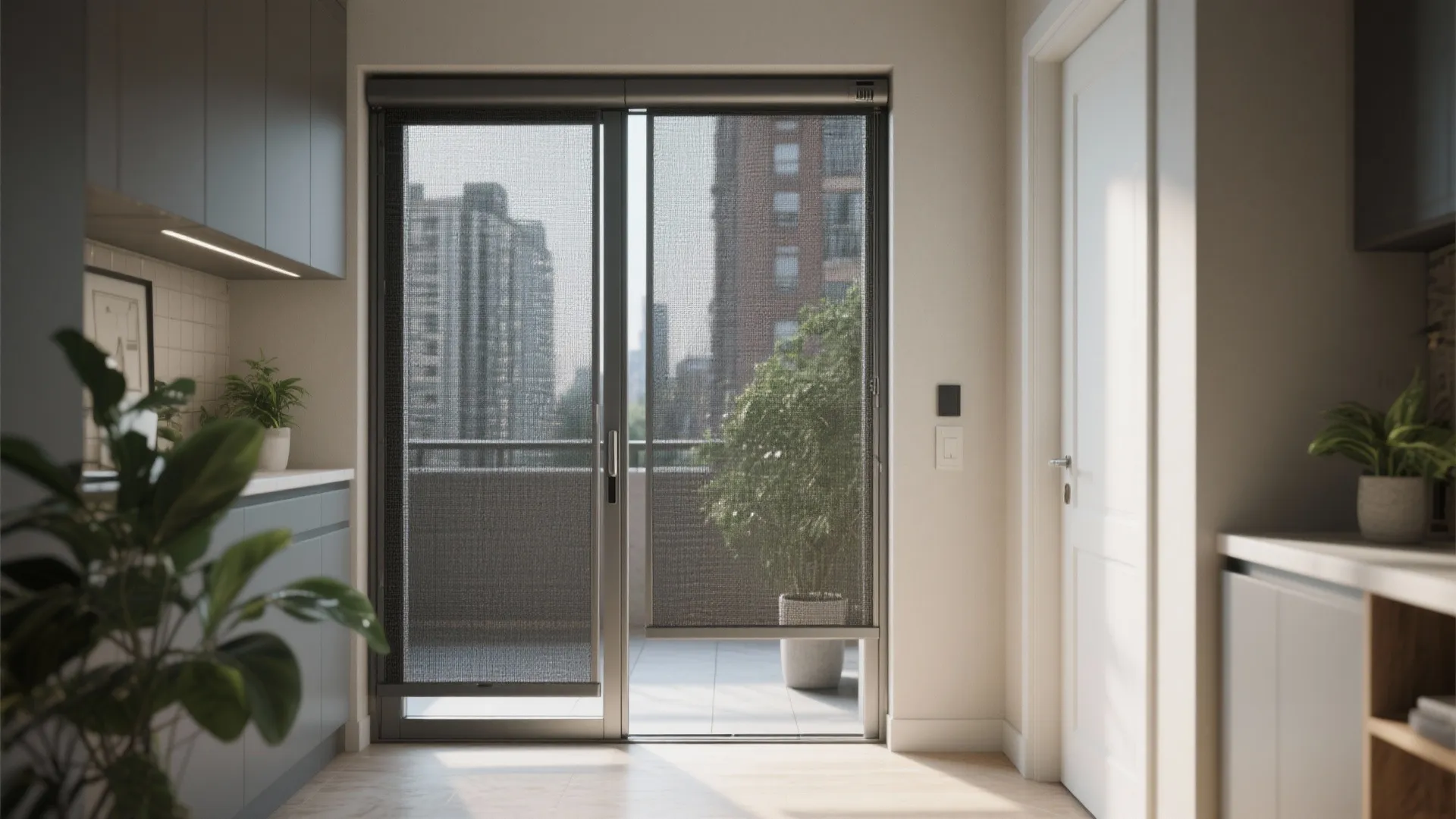

DIY Retractable Door Screen: Step-by-Step Guide for Small Spaces: Fast-Track Guide to Installing a Retractable Door Screen in 1 Hour

I’ve installed retractable screens in tight city apartments and compact cottages where every inch matters. The goal is simple: keep fresh air moving while blocking insects, glare, and prying eyes—without a swinging door eating into the room. Retractable screens solve this beautifully, and done right, they feel seamless in daily use.

Before we dive into the build, two data points shape my approach. First, indoor air quality matters: Gensler research shows people rank fresh air as a top comfort driver in workplaces, and WELL v2 highlights ventilation and operable openings as key strategies for healthier interiors (see WELL v2 Air concept on wellcertified.com). Second, glare control is equally practical; IES guidance ties daylight with visual comfort, and keeping insects out with a fine mesh lets you use natural light without the eye strain of harsh sun (ies.org/standards). Those parameters influence mesh selection, frame alignment, and tensioning.

Plan Your Screen for a Small Footprint

In small spaces, door clearances, floor thresholds, and storage of the retracted cassette are critical. Measure three times: net door opening width, clear height, and available reveal depth (often 30–50 mm). I prefer a slim aluminum cassette mounted to the jamb or header, with a side-track solution if the reveal is shallow. For sliding patio doors, a top-mounted roll and low-profile sill track keeps trip risk low and preserves wheelchair-clear thresholds.

If you’re visualizing layout options or testing cassette placement around tight furniture or trim, a quick pass with a room layout tool like interior layout planner helps you find conflicts before drilling.

Materials and Tools

Choose components that balance durability with minimal bulk:

1. Retractable screen cassette (spring-loaded or magnetic hold), sized to your door width
2. Fiberglass or polyester mesh (18×16 or 20×20 weave for insect control; darker mesh improves outward visibility)
3. Aluminum side tracks (low-profile, 8–12 mm thickness)
4. Bottom guide rail or magnet catch (flush if ADA threshold is needed)
5. Mounting brackets and corrosion-resistant screws
6. Weatherstripping (foam or brush) for edges
7. Pull bar with integrated handle
8. Tools: drill/driver, level, miter saw or hacksaw, measuring tape, square, file, silicone sealant

Step-by-Step Build

1. Confirm Clearances and Level

Check the door jamb for plumb and the header for level. In older buildings, you’ll often find 3–5 mm of drift across the height—shim the cassette to correct. A misaligned cassette causes the mesh to skew and fray over time.

2. Prepare the Cassette

Dry-fit the cassette to your chosen side (for right-hand pull, mount on the left jamb so the screen pulls right). Cut to width if your kit allows, then cap ends. If using a spring-loaded unit, pre-tension the spring per manufacturer guidelines; insufficient tension leads to sagging and poor retraction, excessive tension can snap the pull bar into the cassette.

3. Mount Brackets and Cassette

Locate bracket positions at 150–200 mm from ends for load distribution. Pilot drill to avoid splitting trim. Fasten the cassette, verify a continuous 2–3 mm reveal from door hardware to avoid rubbing. Seal the top edge lightly to prevent dust ingress.

4. Install Side Tracks

Cut tracks to height, deburr edges with a file. Maintain a uniform channel width so the pull bar glides freely. Fix tracks with countersunk screws or adhesive if you need a no-drill rental-friendly install. Aim for a consistent 1–2 mm gap from the door slab to reduce interference.

5. Fit the Mesh and Pull Bar

Attach the mesh to the pull bar spline carefully to avoid waves. Darker mesh tones reduce interior glare and improve outward visibility—an ergonomic plus for visual comfort backed by IES recommendations on luminance balance. Snap the pull bar into tracks; test a slow pull and retract cycle to confirm no snagging.

6. Set Bottom Guide or Magnet Catch

If you’re preserving a flush threshold, use a magnetic catch instead of a raised rail. Align magnets so the pull bar seals evenly. For pets, consider a low bumper strip to protect the mesh from claws.

7. Weatherstrip and Fine-Tune

Apply brush seals along critical edges to limit insect ingress while maintaining smooth motion. Add a micro bead of silicone at the cassette ends to reduce rattling. Cycle the screen 20–30 times; the mesh will “settle,” revealing minor alignment issues you can correct before daily use.

Small-Space Design Details

Retractable screens shine in studios and narrow entries where swing clearance conflicts with furniture or stairs. I focus on three human-factors points: reach, trip, and glare.

1. Reach: Place the handle at 900–1000 mm from floor, aligning with typical door handles for intuitive use.
2. Trip: Keep bottom rails ≤5 mm proud of the floor; anything higher becomes a stumble hazard, especially on nighttime routes.
3. Glare: Dark mesh reduces veiling reflections on interior surfaces, and a subtle tint can soften afternoon sun without killing daylight.

Acoustics, Privacy, and Comfort

While a screen won’t block sound like a solid door, a fine mesh interrupts direct insect paths and softens air gusts, preventing door slam. If privacy is a concern, move to a semi-opaque mesh pattern; it increases visual privacy at shallow viewing angles and is useful on ground-floor entries.

Maintenance and Longevity

Vacuum the mesh monthly with a soft brush. Check tension seasonally—temperature swings can expand tracks by 1–2 mm. If the screen retracts unevenly, re-level tracks and re-tension the spring one notch. Replace worn brush seals every 2–3 years.

Cost and Time

DIY kits range widely. Expect $90–$250 for a good aluminum cassette and track set, plus $20–$40 for mesh and seals. A careful first-time install typically takes 2–3 hours, less if you pre-cut tracks. The footprint is minimal, and the screen disappears when not in use.

When to Choose a Different Solution

Skip a retractable if your door opening is severely out of square (over 10 mm drift), if you need a pet-proof barrier with high impact resistance, or if you have heavy wind exposure that repeatedly snaps the pull bar closed. Consider a hinged screen with reinforced frame in those cases.

FAQ

How do I prevent the screen from snapping back too quickly?

Reduce spring tension one increment and add a soft-close magnet at the catch. A level cassette and smooth tracks also slow the return naturally.

Which mesh weave is best for insect control without blocking airflow?

Use 18×16 or 20×20 fiberglass/polyester. The 20×20 stops smaller insects with a minor airflow trade-off; darker mesh improves visibility through the screen.

Can I install a retractable screen on a rental without drilling?

Yes, with adhesive-backed tracks and a header-mounted cassette using removable strips. Clean surfaces thoroughly so adhesion lasts.

Does a bottom rail create a trip hazard?

Keep it ≤5 mm high and chamfer the leading edge. If accessibility is a priority, switch to a magnetic catch with no raised rail.

Will a retractable screen help with glare?

Dark mesh reduces contrast and veiling reflections, improving visual comfort. Pair with adjustable interior shades for peak afternoon sun.

How does ventilation compare to leaving the door fully open?

A screen enables cross-ventilation while blocking insects. Align openings to prevailing breeze; WELL v2 emphasizes operable openings as a healthy strategy for fresh air.

What’s the best way to handle out-of-square door frames?

Shim the cassette and tracks to true; if drift exceeds 10 mm, consider a custom frame or a hinged solution for reliable operation.

Can I pet-proof the screen?

Use a heavier polyester mesh and add a low bumper strip at pet shoulder height. Train pets to avoid the screen and keep claws trimmed.

How do I clean the mesh without stretching it?

Vacuum with a soft brush and support the mesh lightly with your hand. For sticky debris, use a damp microfiber cloth—avoid high-pressure washing.

Will the screen work with sliding patio doors?

Yes. Mount the cassette at the fixed panel side and run a low-profile sill track. Confirm clearance with the sliding panel hardware.

What if the screen retracts unevenly?

Check for burrs in tracks, re-level, and adjust spring tension. Lubricate lightly with a dry PTFE spray—avoid oils that attract dust.
