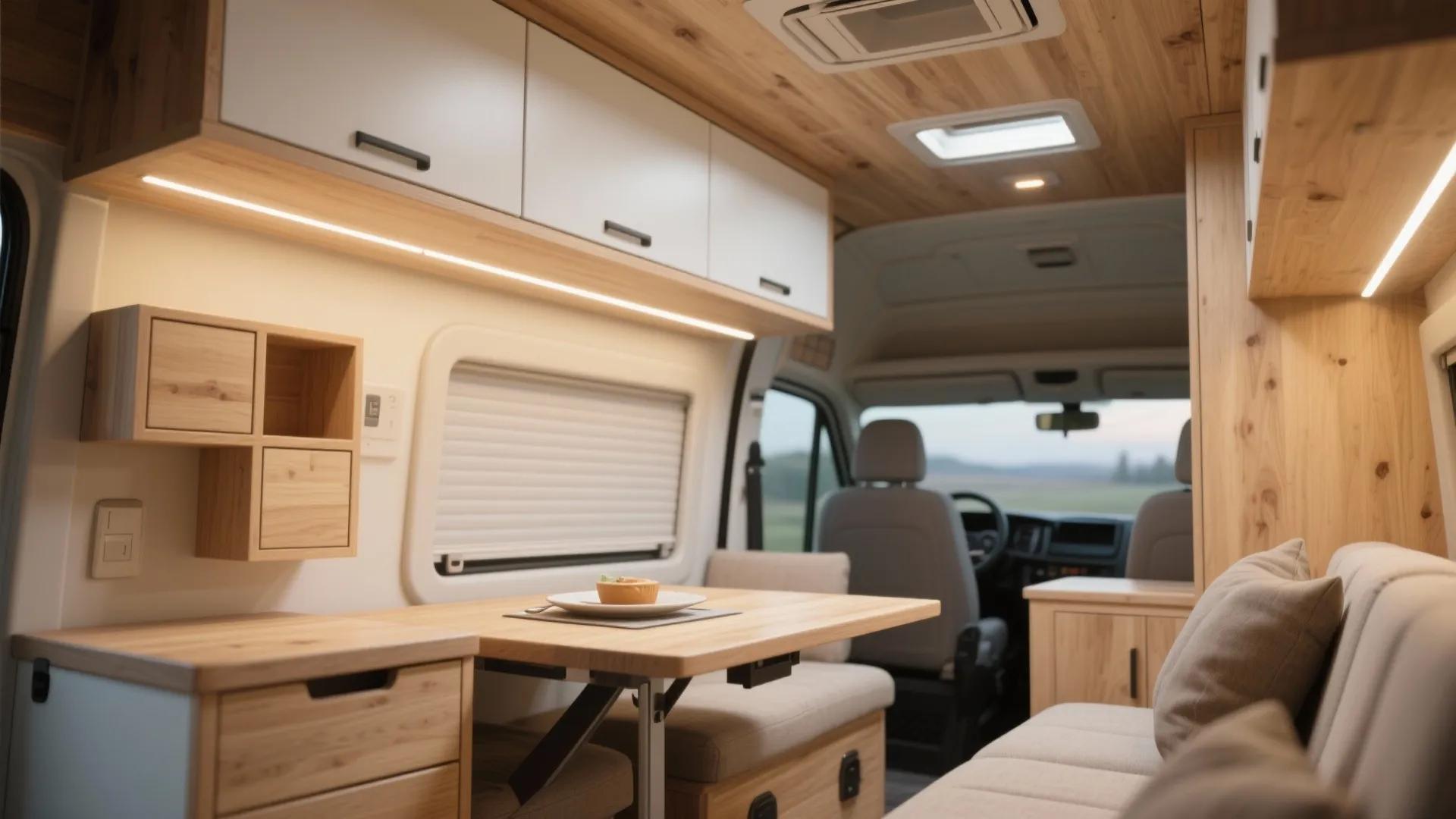

DIY Sprinter Upper Cabinet: 5 Smart Ideas: Creative, lightweight and practical upper cabinet ideas for your Sprinter van build from a pro with 10+ years of small-space experience

I once built an upper cabinet for a client who insisted it be able to store a blender, a wine bottle and a stack of books — all while allowing someone to stand up under it. I learned two things fast: measure twice, and don’t trust what looks good on paper until you test it in the van. For real-life inspiration, check this van cabinet case study that shows smart space thinking applied to compact builds.

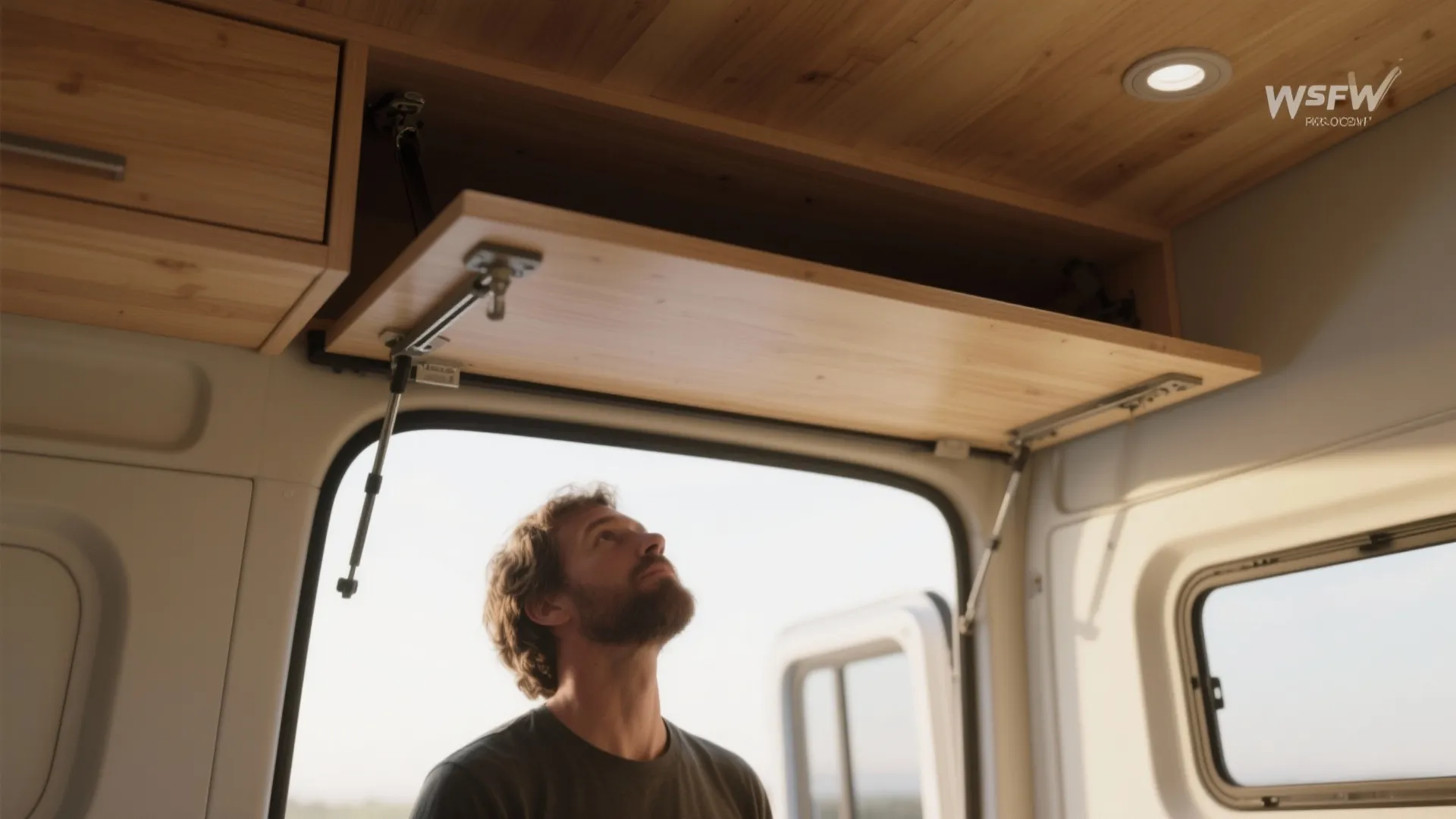

1. Slim flip-up doors to protect headroom

Flip-up doors that lift toward the ceiling keep the front of the cabinet thin and avoid the forehead-into-door comedy routine. They’re lightweight, easy to operate with gas struts, and great when ceiling height is tight. Downsides are hardware cost and the need to reinforce the top edge so the hinges don’t wear out—plan for strong mounting points and soldier on with a mockup first.

save pin

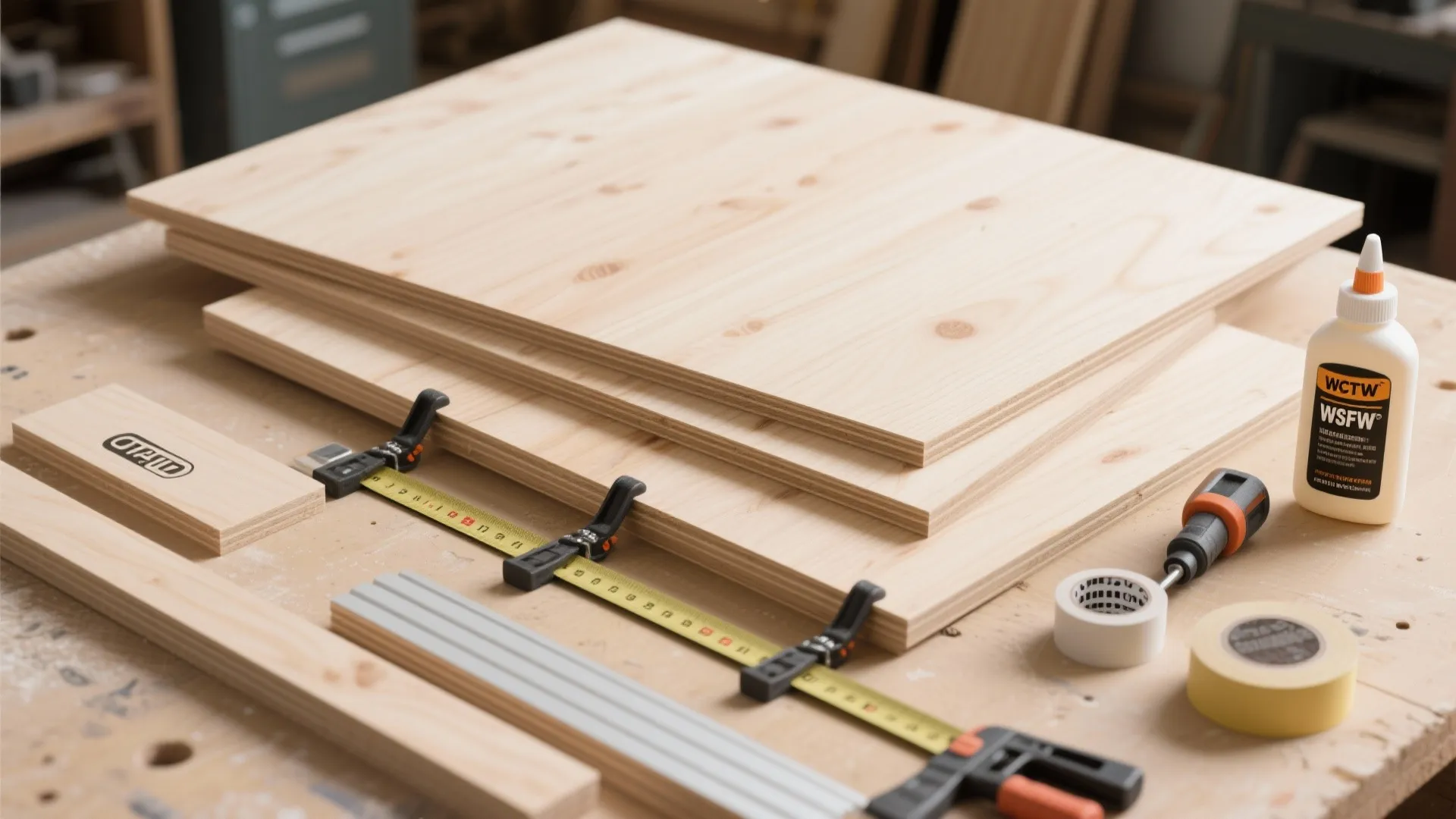

2. Use lightweight plywood boxes with face frames

I usually specify 7–9 mm Baltic birch for the box and a 12 mm face frame for strength; it’s stiff, cuts weight, and sands/paints nicely. The result is durable cabinets that don’t add a ton of mass to your Sprinter’s roofline. The trade-off: thinner plywood demands precise joinery and edge treatment, so be ready to spend an afternoon on glue clamps and finish tape.

save pin

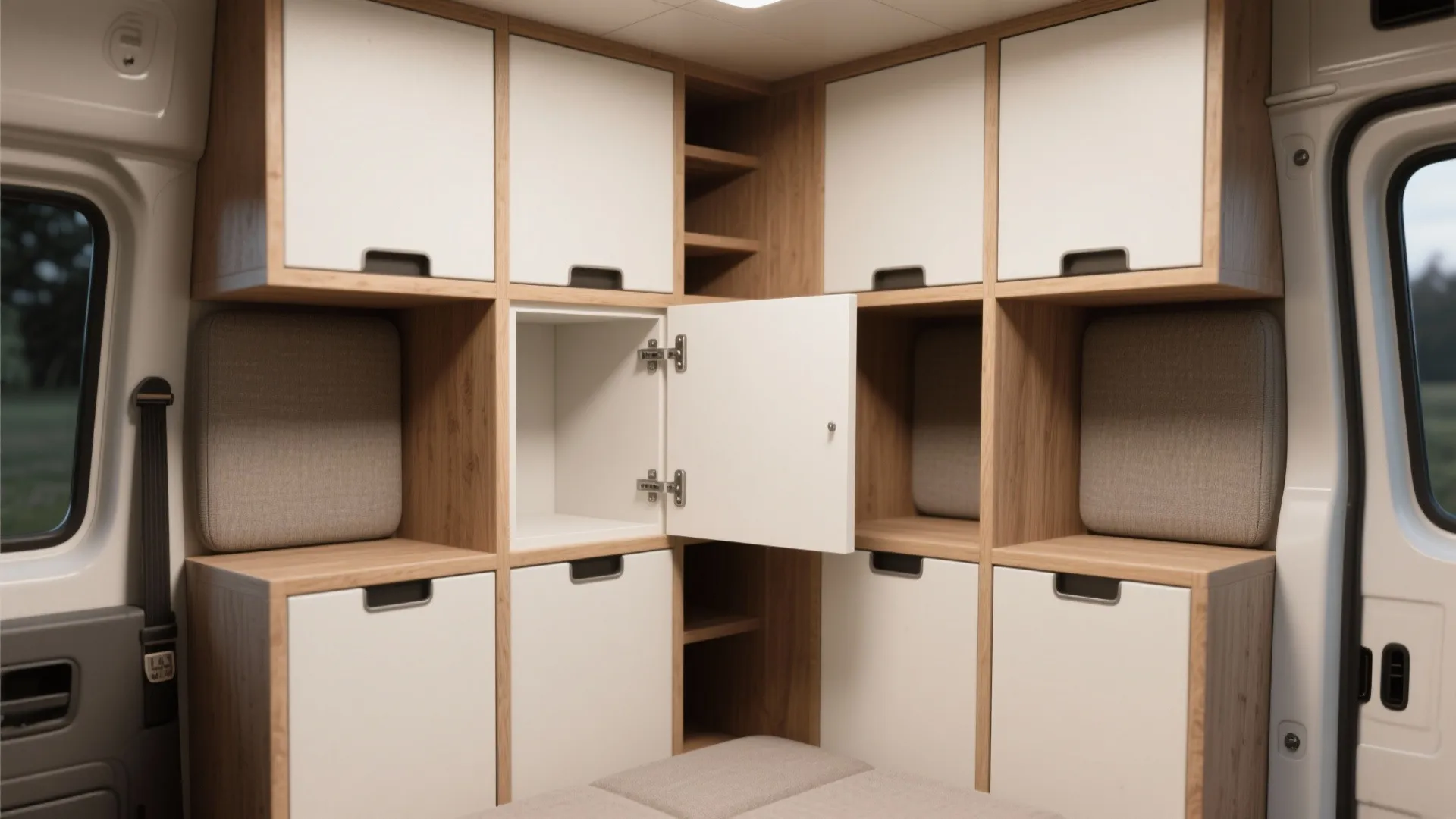

3. Modular cubes and hidden brackets for flexible layouts

Building upper cabinets as modular cubes makes reconfiguring easier during a build or when functions change. I like recessed L-brackets hidden inside the cube so the visible face stays clean—this keeps things serviceable without sacrificing the look. If you want ideas that translate from kitchen thinking to van builds, this compact kitchen layout example inspired a few of my bracket placements and shelf spacing choices.

save pin

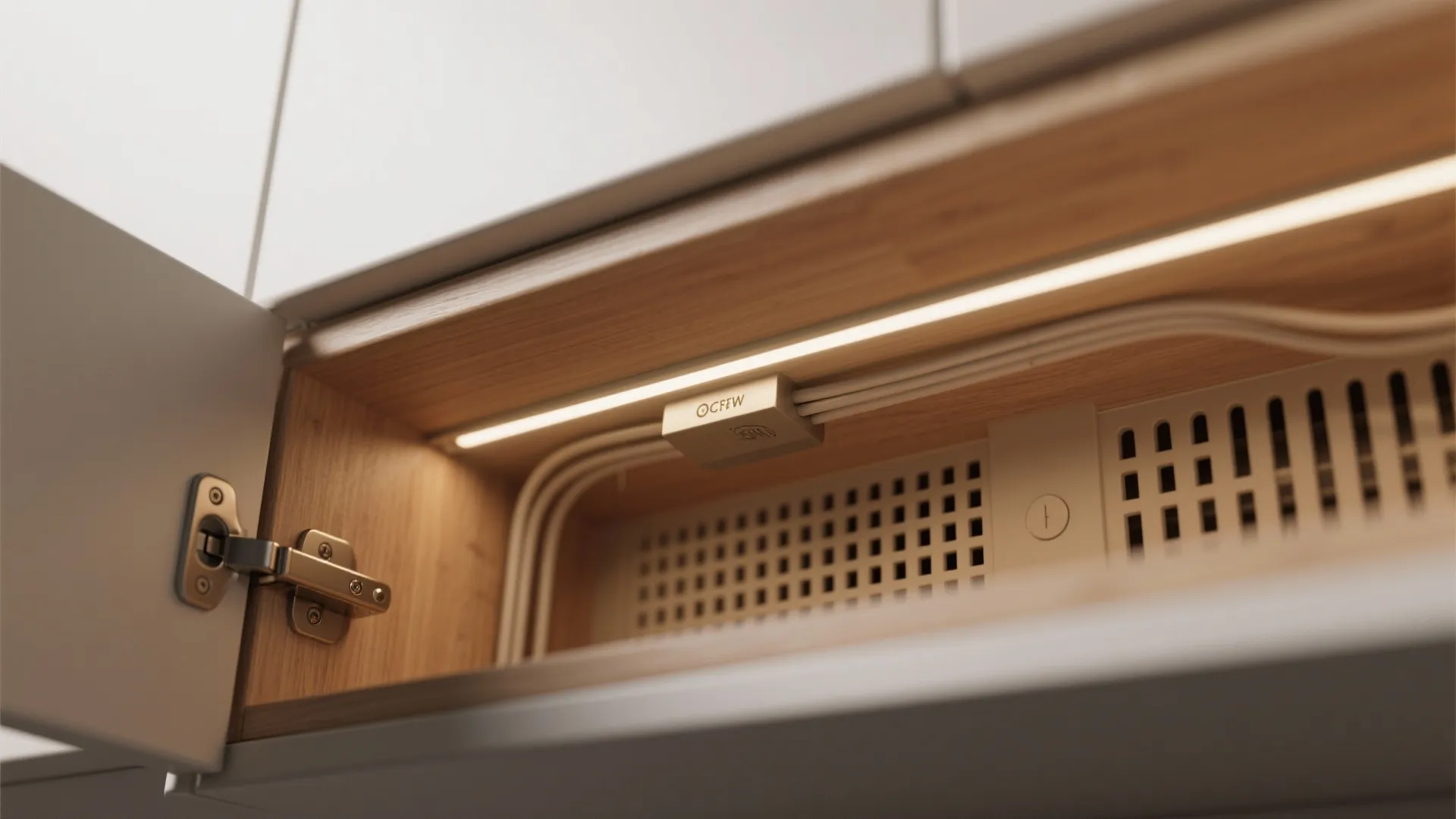

4. Integrated lighting and magnetic latches for real-life usability

Adding strip LED lighting under or inside upper cabinets transforms usability at night — especially for van cooks. Magnetic push-latches keep doors closed on bumpy roads without bulky hardware. Expect a little extra wiring work and plan access panels; I once routed LED wiring through a return grille to hide it, which saved faceplate drilling but added a bit of troubleshooting later.

save pin

5. Multi-use cabinets: fold-down tables and slide-out shelves

Upper cabinets can hide a fold-down breakfast table or a slide-out pantry shelf to double their value. I built a fold-down table inside an upper module for a client who wanted dining space without losing storage; the gas hinge was a small splurge that paid off in usability. For a visual mockup before you commit cuts, try a 3D render example to check clearances and sightlines.

save pin

Quick budget & build tips

Keep a small mock-up using cardboard and scrap plywood—it's the cheapest way to prove a concept. If budget is tight, prioritize mounting strength and door hardware first, then work on finishes. I often tell clients to spend on a good hinge or gas strut and save on veneer or paint; function first, polish second.

save pin

FAQ

1. What materials are best for Sprinter upper cabinets?

Lightweight plywood (Baltic birch) and thin hardwood face frames are my go-tos; they balance weight and strength. Avoid heavy MDF up high unless you absolutely need the finish; weight adds up fast in a van.

2. How should I anchor upper cabinets to the van wall?

Anchor into the vehicle structure—studs, ribs, or a solid plywood backer bonded to the van skin. Use marine-grade screws and reinforced mounting plates to spread loads across a larger area.

3. Can I install cabinets myself with basic tools?

Yes, basic joinery, a circular saw, drill, and clamps will get most DIYers through box builds. Precision and patience are essential; if you’re unsure about mounting to the van frame, consult a pro.

4. How do I keep doors closed while driving?

Magnetic catches, roller catches, or positive latches designed for RVs work well. I prefer magnetic push-latches for low profile and reliability on daily drives.

5. What about ventilation and condensation inside cabinets?

Provide slight venting or use breathable materials; avoid completely sealed cavities for items that trap moisture. If you store electronics or food, plan passive vents or small gaps to allow airflow.

6. How much weight can upper cabinets carry?

Depends on construction and anchoring; well-built upper cabinets can easily hold 20–50 lbs each if properly mounted and reinforced. Distribute heavy loads low and close to the wall where possible.

7. Are there industry standards or safety guidelines I should follow?

Yes—RV industry practices and RVIA recommendations are useful references for secure mounting and safe interiors (RV Industry Association, https://www.rvia.org). Following these will help ensure your build meets common safety expectations.

8. Any tips for finishing cabinets in a van environment?

Use flexible, moisture-resistant finishes like waterborne polyurethanes and edge-banding to seal plywood edges. Avoid brittle paints that can craze with temperature swings; I favor wipe-on poly for small builds because it’s forgiving and easy to touch up.
