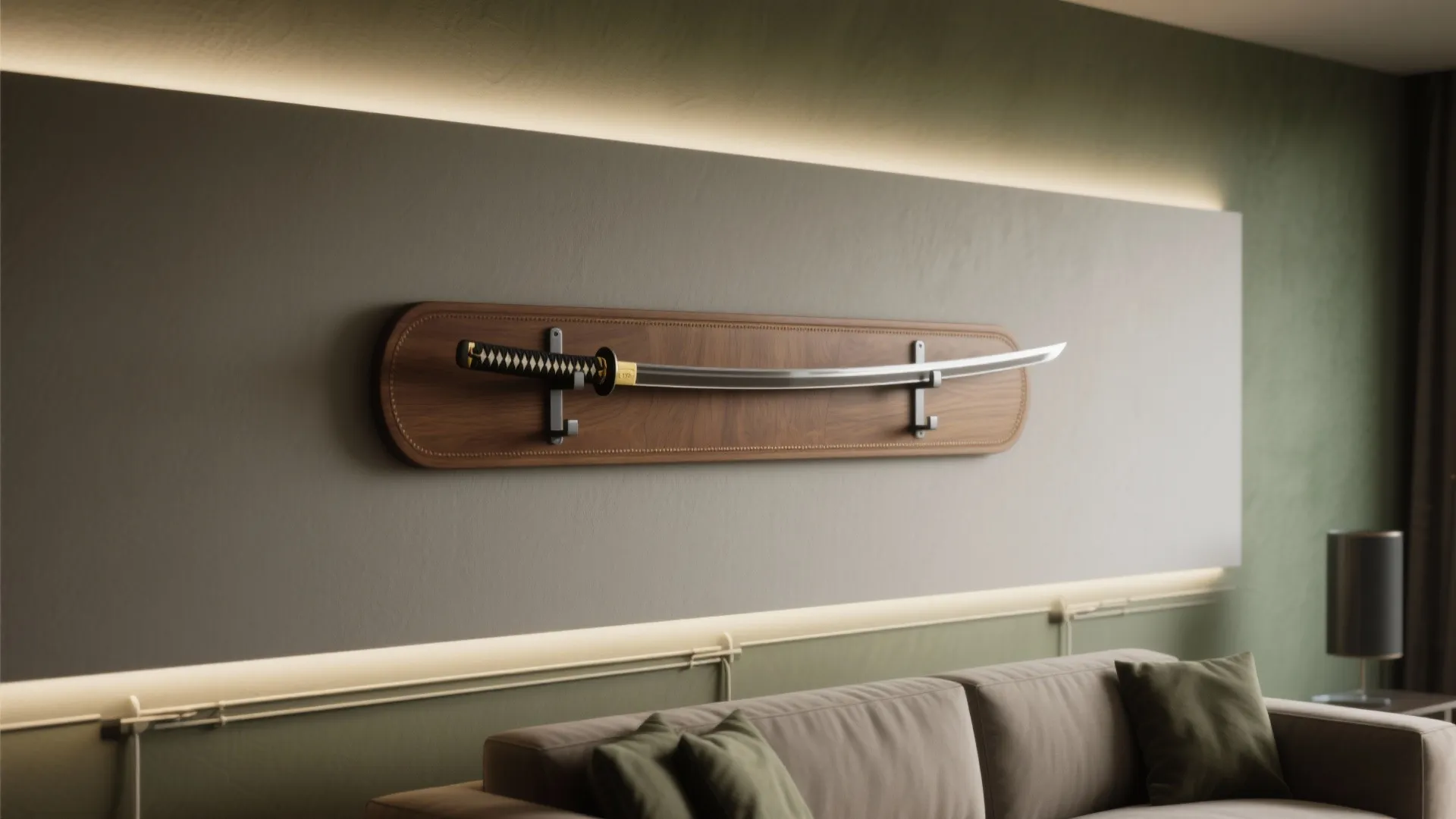

DIY Sword Wall Mount: A Practical Guide for Displaying Blades: 1 Minute to Build an Impressive Sword Wall Display at Home

Displaying swords at home is about more than wall hardware—it’s a balance of safety, structural integrity, and visual rhythm. I approach a sword wall mount like a small architectural project: evaluate load, understand materials, and place the piece where light and sightlines elevate its presence. A straightforward mount can carry most single-handed blades, but the details determine whether it looks refined and stays secure.

Before drilling a single hole, confirm wall structure and mounting height. According to WELL v2 guidelines, glare and visual strain increase when reflective items sit against high-contrast light fields; place polished blades away from direct sun to reduce visual discomfort (WELL v2 Light). Steelcase research also links organized, visually coherent displays to lower cognitive load in work-home environments, supporting calmer perception and easier wayfinding. One more note on sightlines: the IES recommends controlling luminance ratios to avoid hotspots; for sword displays, this means soft wall wash lighting and matte backdrops to reduce specular highlights.

Weight and structure are non-negotiable. A typical katana weighs roughly 1.1–1.5 kg (2.4–3.3 lb); a rapier, around 1–1.2 kg; and decorative broadswords can reach 2–3 kg. Stud-mounted hardware safely supports these loads with proper fasteners. For hollow walls, use 1/4"–20 machine screws with toggle anchors rated above 25–45 lb for margin. I place centerlines at 1,400–1,500 mm (55–59 in) above finished floor for comfortable viewing, then adjust based on blade length and whether the scabbard is mounted. Avoid high-traffic corridors to minimize accidental contact.

Planning the Composition

I begin by mapping the visual sequence on the wall: single sword, pair, or a small collection. Keep a consistent gap: 90–120 mm (3.5–4.75 in) between mount points for single-handed blades; 120–150 mm (4.75–6 in) for wider guards. Maintain a base-to-tip declination of 3–5 degrees if you want a dynamic line that feels intentional rather than crooked. If you’re exploring layouts with multiple pieces, mock the arrangement digitally first with a room layout tool to test spacing, alignment, and the relationship to furniture and lighting.

Materials and Hardware

Use hardwood cleats (oak, ash, or maple) for rigidity and clean finishes. For brackets, powder-coated steel or anodized aluminum resists chipping and blends with most interiors. Felt, microsuede, or vegetable-tanned leather on contact points prevents abrasion. Corrosion is subtle but real; if the wall is near bathrooms or kitchens, choose stainless fasteners and isolate steel brackets from the blade with fabric pads. Keep all screws countersunk and confirm pilot holes match material density—3 mm (1/8 in) for hardwood, 2 mm (5/64 in) for softwood.

Mount Types

• Horizontal dual-support: Two cradles or pegs carry the blade and scabbard; ideal for katanas, sabers, or rapiers. Set supports 45–60% along blade length from the guard and 10–20% from the tip to distribute load.

• Vertical single-support with safety strap: Minimal footprint; use a hidden strap or magnet to prevent slipping. Add a bottom catch block as fail-safe.

• Angled showcase: 10–15 degrees tilt adds drama and reduces glare. Works best with symmetrical guards and clean wall washing light.

• Shadowbox with glazing: If humidity and dust are concerns, a sealed frame using UV acrylic reduces cleaning and keeps fingerprints off blades.

Safety, Ergonomics, and Reach

Human factors matter. Keep tips and guards at least 600 mm (24 in) from door swings and 350 mm (14 in) above reachable surfaces to avoid unintentional handling. For homes with kids, introduce a discreet lock or secondary strap on the lower cradle; even a small neodymium magnet beneath felt can add retention without visual clutter. The WELL v2 ergonomics guidance encourages reach ranges that reduce awkward postures; mount the sword where its center of mass sits around eye level for viewing and well below shoulder height if occasional handling is intended.

Light and Color Strategy

Blades read best under 2700–3000K warm-white light with a high CRI (90+) to maintain warmth in wood and clarity in steel. The IES recommends uniformity to limit glare—use diffused sconces or indirect LED strips rather than point sources. Color psychology plays a role too: neutral backdrops (warm gray, clay, or toned whites) keep attention on the blade; deep greens or indigo set a contemplative tone compatible with historical pieces. Nix glossy paint behind the mount; semi-matte improves visual comfort and reduces reflective hotspots.

Step-by-Step Build

1) Locate studs and mark centerline. Confirm with a stud finder and a pilot test on a sacrificial spot.

2) Cut the cleat: 350–500 mm long, 25 mm thick, bevel top edge slightly for a refined profile.

3) Fabricate supports: 20–25 mm dowels or bent flat bar pegs, spaced per blade geometry. Wrap contact surfaces with felt or leather.

4) Pre-finish wood and metal: sand to 220 grit; finish with hardwax oil or waterborne polyurethane for durability.

5) Mount cleat to studs using 6–8 mm lag screws; check level, then secure supports to the cleat.

6) Add safety strap or magnet beneath felt; test with gentle movement.

7) Place the blade and adjust tilts. Aim for a slight angle and balanced visual weight with nearby art or shelving.

Acoustics and Surface Selection

Metal-on-metal contact clicks are distracting and can signal poor craftsmanship. Soft contact materials reduce transient noise and protect finishes. In hard-surface rooms, a wall-mounted piece benefits from adjacent absorptive elements—textile art, a rug, or upholstered seating—to stabilize the acoustic profile. This also prevents the mount from feeling stark in echo-prone spaces.

Maintenance and Risk Management

Fingerprints invite corrosion. Keep a lint-free cloth and a small bottle of pH-neutral cleaner or mineral oil for light wipe-downs on carbon steel (follow your blade’s recommended care). Check mounts quarterly for movement; wood can creep with humidity. Pull-test supports gently; anything less than rock-solid needs reinforcements. If you add lighting, ensure cable management doesn’t compromise fire safety—low-voltage LED strips are preferable to high-heat sources.

Contextual Placement

A sword can be dramatic, but it shouldn’t dominate a room unintentionally. Position it on a secondary focal wall—perpendicular to main seating sightlines—so it rewards attention without hijacking the entire composition. If you’re creating a small gallery of blades, keep a consistent datum and use a interior layout planner to test groupings before mounting.

FAQ

Q1: How do I ensure my wall can handle the load?

A1: Mount into studs wherever possible. For drywall-only sections, use heavy-duty toggles rated well above your total load (blade + mount). A single sword mount typically stays under 10 lb, but choose anchors with 25–45 lb ratings for margin.

Q2: What lighting avoids glare on polished blades?

A2: Use diffused, indirect light around 2700–3000K with CRI 90+. Avoid spotlights at steep angles. The IES emphasizes uniform luminance to reduce glare; soft wall washers or concealed LED strips are ideal.

Q3: Is horizontal or vertical mounting safer?

A3: Horizontal dual-support with a discreet retention strap is the most forgiving. Vertical mounts require a lower catch block and an anti-slip feature. Test retention before final placement.

Q4: What contact materials protect the blade finish?

A4: Felt, microsuede, or leather over the supports prevent abrasion. For humid areas, avoid foam that can off-gas and stick; use breathable materials.

Q5: How high should I mount a katana for comfortable viewing?

A5: Place the blade’s center around 1,400–1,500 mm (55–59 in) above the floor, then adjust for the room’s seating and eye level. Keep the tip away from door swings and reach zones.

Q6: Can I safely display multiple swords on one wall?

A6: Yes—use consistent spacing, ensure each mount hits studs, and maintain a clear datum line. Mock the arrangement in a layout simulation tool to test balance and proportion.

Q7: What finish looks best on the cleat and brackets?

A7: Hardwax oil on hardwood offers a natural, warm sheen. Powder-coated or anodized metal brackets provide durable, low-gloss surfaces that don’t steal attention from the blade.

Q8: How do I prevent corrosion on carbon steel swords?

A8: Handle with gloves or wipe prints immediately. Lightly oil with a product recommended for your blade type and keep humidity stable. Avoid direct sunlight, which can heat the metal and accelerate reactions.

Q9: Any guidelines for sizing the supports?

A9: Use 20–25 mm diameter pegs for most single-handed blades; wider guards or heavier swords may need broader saddles. Distribute supports near the guard and closer to the tip to balance load.

Q10: Do color choices around the display affect perception?

A10: Yes—neutral, semi-matte backdrops minimize glare and help the blade read crisply. Deep, cool tones create a contemplative ambiance suitable for historical pieces.
