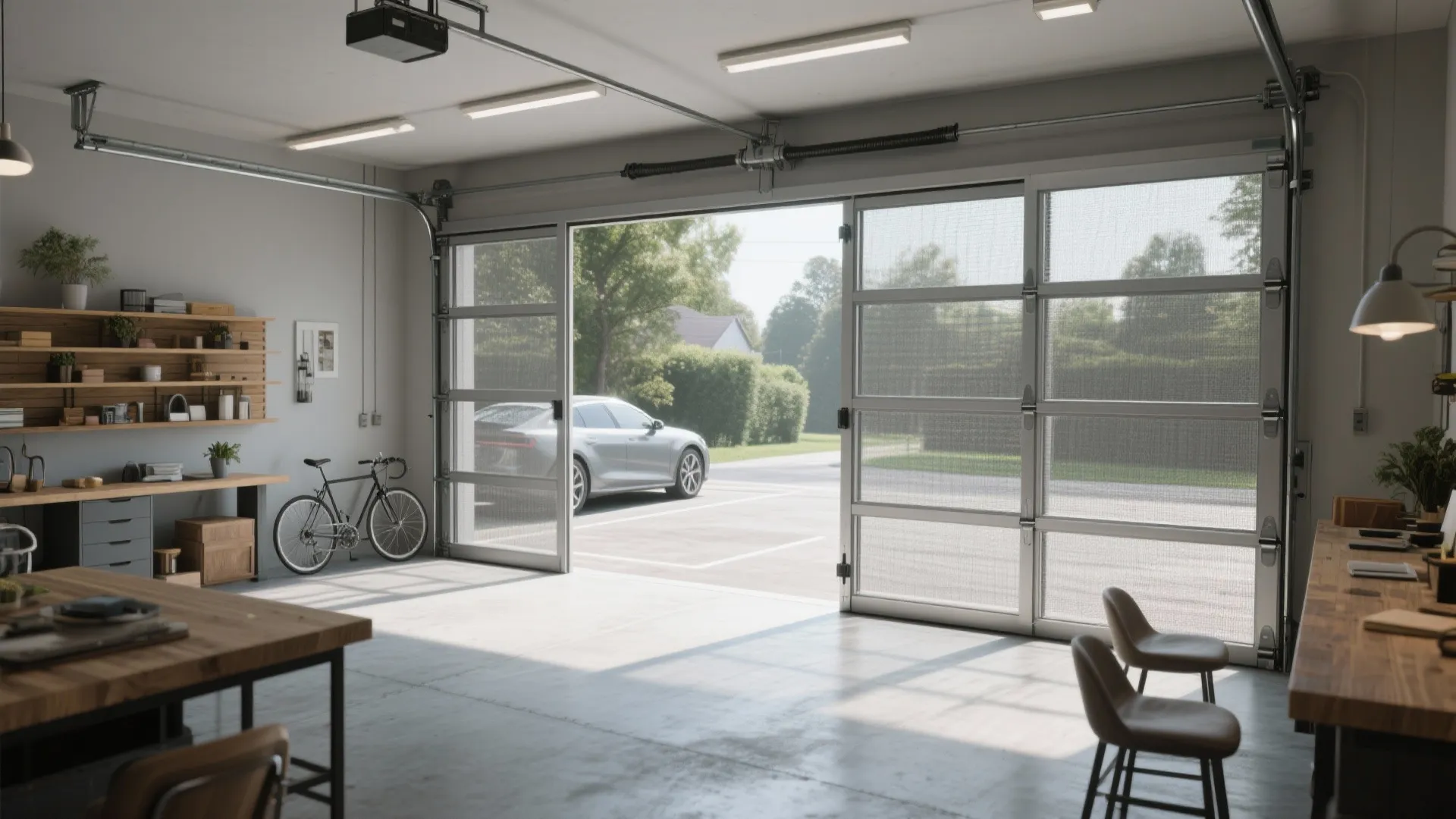

DIY 4 Track Sliding Garage Screen Doors: Step-by-Step Guide: Fast-Track Guide to Adding a 4 Track Sliding Garage Screen Door in 1 Hour

I’ve converted several garages into breezy, multi-use spaces, and a 4-track sliding screen system remains my go-to when clients want airflow without insects, privacy without heaviness, and flexible openings for cars, bikes, and gatherings. A well-built screen extends liveable square footage at a fraction of the cost of fixed walls, and it respects the garage’s core function: adaptability.

Ventilation and comfort matter. Data from the WELL Building Standard (Air concept, WELL v2) ties improved natural ventilation and pollutant control to occupant satisfaction and health, and Herman Miller’s research has linked environmental comfort to performance and wellbeing in multi-use work zones. Translating those insights into the garage means balanced airflow, controllable light, and a screen that opens quickly for vehicles yet closes tight against bugs.

From a usability standpoint, Interaction Design Foundation highlights that reduced friction in movement paths increases adoption and repeat use. A 4-track layout minimizes congestion by giving each panel its own lane; you don’t fight the panels to stack them. Keep clear widths generous at main traffic points, and ensure handles, pulls, and latches sit within ergonomic reach (roughly 34–48 inches from the floor is a comfortable range for most adults).

Planning the System

Start with the garage opening: measure width, height, and plumb/level conditions at three points each. Note sill slope and any crown/curb that might complicate bottom track alignment. Decide the maximum stack side (left, right, split stack), and confirm vehicle mirrors and door swing won’t hit stacked panels. If you intend to host gatherings, sketch clear paths for 36–42-inch walk-through zones near the main entry. For quick layout testing, a room layout tool can help visualize traffic and stack zones: room layout tool.

Materials and Hardware Selection

Choose corrosion-resistant framing—powder-coated aluminum is light and durable—and fiberglass or polyester mesh rated for tear resistance. If pets are part of the picture, look for heavy-duty pet-resistant mesh. Rollers should be sealed-bearing, stainless or nylon, with height adjustment screws. Tracks: four parallel extrusions (top and bottom) with integrated drip edges if your threshold sees rain. Include UV-stable weatherstrips and brush seals to control insects and reduce light drafts. Fasteners should be exterior-grade (stainless or coated) appropriate to your substrate—wood framing, masonry, or metal jambs.

Dimensional Logic and Clearances

For a 4-track system, each panel typically overlaps slightly with the next to maintain seal and rigidity. Allow 3/8–1/2 inch tolerance at the top for roller travel and minor deflection. Side jamb clearances of 1/4–3/8 inch per stack side help prevent binding. Bottom track alignment is crucial: use a long level and shim to maintain continuous contact; any hump will translate to panel wobble. If your slab slopes, choose a track with adjustable risers or create a low-profile threshold ramp to keep panels plumb.

Light, Heat, and Glare Considerations

Screen mesh affects daylight and heat gain. Darker fiberglass meshes improve outward visibility and reduce glare compared with bright meshes. For west-facing garages, consider a solar-control mesh to lower late-afternoon brightness while keeping airflow. Maintain task lighting levels around 300–500 lux in workshop zones; add dimmable LED strips along the header for evening use. If you host movie nights or work with glossy finishes, control veiling reflections with matte paints and cross-illumination rather than single-point glare.

Acoustic Comfort

While screens won’t soundproof, they can soften high-frequency noise. Pair the system with absorptive elements—rugs, cork wall panels, or upholstered benches—to improve intelligibility during gatherings. Keep hard parallel surfaces in check to avoid flutter echo; introduce a rhythmic pattern of soft and hard materials across the space.

Step-by-Step Build Guide

1. Verify Structure and Prepare the Opening

Check header integrity and side jambs. If the garage door remains, you’ll mount your screen track inside the opening or just behind the roll-up, ensuring vehicle clearance. Clean the slab; remove debris where the bottom track will sit.

2. Lay and Level Bottom Tracks

Snap chalk lines for the four lanes. Dry-fit tracks to confirm parallel spacing. Pre-drill countersunk holes at prescribed intervals (typically 12–16 inches on center). Shim as needed to level; anchor with appropriate fasteners. Test by rolling a straightedge or spare roller across each lane to feel for bumps.

3. Install Top Tracks and Header Seal

Transfer measurements from the bottom tracks to the header. Use a laser or plumb bob to align lanes. Secure the top track, then add a slim compression or brush seal to the header to reduce insect ingress.

4. Assemble Panel Frames

Cut stiles/rails to length per manufacturer’s spec. Square each frame using corner clamps; secure with mechanical fasteners. Stretch mesh evenly, keeping moderate tension to prevent ripples. Install spline cleanly along the perimeter; trim excess mesh.

5. Fit Rollers and Hang Panels

Attach adjustable top rollers and bottom guides. Lift each panel into the top track, then seat it into the bottom lane. Adjust roller heights so panels slide smoothly without rub. Confirm each panel stays within its lane under light lateral pressure.

6. Add Interlocks, Handles, and Stops

Install interlock fins or clips between adjacent panels to reduce gaps. Place handles at ergonomic height and stops at the ends of each lane to prevent jump-off. Test the stack: panels should nest fully on the chosen side without binding.

7. Seal and Finish

Apply side jamb brush seals and optional threshold gasket. Caulk edges sparingly where water could intrude. Sand hooks and protrusions; confirm there are no snag points for mesh or clothing.

8. Test, Tune, and Maintain

Cycle panels repeatedly; listen for scraping or rattles. Fine-tune roller tension and confirm smooth travel. Mark maintenance points and keep a small kit: spare spline, patch mesh, and lubricant for bearings.

Ergonomics and Safety

Keep clear walk zones wide and unobstructed; avoid forcing users to duck or step over track lips. If children use the space, add soft-close dampers and finger-safe interlocks. Handles should accommodate a full hand grip; avoid sharp edge pulls. Night lighting should cover thresholds to reduce trip risk.

Behavioral Patterns and Spatial Intent

Think in modes: vehicle access, social evening, workout, and workshop. Map how panels configure for each mode. For social events, split the stack to create a central opening and cross-breeze. For workouts, pull two panels to the side for privacy while maintaining daylight. The goal is frictionless transitions—no heavy lifts, no complicated latch sequences.

Maintenance and Longevity

Quarterly vacuum tracks and brush seals. Check roller bearings annually and replace if gritty. If you live near the coast, rinse frames seasonally to remove salt. Patch small mesh tears quickly; they spread under tension. Refinish powder coat scratches to prevent corrosion.

Common Mistakes to Avoid

- Misaligned tracks causing panel pinch and premature roller wear.

- Insufficient overlap between panels leading to insect gaps.

- Overly tight spline causing mesh ripples and frame bow.

- Ignoring slab slope, resulting in uneven panel heights.

- Using interior-grade fasteners outdoors.

Cost and Time Expectations

A DIY 4-track system with quality aluminum frames and heavy-duty mesh typically runs less than a custom bifold or full glass wall. Expect a weekend build if you pre-cut frames and stage tools. Time expands with slab correction, repainting, and lighting integration.

FAQ

How wide should each panel be in a 4-track system?

Divide your clear opening by four, then add overlap allowances (usually 1–1.5 inches per junction). Wider panels reduce seams but increase weight; I often target 28–36 inches per panel for typical two-car garages.

Can I combine the screen with the existing roll-up garage door?

Yes. Mount the screen tracks just inside the opening or behind the roll-up rails, ensuring stack clearance and garage door operation remains unimpeded.

What mesh performs best for durability and visibility?

Fiberglass with UV inhibitors offers good visibility and resilience. For pets, opt for vinyl-coated polyester or specialized pet-resistant meshes.

How do I handle a sloped driveway or uneven slab?

Use adjustable bottom tracks or shim to level lanes. If slope is significant, create a low-profile ramp threshold so panels stay plumb and seals remain consistent.

Will the screens impact airflow significantly?

Yes—in a positive way. A 4-track system enables large openings while controlling insects. Pair with operable garage door and cross-ventilation paths for better comfort, aligning with WELL v2 guidance on ventilation for occupant satisfaction.

What about glare in west-facing garages?

Choose darker or solar-control mesh to reduce brightness. Add dimmable LED strips and position fixtures to avoid direct line-of-sight glare at eye level.

Are there safety considerations for kids and pets?

Install finger-safe interlocks, soft-close dampers, and use pet-resistant mesh. Keep handles within adult reach and light thresholds for evening visibility.

How often should I maintain rollers and tracks?

Vacuum quarterly; inspect rollers annually. Lubricate sealed bearings lightly as needed, and replace any that feel gritty or make noise.

Can I lock the screen panels?

Yes. Many systems accept surface bolts or keyed locks. Ensure locking hardware doesn’t protrude into the track path.

What’s the best way to plan traffic flow?

Sketch modes of use and test stack positions. If you need help visualizing, try an interior layout planner to simulate open and closed states: interior layout planner.
