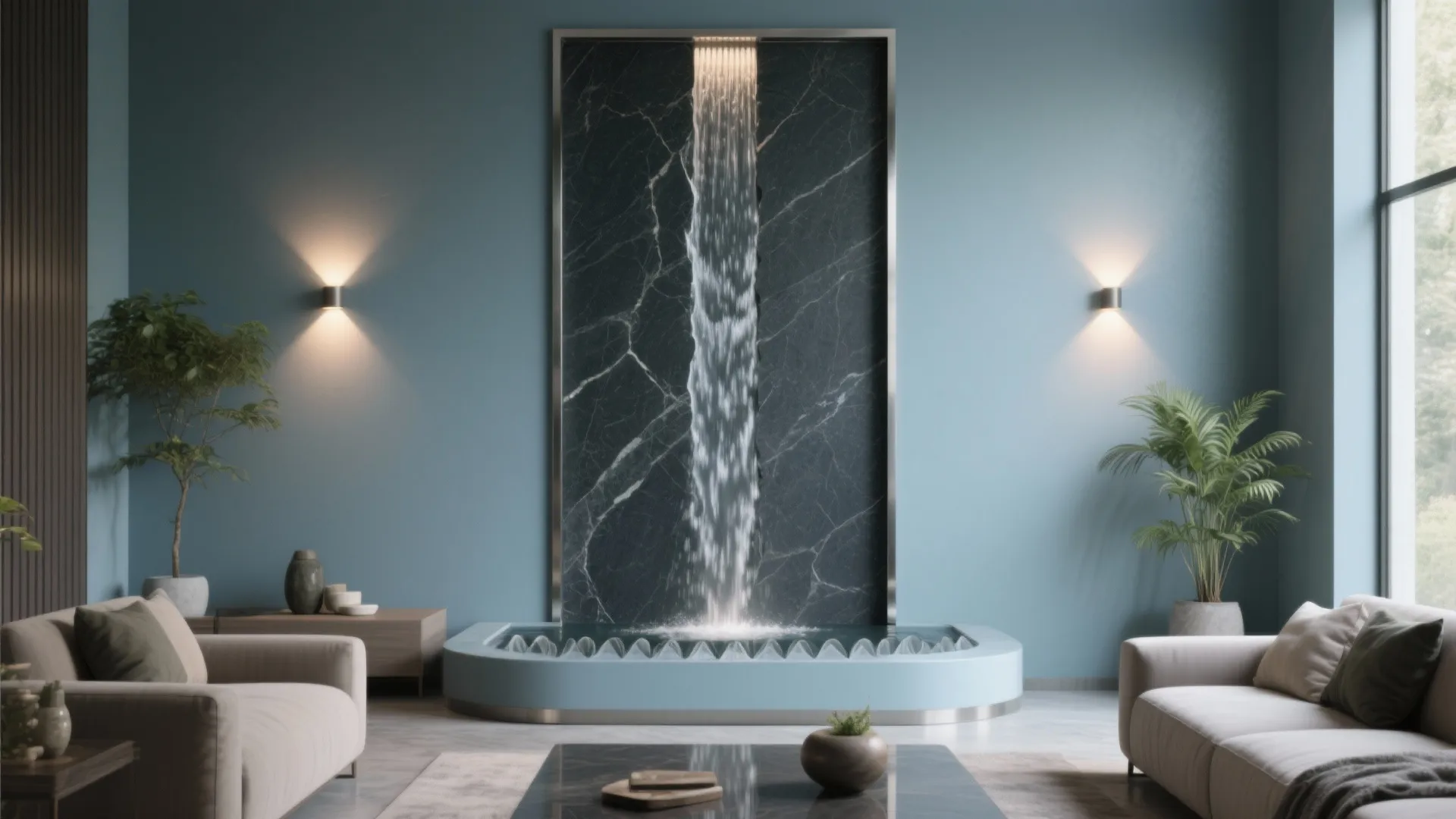

DIY Water Fountain Wall: Transform Your Space with Sound and Style: 1 Minute to a Tranquil Oasis: Fast-Track Guide to Building a DIY Water Fountain Wall

I’ve designed and installed several water fountain walls across residences and boutique hospitality projects, and the most successful ones always begin with careful planning—acoustics, lighting, materials, and ergonomics each play a role in how the wall will feel and function day to day. A well-tuned fountain wall can soften ambient noise, offer a visual focal point, and cue relaxation through the subtle sound of falling water. The key is balancing aesthetics with technical performance: flow rate, glare control, splash management, and maintenance access.

Sound and human comfort deserve early attention. Steelcase research notes that unwanted noise is a top workplace distraction reported by 49% of workers, which explains why many clients seek water features to mask intermittent sounds with consistent, low-level white noise (source: steelcase.com/research). On the lighting side, IES recommends 200–300 lux for living rooms and lounge areas—adequate for evening reading while preventing glare hotspots when water reflects light (source: ies.org/standards). These benchmarks help you set a baseline before choosing pumps or LED strips.

Color and mood make a difference. Verywell Mind’s overview of color psychology highlights how cooler hues like blue can cue calm and serenity, while greens support restoration and balance (source: verywellmind.com/color-psychology). I often integrate a deep slate panel with muted blue-gray wall paint, then use warm 2700–3000K lighting to maintain intimate warmth at night without fighting the restorative quality of cool tones.

Design Intent: Define Experience Before Hardware

Start with a clear spatial intention. Do you want a hush in a reading nook, a statement in an entry, or a gentle divider between dining and living? Map typical circulation paths and sightlines; place the fountain where it’s visible from key seating but not dominating the room. If you’re exploring multiple options for wall placement or furniture clearances, a room layout tool can help visualize scale and adjacency relationships: room layout tool.

Dimensions, Proportions, and Flow Rhythm

For most homes, a 24–36 inch wide panel with 72–96 inch height reads elegant without overwhelming. Keep a 1:2 to 1:3 width-to-height proportion for a slender, vertical rhythm. The water sheet should be continuous and laminar—aim for 1–2 liters per minute per linear foot of weir as a starting point. Too little flow leads to irregular streaking; too much creates splash and excess noise. Position the weir 1–1.5 inches from the panel face to avoid air entrainment.

Acoustic Comfort and Splash Control

Water features can relax or annoy depending on detail. Keep sound in the 35–45 dBA range around seating zones; you can adjust by reducing pump speed or adding a fine perforated spreader at the weir. Use a catch basin with at least 2 inches of freeboard and a micro-scalloped lip to break fall energy. A narrow, textured face (slate cleft, honed travertine, or brushed stainless) dampens slap compared to glossy glass. Add discreet side wings or a clear acrylic edge to keep micro-splash off adjacent finishes.

Lighting: Lux, CCT, and Glare Management

Balance ambient and accent light. Target 200–300 lux ambient around the fountain, then layer 100–150 lux grazing accent from adjustable wall washers at 30–45 degrees. Choose 2700K for cozy evenings or 3000–3500K for a fresher gallery feel. Avoid direct frontal spots that cause mirror-like glare on water; aim for oblique angles and position fixtures above eye level when seated. Use high CRI (90+) if your wall material has distinct veining or patina—you’ll preserve its character without over-brightness.

Material Selection and Sustainability

Materials should withstand constant moisture, be easy to clean, and age gracefully. Cleft slate, sealed concrete, porcelain slab, and brushed stainless are reliable faces. For frames, powder-coated aluminum or marine-grade stainless help resist corrosion. Minimize VOCs: use low-VOC sealants and avoid reactive stones near chlorinated water. Consider a closed-loop system with a high-efficiency submersible pump; add a simple mechanical timer and motion sensor to reduce run time when nobody is present. Opt for LED strips with high efficacy to cut energy use.

Water Quality, Filtration, and Maintenance

Closed systems keep water recirculating. Include a fine mesh pre-filter before the pump and a small inline filter to catch biofilm. Add UV sterilization if the wall runs daily in warm climates. Top off with distilled or filtered water to prevent mineral staining. Plan an accessible service hatch: you’ll need easy reach to the pump, filter, and electrical connections. Wipe the face weekly, purge and replace water monthly, and deep-clean seasonally. If you prefer a softer water sound, place a thin neoprene pad under the basin to dampen vibration.

Electrical and Safety

Use a GFCI-protected circuit and waterproof connectors. Confirm pump amperage and head height compatibility—most indoor vertical features perform well with compact 300–800 GPH pumps depending on panel width. Route cords through a sealed conduit and provide strain relief so maintenance doesn’t stress connections. Keep at least 12 inches clearance from standard outlets and ensure splash guards are in place near power points.

Ergonomics and Daily Interaction

Think about reach and routine. Place the control switch between 36–44 inches AFF for easy access. Avoid mounting where traffic lines force a close brush—water walls feel best when approached at a comfortable 30–60 inch viewing distance. Provide a stable ledge or console for small ritual objects (a plant, candle, or book) but keep them outside splash zones. If pets are curious, add a low clear barrier at the basin edge.

Color Psychology and Composition

Cool palettes—blue-gray stone, charcoal metal, soft white paint—decrease arousal, while a warm backlight keeps evenings inviting. If the wall sits in a sunny room, introduce a subdued green plant palette around it; greens signal restoration and fit naturally with water. Limit high-chroma accents near the face; let the water’s motion be the primary visual rhythm.

Step-by-Step Build Overview

1) Plan and mock up: Tape the footprint, confirm sightlines, and test light angles. 2) Frame and backer: Use moisture-resistant board over a properly flashed and sealed substrate. 3) Plumbing: Install a removable basin with drain, pump chamber, and service access. 4) Face material: Mount stone or metal with non-staining adhesive and waterproof grout/sealant. 5) Weir installation: Level precisely; shim until the water sheet runs uniformly. 6) Electrical: GFCI circuit, switch, timer, and any motion sensor; seal connectors. 7) Lighting: Add adjustable wall washers or linear grazers; test glare at night. 8) Commissioning: Run, tune flow, check for splash, and adjust pump speed. 9) Maintenance plan: Label access panels and set a simple monthly routine.

Placement Strategies and Room Integration

Great locations include entry alcoves, ends of hallways, or between living and dining zones. Avoid direct sun that can spur algae growth. Align the fountain with a sightline—through a doorway or opposite seating—to reward the gaze with layered texture. If you’re testing multiple furniture arrangements, use an interior layout planner to simulate adjacency, clearances, and acoustic impact: interior layout planner.

Common Mistakes I See

• Inconsistent water sheet from an unlevel weir. • Over-bright frontal lighting that creates glare. • Under-sized basin leading to splash and cleanup fatigue. • Ignoring service access, making pump replacement a headache. • Using porous stone without proper sealing, causing staining. • Running too fast; sound becomes harsh and fatiguing rather than soothing.

Tuning and Long-Term Care

Seasonally adjust pump speed for humidity and temperature. If the wall is near HVAC returns, add a slim baffle to prevent airflow from breaking the water sheet. Refresh sealant annually on high-exposure edges. If you’re away often, set a timer and keep the system cycling briefly daily to discourage stagnation. A small dose of fountain-safe algaecide can be used sparingly; always follow manufacturer guidance.

FAQ

Q1: What flow rate should I target for a smooth, laminar sheet?

A: As a rule of thumb, 1–2 liters per minute per linear foot of weir works well. Start lower, then increase gradually while observing splash and sound.

Q2: How bright should the area be around the fountain wall?

A: Aim for 200–300 lux ambient and 100–150 lux accent from oblique angles to avoid glare, consistent with IES recommendations for living spaces.

Q3: What color temperature creates the most calming effect?

A: 2700–3000K feels intimate and relaxing at night; 3000–3500K suits a fresher daytime look. Pair cooler material palettes with warmer light to keep balance.

Q4: Which materials resist staining and moisture best?

A: Cleft slate, porcelain slabs, sealed concrete, and brushed stainless are dependable. Use low-VOC sealants and avoid highly porous stones unless properly sealed.

Q5: How do I reduce unwanted noise from the fountain?

A: Lower pump speed, add a perforated spreader at the weir, and use a textured face to damp slap. Keep sound near 35–45 dBA in seating zones.

Q6: Is filtration necessary in a closed-loop system?

A: Yes—use a fine mesh pre-filter, a small inline filter, and consider UV sterilization if the feature runs daily in warm climates. Top off with distilled water.

Q7: Where should I place the fountain for best effect?

A: Along a natural sightline—near an entry or opposite seating—and away from direct sun and high airflow. Use a layout simulation tool to test options.

Q8: What electrical safety steps are essential?

A: GFCI protection, waterproof connectors, sealed conduit, and proper strain relief. Maintain 12 inches clearance from outlets and protect adjacent surfaces from splash.

Q9: How often should I perform maintenance?

A: Wipe the face weekly, replace water monthly, and deep-clean seasonally. Inspect seals and pump performance twice a year.

Q10: Can a fountain wall help mask household noise?

A: Yes. Consistent low-level water sound functions as pleasant masking. Steelcase research shows noise is a common distraction, underscoring the value of controlled acoustic features.
