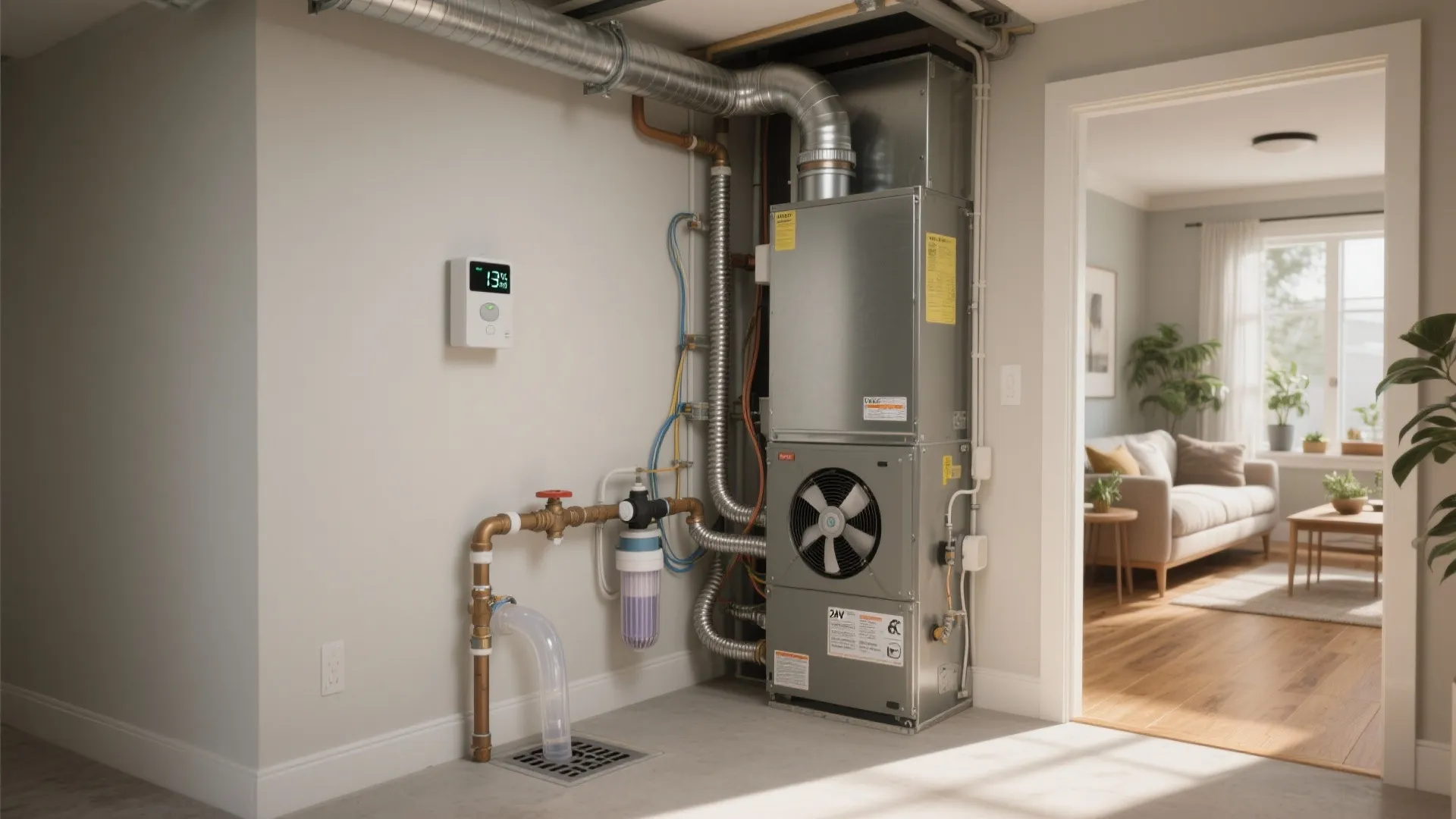

DIY Whole House Humidifier: Step-by-Step Guide for Healthier Air: Fast-Track Guide to Building Your Own Whole Home Humidifier System

I’ve seen indoor air swing from desert-dry winters to swampy shoulder seasons, and both extremes wreak havoc on comfort and materials. The sweet spot for most homes sits around 40–50% relative humidity (RH). WELL v2 features recommend maintaining indoor humidity between 30–50% to support respiratory comfort and limit microbial growth, a range that aligns with common building practice. Steelcase’s workplace research also notes that thermal comfort—closely tied to humidity—correlates with improved cognitive performance and satisfaction, reinforcing why a stable RH isn’t just a nice-to-have; it’s foundational to wellbeing. In residential interiors, balanced humidity protects wood floors and cabinetry from shrinkage and cupping, keeps finishes from cracking, and reduces static.

Health outcomes track closely to humidity control. WELL v2 references indicate that maintaining RH in the 30–50% band helps reduce airborne viral transport and eye/throat irritation. From a practical lens, I design for a winter setpoint near 40–45% RH to minimize condensation risks on cold glazing while keeping occupants comfortable. Herman Miller’s research has long linked environmental comfort with productivity and fewer complaints; in homes, that translates to better sleep and calmer respiratory systems. With that in mind, this guide walks through a DIY whole-house humidifier plan that integrates with forced-air or ducted systems, prioritizing safety, access, and adjustability.

Scope and System Options

There are three primary paths for whole-home humidity: (1) bypass humidifiers mounted on supply/return ducts (low energy, moderate output), (2) fan-powered evaporative humidifiers on supply ducts (higher output, compact), and (3) steam humidifiers (precise control, fastest response, highest cost and energy). For most DIYers with a gas furnace or central air handler, a fan-powered unit pairs well with typical 2,000–3,000 ft² homes. Steam becomes compelling for larger homes, tight envelopes, or where setpoint precision matters (e.g., instrument rooms).

Pre‑Design: Assess Envelope, Loads, and Safety

Before buying hardware, estimate winter moisture demand. A leaky envelope needs more water to maintain 40–45% RH. Check infiltration (door seals, attic hatches), and note winter indoor temperatures and the coldest outdoor design temp. From a health standpoint, plan for clean water, easy filter change, and a way to prevent microbial growth. Follow manufacturer instructions and local code for electrical and plumbing. If duct layout adjustments are needed, a room layout tool helps visualize where the humidifier and drain will sit relative to the air handler, condensate pump, and service access.

Core Components You’ll Need

- Whole-house humidifier (fan-powered evaporative or steam)

- Dedicated humidistat (wall-mounted or integrated into smart thermostat)

- Saddle valve or tee into cold water line with shutoff

- Drain line to floor drain or condensate pump

- 24V transformer (if required), wiring harness, and inline fuse

- Bypass duct (for bypass style) and sheet metal screws

- Water filter (sediment/scale), antimicrobial pad (for evaporative media)

- Service pan or secondary containment (simple safeguard against drips)

Step-by-Step Installation Plan

1) Choose Location on the Ductwork

Mount on the warm supply plenum when possible; it maximizes evaporation and reduces condensation risk. Keep 18–24" clearance for servicing pads, canisters, and valves. Orient the drain downhill with uninterrupted slope to the floor drain or pump.

2) Cut the Duct Opening

Mark the humidifier template on sheet metal, drill pilot holes, and use aviation snips for a clean cut. Deburr edges to prevent vibration and air leaks. Secure the housing with gasketed screws to avoid bypass leaks.

3) Plumb the Water Line

Tap the cold line using a tee and install a dedicated shutoff valve. Add a sediment filter to reduce scale and extend pad/steam canister life. Use braided stainless supply lines where possible; they reduce kinking and are service-friendly.

4) Route the Drain Safely

Gravity drain to a floor receptor is ideal. If elevation is a challenge, a condensate pump with a check valve and vinyl tubing works, but include a maintenance loop for cleaning. Always include an air gap where local code requires.

5) Wire the Controls

Most units use 24V control wiring. Tie into the furnace’s R and C terminals through the humidistat. If your thermostat supports humidity (many do), integrate the call-for-humidity so the blower runs with humidification. Label wires and add a small inline fuse for protection.

6) Install the Humidification Media

For evaporative units, seat the water distribution tray and pad firmly and check for even wetting. For steam units, mount the canister and steam hose with insulated sections and keep bends gentle; condensation in the hose will limit flow.

7) Commissioning and Leak Check

Open the water valve, power the system, and call for humidity. Inspect every connection for drips. Verify the drain flows freely. Confirm the blower runs when the humidifier energizes and that there’s no duct vibration.

8) Tune the Setpoint

Start at 40–45% RH in winter. If window condensation appears during cold snaps, drop the setpoint 3–5% until it clears. In shoulder seasons, keep below 50% to minimize dust mite growth and mustiness.

Control, Sensing, and Data‑Driven Tuning

Use at least two hygrometers: one near bedrooms and one near the main living area. Place away from direct supply vents for accurate readings. If your thermostat logs humidity, review trends weekly in deep winter; look for stability and note any spikes after cooking or showering. WELL v2 guidance keeps the home within 30–50% RH; I aim for the middle and watch window frames and millwork—wood movement is the canary in the coal mine.

Material and Health Considerations

Humidity affects materials as much as people. Wood flooring prefers a stable 35–55% RH; outside this band, boards shrink or crown. Veneers and laminates can delaminate if subjected to chronic high humidity. To keep pads and reservoirs clean, use filtered water, and replace evaporative media each heating season. If you notice a musty smell, sanitize the reservoir and check the drain trap. Good acoustic comfort often improves when air isn’t desert-dry—soft furnishings retain shape, reducing flutter echo.

Energy and Safety Notes

Fan-powered evaporative humidifiers draw modest power; steam units consume more but deliver precise RH. Prevent condensation risks by ensuring ducts are insulated and the unit is mounted on the warm side. Never run a humidifier when the furnace blower is off; moisture can pool in ducts. Add a drip tray under the unit if you’re over finished areas. Keep electrical splices inside junction boxes and follow local building codes.

Seasonal Maintenance Checklist

- Replace pads or steam canisters annually (or per manufacturer)

- Clean distribution trays and check water filters each quarter in winter

- Flush the drain line with warm water and mild detergent

- Inspect hygrometers, recalibrate if readings drift

- Check for window condensation during cold snaps; adjust setpoint promptly

- Verify there’s no mineral buildup on valves or solenoids

Behavioral Patterns and Daily Use

Cooking, showering, and large gatherings add moisture spikes. Rather than raising setpoints, let the system recover naturally and use exhaust fans during steamy activities. Overnight, bedrooms benefit from slightly higher RH for comfort, but keep within the safe band to protect mattresses and wood headboards.

Troubleshooting Quick Guide

- Humidifier runs but RH won’t rise: check pad saturation, airflow, and door leaks. Cold snaps may require lowering the setpoint to prevent condensation rather than pushing output.

- Water leaks: tighten fittings, re-seat distribution tray, verify drain slope.

- Musty smell: sanitize reservoir, increase airflow, ensure pads are fresh.

- Short cycling: thermostat humidity differential too tight—widen to 3–5%.

Lighting and Ergonomics Context

While humidity takes center stage, comfort is multi-sensory. Balanced RH helps eyes tolerate winter heating without excessive dryness, working hand-in-hand with flicker-free, glare-controlled lighting that meets IES recommendations for ambient illuminance in living spaces. A calm environment supports relaxed breathing and better focus during home work sessions.

FAQ

What humidity level should I target in winter?

Aim for 40–45% RH as a starting point, adjusting down during extreme cold to avoid window condensation. This sits within the WELL v2 30–50% range for comfort and health.

Is a steam or evaporative whole-house humidifier better?

Steam offers precise, fast control and suits larger or tighter homes; evaporative units cost less and work well for typical ducted systems. Choose based on home size, envelope tightness, and your control needs.

Will higher humidity increase mold risk?

Mold risk increases above ~60% RH, especially in cool, stagnant areas. Keep whole-house RH under 50% in shoulder seasons and ensure good airflow; monitor baths and basements closely.

Can I integrate humidity control with my smart thermostat?

Yes. Many thermostats support humidity calls and will run the blower with humidification. Wire the humidifier through the thermostat’s dedicated terminals and set humidity schedules.

How do I size a humidifier for my home?

Use manufacturer output ratings (gallons per day) and consider infiltration. Fan-powered units often cover 2,000–3,000 ft²; steam suits larger homes or high ceilings. If in doubt, choose a model with staged output.

What maintenance prevents odors and buildup?

Replace pads/canisters annually, clean trays quarterly, and add a sediment filter on the water line. Keep drains clear and ensure the unit runs only with the blower to prevent pooling.

Why does condensation appear on windows?

Cold outdoor temps lower glass surface temperature below the indoor dew point. Drop setpoint 3–5% and improve air circulation across glazing; verify weatherstripping and insulation.

Do plants and furnishings affect humidity readings?

Yes. Plants release moisture; dense soft furnishings absorb it. Place hygrometers away from supply vents, bathrooms, and plant clusters for accurate readings.

Is there any evidence that humidity impacts comfort and performance?

Research from organizations like Steelcase links environmental comfort to better satisfaction and performance. Maintaining RH in the recommended band helps reduce irritation and supports thermal comfort.

How do I prevent over-humidifying bedrooms at night?

Use a slightly lower whole-house setpoint and rely on localized moisture from breathing. If readings creep up, widen the thermostat humidity differential or add nighttime setbacks.

For broader guidance on occupant health and environmental quality, see the WELL building standard resources at wellcertified.com.
