Double Entry vs Single Entry 8x10 Bathroom Layout: Which Works Better?: A practical designer’s comparison of traffic flow, privacy, and fixture placement in an 8x10 bathroom with one door vs two.

Direct Answer

For most homes, a single entry 8x10 bathroom layout is more space‑efficient and easier to design. A double entry layout only works better when the bathroom connects two functional zones—such as a bedroom and hallway—and requires careful fixture placement to maintain privacy and traffic flow.

Quick Takeaways

1. Single entry bathrooms maximize wall space for fixtures and storage.
2. Double entry bathrooms improve accessibility between two rooms.
3. Poor door placement can waste up to one full fixture wall in an 8x10 bathroom.
4. Privacy planning becomes the most critical factor in dual‑door bathrooms.
5. Traffic flow matters more than square footage in small bathroom layouts.

Introduction

In more than a decade of residential design work, I’ve planned dozens of 8x10 bathroom layouts, and one question comes up surprisingly often: should the bathroom have one door or two?

On paper, an 8x10 bathroom feels generous compared with the typical 5x8. But once you introduce a second doorway, that extra square footage starts disappearing quickly. Doors eat wall space. They interrupt fixture placement. And if they’re positioned poorly, the bathroom becomes awkward to use even though the room itself is fairly large.

I’ve seen homeowners choose double entry layouts assuming they’re automatically more convenient. Sometimes they are—but many times they create privacy issues, awkward traffic flow, or complicated plumbing placement.

If you’re still experimenting with layouts, using an interactive tool that lets you test different bathroom layouts before constructioncan quickly reveal which configuration actually works inside an 8x10 footprint.

Let’s break down how single‑entry and double‑entry bathrooms behave in real projects—especially in terms of movement, privacy, and fixture positioning.

save pin

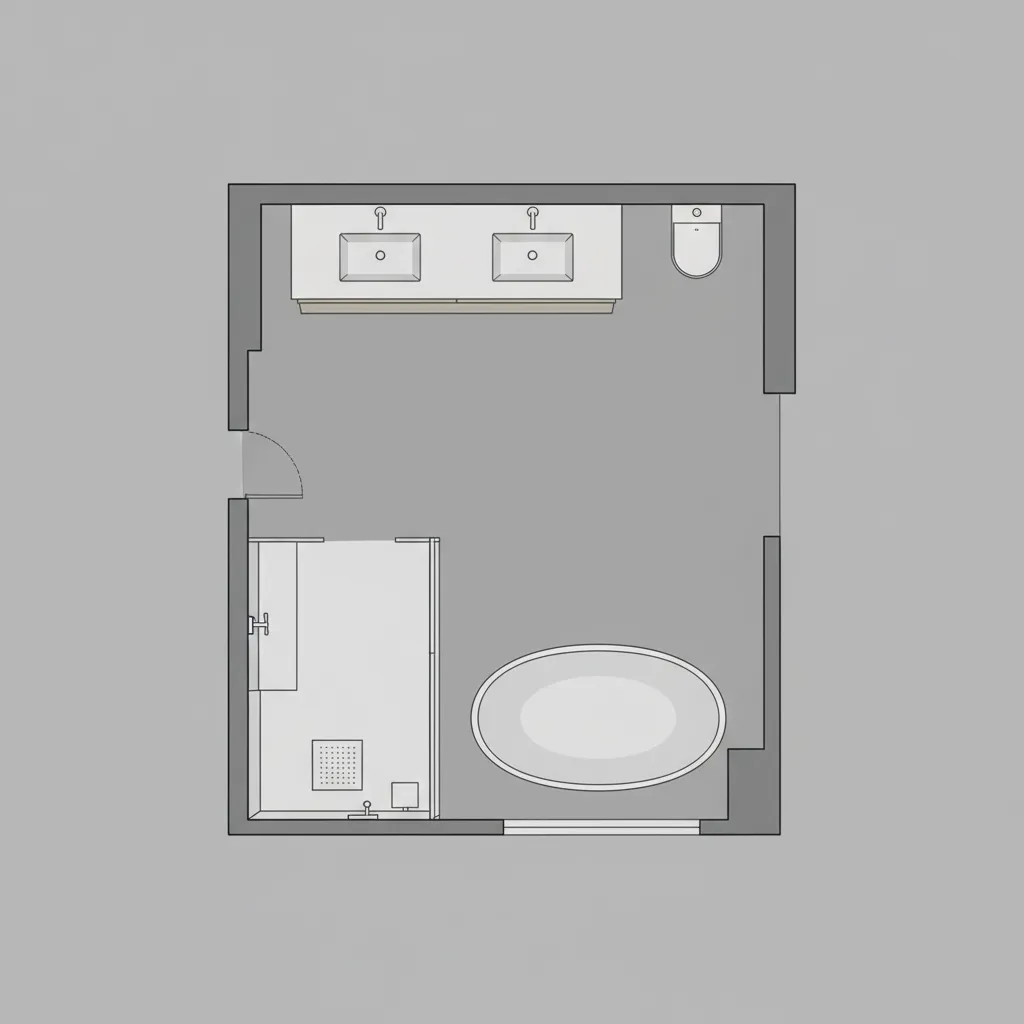

Understanding the 8x10 Bathroom Size Constraints

Key Insight: An 8x10 bathroom offers flexibility, but door placement determines whether the layout feels spacious or cramped.

Many homeowners assume that an 80‑square‑foot bathroom solves most layout problems. In reality, the placement of just two doors can remove nearly half the usable wall space.

In a typical 8x10 layout you must allocate space for:

1. Shower or tub (usually 30–60 inches wide)
2. Toilet clearance (minimum 30 inches)
3. Vanity (24–60 inches depending on configuration)
4. Walking clearance zones

Now introduce two swinging doors and several challenges appear:

1. Lost wall sections where fixtures could go
2. Conflicting door swings
3. Visibility into private areas

According to NKBA bathroom planning guidelines, clearances around toilets and showers cannot be compromised—even in small spaces. That means door positioning must adapt to the fixtures, not the other way around.

This is why many experienced designers start with fixture placement first, then determine whether a second entrance is still feasible.

How Single Entry Layouts Typically Use Space

Key Insight: A single entry 8x10 bathroom preserves uninterrupted walls, which dramatically simplifies fixture placement.

In most of my residential projects, a single doorway allows the room to use all four walls effectively. That flexibility makes it easier to fit larger vanities or a more comfortable shower.

Typical single entry advantages:

1. Continuous vanity walls for double sinks
2. Better locations for storage cabinets
3. Simpler plumbing routing
4. More predictable traffic flow

A common layout arrangement looks like this:

1. Vanity along the longest wall
2. Toilet tucked behind a partial partition
3. Shower or tub at the far end

This arrangement works because a single door rarely interrupts the functional zones of the bathroom.

save pin

How Double Entry Layouts Change Traffic Flow

Key Insight: Double entry bathrooms improve circulation between two spaces—but they also introduce complex movement patterns inside the room.

A two‑door bathroom often connects areas like:

1. Bedroom and hallway
2. Bedroom and walk‑in closet
3. Bedroom and dressing area

The problem is that traffic paths cross inside the bathroom.

For example, if someone enters from the hallway while another exits the bedroom side, the circulation path may cut directly across the vanity or toilet area.

When testing layouts digitally—especially with a 3D layout simulator for visualizing door swing and circulation—these conflicts become obvious very quickly.

Common double entry traffic issues:

1. Door swing collisions
2. Blocked vanity access
3. Walkways crossing private areas

save pin

Privacy and Accessibility Considerations

Key Insight: Privacy—not square footage—is the biggest design challenge in double entry bathrooms.

Many homeowners don’t think about sightlines until the bathroom is already framed.

If either door opens directly toward the toilet, you’ve created an instant privacy problem.

In projects where double entry bathrooms work well, designers usually add at least one of these solutions:

1. Partial privacy walls
2. Offset toilet placement
3. Separate toilet compartments
4. Pocket doors instead of swing doors

In several master suite designs I’ve completed, switching to sliding pocket doors solved both privacy and space problems simultaneously.

Fixture Placement Differences Between the Two Designs

Key Insight: Two-door layouts often force fixtures into less ideal positions compared with single entry designs.

Here’s a simplified comparison designers often see in 8x10 bathrooms:

1. Single Entry: Flexible vanity placement and larger shower options.
2. Double Entry: Fixtures pushed toward corners or split walls.

Common compromises in double entry bathrooms include:

1. Smaller vanities
2. Corner showers instead of full walk‑ins
3. Toilet locations visible from one doorway

Testing layouts visually with a visual bathroom layout planning platform helps identify these compromises early before construction decisions are locked in.

When a Double Entry Bathroom Is the Better Choice

Key Insight: Double entry layouts work best when the bathroom acts as a shared connector between two functional zones.

Situations where two entrances make sense:

1. Jack‑and‑Jill bathrooms between bedrooms
2. Primary bedroom to walk‑in closet connections
3. Guest suites with hallway and bedroom access

However, the design must follow two rules I’ve learned through real projects:

1. The toilet cannot be visible from either door.
2. The vanity must remain accessible even if both doors open.

Answer Box

An 8x10 bathroom works best with a single entry unless the space must connect two rooms. Double entry layouts improve accessibility but require careful privacy planning and precise fixture placement to avoid awkward circulation.

Final Summary

1. Single entry bathrooms offer the most flexible fixture placement.
2. Double entry layouts mainly benefit shared or connecting spaces.
3. Door placement can remove significant usable wall space.
4. Privacy planning is critical in dual‑door bathrooms.
5. Testing layouts early prevents costly design mistakes.

FAQ

Is a double entry bathroom practical in an 8x10 layout?

Yes, but only when the bathroom connects two functional areas such as a bedroom and hallway. Otherwise, a single entry layout usually uses the space more efficiently.

Does a double door bathroom reduce usable space?

Yes. Each door removes wall space that could hold fixtures or storage. In an 8x10 bathroom this can significantly limit layout options.

Which layout offers better privacy?

Single entry bathrooms almost always provide better privacy because there is only one access point and fewer direct sightlines.

What is the biggest mistake in double entry bathrooms?

Placing the toilet where it is visible from one or both doors. Designers usually offset the toilet or add a partition wall.

Can an 8x10 bathroom have a double vanity?

Yes. Single entry layouts commonly fit a 60‑inch double vanity comfortably within an 8x10 footprint.

Are pocket doors better for double entry bathrooms?

Often yes. Pocket doors eliminate door swing conflicts and free up wall space.

Is a double door bathroom layout better for master suites?

It can be. Many master suites connect the bathroom to both the bedroom and closet for better circulation.

How do designers test bathroom layouts before construction?

Most designers use digital floor‑planning tools or 3D layout software to test door swings, fixture placement, and circulation paths.

References

1. National Kitchen & Bath Association (NKBA) Bathroom Planning Guidelines
2. American Institute of Architects Residential Bathroom Design Standards
3. Housing Design Handbook – Circulation and Spatial Planning
