ECM Machine Tool 3D Model vs Traditional CNC Machine Models: Understand the structural, simulation, and software differences between ECM machine tool models and conventional CNC digital models.

Direct Answer

An ECM machine tool 3D model differs from a traditional CNC machine model because it must represent electrolyte flow, electrode geometry, and electrochemical reaction zones rather than only mechanical cutting components. While CNC models focus mainly on kinematics and tool paths, ECM digital models integrate physics-based simulation elements such as current density, fluid circulation, and electrode wear.

Quick Takeaways

1. ECM machine tool models must represent electrochemical processes, not only mechanical motion.
2. CNC machine models prioritize tool paths, cutting forces, and mechanical accuracy.
3. Electrolyte flow and electrode shape are critical elements in ECM simulation models.
4. ECM modeling often integrates multiphysics simulation environments.
5. Using the wrong modeling approach can produce inaccurate machining predictions.

Introduction

In the last decade working with digital manufacturing environments, I’ve noticed that many engineers assume an ECM machine tool model is simply a variation of a CNC machine model. On paper, both machines remove material and both require 3D digital models. But in practice, their modeling requirements are dramatically different.

Traditional CNC machine models primarily simulate mechanical behavior: axis movement, tool paths, collision detection, and material removal through cutting forces. Electrochemical machining (ECM), on the other hand, removes metal through controlled electrochemical reactions. That single difference changes everything about how the machine must be modeled.

One of the most common mistakes I see in engineering teams is reusing CNC-style digital machine models for ECM simulations. The result is often inaccurate predictions of machining gaps, electrolyte flow issues, or unstable current density distributions.

Even outside manufacturing, the same lesson appears in spatial simulation workflows. For example, when engineers prototype environments digitally, they often start with tools used for visualizing complex layouts in a 3D floor planning workflowbefore moving to physics-driven modeling. The principle is similar: the model must reflect the system’s real behavior.

In this guide, I’ll break down how ECM machine tool models differ from CNC digital models, what structural features matter most, and when specialized modeling approaches become essential.

save pin

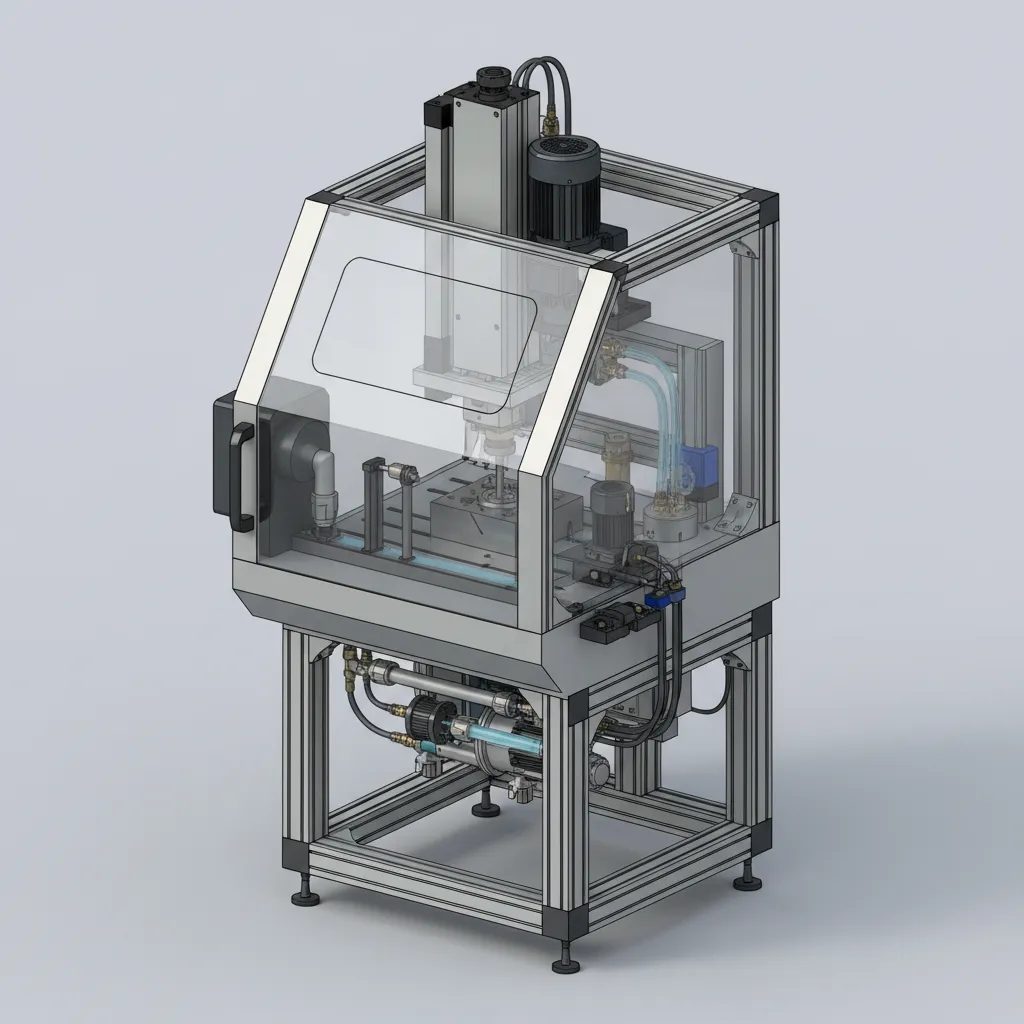

Overview of 3D Modeling for ECM and CNC Machines

Key Insight: CNC machine models simulate mechanical machining systems, while ECM models represent electrochemical material removal environments.

In traditional digital manufacturing pipelines, CNC machine models are primarily used for:

1. Tool path verification
2. Collision detection
3. Kinematic simulation
4. Machine envelope validation

These models typically include components such as:

1. Machine base and frame
2. Linear and rotary axes
3. Spindle assemblies
4. Tool holders and cutting tools

ECM machine tool models, however, must capture an entirely different machining mechanism.

Instead of cutting forces, the core process variables include:

1. Electrode geometry
2. Inter‑electrode gap
3. Electrolyte flow channels
4. Electrical current distribution
5. Material dissolution rates

According to manufacturing research published in the Journal of Materials Processing Technology, accurate ECM simulations depend heavily on modeling electrolyte hydrodynamics and current density distribution within the machining gap.

This means the 3D model must support physics calculations that CNC models typically ignore.

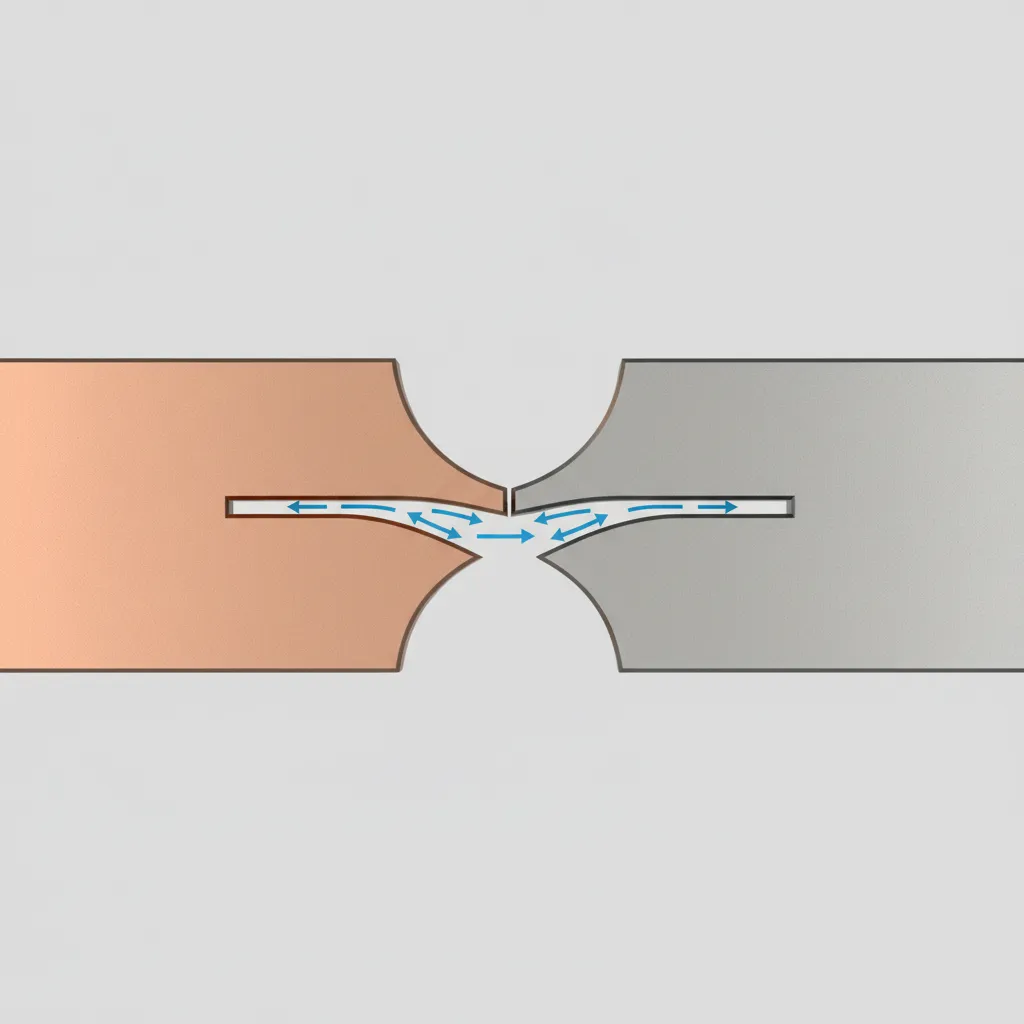

Key Structural Differences in ECM Machine Tool Models

Key Insight: The geometry of electrodes and electrolyte channels is more important in ECM models than the cutting spindle geometry emphasized in CNC machines.

In most CNC machine models, the spindle and cutting tool define the machining interface. The machine tool model is largely built around axis precision and structural rigidity.

In ECM systems, the electrode effectively replaces the cutting tool, but its design is far more complex because it determines the final workpiece geometry through electrochemical dissolution.

Main structural modeling differences include:

1. Electrode Geometry
2. Must compensate for material removal gaps and electrochemical overcut.
3. Electrolyte Flow Channels
4. Channels ensure uniform electrolyte distribution and heat removal.
5. Machining Gap Representation
6. Precise modeling of the small inter‑electrode gap is critical for accuracy.
7. Insulation Surfaces
8. Insulated areas control where current flows and prevent unintended machining.

A hidden modeling mistake I often see is oversimplifying the electrolyte channel geometry. Engineers sometimes omit these pathways in early-stage models, which later leads to unstable simulation results when fluid dynamics are introduced.

save pin

Simulation Requirements for Electrochemical Machining

Key Insight: ECM machine tool models require multiphysics simulation combining electrical, fluid, and chemical behavior.

CNC simulations normally involve three main categories:

1. Kinematics
2. Cutting mechanics
3. Collision and clearance analysis

ECM simulations typically involve a far more complex physics stack:

1. Electrochemical reactions
2. Current density distribution
3. Electrolyte fluid dynamics
4. Heat generation and dissipation
5. Material dissolution rates

Because of this, ECM machine models are frequently integrated with multiphysics simulation tools such as COMSOL Multiphysics or ANSYS.

From experience, the biggest modeling challenge is balancing geometric detail with simulation speed. If the mesh becomes too dense around the machining gap, simulation times can increase exponentially.

For teams experimenting with spatial layouts and simulation environments, similar modeling strategies appear in digital prototyping tools used for building and testing room-scale layouts digitally before detailed modeling. The principle is the same: start with structural clarity before introducing physics complexity.

save pin

Software Tools Used for ECM vs CNC Machine Modeling

Key Insight: CNC models are usually built in CAD/CAM systems, while ECM models often require integration with simulation-focused platforms.

Common software used for CNC machine modeling includes:

1. Siemens NX
2. CATIA
3. SolidWorks
4. Mastercam machine simulation

These platforms emphasize:

1. Precise geometry
2. Machine kinematics
3. CAM toolpath verification

ECM modeling workflows often extend beyond traditional CAD tools.

Typical ECM modeling stack:

1. CAD modeling of machine structure
2. Electrode geometry optimization
3. CFD simulation of electrolyte flow
4. Electrochemical simulation for dissolution prediction

In practical engineering projects, this usually means exporting CAD geometry into multiphysics solvers for detailed analysis.

save pin

When to Use Specialized ECM Machine Models

Key Insight: If machining accuracy depends on electrochemical gap behavior, a standard CNC machine model is insufficient.

Specialized ECM machine tool models become essential in the following situations:

1. Complex turbine blade machining
2. High‑precision aerospace components
3. Micro‑feature electrochemical drilling
4. Tooling with complex internal channels

Aerospace manufacturers often rely on ECM precisely because it produces burr‑free surfaces and minimal mechanical stress.

However, these advantages only appear when the digital model correctly represents the electrochemical process environment.

Even teams designing simulation environments in other fields often face the same principle: realistic models require accurate system behavior. For example, visualization pipelines that produce high‑fidelity rendered spatial environments for design validation also depend on physically coherent geometry and lighting.

Answer Box

ECM machine tool models differ from CNC machine models because they simulate electrochemical reactions, electrolyte flow, and electrode geometry rather than only mechanical cutting operations. Accurate ECM simulation requires multiphysics modeling that integrates electrical, fluid, and chemical processes.

Final Summary

1. ECM machine tool models represent electrochemical material removal.
2. CNC models primarily simulate mechanical cutting operations.
3. Electrode geometry and electrolyte flow are critical ECM model components.
4. ECM simulations typically require multiphysics software integration.
5. Using CNC modeling assumptions can produce inaccurate ECM simulations.

FAQ

What is an ECM machine tool model?

An ECM machine tool model is a digital representation of an electrochemical machining system that includes electrode geometry, electrolyte flow paths, and electrical current distribution.

How is an ECM machine tool model different from a CNC machine model?

A CNC machine model focuses on tool motion and cutting forces, while an ECM machine tool model simulates electrochemical dissolution, current density, and electrolyte flow.

Why are multiphysics simulations important for ECM?

Electrochemical machining involves electrical, fluid, and chemical processes simultaneously, so accurate prediction requires multiphysics simulation tools.

Can CNC simulation software model ECM processes?

Most CNC simulation tools cannot accurately represent electrochemical reactions or electrolyte flow, so specialized multiphysics software is usually required.

What industries use ECM machine modeling?

Aerospace, medical device manufacturing, and turbine production commonly rely on ECM modeling for high‑precision components.

Is electrode design important in ECM machine tool models?

Yes. Electrode geometry directly determines the final workpiece shape and must compensate for machining gaps and overcut.

What is the machining gap in ECM?

The machining gap is the small space between the electrode and workpiece where electrochemical reactions remove material.

Do ECM machine models require CFD simulation?

Often yes. CFD helps analyze electrolyte flow behavior, which strongly affects machining stability and accuracy.
