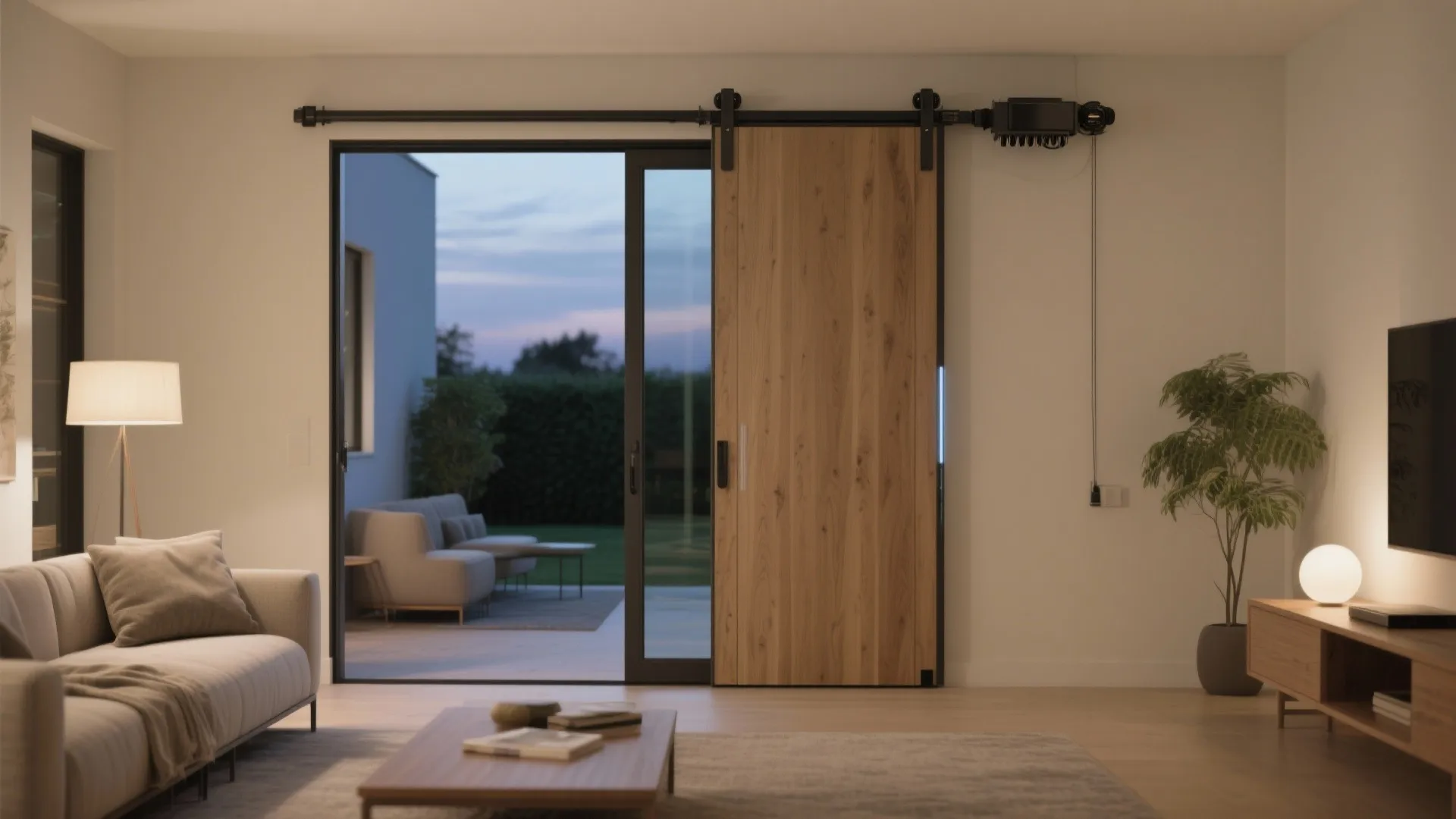

Electric Sliding Door DIY: Easy Guide for Smart Home Projects: Fast-Track Guide to Building Your Own Electric Sliding Door—Save Time and Money

I’ve retrofitted and specified more than a dozen electric sliding doors in homes and studios, and a good build always balances smooth motion, safety, and acoustics. A smart door should feel intuitive—open when you need it, stop when you don’t, and stay quiet. According to WELL v2 (Feature X07—Sound, guidance aligned in the Sound concept), recommended background noise levels for residential living areas typically target ≤35–40 dBA to reduce distraction; a properly tuned sliding operator with damped tracks can meet that threshold. Steelcase research has also shown that perceived noise strongly affects stress and task-switching; while focused on workplaces, their findings map onto home environments where sound from motors or door impacts can erode comfort and perceived quality.

Plan the System: Operator, Track, and Power

Start with a quiet, belt-driven operator rated for your door weight; match the track and carriage to the operator’s torque curve and ensure door mass is within spec. WELL’s emphasis on accessible controls and safety aligns with soft-start/soft-stop motors and obstacle detection—features that minimize jolts and reduce noise spikes. For lighting coordination, the IES recommends task illuminance around 300–500 lux for most household tasks; use that as a benchmark when positioning sensors so they aren’t blinded or mis-triggered by glare.

If you need to visualize traffic flow and furniture clearances before committing hardware, a room layout tool helps simulate door swing versus slide paths, sensor cones, and wheelchair turning radii (aim for ≥1500 mm clear turning circle for universal access). This early planning avoids mounting errors and cable reroutes later.

Measure, Verify, and Prep the Opening

Confirm the structural header capacity and plumbness of the opening. Measure door width, thickness, and total mass (panel + glass + hardware). Check wall composition along the track line—stud spacing, blocking, and any hidden plumbing or wiring. A 20–25 mm backer board behind finish is ideal for anchor bite. Mark carriage standoffs so the panel maintains a consistent 8–12 mm gap to the wall to prevent resonance and scuffing.

Choose the Operator and Control Logic

Look for features that elevate day-to-day performance:

1. Soft-start/soft-stop with adjustable ramp curves—reduces both noise and mechanical wear.
2. Obstacle detection using current sensing and infrared—mandatory if pets or kids are around.
3. Manual override—lets the door slide freely during power loss.
4. Speed range around 0.2–0.35 m/s for residential comfort; faster speeds feel abrupt in small rooms.
5. Integration with common smart hubs (Z-Wave, Zigbee, HomeKit) and a local control option.

Include magnetic or Hall-effect position sensing for accuracy and fewer false stops. If you integrate with a home security system, ensure fail-safe behavior: closed-position verification and lock status reporting.

Power and Wiring: Safe, Clean, and Accessible

Run a dedicated 120/230V feed to a compact power supply or use low-voltage DC operators (24V) with a properly sized transformer. Keep low-voltage control wiring separate from mains by at least 50 mm and use conduit or raceways where the cable crosses structural elements. Label runs and leave a service loop near the operator. For sensor wiring, follow a star topology back to the controller to simplify troubleshooting.

Place a serviceable junction box within 300–600 mm of the operator, not hidden behind the panel when the door is closed. Add a discreet kill switch for maintenance. If you’re routing through a pocket, use abrasion-resistant sleeving so cable jackets don’t wear against track brackets.

Track, Carriage, and Noise Control

Mount the track level, shim as needed, and verify carriage smoothness before hanging the panel. Use polymer wheels with sealed bearings and a belt that’s rated for your operator load. Decouple the track with neoprene or cork underlay to damp vibration. Target an operating noise floor under ~40 dBA at 1 m; you’ll feel the difference in evening use when the house is quiet.

Seal gaps with soft brush or silicone fins to limit draft and sound leakage. Add end stops with elastomer bumpers, not bare metal, and tune the motor’s braking so it gently nests into stops rather than hitting them.

Sensors, Controls, and Everyday Use

For safety, pair an IR beam across the opening with the motor’s current-sense reversal. If you use motion sensors, tune their sensitivity to avoid false opens from pets (set detection height above 400–500 mm) and adjust the hold-open time to 5–8 seconds for typical passage. A capacitive touch plate or low-profile push button near the jamb gives intuitive manual control without relying on voice for every use.

I prefer door states that are clear and predictable: visual LED cues (dim, warm light for idle, brighter for moving), audible chirps under 40 dB only when obstruction occurs, and lock feedback on your phone when the door fully closes. Avoid constant chimes; subtlety keeps the home calm.

Smart Integration and Routines

Automations should reflect real behavior. Link the door to occupancy sensors so it won’t open into someone standing behind it. Create time-bound routines—slower motion at night, lock on departure scenes, and a child-safe mode that disables voice-open if an adult isn’t present. If pairing with lighting, use warm-white 2700–3000K along the track for low-glare guidance, referencing IES glare control principles: indirect or shielded LEDs prevent sensor washout and keep sightlines clean.

Safety and Code Considerations

Install a manual egress option—either a quick-release or unlocked mechanical slide—in sleeping areas. Keep emergency clearance at least the full door width and avoid protrusions along the slide path. If your door is heavy glass, use laminated safety glass and edge guards. Ground all metallic components and verify GFCI protection where moisture is present.

Tuning, Commissioning, and Maintenance

Commission in stages: run the door manually to check carriage friction; set motor torque just above the threshold needed for travel; calibrate open/close limits; and test obstruction reversal with a soft object. Log the dBA reading on a phone app as a baseline, then adjust ramp curves until the noise profile is smooth. Vacuum the track quarterly, re-lube bearings annually with a light synthetic grease, and check belt tension every six months.

Layout and Accessibility Tips

Before hardware installation, mock the door path against furniture and circulation. Maintain at least 900 mm clear passage and avoid placing storage handles where they can snag clothing as the door slides. If your home has mixed users, accommodate reach ranges of 400–1200 mm for controls. Use a interior layout planner to test traffic density around the opening; it’s a quick way to spot pinch points that aren’t obvious on paper.

FAQ

1) What door types work best with electric sliding operators?

Solid wood, aluminum-framed glass, and composite panels with stiff cores perform well. Hollow-core doors can flex and cause sensor misreads or carriage chatter.

2) How quiet can an electric sliding door realistically be?

With belt-driven operators, polymer wheels, and decoupled tracks, you can keep operation around 35–40 dBA at 1 m, which aligns with comfortable residential background levels referenced in WELL’s Sound guidance.

3) Do I need obstacle detection if I already have motion sensors?

Yes. Motion sensors prevent unintended opens, while current-sense or IR beams protect during movement. Use both for safe reversal when a child, pet, or object is in the path.

4) What’s the ideal opening speed for a home door?

Between 0.2–0.35 m/s feels natural in small rooms. Higher speeds increase perceived aggression and noise; lower speeds can frustrate everyday use.

5) Can I integrate with smart locks and security systems?

Yes. Use position sensors to verify fully closed state, and set automations to lock only after the door confirms closure. Include a manual override for power outages.

6) How should I place sensors to avoid false triggers?

Mount motion sensors above typical pet height and angle away from reflective surfaces. Keep them clear of direct glare; follow IES principles by using shielded lighting near sensors.

7) What maintenance keeps the system smooth?

Quarterly track cleaning, annual bearing lubrication, and semiannual belt tension checks. Recalibrate open/close limits if you notice stalling or overruns.

8) Is a pocket-style sliding door harder to automate?

It can be, due to tighter cable management and access. Use abrasion-resistant cabling and ensure a service hatch or removable trim for maintenance.

9) How much clearance do I need for accessibility?

Aim for a 900 mm clear passage and a 1500 mm turning circle for wheelchairs where possible. Control height between 400–1200 mm supports a wide range of users.

10) What lighting works best near the track?

Warm 2700–3000K, shielded or indirect LEDs to reduce glare and avoid sensor washout. Keep illuminance around 300–500 lux for general tasks per IES guidance.

11) Will an electric sliding door increase energy use?

Minimal impact in typical homes. Choose efficient low-voltage motors and set automations to reduce unnecessary cycles. Good seals around the panel help with thermal performance.

12) How do I keep it safe in bedrooms?

Install manual egress capability, use laminated glass if applicable, and avoid locking automations that could trap occupants. Test emergency release quarterly.
