Electrical floor plan requirements for residential vs commercial buildings differ mainly in power load capacity, system complexity, safety codes, and infrastructure planning. Residential layouts focus on comfort and basic appliance circuits, while commercial electrical plans must support heavier loads, structured distribution systems, emergency power, and strict regulatory compliance.

Quick Takeaways

1. Commercial electrical floor plans handle far higher power loads than residential designs.
2. Residential layouts prioritize convenience circuits, while commercial designs emphasize distribution systems.
3. Commercial lighting and emergency systems follow stricter regulatory standards.
4. Electrical rooms, panel boards, and backup power systems are typical in commercial buildings.
5. Design workflows for commercial electrical plans require deeper coordination with mechanical and fire systems.

Introduction

After working on both home renovations and office developments for more than a decade, one thing becomes obvious quickly: residential vs commercial electrical floor plans are built around completely different priorities.

Homeowners usually think about outlet locations, lighting comfort, and where the TV goes. Commercial projects, on the other hand, revolve around power distribution, equipment loads, redundancy systems, and code compliance.

One mistake I often see from beginners is assuming the difference is simply "larger scale." In reality, commercial electrical layout requirements involve a different planning logic entirely. Circuit grouping, panel locations, emergency lighting, and equipment rooms all change the structure of the plan.

If you're trying to visualize how these systems come together in real layouts, it helps to explore interactive examples of detailed building layout planningso you can see how electrical zones align with actual architectural spaces.

In this guide, I'll break down the major electrical planning differences between residential and commercial buildings, based on real project experience and industry standards used by architects, engineers, and designers.

save pin

Key Differences Between Residential and Commercial Electrical Design

Key Insight: Residential electrical plans focus on user convenience, while commercial electrical systems are designed around infrastructure reliability and power distribution.

In residential design, the electrical plan mainly serves daily living: outlets for appliances, lighting control, and a few dedicated circuits for kitchens or HVAC equipment.

Commercial buildings operate differently. Offices, retail stores, and medical facilities often run multiple electrical subsystems simultaneously, including:

1. Dedicated equipment circuits
2. Structured lighting zones
3. Emergency lighting systems
4. Backup power infrastructure
5. Data and communication systems

A typical residential panel might support 100–200 amps of service. Commercial systems frequently involve multiple panels, transformers, and distribution boards connected through structured circuits.

According to the National Electrical Code (NEC), commercial systems also require stricter load calculations and fault protection compared with residential installations.

Electrical Load and Power Distribution Requirements

Key Insight: Load calculation and distribution complexity increase dramatically when moving from residential to commercial electrical design.

Residential electrical loads are predictable. Most homes rely on appliances like ovens, refrigerators, HVAC systems, and entertainment electronics.

Commercial spaces introduce variable loads such as:

1. Industrial equipment
2. Commercial kitchen appliances
3. Server rooms
4. Elevators and escalators
5. Large HVAC systems

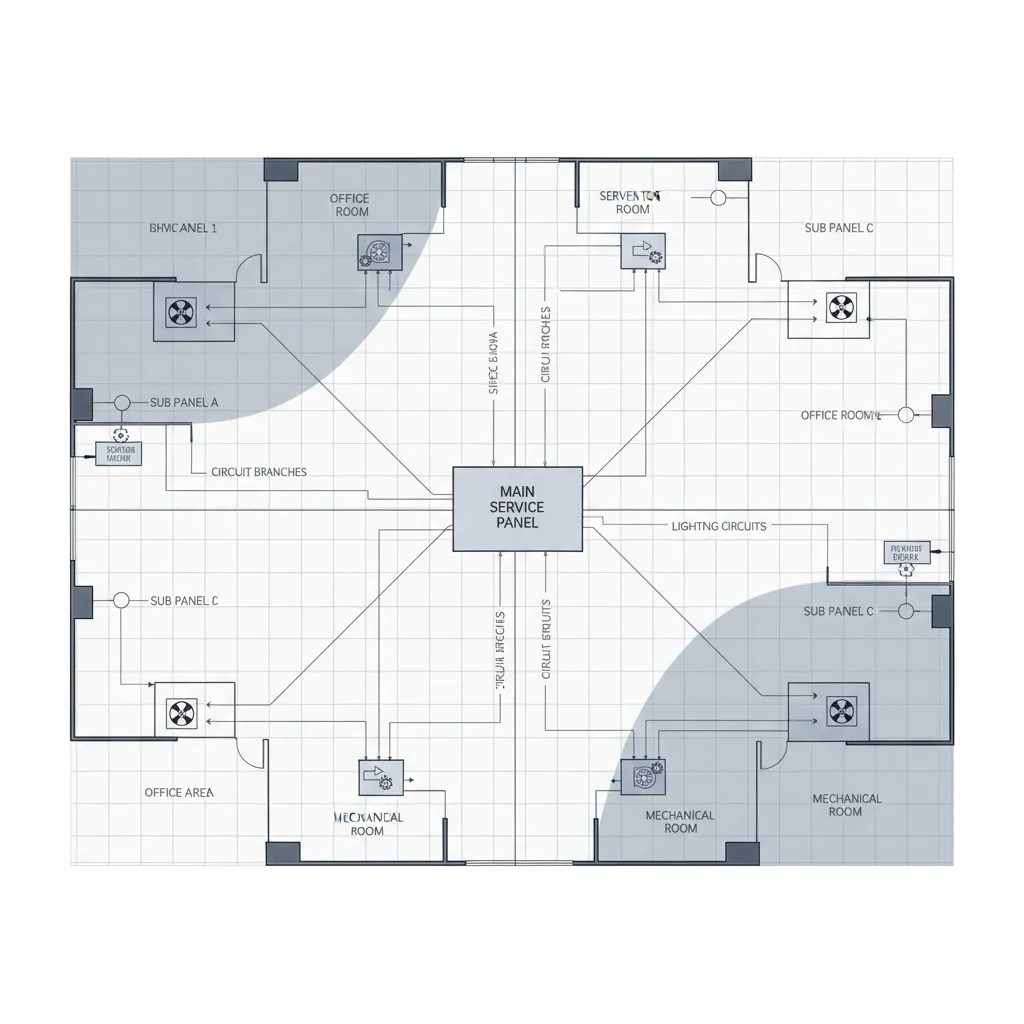

Because of this, engineers typically divide commercial electrical systems into multiple distribution layers:

1. Main service entrance
2. Primary distribution panel
3. Sub-panels for each floor or zone
4. Dedicated circuits for specialized equipment

One overlooked issue is future capacity. Commercial buildings often reserve 20–30% additional electrical capacity for tenant changes or equipment upgrades.

save pin

Lighting Design Standards Across Building Types

Key Insight: Lighting in commercial buildings must meet strict illumination standards that rarely apply to residential spaces.

Residential lighting design prioritizes ambiance and comfort. Fixture placement is flexible and largely based on interior design decisions.

Commercial lighting must meet measurable illumination requirements defined by organizations like the Illuminating Engineering Society (IES).

Examples of commercial lighting requirements include:

1. Office workspaces: typically 300–500 lux
2. Retail spaces: 500–1000 lux
3. Parking garages: 50–100 lux
4. Emergency exit paths: minimum illumination levels during outages

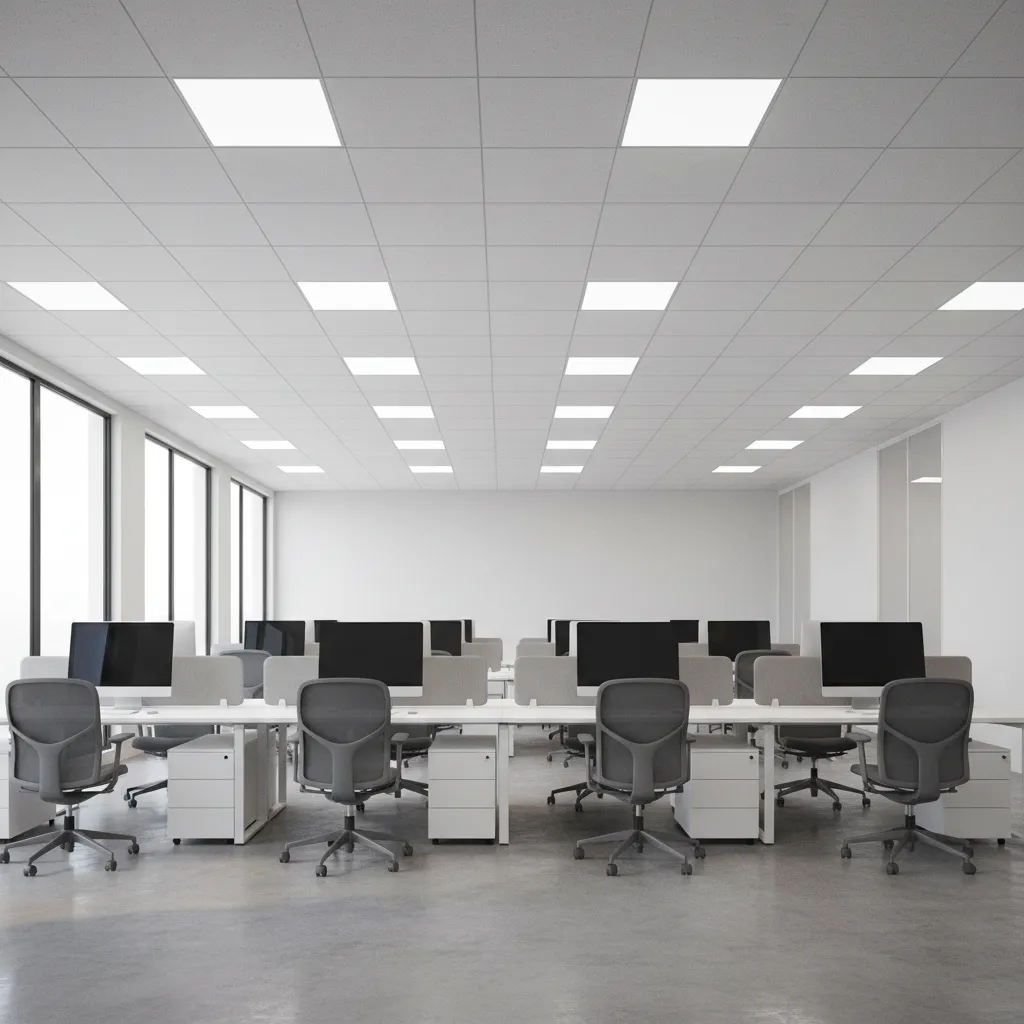

Another difference is zoning. Commercial electrical circuit planning usually divides lighting into controllable zones for energy management systems.

save pin

Safety and Compliance Considerations

Key Insight: Commercial electrical systems face significantly stricter safety regulations and inspection requirements.

Residential projects typically follow local building codes and the NEC, but commercial buildings must comply with additional regulations related to fire safety, occupancy, and emergency power systems.

Common commercial safety requirements include:

1. Emergency lighting circuits
2. Fire alarm integration
3. Backup generators or UPS systems
4. Ground-fault and arc-fault protection
5. Accessible electrical shutoff points

When planning larger office environments, electrical systems must also coordinate with building operations. Reviewing real workspace layout planning strategies helps illustrate how lighting grids, workstation zones, and electrical panels align across large floor plates.

Answer Box

The biggest difference between residential and commercial electrical floor plans is system scale and infrastructure complexity. Homes focus on appliance circuits and comfort lighting, while commercial buildings require structured power distribution, safety systems, and capacity for future expansion.

Planning Electrical Rooms, Panels, and Equipment

Key Insight: Dedicated electrical infrastructure spaces are essential in commercial buildings but rarely required in residential homes.

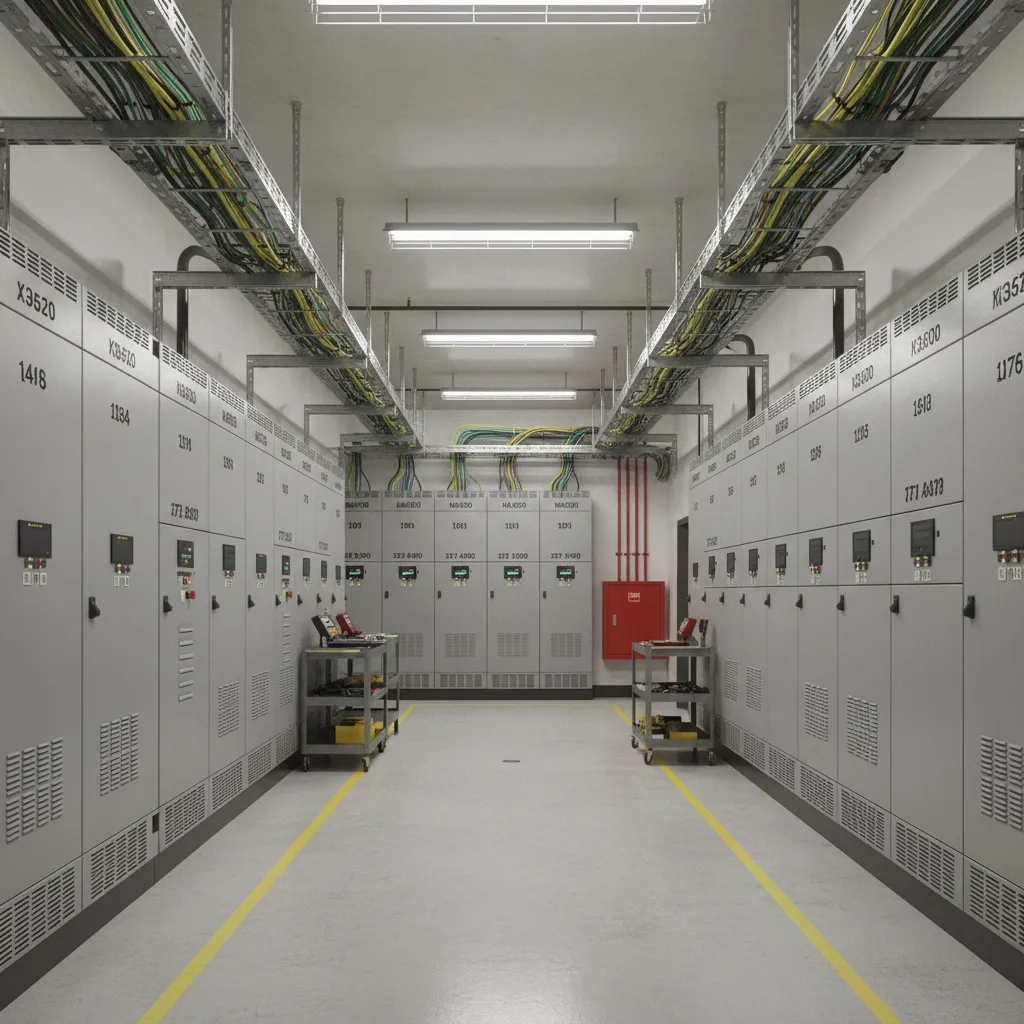

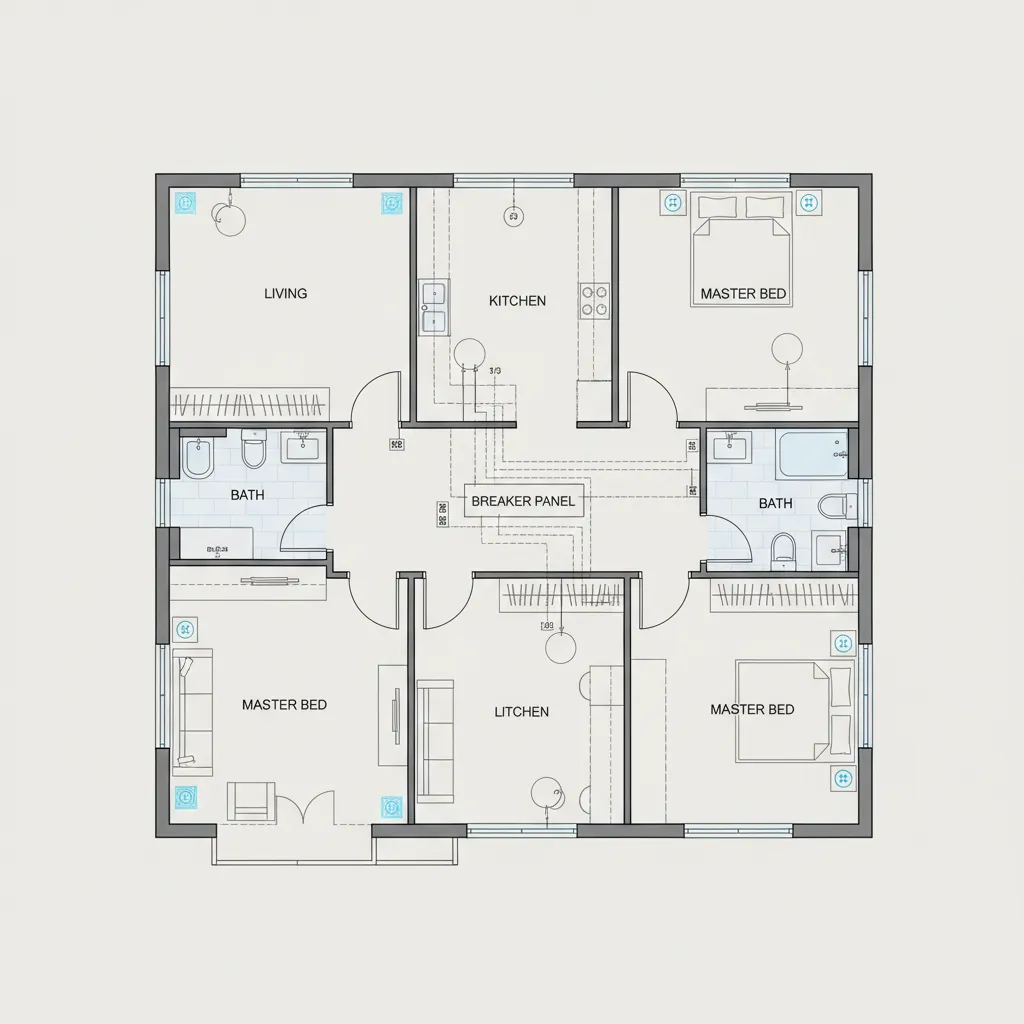

In residential construction, the electrical panel is often placed in a garage, utility room, or basement.

Commercial projects typically require multiple specialized areas:

1. Main electrical rooms
2. Telecommunications rooms
3. Mechanical equipment power areas
4. Backup generator rooms
5. Vertical electrical risers

These spaces must meet clearance requirements for maintenance access. For example, NEC guidelines specify minimum working space distances in front of electrical panels to allow safe servicing.

save pin

Design Workflow Differences for Each Industry

Key Insight: Residential electrical planning is often designer-led, while commercial electrical design requires coordinated engineering workflows.

Residential design workflow usually follows these steps:

1. Architectural layout finalized
2. Basic outlet and lighting placement
3. Panel sizing and circuit assignment
4. Code compliance check

Commercial projects involve much deeper coordination:

1. Electrical load analysis
2. Mechanical equipment integration
3. Lighting design calculations
4. Panel and transformer distribution planning
5. Safety system coordination
6. Construction documentation

If you're starting from the layout stage, it helps to first experiment with a simple workflow for building accurate floor plan layouts before layering electrical systems onto the design.

Final Summary

1. Residential electrical plans prioritize convenience and basic appliance circuits.
2. Commercial buildings require complex power distribution systems.
3. Lighting standards and safety regulations are far stricter in commercial environments.
4. Commercial projects require dedicated electrical infrastructure spaces.
5. Electrical planning workflows differ significantly between home and commercial construction.

FAQ

What is the main difference between residential and commercial electrical floor plans?

Residential plans focus on convenience outlets and household appliances, while commercial electrical floor plans must manage large power loads, equipment circuits, and distribution systems.

Do commercial buildings require more electrical panels?

Yes. Commercial buildings often use multiple panels and sub-panels to distribute electricity efficiently across large spaces and multiple floors.

Are lighting requirements different in commercial buildings?

Yes. Commercial lighting must meet illumination standards defined by organizations such as the Illuminating Engineering Society.

Do residential buildings need electrical rooms?

Usually not. Most homes only require a single service panel placed in a garage, basement, or utility space.

Why are commercial electrical systems more complex?

Commercial spaces operate heavy equipment, larger HVAC systems, and structured lighting zones, requiring more advanced distribution planning.

What codes regulate electrical layout for commercial buildings?

In the United States, the National Electrical Code (NEC) provides the primary standards, along with local building regulations.

Can residential electricians work on commercial buildings?

Some can, but commercial electrical systems often require specialized training and licensing due to higher loads and safety regulations.

How early should electrical planning start in building design?

Ideally during early architectural planning, since electrical systems affect ceiling space, equipment rooms, and mechanical coordination.
