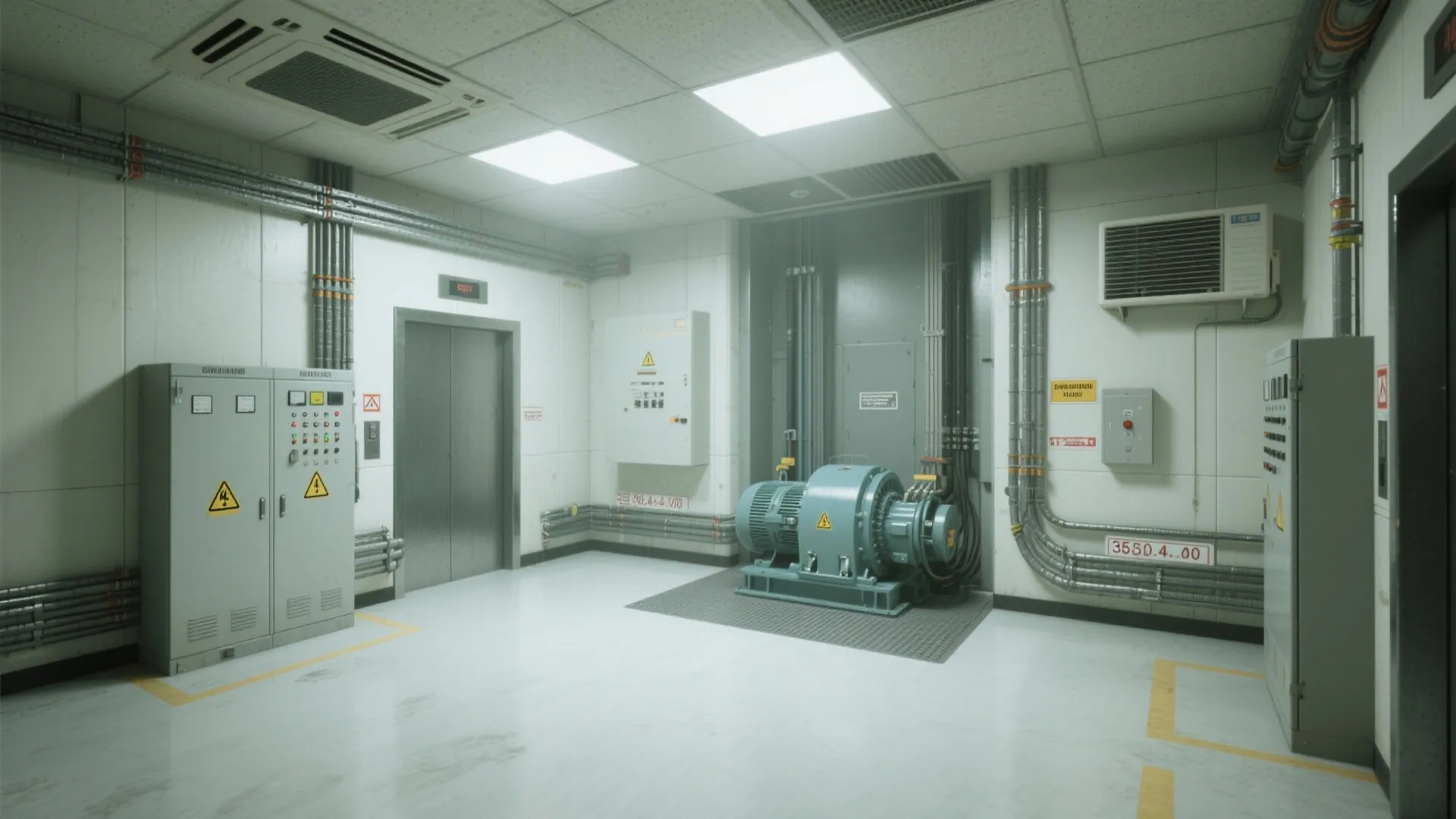

Elevator Machine Room Plan: Smart Space Design Guide: 1 Minute to a Perfect Elevator Machine Room Layout

Elevator machine rooms demand the rigor of technical infrastructure planning with the nuance of human-centered design. My approach blends code compliance, precise equipment coordination, and environmental control, ensuring serviceability and long-term reliability without sacrificing compactness or safety.

Data matters here. The WELL Building Standard (WELL v2) emphasizes acoustic and thermal comfort to protect building users and facility teams; maintaining service areas below 85 dBA and stabilizing temperatures improves maintainability and reduces error rates for technicians. Meanwhile, Steelcase research associates better-controlled environmental conditions with fewer maintenance interruptions and smoother operational workflows in support spaces—underscoring the value of thoughtful MEP zoning and access management. For industry-aligned illumination, the Illuminating Engineering Society (IES) recommends task lighting levels in the 300–500 lux range for technical maintenance activities, which I consider a baseline for safe work in machine rooms. Learn more from WELL v2 and IES standards for performance targets (source: wellcertified.com; ies.org/standards).

Core Objectives for an Elevator Machine Room

My planning priorities center on five pillars: code compliance, safe access and egress, clear service envelopes, resilient power and cooling, and future-ready expansion. Within these, I model clearances for all access panels and cable paths; designate distinct electrical zones; maintain controlled lighting and acoustics; and create robust circulation for technicians. When layout exploration is needed, a room layout tool like the layout simulation tool helps validate service corridors, reach ranges, and conflict points before construction.

Space Planning & Clearances

Every machine room layout begins with the equipment schedule from the elevator manufacturer: traction machine or MRL support gear, controller cabinets, drive units, disconnect switches, fire service interfaces, and communication panels. I protect 36–48 in (915–1220 mm) service clearances in front of electrical panels and control cabinets, and 24–36 in (610–915 mm) side clearance for cable trays and conduit maintenance—always verifying with authority having jurisdiction (AHJ) and the equipment submittals. Overhead, I maintain crane or hoist access paths where required for machine replacement. Circulation is mapped as a continuous 36 in minimum path, widened near primary access doors for safe equipment handling.

Access, Egress, and Safety Zoning

Doors swing outwards where possible and clear the circulation path. I separate high-voltage components from low-voltage communications by dedicated surface runs or trays with labeled segregation. Emergency lighting and illuminated exit signage are non-negotiable, with battery backup. I coordinate fire-rated construction per shaft adjacency, seal penetrations, and provide smoke detection as mandated by local code and the elevator specification. Floor finishes are non-slip, static-resistant, and easy to clean; wall finishes resist oil mist and dust accumulation. I label all panels, feeders, and isolation points with durable markers at eye level to speed troubleshooting.

Electrical Infrastructure & Redundancy

A dedicated elevator disconnect, lockable and within line of sight of the controller, anchors the electrical design. Feeder sizing matches the elevator motor and controller load with allowances for inrush, harmonics, and regeneration if applicable. I specify separate circuits for lighting, receptacles, and cooling, and I avoid GFCI on critical equipment circuits unless required. Where uptime is paramount (hospitals, high-rise residential), I coordinate standby or emergency power to the elevator per code, with selective coordination of breakers to prevent nuisance trips. All raceways and bonding are continuous; grounding is robust and clearly labeled.

Mechanical Cooling, Ventilation, and Heat Load

Controllers and drives generate heat; I calculate sensible heat load from manufacturer data and add a 15–20% headroom. Continuous ventilation keeps the room within the recommended operating temperature of the equipment; many controllers prefer 50–86°F (10–30°C). I use dedicated, non-shared cooling where contaminants could be introduced, and I avoid ductwork that compromises fire separation to the shaft. Redundant fans or split systems improve resilience. Filtration targets dust control; positive pressurization can reduce infiltration from the shaft and adjacent service spaces.

Lighting and Visual Ergonomics

I design a balanced lighting scheme at 300–500 lux on the working plane, with neutral-white 3500–4000K lamps for color accuracy and reduced eye strain. Uniformity (U0.6–0.8) and controlled glare are important when reading labels or working inside cabinets. I add task lighting at control panels and hoist points. Emergency lighting provides at least 90 minutes of egress illumination. Switches are located at the door, with additional controls near the primary work area to support safe lockout/tagout procedures.

Acoustic Comfort and Vibration Management

Though often overlooked, acoustic control supports technician safety and communication. I target under 85 dBA during peak operation by combining resilient mounts under machines, sealed penetrations, and absorptive finishes on ceilings and upper walls. Where structure-borne vibration could migrate to occupied spaces, I coordinate isolation pads, inertia bases, and flexible conduit connections.

Cable Management and Serviceability

Cable trays are sized with a 30–40% growth factor and routed for easy access to termination points. I maintain minimum bend radii for power and control, separate high-power from data, and leave slack for future equipment. Penetrations are sleeved and sealed. All trays and conduits are labeled, with panel schedules posted on a durable placard. For multi-car banks, I standardize the tray hierarchy to simplify troubleshooting.

Fire Protection and Life Safety Coordination

Where sprinklers are required, I coordinate heads away from energized equipment, with heat detection and shunt-trip strategies per code and manufacturer guidance. Firestopping at all penetrations is inspected and documented. I keep clear floor areas near the primary disconnect and controller to allow rapid response during an alarm event.

Materials, Durability, and Maintenance Strategy

Floors: anti-slip epoxy or sealed concrete with light reflectance for better visibility. Walls: light-colored, scrub-resistant paint to highlight leaks and dust. Ceilings: cleanable acoustic panels or sealed gypsum depending on acoustic goals and fire rating. I mount a wall organizer for manuals, lockout devices, PPE, and a small tool set. A magnetic board carries single-line diagrams, emergency procedures, and the latest inspection reports.

Future-Proofing and Digital Readiness

I design with expansion in mind: spare wall space for additional controllers, empty conduits to the shaft and BMS room, and data drops for remote diagnostics. I integrate temperature and fault monitoring into the building management system with clear alarm thresholds. When planning alternative layouts or future swaps (e.g., modernization to gearless machines), I validate options quickly with an interior layout planner such as this room design visualization tool to test clearances and service paths before committing.

Coordination Workflow

Success hinges on early coordination: obtain elevator shop drawings, confirm heat loads and clearances, lock electrical one-line, define cooling approach, and agree on fire protection strategy with all stakeholders—elevator vendor, MEP engineer, GC, and the AHJ. I schedule an on-site walk with the elevator technician pre-close to verify access, labels, and operating temperatures.

Checklist: What I Verify Before Turnover

1. All clearances painted on floor and free of obstructions
2. Labeled disconnects, panels, trays, and terminations
3. Lighting at 300–500 lux, 3500–4000K; emergency lights tested
4. Cooling running; temperature stable within equipment range
5. Noise level checked; mounts and seals confirmed
6. Firestopping complete; detection/sprinkler coordination documented
7. Panel schedules, single-line diagram, and emergency procedures posted
8. Clean, dry floor; no leaks; housekeeping pad edges sealed
9. Digital monitoring points live and alarms tested

FAQ

What are the minimum clearances around elevator control panels?

I protect 36–48 inches (915–1220 mm) in front of panels and 24–36 inches (610–915 mm) to the side unless manufacturer or code requires more. Always verify with the AHJ and the elevator vendor’s submittal.

How much lighting is sufficient in a machine room?

Target 300–500 lux on the working plane with 3500–4000K color temperature. Add task lights at critical panels. This aligns with IES task-lighting guidance for technical spaces.

What temperature should an elevator machine room maintain?

Most controllers operate best between 50–86°F (10–30°C). Size cooling from manufacturer heat loads and add 15–20% capacity for resilience and seasonal peaks.

Do I need acoustic treatment?

Yes, to keep sound levels manageable for safe communication. Aim below 85 dBA during operation using resilient mounts, sealed penetrations, and absorptive finishes on ceilings or upper walls.

How should power be organized?

Provide a dedicated, lockable disconnect within line of sight of controllers, separate circuits for lighting and cooling, and coordinate selective breaker tripping. Consider standby power for critical buildings if allowed by code.

Is sprinkling allowed in machine rooms?

Local codes vary. If sprinklers are required, coordinate head placement away from energized equipment, integrate heat detection, and implement shunt-trip strategies per code and manufacturer guidance.

What’s the best way to route cables?

Use trays sized with 30–40% spare capacity, separate power and data, maintain bend radii, sleeve penetrations, and label everything. Keep direct service paths to controllers and the shaft.

How do I plan for future modernization?

Reserve wall space, include empty conduits to the shaft and BMS, and add data drops. Validate alternative layouts with a room layout tool to ensure future equipment can be serviced safely.

Where should the machine room be located?

Ideally adjacent to or above the hoistway with minimal conduit runs, robust structure for equipment loads, and straightforward access that doesn’t cross tenant areas wherever possible.

What finishes are recommended for durability?

Anti-slip epoxy or sealed concrete floors, scrub-resistant light-colored walls, and cleanable ceilings. Choose materials that resist oils, dust, and vibration.

How do I manage humidity and dust?

Use filtered, dedicated ventilation or split cooling; consider slight positive pressure to reduce infiltration from shafts and service corridors. Keep surfaces smooth and easy to wipe down.

What documentation should be posted inside the room?

Panel schedules, single-line diagram, emergency procedures, lockout/tagout instructions, inspection logs, and vendor contact information in a durable, visible format.
