Essential Equipment Placement Guide for Small Orthodontic Offices

Direct Answer

In a small orthodontic office, equipment should be arranged around workflow rather than room boundaries. Treatment chairs sit at the center, scanners and imaging tools stay within two steps of the chair, and sterilization should be positioned along a dedicated clean-to-dirty path. This layout minimizes staff movement, speeds up patient turnover, and keeps the clinic compliant with infection control standards.

Quick Takeaways

1. Place treatment chairs as the central hub of the clinic layout.
2. Keep scanners and imaging devices within immediate reach of treatment zones.
3. Sterilization areas must follow a one-direction clean workflow.
4. Vertical storage dramatically improves space efficiency in small clinics.
5. Multi‑functional treatment zones reduce wasted square footage.

Introduction

Designing an orthodontic equipment layout for a small office is one of the most underestimated challenges in clinic planning. Over the past decade working on compact dental and orthodontic spaces, I’ve noticed that most inefficiencies don’t come from lack of square footage—they come from poor equipment placement.

Many orthodontists focus on aesthetics first: cabinetry, finishes, lighting. But operational flow is what determines whether a clinic feels effortless or chaotic during a busy day.

When planning layouts, I always begin with movement patterns—how assistants circulate, where instruments travel after use, and how quickly patients can move from consultation to treatment. If you want to visualize how these movement zones interact inside tight footprints, reviewing practical room layout examples for compact dental spacescan make the workflow much easier to understand.

This guide breaks down exactly where key orthodontic equipment should go in a small clinic so the space works harder without feeling cramped.

save pin

Key Equipment Required in an Orthodontic Office

Key Insight: Successful equipment placement starts by categorizing tools by how frequently they are used during treatment.

In most orthodontic practices, about 80% of procedures rely on a small group of equipment. These should always live closest to treatment chairs.

Core equipment typically includes:

1. Orthodontic treatment chairs
2. Intraoral scanners
3. Bracket and wire instrument trays
4. Sterilization units
5. X‑ray or imaging equipment
6. Supply storage cabinets

A common mistake I see is placing equipment based on wall availability rather than treatment sequence. When tools are arranged in procedural order instead, assistants take fewer steps and patient appointments move faster.

According to ADA dental facility planning guidelines, minimizing cross‑traffic between clean and contaminated instruments is one of the biggest contributors to operational efficiency and infection control.

Treatment Chair Placement in Small Clinics

Key Insight: Treatment chairs should act as the operational center of the clinic, not simply line the perimeter.

In compact orthodontic offices, placing chairs against walls seems intuitive but often creates tight working angles for assistants and limits instrument access.

Instead, consider these placement strategies:

1. Island configuration for 2–4 chairs
2. Shared assistant work zones between chairs
3. Clear circulation path behind the chair
4. Direct visibility from the sterilization area

One overlooked issue is elbow clearance. Orthodontic procedures require more lateral movement than general dentistry, especially during wire adjustments. I recommend allowing at least 36–40 inches around active chair zones whenever possible.

save pin

Where to Position Sterilization and Lab Areas

Key Insight: Sterilization must follow a linear clean workflow to prevent contamination and reduce staff travel time.

In a small orthodontic office, the sterilization area should sit centrally between treatment zones rather than hidden in a distant room.

Best practice layout sequence:

1. Dirty instrument drop-off
2. Ultrasonic or washing station
3. Packaging and drying area
4. Autoclave
5. Clean storage

Placing sterilization too far away increases instrument turnaround time. I’ve seen clinics lose 20–30 minutes of staff productivity per day simply due to inefficient placement.

For planning these workflow zones visually, many designers map the process first using interactive office layout planning tools for clinical spaces before construction even begins.

Digital Scanner and Imaging Equipment Layout Tips

Key Insight: Digital scanning works best when devices stay mobile but anchored near treatment zones.

Modern orthodontics relies heavily on intraoral scanners and digital imaging systems. However, dedicating a full room for these tools in a small clinic often wastes space.

Better solutions include:

1. Mobile scanner carts shared between chairs
2. Wall-mounted monitors visible from multiple stations
3. Corner imaging niches
4. Central scanning stations between treatment bays

One hidden cost I frequently see: scanner cables and carts blocking circulation paths. Designing dedicated parking spots for mobile equipment prevents daily workflow frustration.

save pin

Answer Box

The most efficient small orthodontic office layouts place treatment chairs centrally, sterilization nearby, and scanning equipment within immediate reach. Equipment should follow treatment workflow rather than room boundaries.

Storage Solutions for Orthodontic Supplies

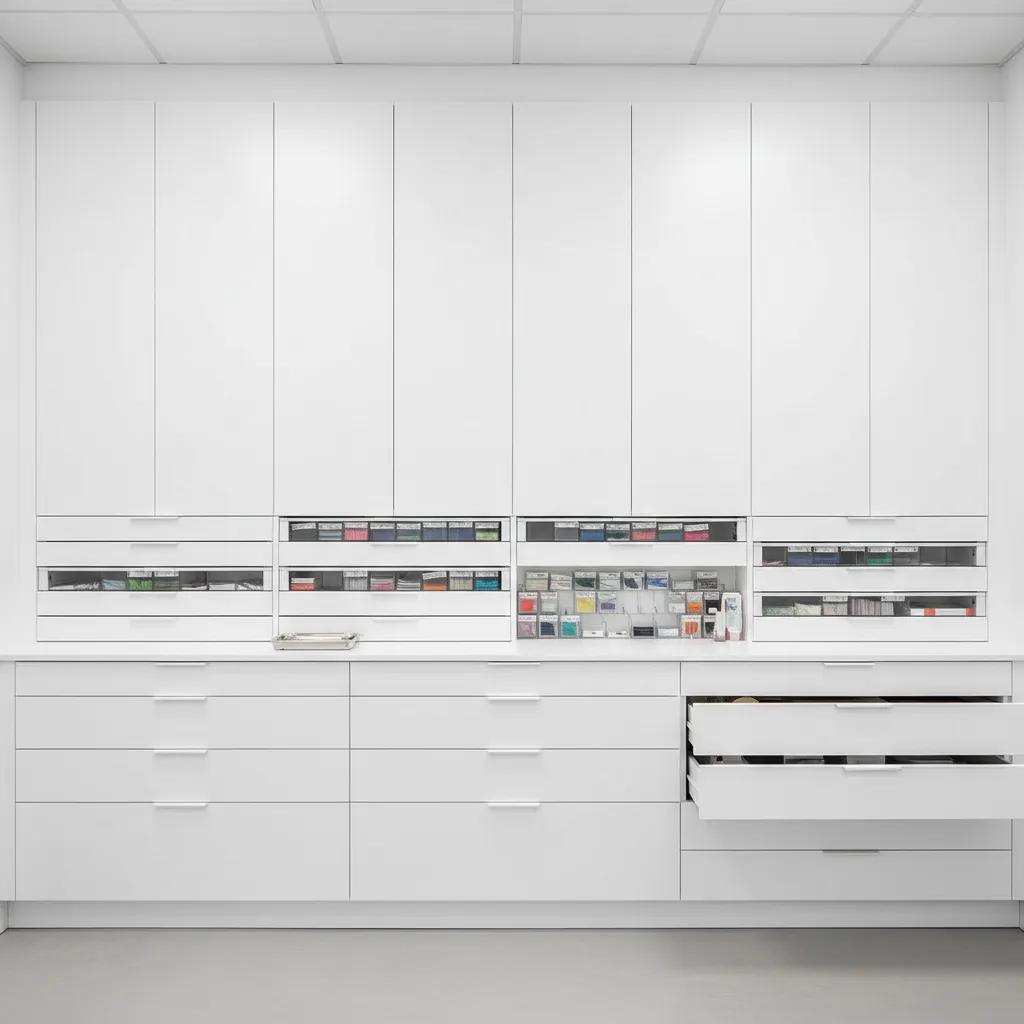

Key Insight: Vertical storage dramatically improves efficiency in small orthodontic offices.

Orthodontic practices use hundreds of small components—brackets, elastics, wires, attachments. Poor storage quickly creates clutter.

Smart storage strategies include:

1. Ceiling-height cabinetry
2. Drawer organizers for bracket systems
3. Rolling supply carts
4. Wall-mounted instrument panels

A mistake I often see is mixing clinical storage with administrative supplies. Separating them keeps treatment zones cleaner and easier to restock.

save pin

Designing Multi Functional Treatment Zones

Key Insight: Multi-purpose treatment zones allow small orthodontic clinics to operate like much larger practices.

Instead of creating separate rooms for consultation, scanning, and adjustments, many modern clinics combine these functions around the same treatment chair.

Typical multifunction setup:

1. Chair positioned for both consultation and procedures
2. Wall display for patient education
3. Scanner dock beside assistant cabinet
4. Shared tray delivery systems

This approach reduces room requirements while maintaining a high patient throughput.

Sample Equipment Layout Plan for a Small Orthodontic Clinic

Key Insight: Even clinics under 1,000 square feet can support multiple treatment chairs with the right zoning.

Example layout for a compact orthodontic clinic:

1. Reception and waiting area near entrance
2. 2–4 open treatment chairs in central bay
3. Sterilization zone directly behind chairs
4. Scanner station between treatment bays
5. Storage wall along clinic perimeter

If you want to experiment with chair spacing, cabinetry depth, and circulation paths, a 3D floor planning workflow for dental clinics makes it easier to test multiple equipment layouts before committing to construction.

Final Summary

1. Treatment chairs should anchor the entire orthodontic equipment layout.
2. Sterilization must follow a one-direction instrument workflow.
3. Mobile scanners work best near treatment zones.
4. Vertical storage prevents clutter in small clinics.
5. Multi‑functional treatment areas maximize limited square footage.

FAQ

1. What is the ideal orthodontic equipment layout for a small office?

Place treatment chairs centrally, keep scanners nearby, and position sterilization between treatment zones for efficient workflow.

2. How many treatment chairs fit in a small orthodontic clinic?

Most clinics under 1,000 sq ft can comfortably support 2–4 chairs depending on circulation space and storage design.

3. Where should orthodontic scanners be placed?

Scanners work best on mobile carts positioned within two steps of treatment chairs.

4. Do small orthodontic offices need a separate sterilization room?

Not always. Many compact clinics use an open sterilization bay with a clear clean‑to‑dirty workflow.

5. What is the biggest mistake in orthodontic equipment layout?

Designing based on walls rather than workflow. Equipment should follow treatment steps.

6. How much space is needed around orthodontic chairs?

Ideally 36–40 inches of clearance for assistants and equipment movement.

7. How can I improve storage in a small orthodontic office?

Use vertical cabinets, organized drawers, and rolling carts to store supplies efficiently.

8. What tools help plan orthodontic equipment layouts?

Digital floor planners allow orthodontists to test chair spacing, equipment placement, and workflow before construction.
