Expansion Gaps and Structural Movement Risks in L Shaped Flooring Layouts: Understand how irregular floor plans affect expansion space, movement pressure, and long term durability before installing flooring.

Direct Answer

L‑shaped flooring layouts create uneven expansion pressure because the flooring expands in multiple directions instead of one straight line. Without correctly placed expansion gaps—especially around interior corners—laminate or floating floors can buckle, separate, or develop joint stress over time.

The safest approach is to treat each leg of the L shape as an independent expansion path and allow movement space at walls, transitions, and inside corners.

Quick Takeaways

1. L‑shaped rooms create multi‑directional expansion pressure that straight layouts rarely experience.
2. Interior corners are the most common failure point for laminate flooring in irregular layouts.
3. Insufficient expansion gaps often cause buckling months after installation.
4. Large L‑shaped areas usually require transition joints to reduce stress.
5. Movement planning matters more than plank direction in complex layouts.

Introduction

One of the most common installation problems I see in residential projects happens when homeowners install laminate flooring across an L‑shaped room without thinking about structural movement. On paper, it looks like one continuous space. In reality, it behaves like two separate expansion zones pushing against each other.

After working on dozens of renovation projects involving open layouts, I’ve learned that flooring movement problems almost always appear months later—usually during seasonal humidity shifts. That’s when floors begin to lift, joints crack, or planks start separating around corners.

The issue becomes worse in irregular floor plans because expansion pressure gets trapped where the two legs of the L meet. If the installation ignores that pressure point, the flooring system has nowhere to move.

Before starting installation, many professionals map the layout using a digital floor planning tool to understand wall geometry and expansion directions. If you're planning a complex layout, this interactive way to visualize irregular floor layouts before installationcan reveal where expansion pressure will likely build.

In this guide, I’ll break down what actually happens inside L‑shaped flooring systems, where expansion gaps should go, and how professionals prevent buckling and joint stress in irregular spaces.

save pin

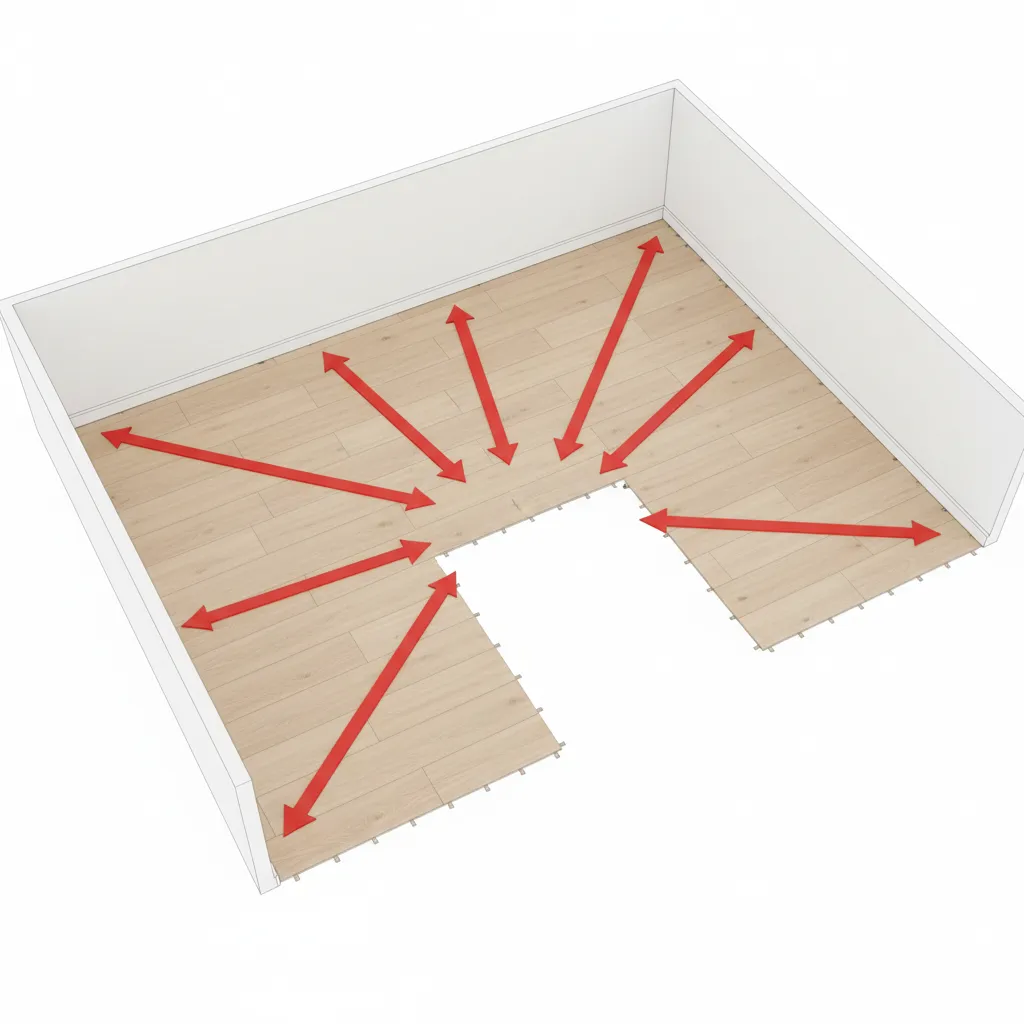

Why Flooring Movement Is Different in L Shaped Rooms

Key Insight: Flooring in L‑shaped rooms expands in multiple directions, which concentrates movement stress at the interior corner.

Floating flooring systems—like laminate, engineered wood, and many vinyl planks—expand and contract with humidity changes. In a simple rectangular room, expansion pressure spreads evenly across the perimeter.

But an L‑shaped room creates two expansion corridors that eventually collide at the corner intersection.

In practice, this leads to three structural behaviors installers must anticipate:

1. Expansion convergence where both sections push toward the corner
2. Stress concentration along the inside angle
3. Uneven plank compression between different room legs

According to installation guidance from the National Wood Flooring Association (NWFA), floating floors must maintain uninterrupted expansion space around the entire perimeter. Complex room geometry increases the need for movement breaks or transitions.

A mistake I frequently see is installers treating the entire L‑shaped area as one continuous rectangle. Structurally, that assumption is wrong.

save pin

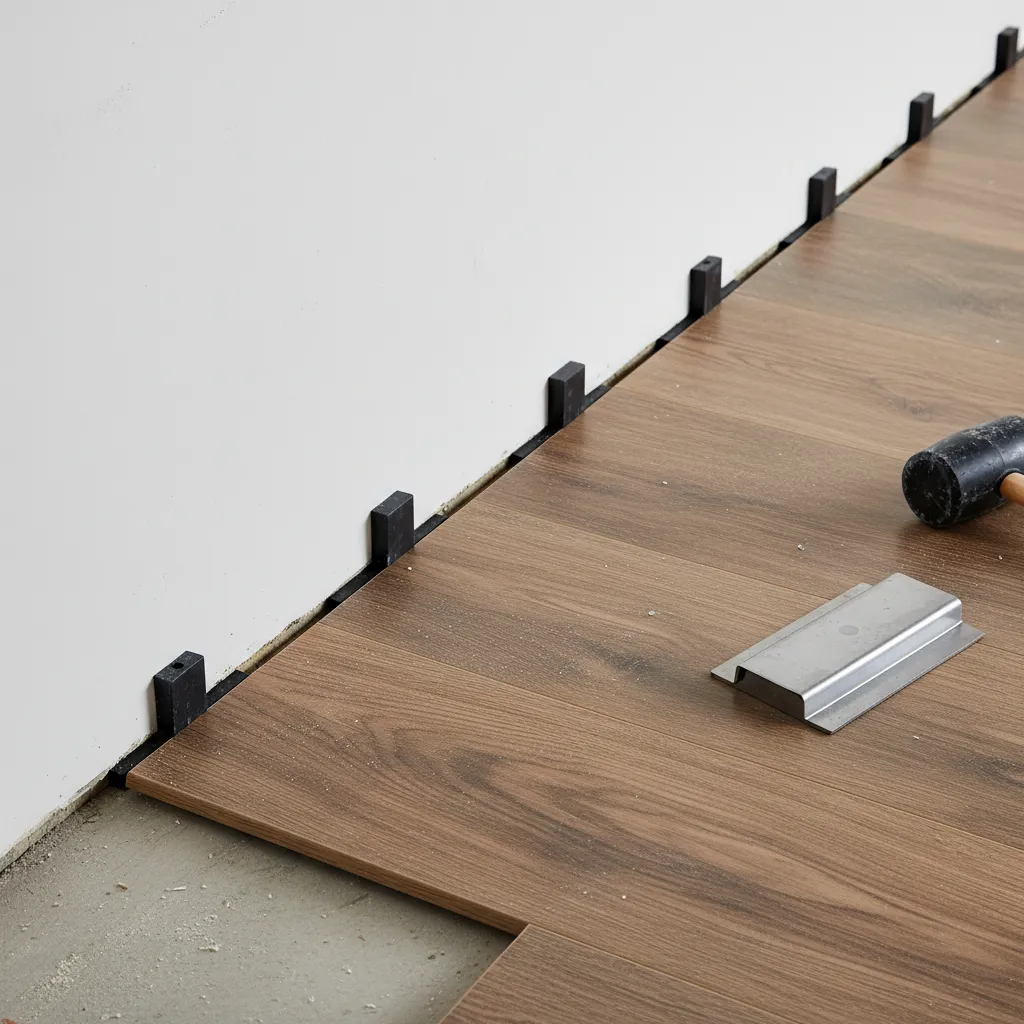

Expansion Gap Placement Around Interior Corners

Key Insight: Interior corners in L‑shaped rooms require additional expansion planning because they function as pressure traps.

Most installation guides emphasize perimeter expansion gaps, but they rarely discuss interior geometry. In an L‑shaped layout, the inside corner behaves like a hinge where movement directions collide.

Proper expansion planning typically includes:

1. Standard perimeter expansion gap (usually 8–12 mm depending on manufacturer)
2. Additional flexibility near interior corners
3. Allowing expansion continuity along both legs of the layout
4. Careful plank staggering near corner junctions

One practical technique professionals use is slightly widening the expansion tolerance along the corner walls. This gives the floor more room to distribute pressure during seasonal movement.

Another useful approach is mapping the geometry before installation using tools that help installers generate precise floor plans for irregular room shapes. Understanding the corner angle and wall lengths helps determine whether a continuous installation is structurally safe.

What Happens When Expansion Space Is Too Small

Key Insight: Insufficient expansion gaps are the primary cause of laminate floor buckling in irregular layouts.

The tricky part is that flooring failures rarely happen immediately. Most problems appear after humidity increases or temperature swings cause the planks to expand.

Common symptoms include:

1. Flooring lifting or "tenting" near the interior corner
2. Click‑lock joints separating
3. Visible waves across long plank runs
4. Pressure noise when walking across the floor

In extreme cases, the flooring system can push hard enough to damage baseboards or door frames.

Many homeowners assume the issue is product quality. In reality, it's usually installation stress caused by insufficient expansion allowance.

Manufacturers like Pergo and Quick‑Step explicitly warn that floating floors exceeding certain dimensions must include transition joints to prevent structural compression.

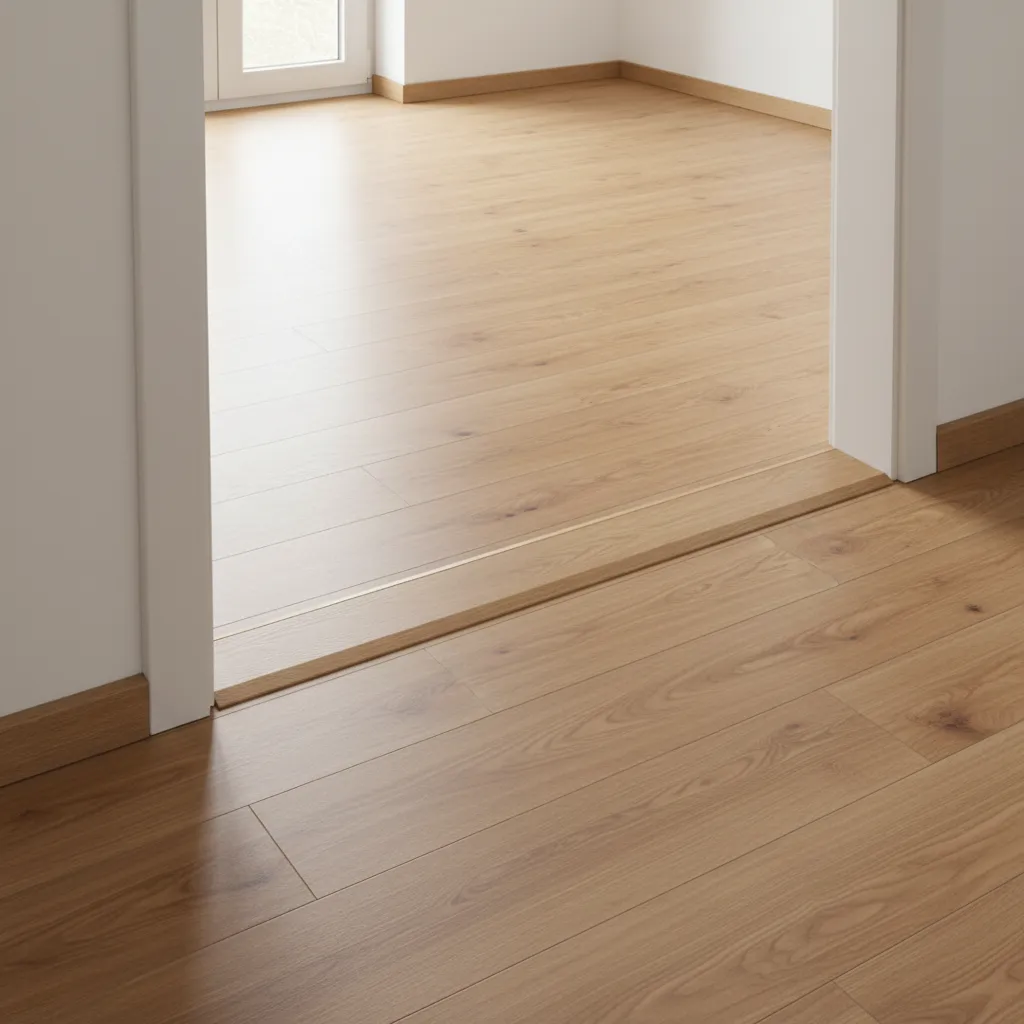

Transition Solutions for Large L Shaped Areas

Key Insight: Transition joints often prevent structural stress in large L‑shaped spaces even when homeowners prefer seamless flooring.

Open‑concept homes have made continuous flooring popular, but from a structural standpoint, uninterrupted installations across complex layouts can be risky.

Professional installers often introduce discreet transitions at strategic points:

1. Between the two legs of the L
2. Across long hallway connections
3. At doorway thresholds
4. Where floor span exceeds manufacturer limits

Typical transition options include:

1. T‑molding
2. Expansion joint profiles
3. Subtle material transitions

In design planning stages, mapping circulation flow can help determine the least visible location for these breaks. Designers often simulate layouts using tools that allow them to experiment with furniture placement inside irregular floor plans, revealing where natural visual breaks already exist.

save pin

Preventing Buckling and Joint Stress in Irregular Layouts

Key Insight: Proper installation sequencing and layout direction significantly reduce structural stress in complex rooms.

Through years of renovation work, I’ve found that the order of installation matters almost as much as expansion spacing.

Professional installers often follow this process:

1. Start installation along the longest structural wall.
2. Allow the floor to expand naturally toward open areas.
3. Install toward the interior corner last.
4. Ensure staggered joints do not align at the corner intersection.

Another overlooked issue is subfloor friction. If the underlayment grips the planks too tightly, it restricts natural movement and increases stress accumulation.

Quality underlayments reduce friction while maintaining acoustic and moisture protection.

Answer Box

L‑shaped flooring layouts require more expansion planning because flooring expands in multiple directions. Interior corners concentrate pressure, making proper perimeter gaps and transition joints essential for preventing buckling and joint failure.

save pin

Long Term Maintenance for Complex Floor Installations

Key Insight: Maintaining stable indoor humidity dramatically reduces structural stress on irregular flooring layouts.

Even perfectly installed flooring can develop movement issues if environmental conditions fluctuate too much.

Most flooring manufacturers recommend maintaining:

1. Indoor humidity between 35% and 55%
2. Stable seasonal temperature ranges
3. Consistent HVAC operation

Long‑term maintenance also includes:

1. Checking expansion gaps during renovations
2. Avoiding heavy fixed cabinetry installed directly over floating floors
3. Inspecting transition joints annually

In complex layouts like L‑shaped spaces, small movement restrictions compound over time. Preventative care is often what keeps flooring systems stable for 10–20 years.

Final Summary

1. L‑shaped rooms create multiple expansion directions that concentrate pressure at interior corners.
2. Proper expansion gaps and strategic transitions prevent most flooring failures.
3. Installation sequence influences how movement stress distributes.
4. Humidity stability is critical for long‑term floor performance.
5. Planning irregular layouts before installation reduces structural risk.

FAQ

1. Do L shaped rooms need larger expansion gaps?

Usually yes. L‑shaped layouts concentrate movement at corners, so installers sometimes increase perimeter tolerance slightly within manufacturer limits.

2. Can laminate flooring buckle in an L shaped room?

Yes. Floor buckling in L shaped room installation often occurs when expansion space is insufficient or the floor span exceeds manufacturer limits.

3. Should flooring direction change in an L shaped layout?

Not always. Consistent plank direction often looks better, but transitions may be necessary if the total span becomes too large.

4. Where should expansion gaps be placed in irregular rooms?

Expansion gaps should run along the entire perimeter, including both legs of the L and tight interior corners.

5. What causes laminate expansion stress in corner layouts?

Poor spacing, trapped movement at interior angles, and long continuous plank runs are the most common causes.

6. Do large open floor plans require transition strips?

Often yes. Transition joints relieve structural pressure when floating floors exceed manufacturer span recommendations.

7. Can humidity cause flooring movement problems in irregular layouts?

Absolutely. Flooring movement problems in irregular layouts become more noticeable during seasonal humidity swings.

8. How do professionals prevent laminate flooring stress in complex rooms?

They plan expansion paths, use transition joints when needed, and maintain consistent environmental conditions.

References

1. National Wood Flooring Association Installation Guidelines
2. Pergo Laminate Flooring Installation Manual
3. Quick‑Step Technical Installation Documentation
