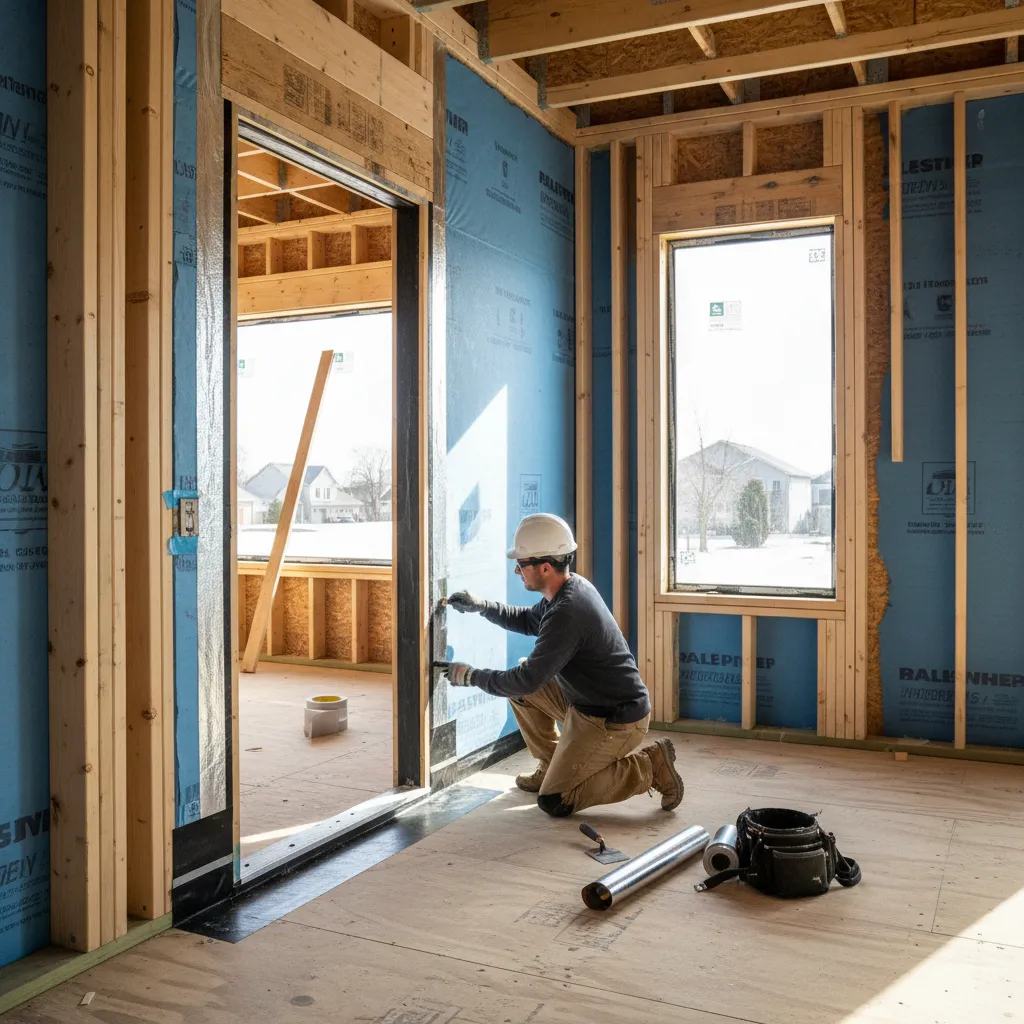

Exterior Door Flashing Requirements in Building Codes: Understand IRC rules, inspection standards, and practical installation guidance for code‑compliant exterior door flashing.

Direct Answer

Most building codes require exterior door flashing to direct water away from the wall assembly and integrate with the wall’s water‑resistive barrier. Under the International Residential Code (IRC), flashing must be installed at door openings in a way that prevents water intrusion and channels moisture to the exterior.

In practice, this means a sloped sill pan, properly layered flashing tape or metal flashing, and integration with the house wrap so water always drains outward.

Quick Takeaways

1. Exterior door flashing is required by IRC to prevent water intrusion into wall assemblies.
2. A sloped sill pan is the most critical component for code‑compliant installations.
3. Flashing must integrate with the water‑resistive barrier to direct water outward.
4. Improper layering of flashing materials is one of the most common inspection failures.
5. Climate zones often influence additional flashing or waterproofing requirements.

Introduction

Exterior door flashing requirements are one of those building code details that seem small on paper but cause massive problems when ignored. After working on residential renovation projects for more than a decade, I’ve seen more wall damage from poorly flashed door openings than from roofing failures.

The issue usually isn’t that contractors skip flashing entirely—it’s that they misunderstand how the flashing should integrate with the wall system. The International Residential Code requires flashing around exterior openings, but the code language assumes you already understand moisture management principles.

Many installers only focus on the door unit itself and forget the wall assembly. In reality, flashing is about the entire drainage strategy: sill pan, side flashing, head flashing, and water‑resistive barrier integration.

If you want a clearer picture of how openings interact with wall structure and layout, reviewing examples of visualizing building layouts with a 3D floor planning workflowhelps illustrate how doors connect with exterior walls.

In this guide, I’ll break down the key building code requirements for exterior door flashing, the inspection points that matter most, and the common mistakes that cause projects to fail compliance checks.

save pin

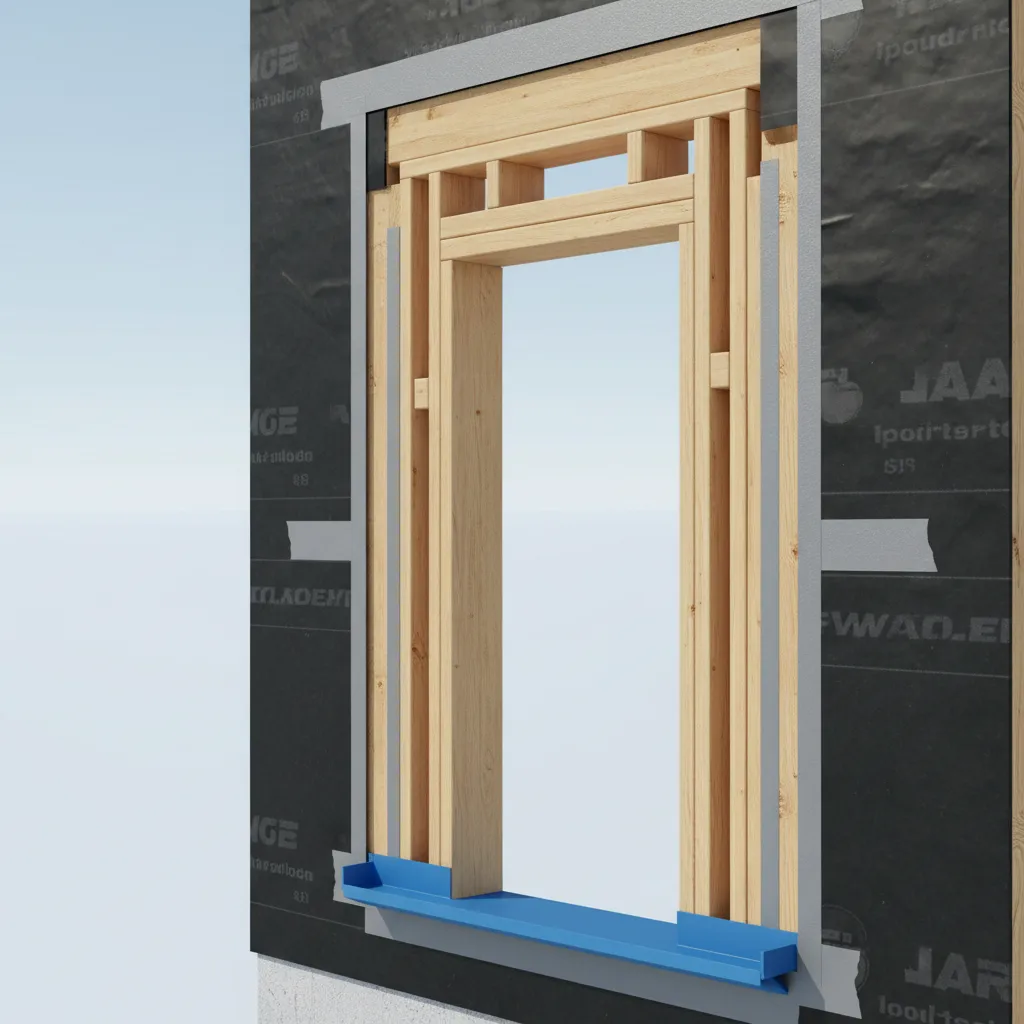

Why Building Codes Require Flashing Around Exterior Doors

Key Insight: Building codes require door flashing because door openings are one of the highest‑risk points for water intrusion in a wall system.

Doors interrupt the continuous weather barrier of a building. Once you cut a large opening into the wall, you create multiple joints where water can enter: the sill, the jambs, and the header.

The IRC requires flashing at exterior openings specifically to manage this risk. According to IRC Section R703.4, flashing must be installed "in a manner that prevents moisture from entering the wall or redirecting it to the exterior."

In real projects, three forces drive water into door openings:

1. Wind‑driven rain
2. Gravity runoff from siding
3. Capillary action between materials

The hidden issue most installers underestimate is the sill. Water almost always accumulates at the base of the opening first, which is why sill pans are considered essential even if the code text doesn’t explicitly prescribe a specific product.

Professional builders treat flashing as a drainage system, not just a seal.

Overview of IRC Requirements for Door Flashing

Key Insight: The IRC does not prescribe a single flashing product but requires a layered system that directs water outward.

The International Residential Code provides performance requirements rather than a strict installation diagram. That flexibility is helpful, but it also creates confusion.

Key IRC concepts affecting door flashing include:

1. IRC R703.4 – flashing must prevent water entry
2. IRC R703.1.1 – exterior walls must provide a weather‑resistant barrier
3. IRC R612 – exterior windows and doors must be installed according to manufacturer instructions

A typical code‑compliant flashing assembly includes:

1. Sloped sill pan flashing
2. Self‑adhesive flashing tape on jambs
3. Head flashing or drip cap
4. Integration with the water‑resistive barrier

One mistake I see frequently on job sites is skipping the sill slope. Without a slope, the flashing system may technically exist but still trap water.

Water-Resistive Barrier Integration Rules

Key Insight: Flashing must always be layered in "shingle fashion" so water flows down and out, never behind the barrier.

The most important installation principle in building codes is layering. Every flashing component must overlap the component below it.

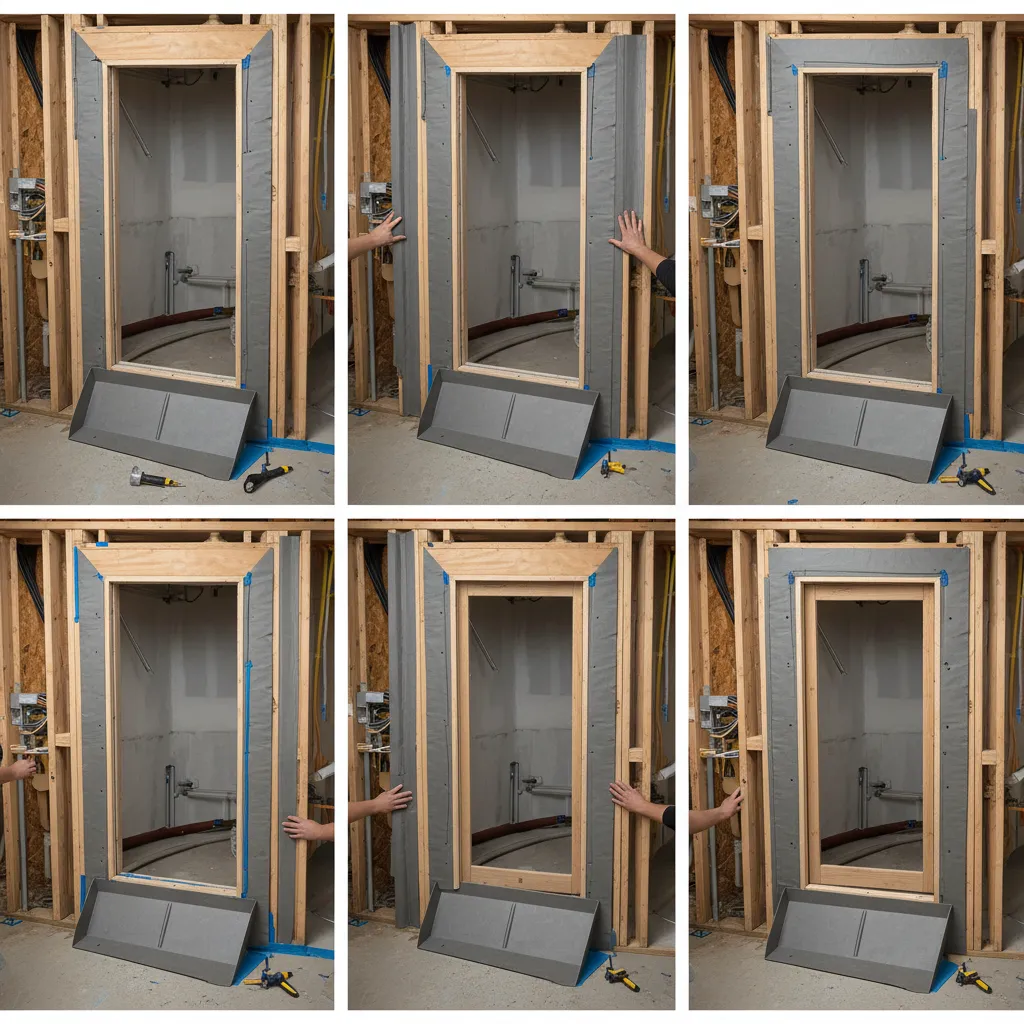

Correct layering order:

1. Sill pan flashing installed first
2. Door unit installed into opening
3. Jamb flashing applied over door flange
4. Head flashing installed last
5. House wrap layered over head flashing

This approach ensures gravity always directs water outward.

In design planning, visualizing how wall layers intersect with openings helps avoid installation conflicts. Many architects now model wall assemblies early using tools that allow planning room layouts while coordinating structural openingsto ensure proper spacing and detailing.

Skipping this coordination often results in flashing conflicts during construction.

save pin

Regional Code Variations and Climate Considerations

Key Insight: Climate zone requirements often determine whether additional flashing or drainage systems are required.

While the IRC provides national guidance, local jurisdictions frequently modify requirements.

For example:

1. Coastal regions often require enhanced flashing due to wind‑driven rain
2. Cold climates require careful flashing integration with insulation and vapor control
3. Hurricane zones may require metal flashing components

In the Pacific Northwest—where rainfall is constant—inspectors often expect a fully integrated sill pan system even if the code language doesn't explicitly require one.

That expectation comes from decades of moisture failure data in wet climates.

Inspection Points for Door Flashing Compliance

Key Insight: Inspectors usually focus on three things: sill drainage, flashing sequence, and barrier integration.

During inspections, most failures happen because flashing cannot be visually verified.

Typical inspection checklist:

1. Sill pan flashing installed and sloped
2. Jamb flashing overlapping door flange
3. Head flashing present above door
4. House wrap layered correctly
5. No reverse laps in flashing tape

Many inspectors will also check manufacturer installation instructions because the IRC requires doors to be installed according to those guidelines.

From a design standpoint, coordinating exterior openings early—especially when generating detailed wall visuals using workflows like creating photorealistic 3D visualizations of exterior walls and openings—can help teams identify flashing conflicts before construction begins.

save pin

Common Code Violations in Door Flashing Installations

Key Insight: Most flashing failures happen not from missing materials but from incorrect sequencing.

The most common issues I’ve seen during renovation work include:

1. No sill pan flashing installed
2. Head flashing missing or reversed
3. Flashing tape applied in the wrong order
4. House wrap installed behind head flashing
5. Door flange fastened through flashing seams

The hidden cost of these mistakes is structural rot. Water that gets behind flashing rarely appears immediately—it can take years before drywall staining or mold becomes visible.

How Contractors Ensure Code-Compliant Door Waterproofing

Key Insight: The most reliable approach is treating the door opening as a drainage assembly rather than a sealed joint.

Professional contractors typically follow a repeatable installation workflow.

Standard best‑practice sequence:

1. Install sloped sill pan flashing
2. Seal rear corners with flashing tape
3. Install door with fasteners through flange
4. Apply jamb flashing
5. Install rigid or metal head flashing
6. Integrate house wrap over the head flashing

This layered strategy allows any water that penetrates siding to exit the wall before reaching structural framing.

Answer Box

Exterior door flashing is required by building codes to prevent water intrusion into wall assemblies. A code‑compliant installation includes sill pan flashing, layered jamb and head flashing, and integration with the water‑resistive barrier so water always drains outward.

Final Summary

1. Exterior door flashing is required under IRC moisture control provisions.
2. Sill pan flashing is the most critical protection point.
3. Flashing must follow shingle‑style layering.
4. Regional climates often require enhanced flashing systems.
5. Incorrect sequencing is the most common code violation.

FAQ

Is flashing required for all exterior doors?

Yes. The IRC requires flashing around exterior wall openings, including doors, to prevent moisture intrusion.

What is the IRC requirement for door flashing?

The IRC requires flashing to be installed in a way that prevents water from entering the wall assembly and directs water to the exterior.

Do exterior doors need sill pan flashing?

Most inspectors expect sill pan flashing because it provides drainage at the lowest point of the door opening.

Can flashing tape replace metal flashing?

Yes in many cases, but it must be compatible with the wall system and installed according to manufacturer instructions.

What happens if door flashing is installed incorrectly?

Improper flashing can allow water intrusion, leading to structural rot, mold growth, and insulation damage.

Are door flashing requirements different in coastal areas?

Yes. High‑rain and hurricane regions often require enhanced flashing and drainage systems.

Is exterior door flashing inspected during construction?

In many jurisdictions, inspectors review flashing before siding installation to verify compliance.

What is the most common exterior door flashing mistake?

The most common problem is reversing the flashing sequence, which traps water behind the barrier.

References

International Residential Code (IRC) Section R703 – Exterior Wall Covering

International Code Council – Moisture Control Guidelines
