Fence Symbols on Floor Plans Standard Drafting Conventions Explained: Understand how architects represent fences on floor plans and site drawings so you can read layouts accurately and avoid common interpretation mistakes.

Direct Answer

Fence symbols on floor plans are typically represented using thin parallel lines, dashed boundaries, or patterned line styles placed along property edges. The exact symbol depends on drawing scale, drafting standards, and whether the plan focuses on interior layout or overall site boundaries.

Architects often label fence types directly on the drawing to clarify material, height, or construction method.

Quick Takeaways

1. Fence symbols usually appear as thin patterned lines rather than solid structural walls.
2. Site plans show fences more clearly than interior floor plans.
3. Line patterns help distinguish fences from property lines or retaining walls.
4. Labels often specify material types such as wood, metal, or chain link.
5. Misreading fence symbols can lead to incorrect site measurements or layout assumptions.

Introduction

One of the most common questions I hear from homeowners and junior designers is surprisingly simple: what does a fence symbol on floor plan drawings actually mean?

After working on residential site layouts for more than a decade, I've noticed that fences are one of the most misunderstood elements in architectural drawings. Unlike walls or doors, fence symbols aren't always standardized across every office or region. On small-scale plans, they may appear as nothing more than a patterned line along the edge of a lot.

That ambiguity is exactly why many people struggle to read them correctly. A dashed boundary might represent a property line, a fence, or sometimes even a setback limit.

If you're trying to interpret a plan or sketch your own layout, it helps to see how professionals organize these elements. For example, when mapping outdoor boundaries in a step-by-step floor plan layout workflow, fence representation becomes part of the broader site drafting logic.

In this guide, I'll break down the conventions architects typically use, explain why fences are drawn differently from walls, and highlight several subtle drafting details that most guides overlook.

save pin

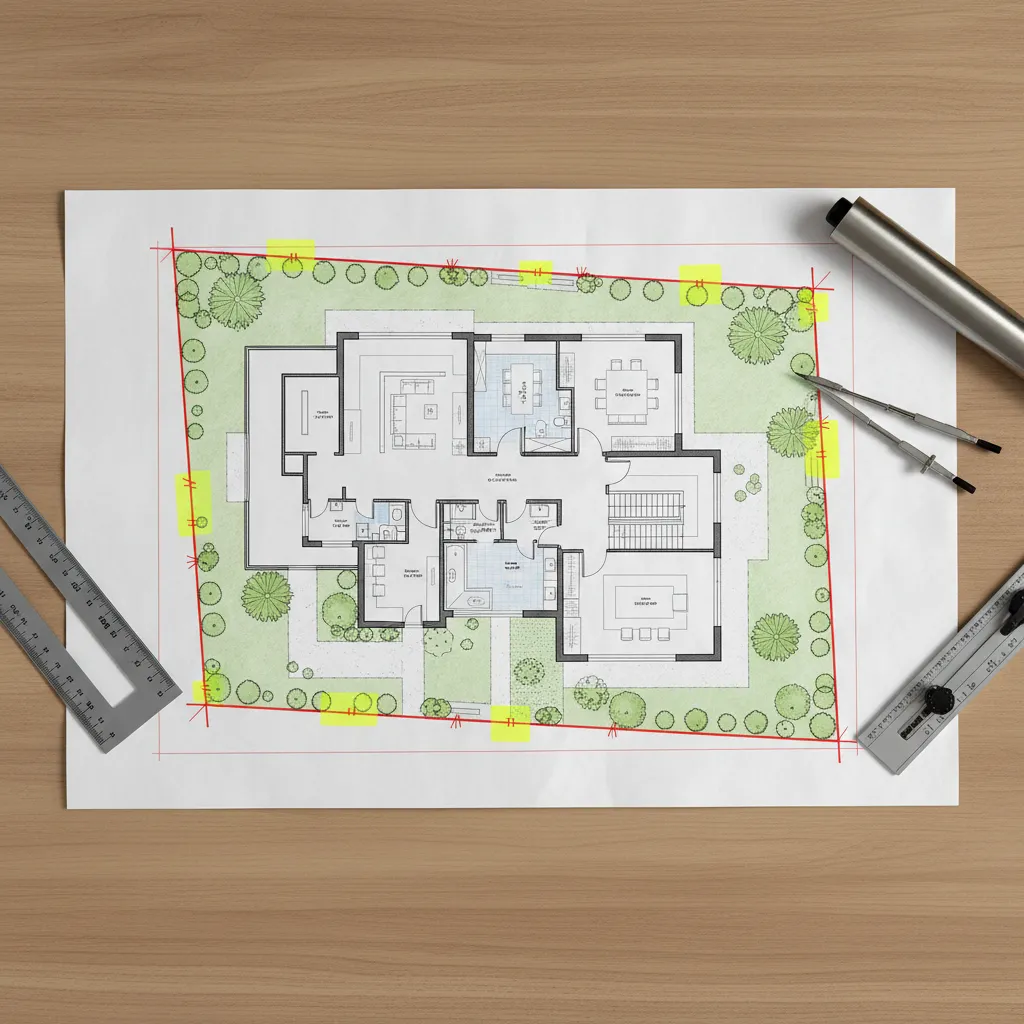

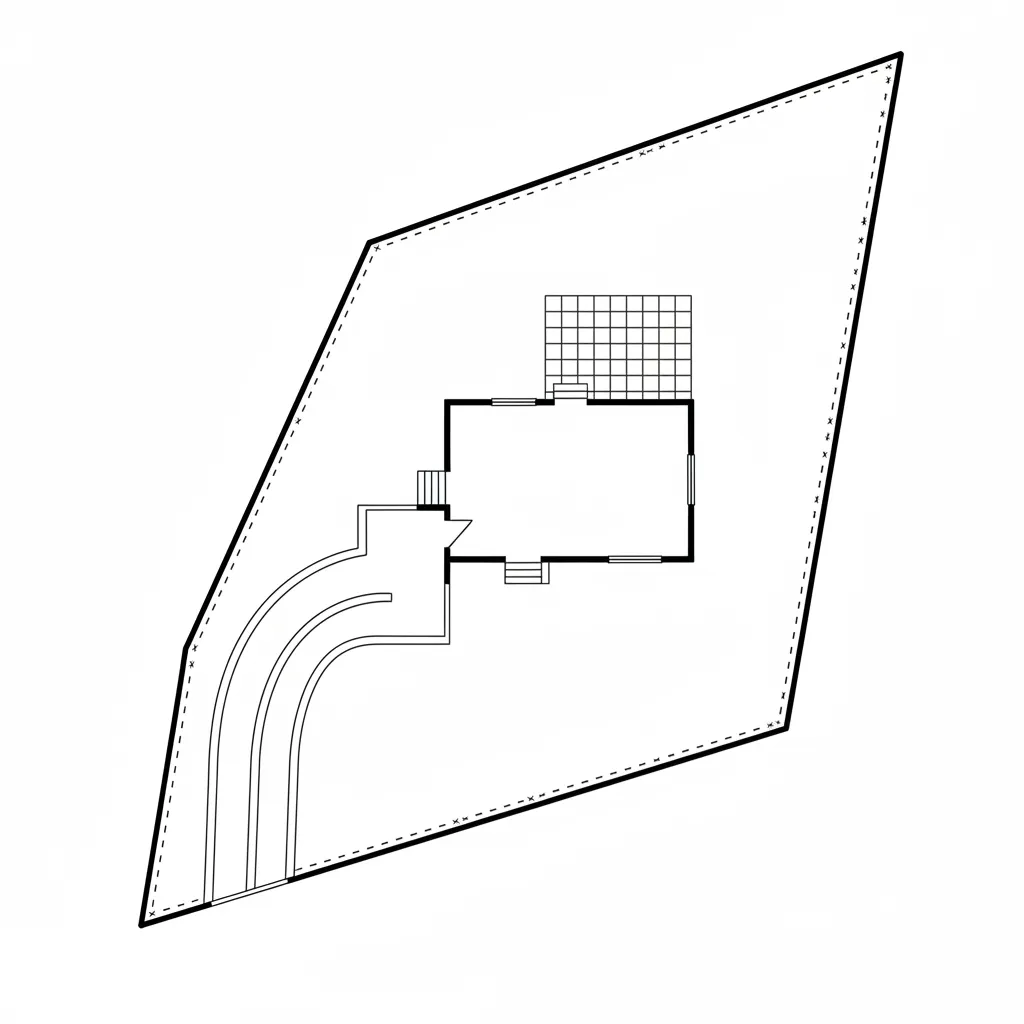

Why Fences Are Represented Differently on Floor Plans and Site Plans

Key Insight: Fences are site elements, not structural components, which is why they appear differently depending on the drawing type.

Interior floor plans focus on structural and spatial elements like walls, doors, and furniture. Because fences exist outside the building envelope, they are often simplified or omitted entirely in these drawings.

Site plans, however, prioritize land use, circulation, and property edges. That is where fences become critical visual elements.

In professional residential sets, you will usually see this hierarchy:

1. Floor plan – focuses on interior layout; fences may be simplified or excluded.
2. Site plan – clearly shows fences, gates, and property edges.
3. Landscape plan – often shows detailed fence materials and heights.

This layered drawing system prevents visual clutter. If fences were drawn with the same visual weight as structural walls, plans would quickly become unreadable.

The American Institute of Architects drafting guidelines emphasize that site elements should use lighter line weights than load‑bearing structures so the drawing hierarchy remains clear.

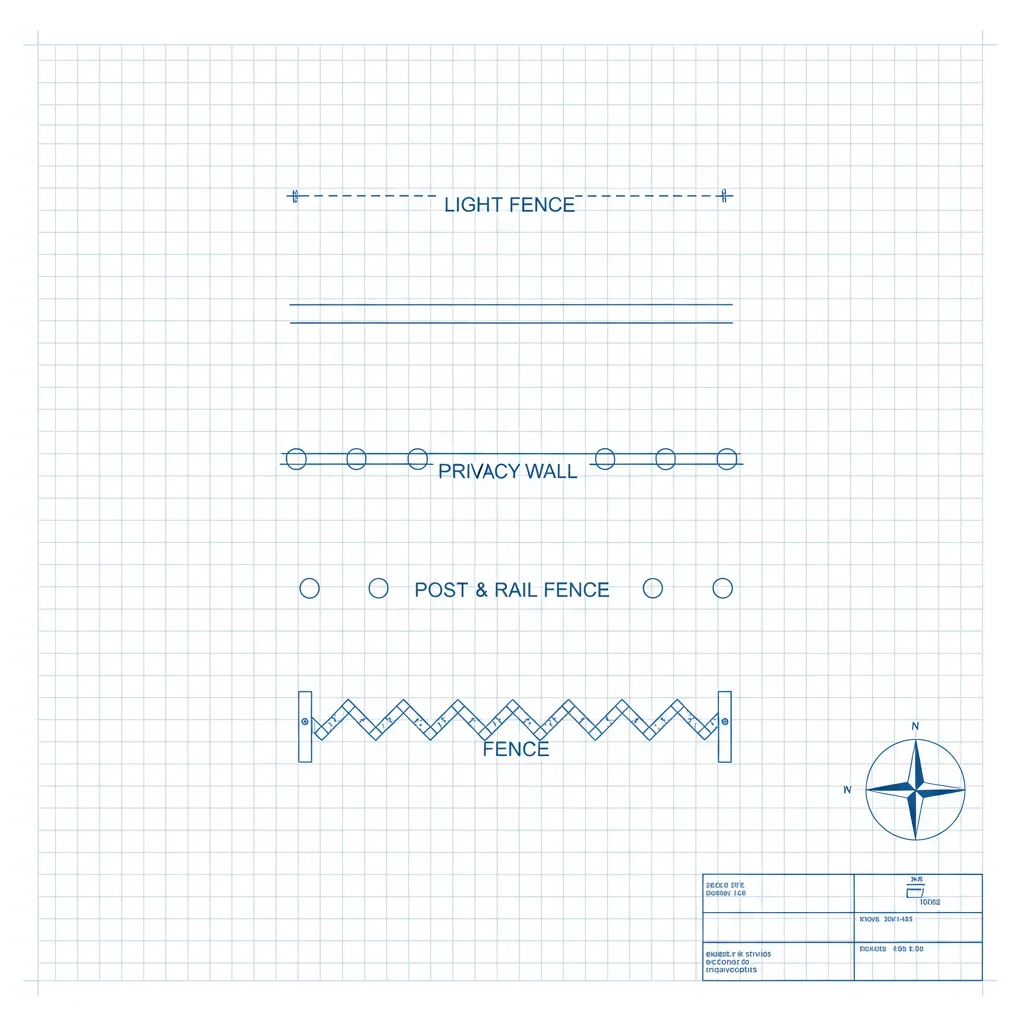

Common Fence Symbols Used in Architectural Drawings

Key Insight: Most fence symbols rely on repeating patterns or dashed lines rather than solid outlines.

Across residential architecture firms, you'll typically encounter several recurring graphic conventions.

1. Parallel thin lines – used for generic boundary fences.
2. Dashed line with small ticks – commonly indicates chain‑link fencing.
3. Zigzag or cross pattern – sometimes used for wood privacy fences.
4. Line with small circles – can represent fence posts.

In many projects, the symbol itself isn't enough. Designers add labels such as:

1. 6' WOOD PRIVACY FENCE
2. 4' METAL PICKET FENCE
3. EXISTING CHAIN LINK FENCE

These annotations eliminate guesswork for contractors and inspectors.

save pin

Line Types Thickness and Pattern Conventions

Key Insight: Fence symbols rely heavily on line weight hierarchy to avoid confusion with walls or property boundaries.

Professional drafting standards generally follow a visual hierarchy where heavier lines represent structural elements and lighter lines represent site features.

Typical line weight logic includes:

1. Heavy lines – structural walls and major architectural elements.
2. Medium lines – doors, windows, cabinetry.
3. Light patterned lines – fences, landscaping, and minor site features.

When reading a drawing, this hierarchy helps your eye quickly identify what matters structurally versus what defines the site.

If you're creating layouts yourself, tools designed for spatial planning—such as systems used when building a scaled 3D floor layout before construction—often include preset line styles that mirror these professional drafting standards.

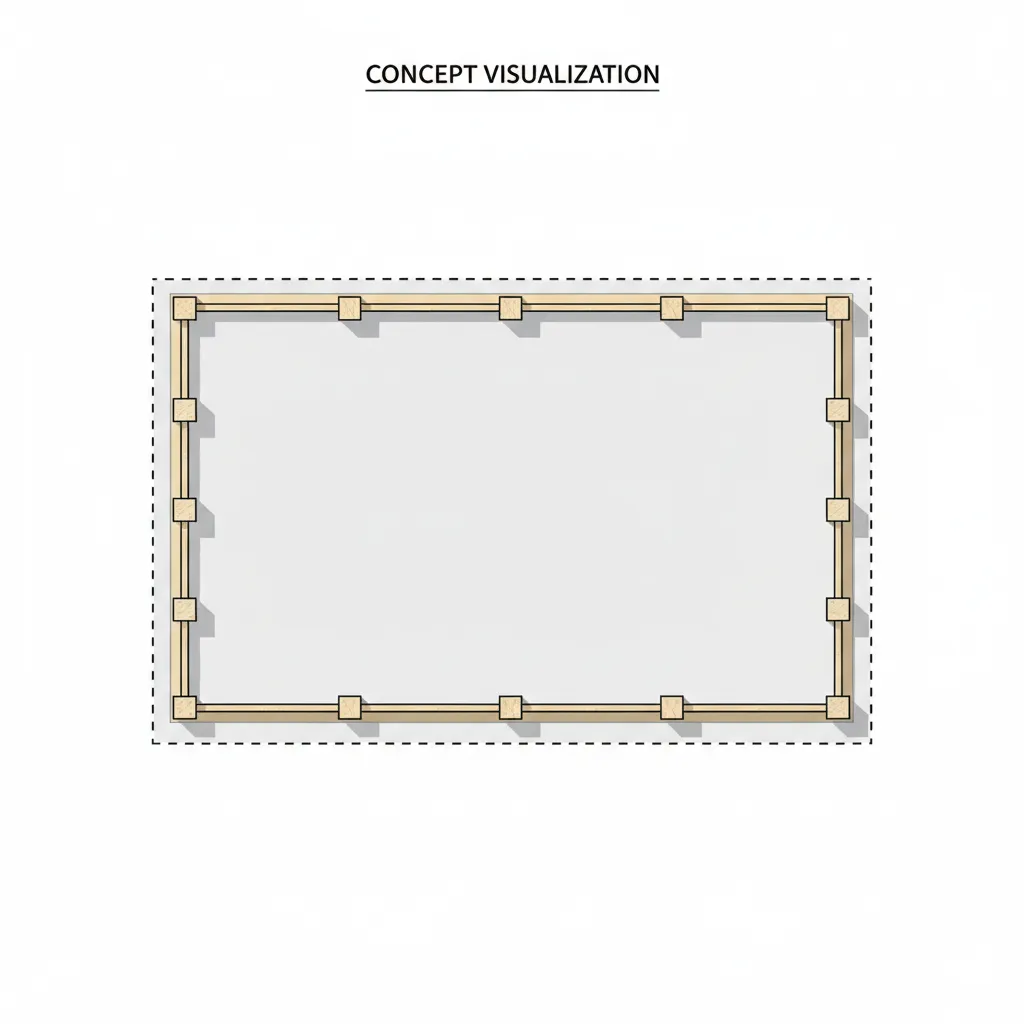

How Property Boundaries and Fences Are Distinguished

Key Insight: Property lines and fence lines may overlap visually but represent entirely different legal and design concepts.

This is where many beginners make mistakes. A property line shows legal ownership boundaries, while a fence indicates a physical structure placed somewhere within or along that boundary.

Architects usually differentiate them through:

1. Property line – dashed line with survey notation.
2. Fence line – patterned line or thin double line.
3. Setback line – dotted line offset from the property boundary.

Survey drawings often label property lines with bearings and distances, while fences receive descriptive tags like "existing" or "proposed."

Confusing the two can cause real-world problems. I've seen renovation projects delayed because contractors assumed a dashed boundary meant a fence rather than a legal lot line.

save pin

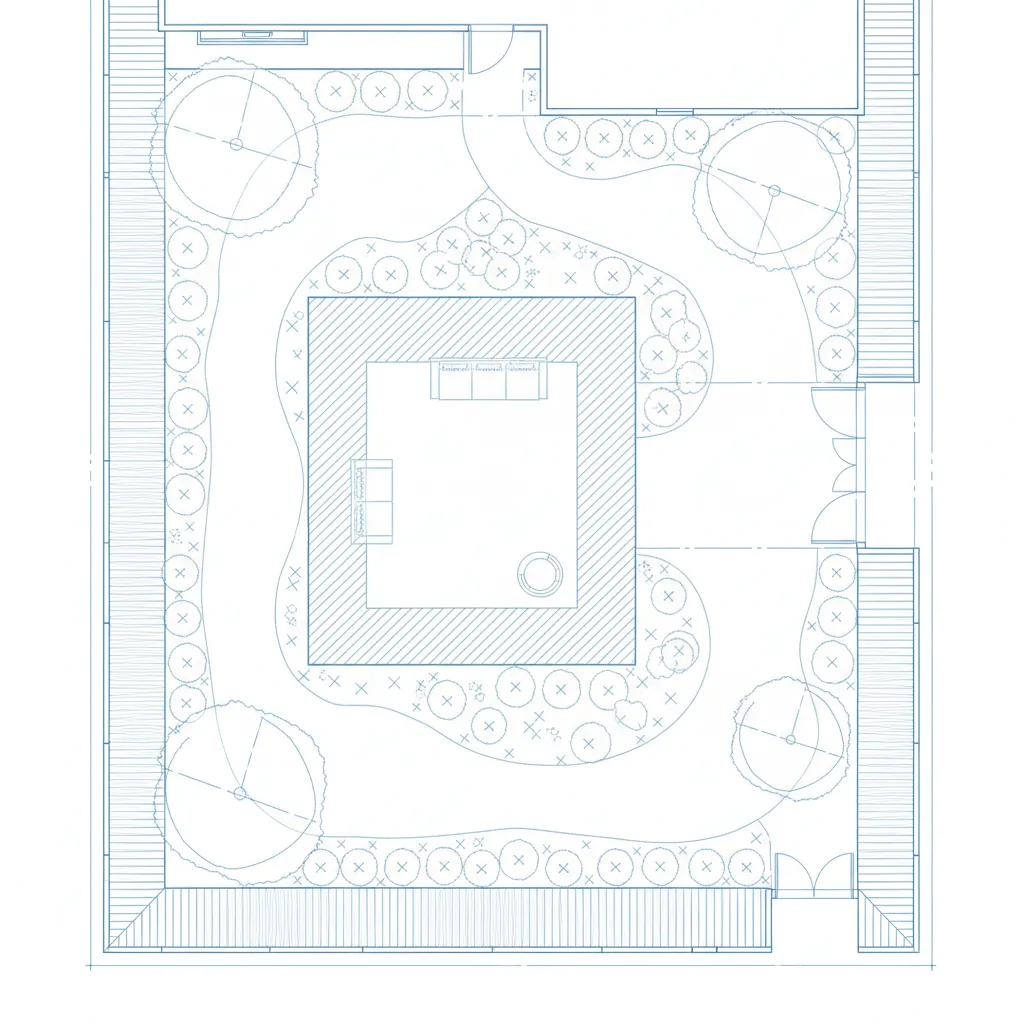

Examples of Fence Symbols in Residential Plans

Key Insight: Residential plans often combine fence symbols with gate markers and landscape elements to communicate outdoor circulation.

In real project drawings, fences rarely appear alone. They interact with driveways, patios, and garden spaces.

Common combinations include:

1. Fence line with a swing gate symbol
2. Fence terminating at a garage wall
3. Fence connecting to landscape retaining walls
4. Fence surrounding a pool enclosure

When planning outdoor layouts, designers frequently test these arrangements in spatial planning software before finalizing drawings. For example, experimenting with placement while visualizing furniture and outdoor boundaries together in a room planning layoutoften reveals circulation conflicts that aren't obvious in flat diagrams.

save pin

Answer Box

Fence symbols on architectural plans are usually represented using light patterned lines, dashed boundaries, or thin double lines. These symbols differentiate fences from structural walls and legal property lines while keeping drawings visually organized.

Best Practices for Labeling Fence Elements

Key Insight: Clear labeling matters more than the symbol itself because fence types vary widely between projects.

In professional drawings, architects almost always combine graphic symbols with short descriptive notes.

Best practice labeling typically includes:

1. Fence height
2. Material type
3. Existing vs proposed status
4. Gate location
5. Special conditions such as privacy or security fencing

A concise label such as "6' WOOD PRIVACY FENCE (NEW)" can prevent costly misunderstandings during construction.

From experience, the biggest drafting mistake isn't choosing the wrong symbol—it's forgetting to label the fence at all.

Final Summary

1. Fence symbols usually use thin patterned lines instead of solid walls.
2. Site plans display fences more clearly than interior floor plans.
3. Line weight hierarchy helps distinguish fences from structural elements.
4. Property lines and fence lines represent different concepts.
5. Clear labeling prevents construction misunderstandings.

FAQ

What does a fence symbol on floor plan drawings usually look like?

It is typically shown as a thin patterned line, dashed line, or double line with posts along property edges.

Are fence symbols standardized in architecture?

There are common conventions, but exact symbols can vary between firms, regions, and drafting standards.

How can I tell a fence from a property line?

Property lines often include survey labels or measurements, while fences are marked with material descriptions or construction notes.

Do interior floor plans usually show fences?

Not always. Fences are more commonly shown on site plans or landscape plans.

What line type is used for a fence in floor plan drawings?

A light dashed or patterned line is the most common line type for fence representation.

Why are fences drawn with thin lines?

Thin lines maintain visual hierarchy so structural walls remain the dominant elements on the drawing.

Can a fence symbol indicate the material type?

Usually the symbol alone does not. The drawing label specifies wood, metal, chain‑link, or other materials.

What is the standard fence representation in floor plans?

The standard fence representation in floor plans uses light patterned lines combined with labels describing height and material.
