Direct Answer

The main difference between a flat slab with drop panels and a flat plate is structural reinforcement around columns. Flat slabs include thickened areas (drop panels or column heads) that improve punching shear resistance and allow longer spans. Flat plates eliminate these thickened zones, making construction faster but limiting span capacity and structural strength.

Quick Takeaways

1. Flat plates are faster to build but weaker against punching shear.
2. Drop panels increase slab stiffness and reduce column stress.
3. Flat slabs typically support longer spans and heavier loads.
4. Flat plates are preferred for simpler residential and hotel layouts.
5. Drop panels add formwork complexity but improve structural safety.

Introduction

In reinforced concrete design, the debate between a flat slab with drop panels and a flat plate system comes up in almost every mid‑rise project I work on. Both systems eliminate beams, which architects love because it creates clean ceilings and flexible layouts. But structurally, they behave very differently.

The biggest confusion I see—especially among younger designers—is assuming these systems are interchangeable. They are not. Choosing the wrong one can quietly limit span length, increase punching shear risk, or drive up reinforcement costs later in the project.

When planning layouts, many teams start by experimenting with spacing and structural grids using tools like visualizing structural grids inside a 3D floor planning workflow. That early step often reveals whether a flat plate will struggle with column spacing before structural calculations even begin.

After working on residential towers, office floors, and mixed‑use podiums for more than a decade, I’ve noticed the real differences between these systems are less about theory and more about trade‑offs: punching shear risk, span flexibility, construction speed, and cost.

This guide breaks down those differences clearly so you can understand when engineers choose a flat slab with drop panels—and when a flat plate is the smarter option.

save pin

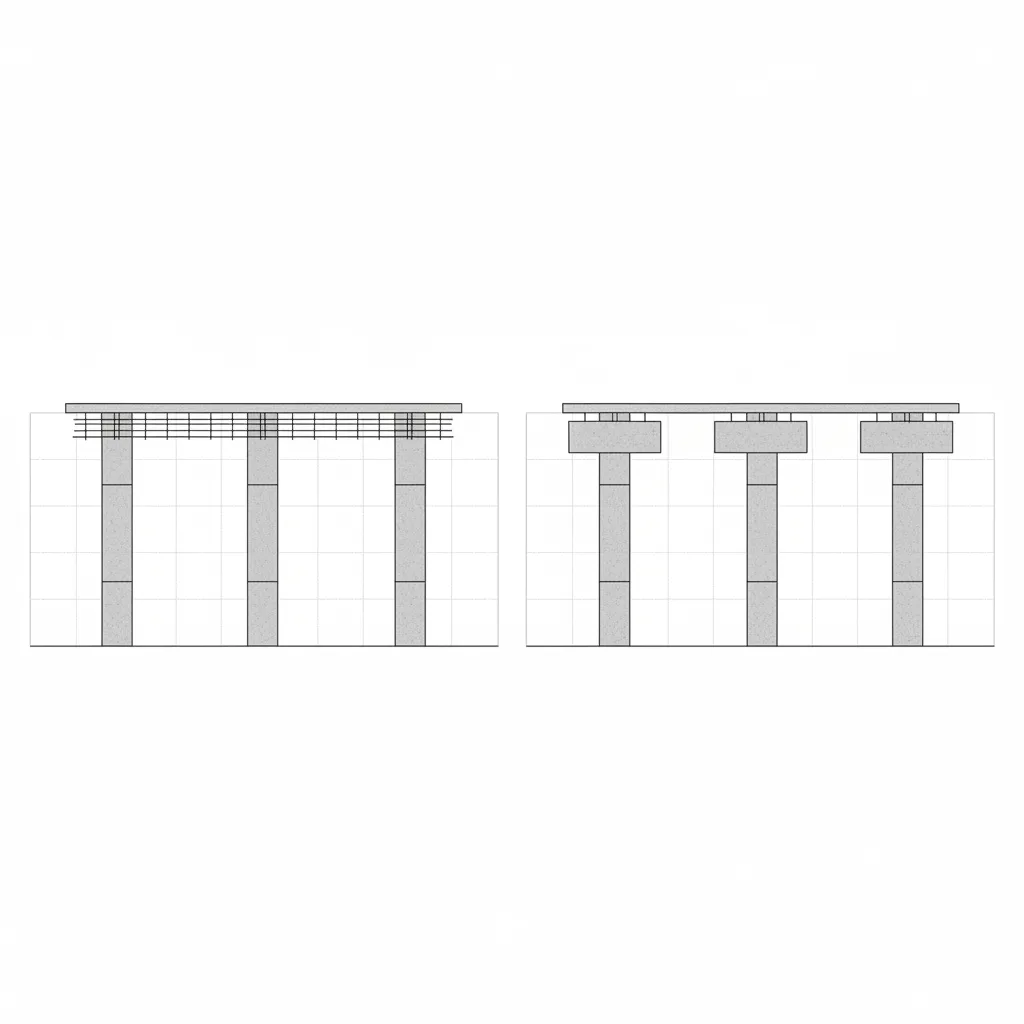

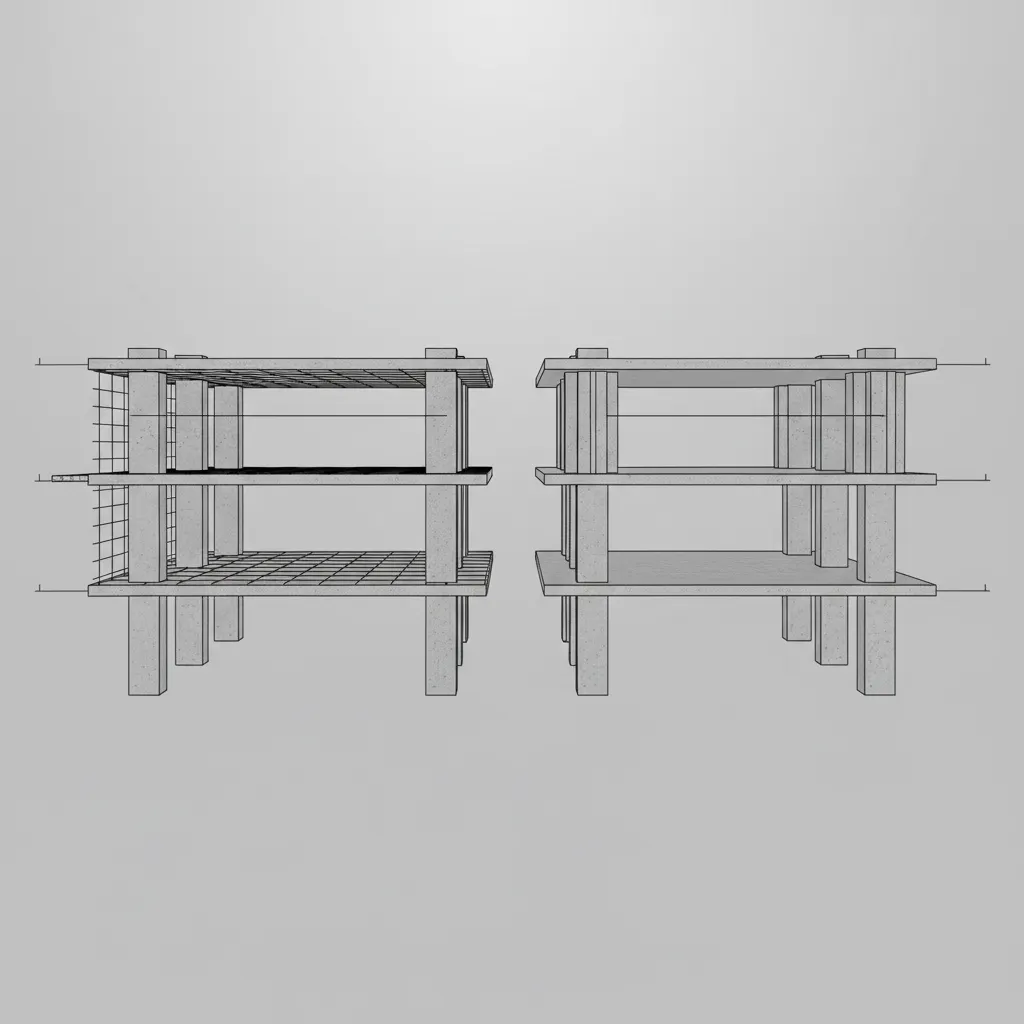

Overview of Flat Plate and Flat Slab Systems

Key Insight: Both systems eliminate beams, but flat slabs add localized thickening near columns to strengthen the structure.

At first glance, flat plates and flat slabs look similar because both create flat ceilings without beams. The real difference lies around the columns.

Flat Plate System

1. Uniform slab thickness
2. No column drop panels
3. Simpler formwork
4. Faster construction

Flat Slab With Drop Panels

1. Thickened slab areas near columns
2. Improved punching shear capacity
3. Higher stiffness
4. Supports longer spans

According to the ACI 318 design guidelines, drop panels increase the critical shear perimeter around columns, which significantly improves punching shear resistance. In practice, that allows engineers to push column spacing further without excessive reinforcement.

This difference becomes crucial in office buildings or parking structures where grid spacing is larger.

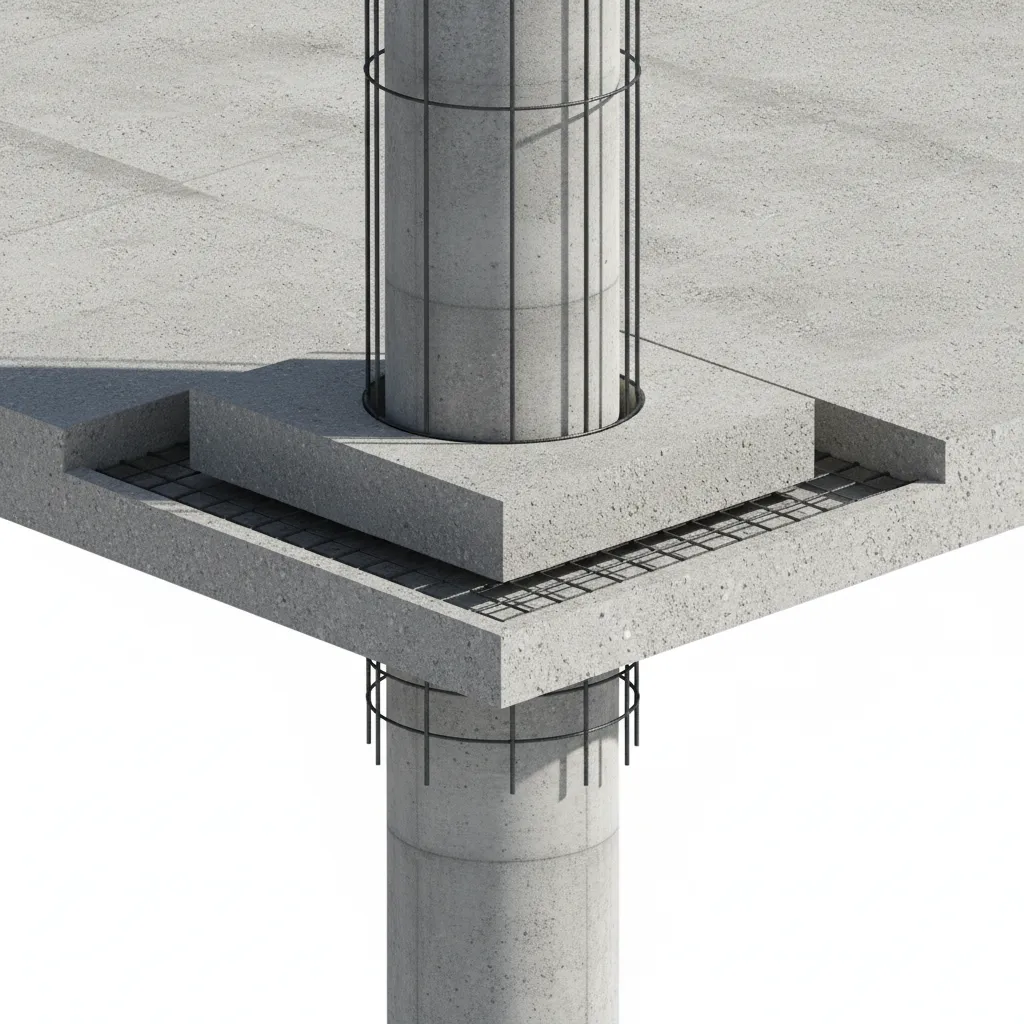

Structural Role of Drop Panels and Interior Panels

Key Insight: Drop panels reduce shear stress and distribute loads more efficiently around columns.

One of the most misunderstood elements in flat slab design is the drop panel. Many people think it simply adds thickness, but structurally it changes how forces travel through the slab.

Drop panels serve three major structural purposes:

1. Increase slab thickness around columns
2. Reduce punching shear stress
3. Improve load distribution into columns

Typical drop panel dimensions:

1. Width: about one‑third of span length
2. Thickness: 25–50% thicker than slab
3. Centered around each column

From my project experience, drop panels become especially valuable when:

save pin

1. Column spacing exceeds 7–8 meters
2. Live loads are heavy (offices, parking, retail)
3. Punching shear reinforcement would otherwise become excessive

The downside is architectural: drop panels slightly reduce ceiling uniformity and complicate formwork.

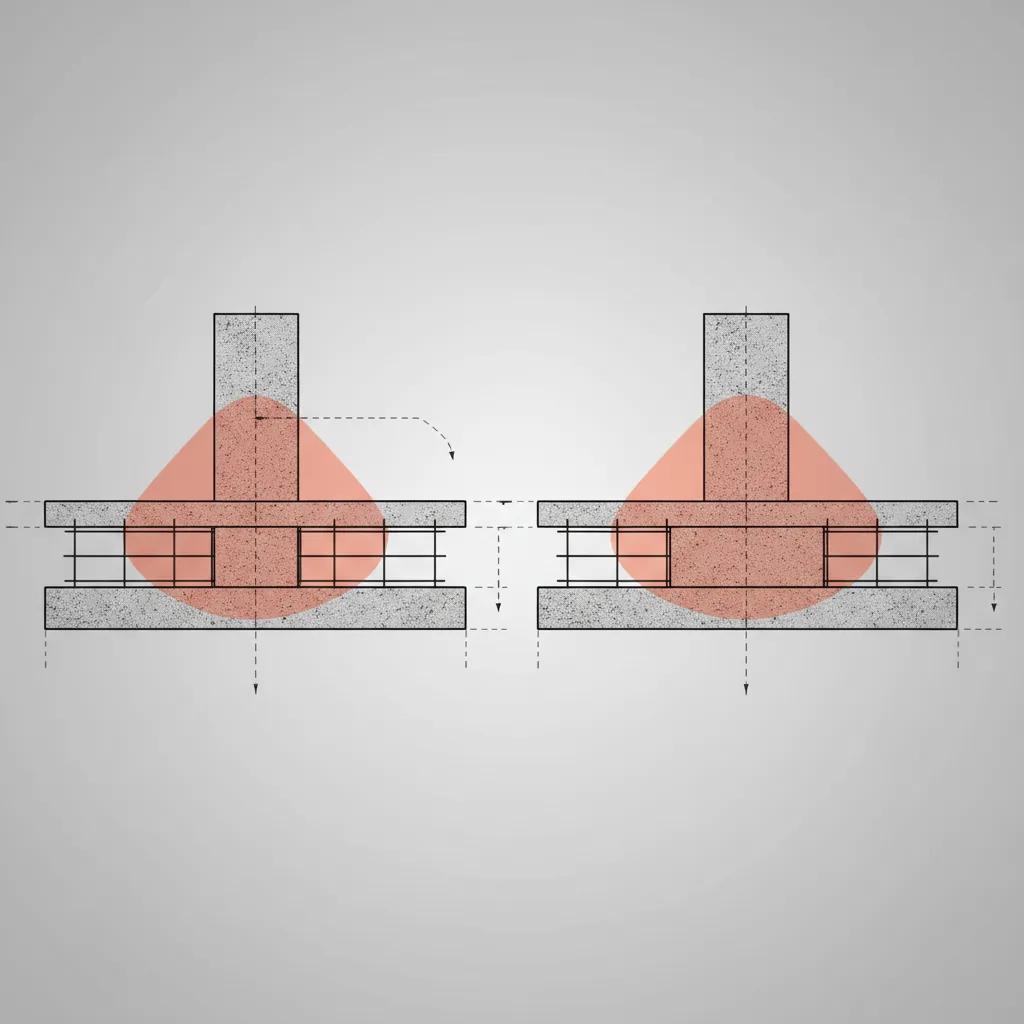

Punching Shear Performance Comparison

Key Insight: Punching shear resistance is the biggest structural advantage of flat slabs with drop panels.

Punching shear occurs when a column effectively "punches" through the slab under high loads. Flat plates are more vulnerable because the slab thickness remains constant.

Comparison:

1. Flat Plate: higher punching shear stress around columns
2. Flat Slab with Drop Panels: lower stress due to increased thickness and shear perimeter

Typical engineering responses when punching shear becomes critical in flat plates:

save pin

1. Shear studs or shear heads
2. Thicker slabs
3. Closer column spacing

However, once shear reinforcement is required extensively, the construction advantage of flat plates often disappears.

Answer Box

Flat slabs with drop panels outperform flat plates in punching shear resistance and span capacity. Flat plates are faster to construct but become inefficient when spans increase or loads are heavy.

Cost and Construction Complexity Differences

Key Insight: Flat plates reduce formwork cost, but structural reinforcement can offset that savings.

From a contractor’s perspective, flat plates are appealing because they simplify construction.

Construction comparison:

1. Flat Plate: simpler formwork, faster cycles, fewer slab thickness changes
2. Flat Slab: additional drop panel formwork, more layout precision

But here's a hidden cost many articles miss: reinforcement density.

In high‑load buildings, flat plates often require:

1. More top reinforcement
2. Shear studs
3. Localized thickening

Once those are added, the cost difference shrinks quickly.

When teams explore layout options early using tools like testing different structural grid layouts with a floor plan creator, they often discover that slightly adjusting column spacing allows a flat plate to remain viable.

Span Capacity and Load Performance

Key Insight: Flat slabs with drop panels handle longer spans and heavier loads more efficiently.

Span capacity is where flat slabs clearly outperform flat plates.

Typical span comparison (approximate ranges):

1. Flat plate: 6–8 meters
2. Flat slab with drops: 8–12 meters

These ranges vary depending on reinforcement ratios and building loads, but the pattern is consistent across most structural projects.

Buildings that typically favor flat slabs:

save pin

1. Commercial offices
2. Parking structures
3. Mixed‑use podium floors

Flat plates remain common in:

1. Hotels
2. Apartment towers
3. Dormitories

These buildings usually have tighter column grids, which reduces the need for drop panels.

When Engineers Choose Each System

Key Insight: The decision depends on span length, load demand, and construction speed priorities.

After many projects, I’ve noticed engineers rarely choose between these systems purely on structural theory. The real decision factors are practical.

Engineers Choose Flat Plates When:

1. Column spacing is relatively small
2. Construction speed is critical
3. Architects want completely flat ceilings
4. Loads are moderate

Engineers Choose Flat Slabs With Drop Panels When:

1. Longer spans are required
2. Punching shear becomes critical
3. Heavy loads are present
4. Column spacing must remain wide

Early visualization of structural grids—such as experimenting with different column spacing in a room planning layout—often reveals which slab system will work before structural calculations begin.

Final Summary

1. Flat plates use uniform slab thickness and simplify construction.
2. Drop panels strengthen flat slabs and improve punching shear resistance.
3. Flat slabs support longer spans and heavier structural loads.
4. Flat plates work best for tighter column grids.
5. Project priorities determine the better system.

FAQ

What is the main difference between a flat slab and a flat plate?

Flat slabs include drop panels or column capitals that strengthen the slab near columns, while flat plates maintain uniform thickness without structural thickening.

Why are drop panels used in flat slab systems?

Drop panels increase slab thickness around columns, reducing punching shear stress and improving load transfer.

Which system is better for long spans?

A flat slab with drop panels is generally better for long spans because it increases stiffness and punching shear capacity.

Are flat plates cheaper to construct?

Flat plates reduce formwork complexity, but additional reinforcement or shear studs can increase total cost.

What span length is typical for flat plate slabs?

Most flat plate systems efficiently span between 6 and 8 meters depending on loads and slab thickness.

Do drop panels affect ceiling appearance?

Yes. Drop panels create visible thickened zones near columns that slightly interrupt a perfectly flat ceiling.

Is punching shear more critical in flat plates?

Yes. Flat plates are more vulnerable because there is no additional slab thickness near the column.

When should engineers avoid flat plate systems?

Flat plates become inefficient when spans are long, loads are heavy, or punching shear reinforcement becomes excessive.
