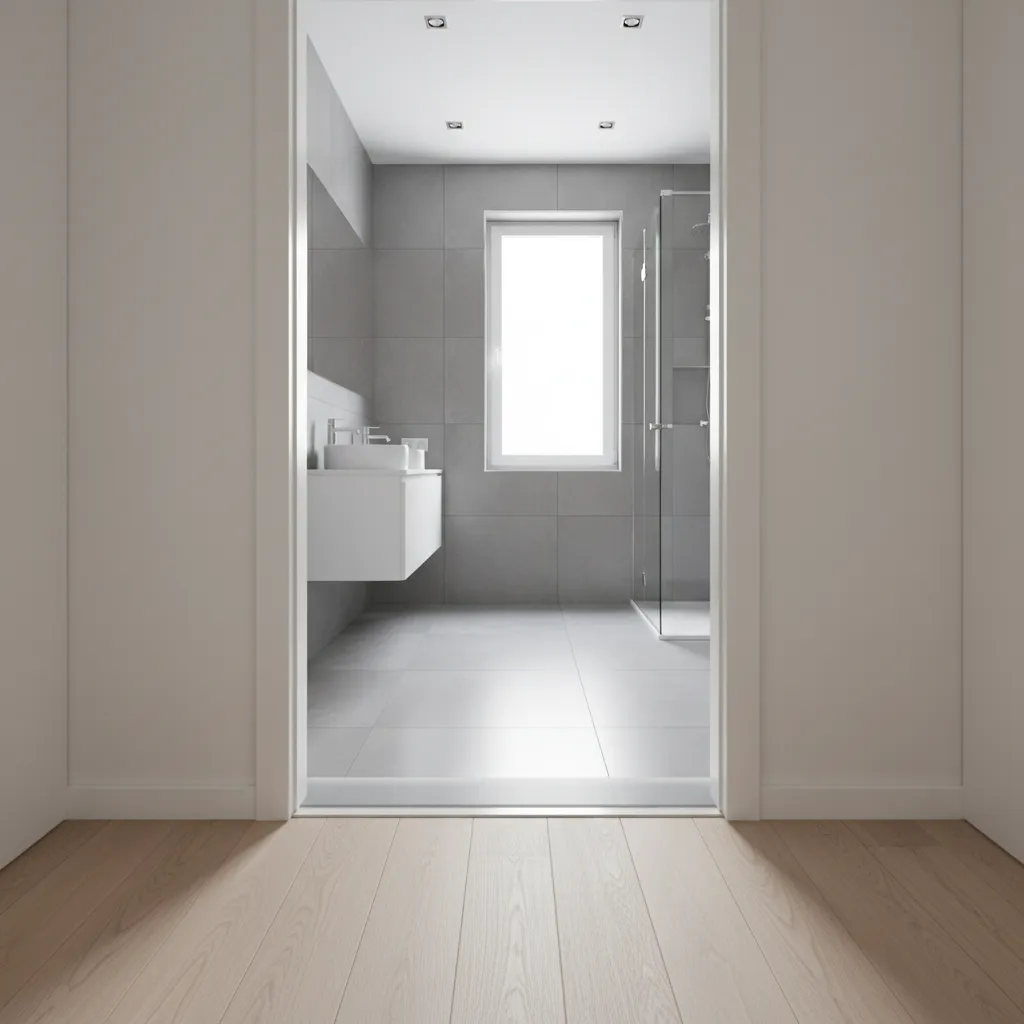

Floor Water Stopper Placement: How to Prevent Water Damage: A practical guide to placing floor water stoppers in bathrooms, doorways, and balconies to stop water from spreading through your home.

Direct Answer

Proper floor water stopper placement prevents water from spreading across connected surfaces by creating small containment barriers at transition points. The most critical locations are bathroom thresholds, doorways, balcony entrances, laundry zones, and areas near floor drains. When placed correctly, a floor water stopper directs water toward drains instead of allowing it to travel into adjacent rooms.

Quick Takeaways

1. Install floor water stoppers at transition points where wet areas meet dry flooring.
2. Bathroom thresholds are the most common and critical containment point.
3. Doorways and balconies require barriers to stop rainwater and overflow.
4. Proper drainage slope is just as important as the stopper itself.
5. Poor placement often causes flooding even when a stopper is installed.

Introduction

After working on residential renovations for more than a decade, I’ve noticed something surprising: most water damage doesn’t start with a catastrophic plumbing failure. It usually begins with small amounts of water slowly traveling across floors because there’s nothing stopping it.

That’s where proper floor water stopper placement becomes essential. A water stopper might look like a simple strip of material, but when placed strategically it can prevent thousands of dollars in repairs. I’ve seen bathrooms flood entire hallways simply because the threshold lacked a 10‑millimeter barrier.

Planning where those barriers belong is easier when you visualize the room layout first. When I’m mapping wet zones and transitions, I often start with a simple floor plan layout tool for mapping wet and dry areas. Seeing the circulation path of water makes placement decisions far clearer.

In this guide, I’ll walk through where water damage actually starts, the locations that absolutely need water stoppers, and the common placement mistakes that designers and contractors still make.

save pin

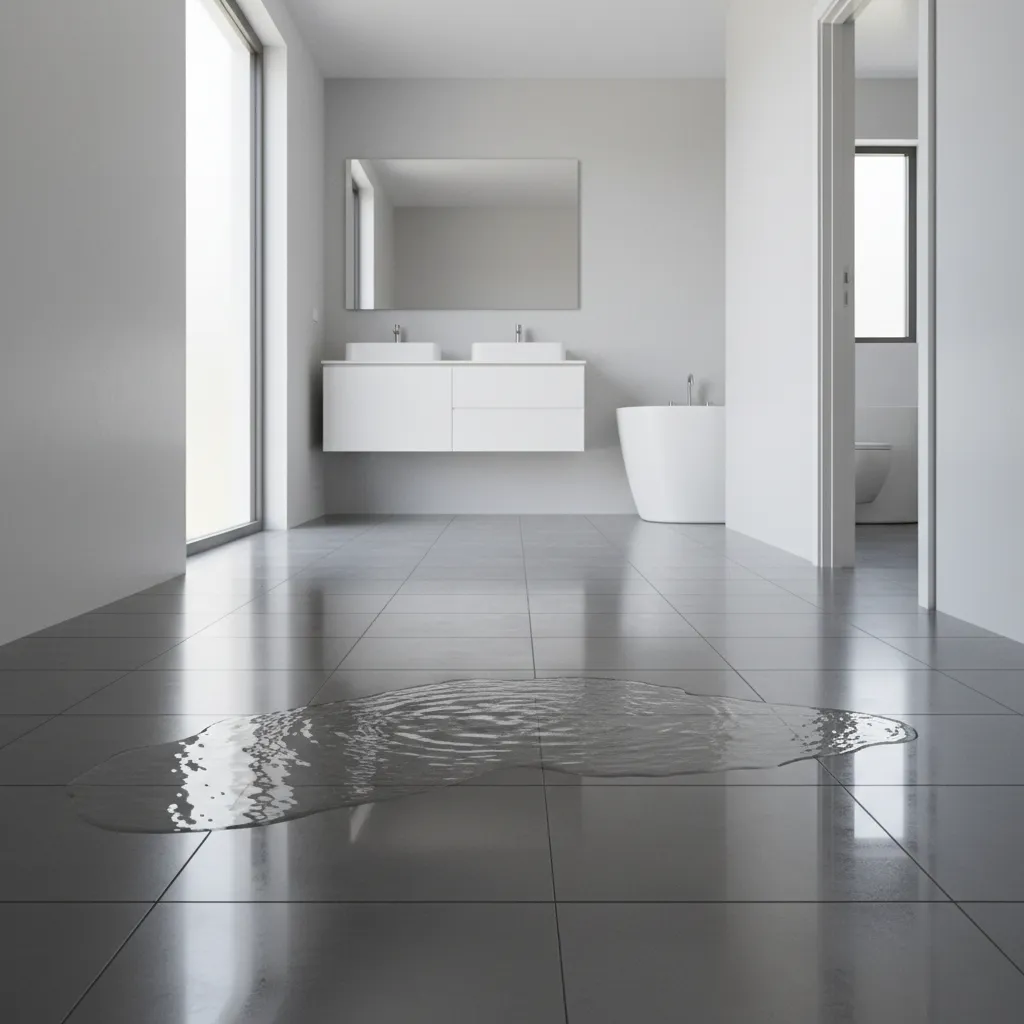

How Water Damage Starts on Floors

Key Insight: Water damage spreads across floors because smooth surfaces allow water to travel far beyond the original leak.

Most homeowners assume leaks are the main cause of flooding, but the real issue is uncontrolled water movement. Once water reaches a flat surface with no barrier, it follows the path of least resistance.

In design reviews, I usually trace water flow the same way we analyze foot traffic. The difference is that water ignores visual boundaries like tile patterns or grout lines.

1. Shower overspray slowly escaping the bathroom
2. Washing machine overflow reaching hallway flooring
3. Rainwater entering from balconies or sliding doors
4. Cleaning water spreading during mopping

According to the Insurance Information Institute, water damage is one of the most frequent residential insurance claims in the U.S., often caused by small containment failures rather than pipe bursts.

That’s why water stoppers are placed at boundaries rather than directly at the water source.

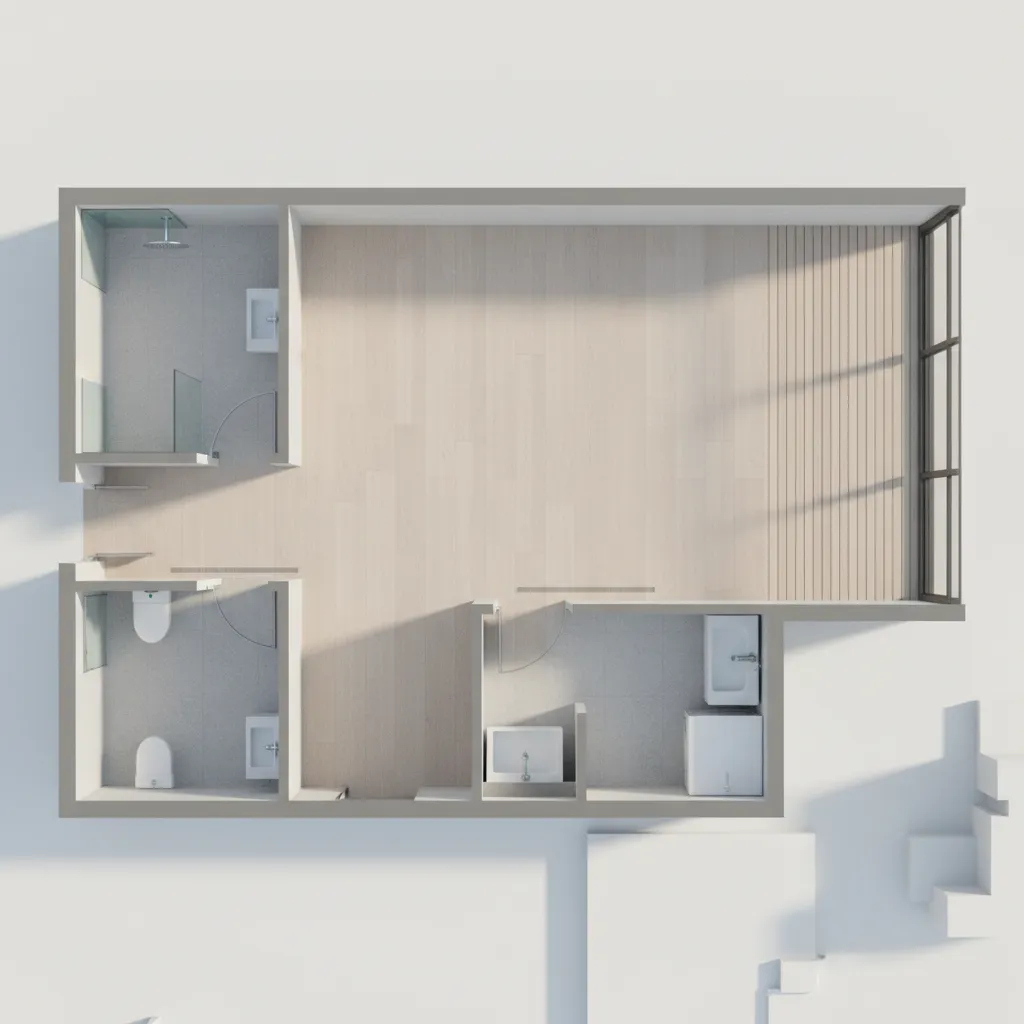

Critical Areas That Need Floor Water Stoppers

Key Insight: The most effective placement locations are transition points between wet zones and dry living spaces.

In nearly every home layout, certain locations repeatedly appear as failure points. These are the areas where water containment barriers make the biggest difference.

1. Bathroom entrances – prevents shower water from spreading into bedrooms or hallways
2. Laundry areas – stops washing machine overflow
3. Balcony doors – blocks wind-driven rain
4. Kitchen wet zones – protects nearby wood or laminate flooring
5. Mechanical rooms – contains water heater leaks

In several apartment renovation projects I worked on in Los Angeles, a 12‑millimeter silicone water stopper at bathroom thresholds reduced hallway water damage incidents significantly during property management reports.

save pin

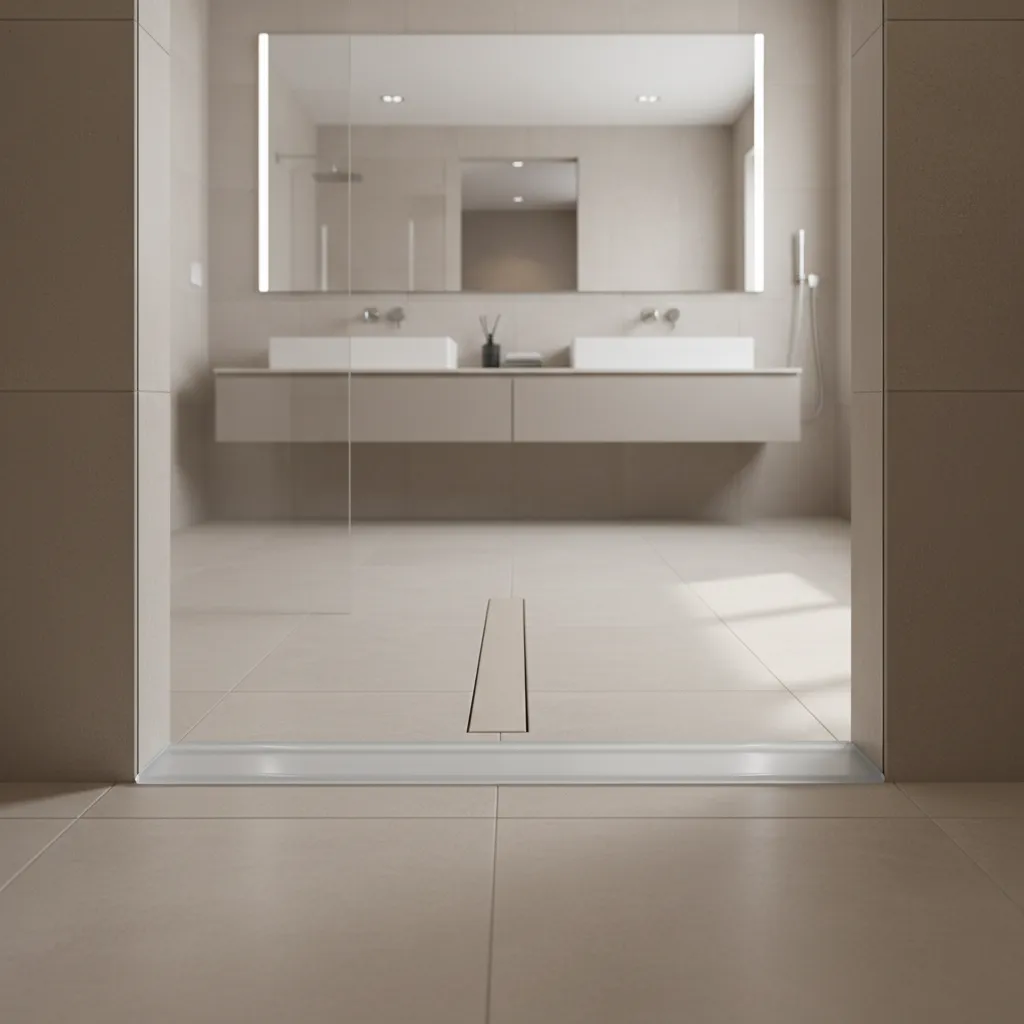

Bathroom and Shower Threshold Protection

Key Insight: A properly designed bathroom threshold is the single most effective floor flooding prevention measure.

If you only install one water stopper in an entire home, make it the bathroom threshold.

Bathrooms produce constant water exposure through showers, sinks, and cleaning. Without a containment edge, even minor splashes migrate outward.

Effective bathroom stopper design usually includes three elements:

1. Raised threshold (8–15 mm height)
2. Slight inward floor slope toward the drain
3. Continuous waterproof seal at the doorway

When planning layouts, I often simulate water flow paths using a visual bathroom layout planner for testing drainage zones. It helps identify whether water naturally flows back toward the drain or escapes the room.

save pin

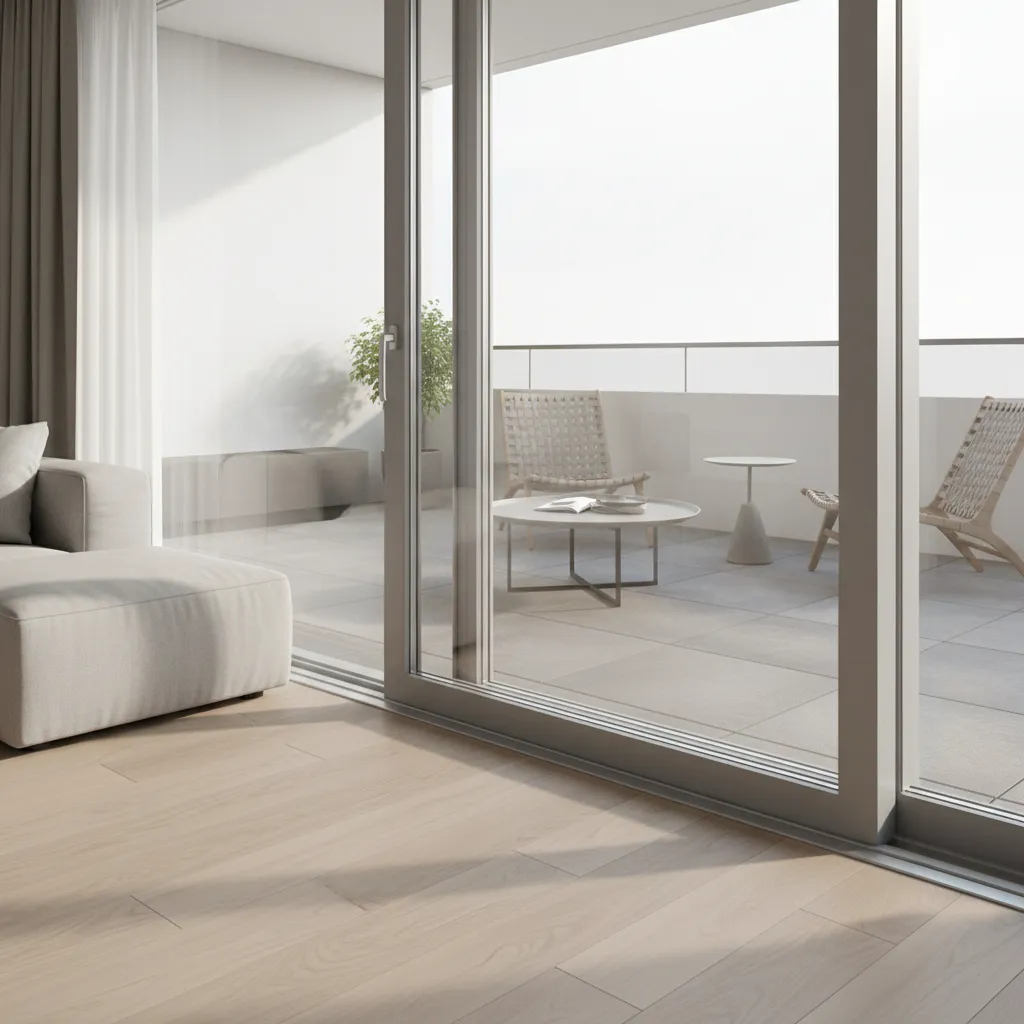

Doorways, Balconies, and Laundry Areas

Key Insight: Exterior transitions and appliance areas require barriers because water events there are unpredictable.

Unlike bathrooms, these areas may stay dry most of the time. But when water appears, it often appears suddenly.

Typical placement strategy:

1. Sliding balcony doors: stopper installed directly inside the frame
2. Laundry closets: barrier installed just outside the appliance zone
3. Garage entry doors: raised edge preventing rain runoff
4. Utility rooms: perimeter containment around equipment

Building codes in some coastal regions even recommend elevated thresholds at exterior openings to prevent rainwater intrusion during storms.

save pin

Combining Drainage Design with Water Barriers

Key Insight: Water stoppers fail when drainage slopes are incorrect.

This is one of the most overlooked design problems I see in remodeling projects. Installers focus on the barrier but forget that water needs somewhere to go.

Good containment systems combine two elements:

1. Physical water barrier
2. Directional floor slope

Typical slope guidelines:

1. Bathrooms: 1–2% slope toward drain
2. Balconies: outward slope away from interior
3. Laundry floors: central drain with surrounding slope

When I design wet zones, I often model slopes with a 3D floor layout planner that visualizes drainage flow. It reveals small grading mistakes that are hard to detect on paper.

Answer Box

The best placement for a floor water stopper is at boundaries between wet and dry spaces, especially bathroom thresholds, balcony doors, and laundry areas. When combined with proper floor slope toward a drain, these barriers prevent water from spreading into adjacent rooms.

Common Placement Mistakes That Lead to Flooding

Key Insight: Many water stopper installations fail because the barrier is installed in the wrong location.

The most frequent errors I encounter during inspections include:

1. Installing the stopper inside the shower instead of at the doorway
2. Leaving small gaps at wall edges
3. Using barriers that are too low for the water volume
4. Ignoring floor slope direction
5. Breaking the seal during flooring installation

A surprising issue is decorative flooring transitions. Designers sometimes prioritize visual continuity and remove the small threshold that actually prevents water spread.

Designing a Complete Water Containment Strategy

Key Insight: Effective flood prevention uses multiple containment layers rather than relying on a single barrier.

Professional interior planning typically includes three levels of water protection:

1. Primary containment (shower curb or tub edge)
2. Secondary containment (floor water stopper at doorway)
3. Drainage management (floor slope and drains)

When these layers work together, water remains confined to its intended area even during heavy use or small plumbing failures.

Final Summary

1. Place floor water stoppers at wet‑to‑dry transitions.
2. Bathroom thresholds are the highest priority.
3. Exterior doors and laundry areas require containment.
4. Drainage slope determines whether barriers work.
5. Multiple containment layers provide the best protection.

FAQ

Where should a floor water stopper be installed?

Install it at transition points such as bathroom doors, balcony entrances, and laundry areas where water could spread to dry flooring.

How high should a floor water stopper be?

Most residential installations use barriers between 8 mm and 15 mm depending on expected water volume.

Can a floor water stopper stop bathroom flooding?

Yes. Proper floor water stopper placement at the bathroom threshold helps prevent bathroom water from spreading across floors.

Do I need a water stopper if my floor has a drain?

Yes. Drains manage water removal, but a stopper prevents overflow from reaching other rooms.

What material is best for floor water stoppers?

Silicone, aluminum, and rubber barriers are common. The best choice depends on floor type and water exposure.

Can water stoppers be installed after flooring?

Yes, many adhesive or screw‑mounted options allow retrofitting without replacing flooring.

Is doorway water stopper placement necessary for balconies?

Absolutely. Balcony doors are a major source of rainwater intrusion during storms.

What is the best placement for a floor water barrier?

The best placement for a floor water barrier is at the doorway threshold separating wet areas from dry interior spaces.

References

1. Insurance Information Institute – Water Damage Statistics
2. International Residential Code (IRC) Drainage and Waterproofing Guidelines
3. National Kitchen and Bath Association Planning Standards
