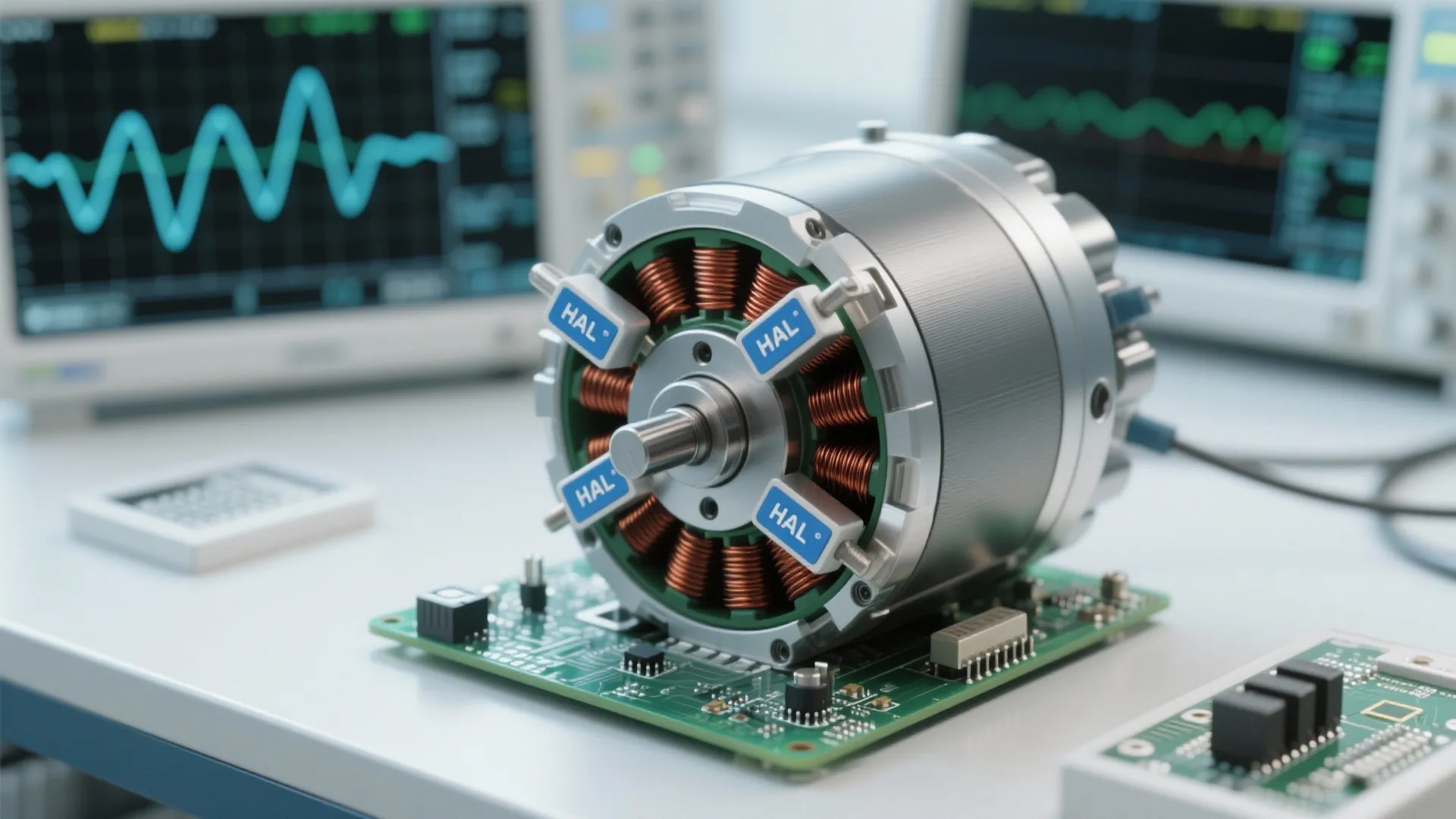

Hall Sensor Motor: Ultimate Guide to Motor Control: 1 Minute to Understand Hall Sensor Motors & Fast-Track Your Projects

Precision in motor control hinges on knowing exactly where the rotor sits and how fast it’s moving. Hall-effect sensors deliver that feedback with speed and reliability, transforming how we manage commutation, torque, and safety in BLDC and PMSM drives. In my projects—from compact robotics to large-format fans—Hall sensors have been the difference between jittery starts and seamless, energy-efficient motion.

Quantifiable benefits matter. In workplace environments, improvements in acoustic comfort and smooth motion have measurable impacts on well-being and productivity: the WELL v2 standard cites sound as a critical comfort factor, and organizations meeting WELL sound criteria report higher satisfaction and reduced complaints (WELL v2, Sound concept). At the product level, better commutation reduces cogging and tonal noise; Steelcase research ties acoustic conditions to attention and performance in knowledge work, underscoring why quiet, stable motors influence user experience and task quality (Steelcase Research on acoustic performance).

Understanding Hall-effect Sensors

Hall-effect sensors detect changes in magnetic fields and convert them into electrical signals. Mounted around a motor’s stator or integrated on the rotor, they provide position or velocity cues used by the controller to time phase switching. In BLDC motors, three digital Hall sensors typically deliver 60° electrical spacing, enabling trapezoidal commutation. In PMSM drives, Hall sensors can support hybrid strategies—using sensored startup before handing off to sensorless field-oriented control (FOC) at speed.

Key Hall Sensor Types

• Digital latch/threshold sensors: Provide binary outputs at magnetic threshold crossings, ideal for 6-step BLDC commutation.

• Linear Hall sensors: Output an analog voltage proportional to magnetic flux density, useful for precise angular interpolation and current sensing.

• Integrated Hall ICs with signal conditioning: Offer temperature compensation, debounce, and diagnostics, reducing controller-side filtering.

Motor Categories Using Hall Sensors

• BLDC (Brushless DC): Most common pairing; sensors inform 6-step commutation, allowing predictable torque and reliable low-speed startup.

• PMSM (Permanent Magnet Synchronous): Often sensorless at speed; sensors improve startup, low-speed torque, and fault recovery.

• Stepper with hybrid feedback: In applications prone to missed steps under load, Hall feedback enables closed-loop correction.

How Hall Feedback Improves Control

• Startup reliability: Direct rotor position at standstill prevents hunting and hard starts.

• Low-speed torque: Accurate phase timing reduces ripple and improves holding stability.

• Acoustic quality: Fewer commutation errors mean lower tonal peaks and smoother spectra—good for WELL v2 comfort goals.

• Efficiency: Reduced phase misalignment lowers I²R losses and heat.

• Safety: Fast stall detection and speed monitoring enable protective cutoffs.

Commutation Strategies

• Trapezoidal 6-step: Three Hall lines decode six states across one electrical revolution. Simple, efficient, widely used.

• Sinusoidal with interpolation: Linear Hall data or oversampling of digital edges enables smoother current profiles and lower torque ripple.

• Field-Oriented Control (FOC): Uses absolute angle (from encoder or interpolated Hall) to regulate dq currents; sensors assist below back-EMF thresholds.

Signal Processing and Filtering

Hall signals require clean edges. I typically add hardware RC filters for high-frequency EMI and Schmitt-trigger inputs for noise immunity. Software debouncing, edge time validation, and state-consistency checks further harden the system. Temperature drift in Hall ICs can shift thresholds; choose parts with built-in compensation and validate across the operating envelope.

Sensor Placement and Mechanical Considerations

Place sensors where flux transitions are strongest and consistent. Maintain precise angular spacing (e.g., 60° electrical for BLDC), tight air gaps, and rigid mounting to avoid timing jitter. Shielding and grounded back-plates help in high-EMI environments. On compact rotors, magnets with well-defined pole arcs reduce harmonic content and make edge detection cleaner.

Electrical Design: Power, Ground, and EMC

Use a stable sensor supply with local decoupling (e.g., 0.1 µF + 1 µF close to each IC). Route sensor grounds separately from high-current return paths; star-grounding often improves consistency. Differential routing for linear outputs raises noise immunity. Follow IES guidance on glare management for indicator LEDs on drive boards to avoid visual discomfort in service areas (IES standards), and consider overall system lighting if the device is part of a work environment.

Calibration, Diagnostics, and Safety

On the bench, I run slow-speed sweeps to map sensor transitions against commanded angle, logging skew and jitter. Add self-test routines: cross-check expected state sequences, monitor stuck-at faults, and time-edge intervals for speed plausibility. If state changes stall beyond a threshold, cut drive and report a fault. Tie safety logic to torque limits and thermal sensors to protect the drive and mechanics.

Layout Planning for Integrated Motors

When Hall sensors are integrated into compact assemblies, spatial planning matters: cable routing, strain relief, airflow, and service access must coexist with mechanical tolerances. For housing designs, a room layout tool can help simulate installation clearances and technician access in equipment rooms to reduce maintenance conflicts and avoid acoustic hotspots.

room layout tool

Human Factors: Sound, Color, and Interaction

In devices used in offices or healthcare, motion quality is part of user comfort. Steelcase research links controllable noise to improved focus; quieter commutation supports this. Color cues on control panels should respect color psychology: Verywell Mind notes blue and green tones are perceived as calming, useful for status indicators that reduce anxiety. Dimmable indicators with warm color temperatures (around 2700–3000K) minimize glare and visual fatigue.

Material Selection and Sustainability

Choose magnets with stable coercivity (NdFeB grades matched to thermal profile), laminations with low core loss, and bearings with low-noise grease. Sustainable design benefits from longer service life: fewer replacements mean lower embodied energy over time. Recyclable housings and modular sensor pods simplify end-of-life recovery.

Design Ratios and Visual Balance

On exposed products—ceiling fans, robotics, or smart appliances—maintain balanced proportions: motor can diameter to enclosure thickness, vent rhythms for airflow without visual clutter, and consistent fastener spacing. Quiet motors deserve quiet aesthetics: reduce visual noise with clean lines and restrained color contrast.

2024–2025 Trends in Motor Control

• Hybrid sensored–sensorless FOC: Sensors ensure reliable low-speed behavior; sensorless algorithms take over for peak efficiency.

• Edge diagnostics: Onboard monitoring of Hall health and vibration enables predictive maintenance.

• Low-tonal acoustic design: Current shaping and mechanical damping tuned for WELL-aligned comfort.

• Integrated UX: Lighting, haptics, and soundscapes coordinated for cohesive product experience.

Practical Tuning Checklist

• Verify Hall phase order and 60° spacing relative to electrical cycle.

• Tune debounce/filters to your PWM and switching frequency.

• Map commutation advance vs. speed for efficiency and acoustic targets.

• Validate thermal performance across ambient extremes.

• Implement fault handling: missing edges, implausible speed, sensor disagreements.

• Document service access and cable routing; plan strain relief and EMC shields.

FAQ

1) What advantage do Hall sensors offer over sensorless control at low speed?

They provide absolute position at standstill, enabling clean startup and high torque without hunting. Sensorless methods rely on back-EMF, which is weak at low speed.

2) How many Hall sensors do I need for a BLDC motor?

Three digital Hall sensors spaced 60° electrically are typical, delivering six distinct states for 6-step commutation.

3) Can Hall sensors improve acoustic performance?

Yes. Better timing reduces torque ripple and tonal components. This aligns with WELL v2 priorities on sound comfort and supports quieter products.

4) Do I need linear Hall sensors for FOC?

Not necessarily. Many drives use encoders for precise angle. However, linear Hall sensors or interpolation of digital edges can assist at low speed before sensorless FOC engages.

5) What causes Hall signal noise?

EMI from switching, long leads, poor grounding, and temperature drift. Use decoupling, shielding, Schmitt-trigger inputs, and software validation of edge timing.

6) How should I place Hall sensors mechanically?

Ensure consistent air gap, rigid mounts, and accurate angular spacing. Position near strong, clean flux transitions and avoid magnet irregularities.

7) Can Hall feedback help steppers avoid missed steps?

Yes. Closed-loop steppers use Hall or encoder feedback to correct position under load, improving reliability in variable-torque applications.

8) How do I handle faults if Hall edges stop?

Implement watchdog timing; if expected state transitions stall, cut drive, enter safe mode, and log the event for diagnostics.

9) What’s the impact of commutation advance?

Advancing phase timing at higher speeds can improve efficiency and reduce heat but must be tuned to avoid increased noise or reduced torque.

10) Are Hall sensors suitable in high-temperature environments?

Yes, with appropriate grades. Choose ICs with temperature compensation and magnets rated for your thermal profile to prevent demagnetization and drift.

11) How do lighting and indicators relate to motor control?

Indicator LEDs should avoid glare and use calming colors. Consider IES guidance on visual comfort and warm color temperatures to reduce fatigue in service spaces.

12) Can Hall sensors reduce energy consumption?

By improving timing and lowering losses, they can reduce current draw, especially under variable loads, contributing to better efficiency.

13) What diagnostics should I log?

Edge timestamps, state order validity, speed estimates, temperature, and fault counts. These support predictive maintenance and quicker troubleshooting.

14) When should I prefer an encoder over Hall sensors?

Use encoders when precise angular resolution is required at all speeds, such as high-performance servo applications. Hall sensors are excellent for robust, cost-effective commutation and low-speed reliability.
