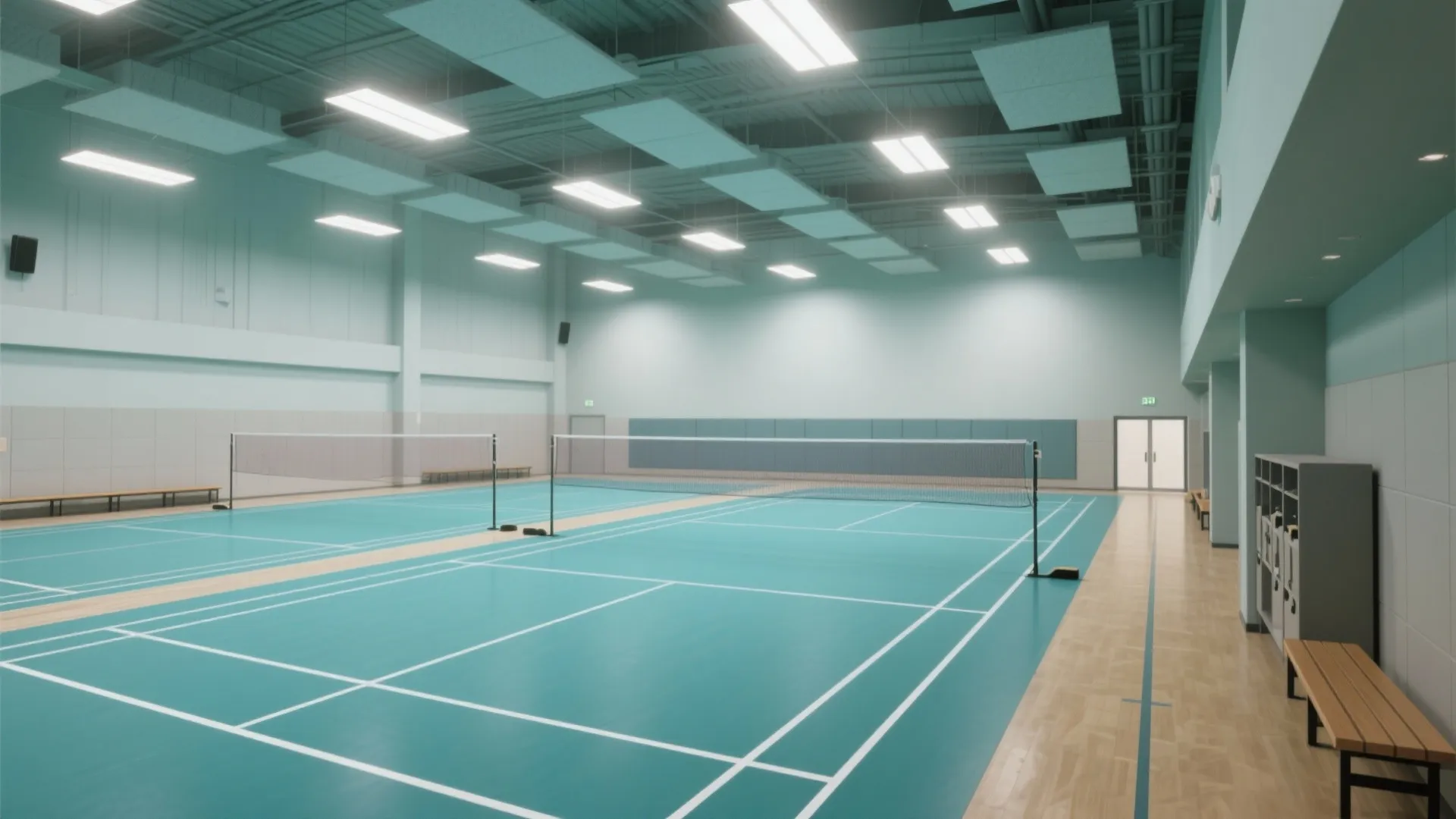

Happy Colony Badminton Hall: Your Ultimate Guide to Local Court Design: 1 Minute to Find the Best Tips for Designing Badminton Courts in Your Community

I design local sports venues for a living, and badminton halls remain the most deceptively simple spaces to get right. The lines seem straightforward, yet the lighting, acoustics, floor system, and circulation can make or break play quality. In community projects like a Happy Colony Badminton Hall, the goal is reliable performance, low maintenance, and an inviting atmosphere that gets used daily.

Player performance and safety hinge on measurable standards. For instance, the International WELL Building Institute references visual comfort criteria in WELL v2, encouraging uniform illumination and controlled glare for sports and activity settings; glare control alone can reduce visual fatigue that undermines reaction time. Meanwhile, the Illuminating Engineering Society recommends target illuminance levels for indoor sports between approximately 300–750 lux depending on competition level, with higher uniformity for advanced play. Across my projects, maintaining 500–750 lux on the playing surface with UGR control keeps eyes relaxed, while consistent reflectance on walls keeps shuttle trajectories visible. For workplace-to-recreation parallels in behavior and wayfinding, Gensler’s research notes how intuitive circulation and clear zoning improve task flow; translate that to sports halls and you shorten setup time and reduce congestion between games.

Space planning benefits from layout simulation early on. I usually start with a simple interior layout planner to test clearances, service corridors, and seating angles before I commit to structure. If you’re mapping multi-court bays or trying staggered courts to ease interference, a room layout tool like the layout simulation tool helps you visualize run-offs, viewing lines, and storage access—and spot bottlenecks before they’re poured in concrete.

Site and Volume: Getting the Shell Right

A comfortable badminton hall breathes. Aim for clear heights of 9–12 m for competition and at least 7.5–9 m for community play, keeping luminaires and ceiling services above the shuttle flight arc. Continuous spans without low-hanging trusses reduce visual clutter and mitigate stray shadows. Avoid clerestories that introduce harsh lateral daylight; if daylight is desired, specify diffused glazing with controllable shades along non-glare orientations.

Court Dimensions, Clearances, and Circulation

Standard court size is 13.4 m x 6.1 m (singles and doubles share boundary lines), but the safety and comfort come from the buffer zones. Provide 1.5–2.0 m of run-off at baselines and 1.2–1.5 m at sidelines for community halls; stretch to 2.0–2.5 m where possible for coaching and tournaments. Between adjacent courts, 2.0 m keeps collisions down and accommodates line judges or equipment trolleys when needed. Add a 2.5–3.0 m circulation spine along one long side for benches, kit bags, and a low-traffic spectator edge.

For multi-court halls, I prefer 2, 4, or 6-court blocks, aligned with nets perpendicular to the main entry so players enter along the sideline rather than crossing the baseline. If the plan is tight, stagger courts by 1–1.5 m to reduce cross-glare and shuttle interference.

Lighting Strategy: Uniformity, Glare Control, and Color

Set the playing surface at 500–750 lux for advanced community play with a uniformity ratio near 0.7 or better. Keep correlated color temperature around 4000–5000K to balance alertness and color fidelity, with CRI ≥80 (≥90 if you host training videos or local streams). Mount luminaires at or above 8–9 m with asymmetric optics aimed to avoid direct view angles from typical return shots. Shielding angles of 30°+ help keep players from staring into the source on high clears. For competitive use, provide a higher-illuminance scene and a training scene via dimmable drivers, and keep flicker close to zero to prevent eye strain and camera banding.

Walls painted in mid-tone matte finishes (LRV 40–60) enhance shuttle visibility against the background without turning the hall into a glare box. Avoid glossy floors and shiny metal near the baseline; they reflect luminance into players’ eyes and make shuttles harder to track.

Flooring and Sports Underlayment

Badminton punishes joints if floors are too hard. A multi-layer sports vinyl system or a sprung wood subfloor with a point-elastic top layer works best. Aim for vertical deformation in line with indoor sports standards (typically 2–5 mm for community halls) and slip resistance of 80–110 BPN (British Pendulum) equivalent on a clean, dry surface. Seam welding and perimeter taping minimize trip points. Color matters: neutral, low-chroma greens or blues keep visual fatigue down and make white/yellow shuttles read cleanly.

Acoustics: Keep the Sound Crisp, Not Boomy

Large-volume halls love to echo. Target an RT60 around 1.5–2.0 seconds for community badminton, lower if you host coaching sessions where speech intelligibility matters. Use a mix of high-mounted acoustic baffles, perforated wall panels with mineral wool backing, and soft seating. Place absorption away from direct ball strike zones. If you incorporate a mezzanine, line its soffit with acoustic panels to cut slap-back toward the baseline.

HVAC, Fresh Air, and Thermal Comfort

Players heat up fast; the room shouldn’t. Design for stable 20–24°C during play, with well-distributed supply that avoids cross-drafts over the net—air movement can push shuttles off course. Displacement ventilation at low velocities or high-level linear diffusers angled away from the court center keep play fair. Filtration at MERV 13 where possible helps with indoor air quality, and return grilles should be outside play zones to avoid audible hiss near baselines.

Color Psychology and Visual Balance

Color influences perception and endurance. Cooler hues (muted blue-green range) support alertness without raising arousal too high. According to color psychology research commonly referenced in design practice, saturated reds can heighten intensity but may also increase perceived stress and visual noise in fast-paced sports. I favor a triad: low-chroma floor, mid-tone walls, and a slightly lighter ceiling for lift—balanced so the shuttle remains the visual star. Keep lines high-contrast (white or bright yellow) and maintenance-friendly.

Layout Workflow: Storage, Benches, and Coaches’ Corners

Match-day chaos disappears when storage is planned. Put a 6–10 m² storage room for nets, posts, markers, and maintenance at the short side near the entry spine. Add shallow lockers for rackets and shoes at eye level, and provide 1.8–2.0 m clear in front of benches so bags don’t spill into play. If you host coaching, carve out a 3–4 m deep corner with whiteboard, tripod space, and a safe standing zone away from shuttle trajectories. When I test these adjacencies, I use an interior layout planner to move benches, cages, and spectator rails until circulation reads clean—try a room design visualization tool to simulate peak-hour flows.

Lighting Controls, Operations, and Maintenance

Zones should match court groups—one button for two courts reduces wastage during off-peak sessions. Layer task scenes for setup, cleaning, and competitive play. Cable tray runs above catwalks keep maintenance safe; specify IP-rated luminaires if your hall doubles as a humid multipurpose space. Paint a simple visual map near the entry with emergency routing and court numbering; it cuts wayfinding confusion before league nights.

Sustainability and Durability

Choose low-VOC finishes, FSC-certified timber where applicable, and modular acoustic systems that can be replaced panel by panel. LED fixtures with 130–160 lm/W efficacy, high TM-21 lifetime projections, and field-replaceable drivers keep running costs predictable. Where the climate allows, incorporate night-purge strategies to cool the volume before morning sessions.

Budget Priorities: Where to Spend and Where to Save

Spend on the floor system, glare-controlled lighting, and acoustic treatment. Save on fancy wall cladding and bespoke seating; robust benches and durable paint do the job. Keep a contingency for replacement nets, extra shuttles, and touch-up paint—the small items that keep a hall feeling fresh.

Quick Spec Checklist

- Clear height: 9–12 m ideal (≥7.5–9 m minimum for community)

- Court size: 13.4 m x 6.1 m; run-offs 1.5–2.5 m

- Lighting: 500–750 lux, CCT 4000–5000K, CRI ≥80/90, glare-controlled

- Acoustics: RT60 ~1.5–2.0 s, use baffles and perforated panels

- Floor: sprung or vinyl sports system, safe slip resistance, low glare

- HVAC: stable 20–24°C, low-velocity supply, good filtration

- Circulation: 2.5–3.0 m spine, 2.0 m between courts

- Storage: 6–10 m² + lockers; coaching corner 3–4 m deep

FAQ

Q1. What is the ideal lighting level for community badminton?

A1. Target 500–750 lux on the court with uniformity around 0.7 and strong glare control. Keep CCT at 4000–5000K and CRI ≥80 (≥90 for filming or advanced training).

Q2. How high should the ceiling be?

A2. For comfortable play, plan 9–12 m clear height where possible. Community halls can function at 7.5–9 m, provided luminaires and ductwork sit above shuttle trajectories.

Q3. What flooring performs best for joints and traction?

A3. A sprung subfloor with a resilient sports vinyl or engineered wood top gives shock absorption and reliable grip. Aim for modest vertical deformation (about 2–5 mm range) and non-glare finishes.

Q4. How much space should I leave around each court?

A4. Provide 1.5–2.0 m at baselines and 1.2–1.5 m at sidelines for community play; expand to 2.0–2.5 m for events or coaching, plus 2.0 m between courts and a 2.5–3.0 m circulation spine.

Q5. How do I control echo in a large hall?

A5. Use a combination of ceiling baffles and perforated wall panels with acoustic backing to bring RT60 near 1.5–2.0 seconds. Treat mezzanine soffits and avoid placing absorption where balls frequently strike.

Q6. What color scheme improves shuttle visibility?

A6. Choose low-chroma floor tones, mid-tone matte walls (LRV 40–60), and a slightly lighter ceiling. Keep line markings high-contrast and avoid glossy finishes that cause glare.

Q7. How should HVAC be designed so shuttles aren’t affected?

A7. Use low-velocity supply and avoid direct crossflows over the net. High-level linear diffusers or displacement systems help, with temperature held roughly 20–24°C during play.

Q8. What layout tools help before construction?

A8. A digital interior layout planner lets you test run-offs, seating, storage, and sightlines. Use a layout simulation tool to visualize peak-hour circulation and avoid bottlenecks.

Q9. Do I need dimmable lighting scenes?

A9. Yes. Create scenes for training, competition, setup, and cleaning. Dimming saves energy during off-peak hours and adapts light to users’ visual comfort.

Q10. Where should storage be placed?

A10. Near the main entry spine or at a short side with easy trolley access. Plan 6–10 m² plus shallow lockers; this keeps courts clear and turnover quick between games.
