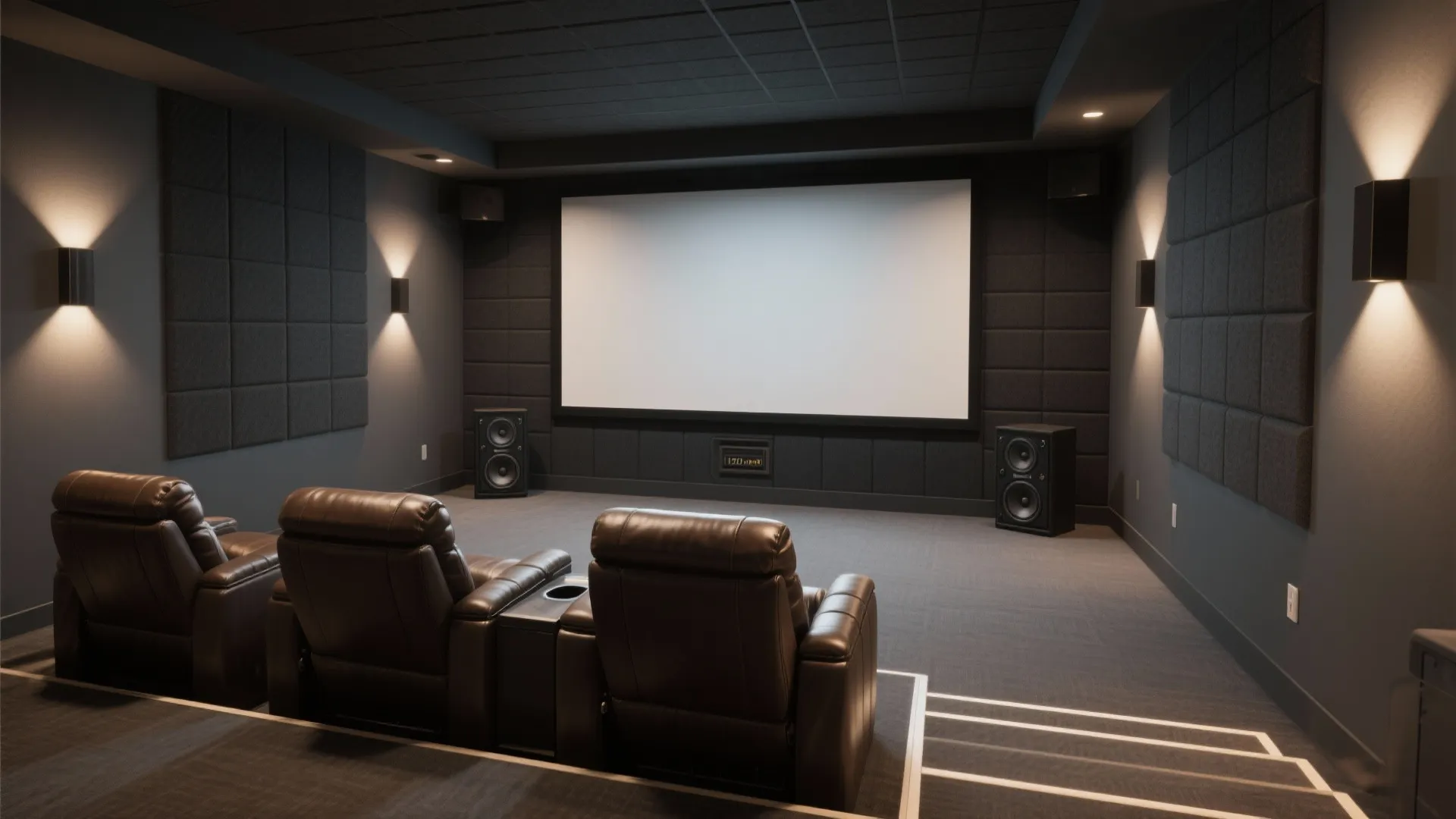

Home Theater Room Size: Guide to Perfect Dimensions: Fast-Track Guide to Choosing the Right Home Theater Room Size

I’ve planned and tuned more than a hundred home theaters, from compact media dens to basement cinemas. The rooms that feel truly cinematic get three things right: proportions, acoustic behavior, and clear sightlines. Size matters, but so do ratios, speaker geometry, and where light lands. Below is a practical playbook I use to choose dimensions that work in real homes.

Let’s anchor the guidance with data. WELL v2 recommends background noise levels near NC 25–35 for comfortable speech and media listening, which correlates to roughly 25–35 dBA in quiet residential spaces, helping dialog intelligibility at typical 65–75 dBA playback levels. On ergonomics, Herman Miller’s research notes that sustained viewing comfort is optimized when primary content sits within a 15° vertical angle from eye height, limiting neck strain during long sessions. I design seat risers and screen heights to keep viewers within that envelope.

Acoustically, balanced dimensions reduce resonant peaks. The Institute of Electrical and Electronics Standards aren’t our reference here; instead, I look to common room ratio studies and keep the smallest dimension above 10 ft (3.05 m) where possible to push primary axial modes below critical voice bands. For lighting, I keep task light below 50 lux on seating during playback and under 5 lux on the screen wall, aligning with low-illuminance recommendations from the Illuminating Engineering Society’s approach to glare control in display environments (see ies.org/standards). For broader human experience benchmarks, WELL v2’s Light and Sound features are a useful planning lens for glare, reverberation, and noise isolation.

Ideal Room Ratios and Target Dimensions

In rectangular rooms, avoid cubes and simple multiples (e.g., 12×12×8 ft) that stack room modes. I favor proportion sets that distribute axial, tangential, and oblique modes more evenly. Practical, buildable targets I’ve used with consistent results:

1. Small theater (1–4 seats, one row): ~13–15 ft L × 10–12 ft W × 8–9 ft H (3.9–4.6 × 3.0–3.7 × 2.4–2.7 m)
2. Medium theater (2 rows, 4–6 seats): ~18–22 ft L × 12–15 ft W × 9–10 ft H (5.5–6.7 × 3.7–4.6 × 2.7–3.0 m)
3. Large theater (stadium seating, 6–10 seats): ~22–28 ft L × 14–18 ft W × 10–11 ft H (6.7–8.5 × 4.3–5.5 × 3.0–3.4 m)

When retrofitting, I prioritize height first (for sightlines and Atmos speaker elevation), then width (for seating aisles and lateral symmetry), then length (for low-frequency decay and screen distance).

Screen Size, Distance, and Viewing Angles

For immersion without fatigue, I design around 36–45° horizontal viewing angle for movies and 30–36° for mixed TV/sports. This translates roughly as seating distance ≈ 1.0–1.2× screen width for cinema-centric rooms. Vertically, center the screen so that the top third sits near eye level for the front row, keeping the primary content within a 15° vertical angle per Herman Miller’s comfort guidance.

Quick checks I use on site:

1. 110–120 in 16:9 screen: front row 8.5–10.5 ft, second row 14–16 ft
2. 135 in 2.35:1 scope screen: front row 9–10 ft, second row 15–17 ft
3. Projector throw: ensure lens-to-screen distance fits the projector’s throw ratio with at least 10% lens shift margin

Speaker Layout and Clearance

For 5.1/7.1 beds, I keep the front L/R tweeters at ear height (seated) and ±22–30° from center, center channel aimed at ear height, and surrounds at ±100–120° for 7.1 or ±110–120° for 5.1. For Dolby Atmos, height speakers at 30–55° elevation relative to listeners with symmetrical spacing. Maintain at least 2 ft (0.6 m) lateral clearance from walls to front L/R if possible, and 12–18 in (30–45 cm) behind acoustically transparent screens for center and sub position flexibility.

Ceiling Height, Risers, and Sightlines

I model sightlines from the back row’s eye height to the bottom of the image, allowing a 2–3 in (50–75 mm) clear view over heads in front. Typical riser heights:

1. Single riser: 6–8 in (150–200 mm) for 2-row small rooms with 9 ft ceilings
2. Two-step riser: 12–14 in (300–350 mm) total for 10 ft ceilings

Minimum aisle: 24–30 in (610–760 mm). Keep projector hush box or ceiling mount outside direct sightlines and ensure return air to avoid heat buildup.

Acoustic Volume, Modes, and Treatment Strategy

Room volume between 1,600–3,500 ft³ (45–99 m³) tends to be forgiving for residential theaters. Below ~1,400 ft³, low-frequency decay often becomes uneven without substantial bass trapping. I start with:

1. Bass traps: superchunks or membrane traps in all corners (floor-to-ceiling), aiming for at least 20–25% of corner area treated
2. First reflections: 2–4 in (50–100 mm) broadband absorbers at side walls and ceiling (mirror trick)
3. Rear wall: diffusion or deep absorption (6–8 in/150–200 mm) to control slap and flutter

Target RT60 (mid-frequencies): ~0.3–0.5 s for smaller rooms, ~0.4–0.6 s for medium rooms; consistent with comfortable dialog clarity and the quiet sound range suggested by WELL v2’s Sound concept.

Light Control and Color

Dark, low-gloss finishes around the screen reduce veiling reflections. I keep wall reflectance under 30% in the front third of the room and ceiling reflectance under 20% above the screen. Blackout shades and light seals on doors prevent spill. Dimmable, low-glare fixtures (regressed downlights or wall grazers) are set to warm 2700–3000 K during playback to preserve contrast. The front wall often goes charcoal or near-black; side walls deep neutral to keep skin tones natural.

Seating Width, Rows, and Circulation

Typical reclining theater seats range 34–40 in (865–1,015 mm) wide per person. For two aisles, plan room width as: total seats × seat width + 2 aisles (24–30 in each) + side clearance (6–12 in). For one side aisle, keep at least 30 in clear. Row-to-row depth for recliners: 68–74 in (1,730–1,880 mm). Cupholder arm heights vary; I align arm tops near 24–26 in to avoid blocking speaker paths.

Equipment, Ventilation, and Noise

Equipment racks and projectors add heat. Maintain 4–6 air changes per hour in small sealed theaters and isolate return ducts to keep NC 25–30. Decouple HVAC grilles from framing when possible and line boots with acoustic duct liner. Locate noisy gear in an adjacent closet; soft-close seals on access doors reduce rattles at high SPL.

Planning the Layout

When I plan a first pass, I block the screen wall, draw primary seating arcs based on the viewing angle, place the speaker array to standard geometries, then test riser heights and projector throw. Iterating this quickly with an interior layout planner helps catch conflicts between doors, aisles, and throw distances before framing. A simple room layout tool can simulate seating lines, sightlines, and clearances: room layout tool.

Common Room Size Scenarios

12 × 15 ft (3.7 × 4.6 m)

Best for 1 row of 3–4 seats or 2 rows of 2 with compact chairs. 110–120 in 16:9 screen, seats at 9–10 ft; subwoofers in front corners with a second sub mid-side to smooth modes.

14 × 20 ft (4.3 × 6.1 m)

Comfortable for 2 rows of 3–4 seats. 120–135 in screen, front row 10–11 ft. Add a 12–14 in riser, Atmos at 45° elevation, and dedicated rear wall diffusion.

16 × 24 ft (4.9 × 7.3 m)

Accommodates 2–3 rows and scope screens to 140–150 in. Plan dual subs (front left/right) and an additional near-field sub behind the back row if desired; isolate projection booth.

Materials and Finishes That Help

Choose dense carpet with 7–10 lb pad, fabric-wrapped absorbers, and mass-loaded vinyl or double 5/8 in gypsum with damping compound at partitions for isolation. Upholstery in acoustically breathable fabrics preserves high-frequency response at first reflection panels. Use low-VOC finishes to prevent odor accumulation in sealed rooms.

Step-by-Step Sizing Workflow

1. Pick the screen size for your content mix (sports vs cinema) and calculate first-row distance for a 36–45° angle.
2. Lay in speaker geometry and subwoofer options; verify wall clearances.
3. Establish ceiling height and riser needs to keep vertical angles within 15° of eye height.
4. Confirm projector throw, lens shift, and cable pathways.
5. Test door swings, aisles, and seat widths; adjust room width if necessary.
6. Model bass modes; consider dual subs and corner traps.
7. Plan lighting zones: path, task, and effect, with dimming and glare control.
8. Finalize finishes for contrast control and acoustic intent.

FAQs

What is the smallest practical size for a dedicated home theater?

I avoid going below 12 × 10 ft with 8 ft ceilings. You can fit a single row and a 100–110 in screen, but expect more bass treatment and careful seat width choices.

How high should I mount the screen?

Place the image so the center sits close to seated eye height, with the top-to-eye angle under 15°. That usually puts the bottom edge 24–30 in above the floor for front-row seating.

How far should seats be from a 120-inch screen?

For a 120 in 16:9 (about 105 in wide), 1.0–1.2× width places the front row roughly 8.8–10.5 ft away; second row around 14–16 ft depending on riser and sightlines.

Do I need 10 ft ceilings for Atmos?

No. Atmos can work at 8–9 ft if you keep height speakers within 30–55° elevation and avoid placing them too near walls. Higher ceilings do improve elevation separation and sightlines.

How many seats fit in a 14 × 20 ft room?

Two rows of three or four standard theater seats fit well: width allows 3–4 seats plus at least one 24–30 in aisle; length supports a 120–135 in screen and riser depth.

What reverberation time should I target?

A midband RT60 around 0.4–0.5 s is a good starting point for medium rooms, balancing dialog clarity and natural ambience. Use corner bass traps and broadband wall/ceiling panels to tune.

Are dual subwoofers worth the space?

Yes. Two subs placed asymmetrically (e.g., front corners or front mid + rear mid) significantly smooth modal response across multiple seats, improving bass consistency.

Which paint colors reduce reflections best?

Matte or eggshell deep neutrals. I use near-black on the screen wall and darker grays on side walls. Keep the front-third reflectance under ~30% to maintain contrast.

How quiet should the room be?

A background noise target around NC 25–30 helps preserve low-level detail. Quiet HVAC, isolated equipment racks, and well-sealed doors contribute to this range.

What’s the best seating angle for comfort?

A horizontal viewing angle of 36–45° feels immersive without fatigue; keep vertical tilt within 15° of eye height for long sessions, supported by ergonomic research from Herman Miller.

Can I use in-wall speakers behind an acoustically transparent screen?

Absolutely. It aligns voices with the image and improves LCR integration. Leave 12–18 in cavity depth and add absorptive backing to control early reflections.
