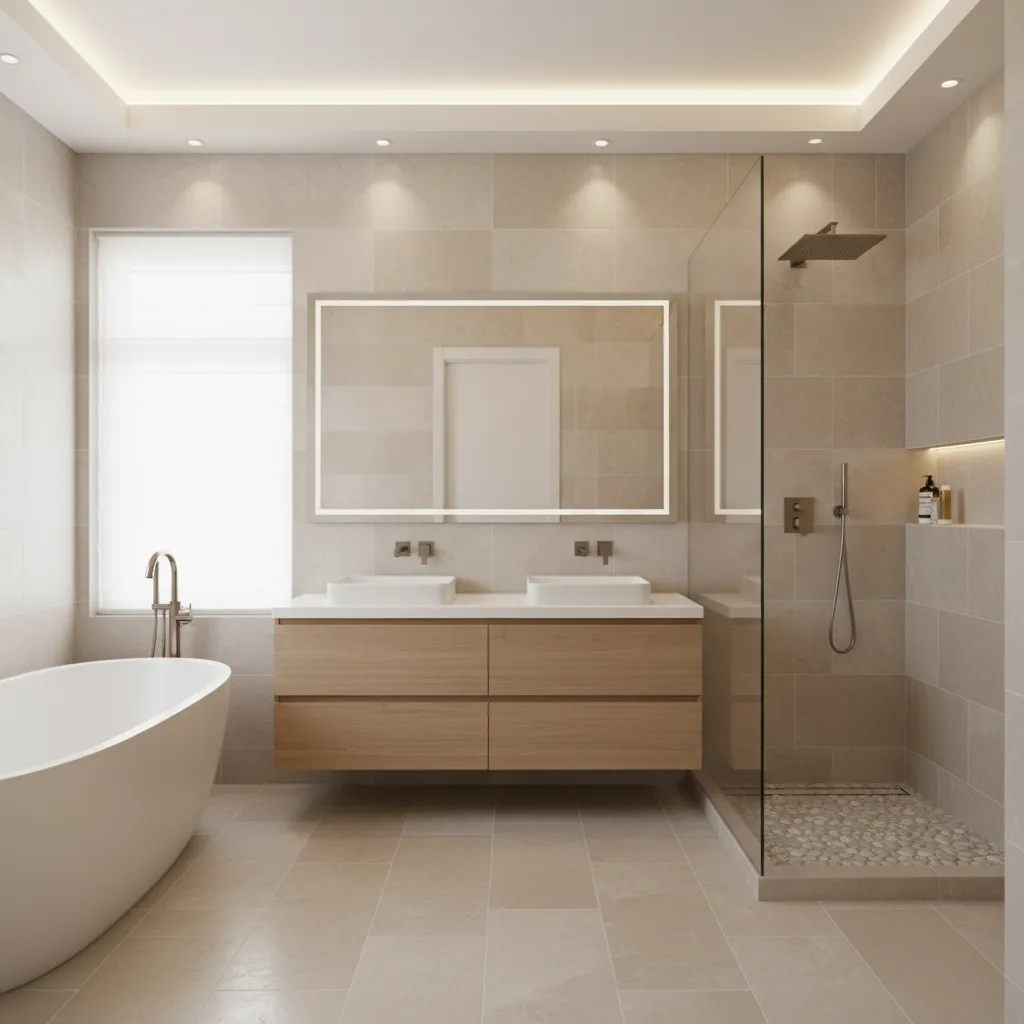

How 9x14 Master Bathroom Layouts Are Used in Modern Homes: Real design examples from new builds, remodels, and luxury homes that show how a 9x14 master bathroom layout works in practice.

Direct Answer

A 9x14 master bathroom layout is widely used in modern homes because it fits a double vanity, walk‑in shower, and separate toilet zone without requiring luxury‑level square footage. Builders and designers favor this size because it balances comfort, construction cost, and efficient plumbing layouts.

In both new construction and remodels, the 9x14 footprint allows flexible zoning while remaining practical for typical home floor plans.

Quick Takeaways

1. 9x14 bathrooms fit most modern master bath essentials without expanding the home footprint.
2. Builders favor this size because plumbing lines stay compact and construction costs remain predictable.
3. Designers use zoning strategies to separate vanity, shower, and toilet areas.
4. Remodel projects often expand older bathrooms into nearby closets or bedrooms to reach 9x14.
5. Luxury features can fit into a 9x14 layout when circulation space is carefully planned.

Introduction

Over the past decade working on residential projects across California and Nevada, I've seen the 9x14 master bathroom layout appear again and again. Not because it's flashy—but because it simply works.

Developers, architects, and remodel contractors all gravitate toward this footprint. It provides enough depth for a walk‑in shower and enough width for a double vanity while still fitting neatly within common bedroom suite layouts.

In fact, many clients assume master bathrooms must be massive to feel comfortable. In reality, thoughtful planning often matters more than square footage. With the right layout strategy, a 9x14 space can feel surprisingly spacious.

When homeowners want to experiment with zoning and circulation before construction begins, I often recommend exploring a step‑by‑step room layout planning workflow for bathroom remodeling. Visualizing the space early prevents the most common layout mistakes.

Below, I'll walk through how builders and designers actually use 9x14 master bathrooms in real homes—from tract developments to luxury renovations.

save pin

Why 9x14 Is a Common Master Bathroom Size

Key Insight: The 9x14 footprint became common because it fits modern bathroom expectations while staying efficient for builders.

In production housing, every extra square foot affects structural framing, plumbing routing, and HVAC distribution. A 9x14 bathroom strikes a practical balance between comfort and construction efficiency.

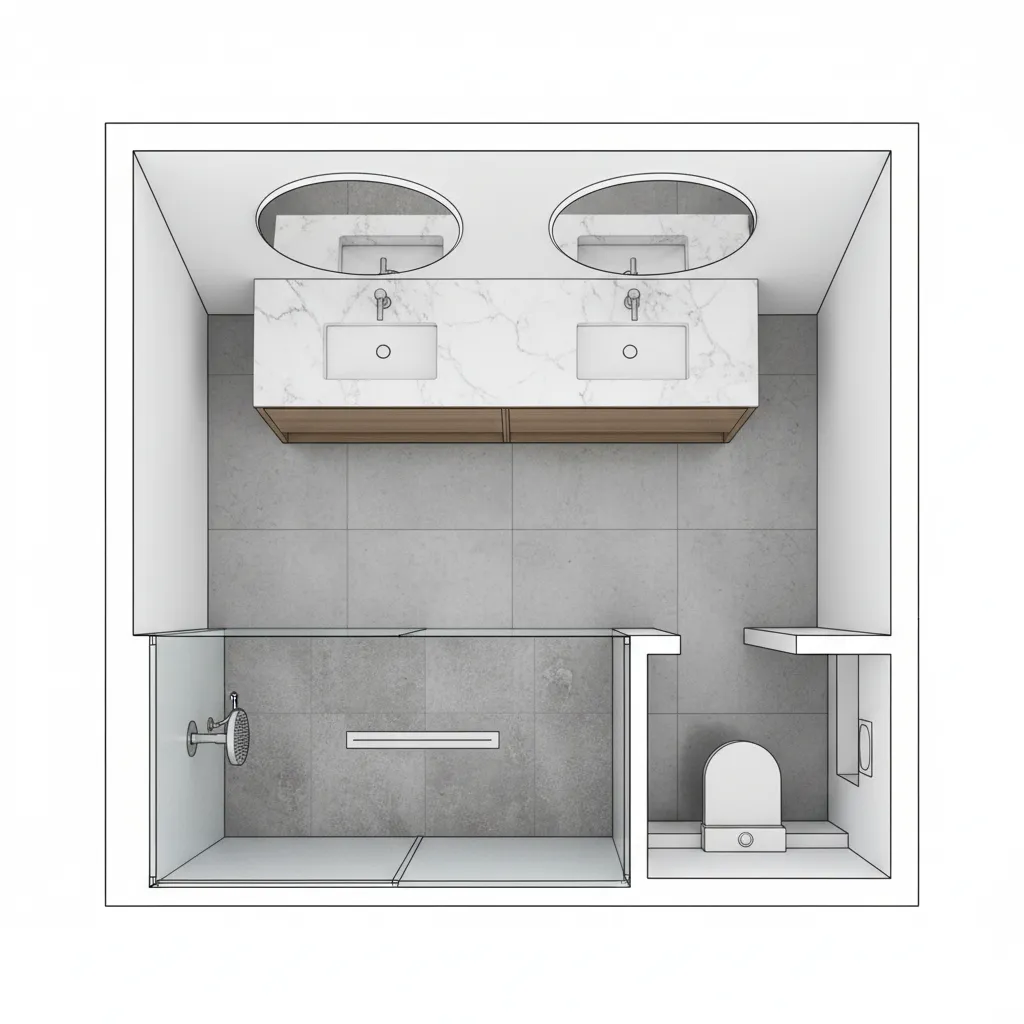

From a design standpoint, this footprint allows three functional zones:

1. Vanity zone (usually 6–7 ft wide)
2. Walk‑in shower or tub/shower combination
3. Toilet compartment or privacy niche

Typical spacing designers aim for:

1. Double vanity width: 60–72 inches
2. Shower depth: 42–60 inches
3. Walkway clearance: 36 inches minimum

According to guidelines from the National Kitchen & Bath Association (NKBA), circulation space is often the limiting factor in bathroom comfort. The 9x14 footprint provides enough depth to maintain those clearances.

9x14 Bathroom Layouts in New Construction Homes

Key Insight: In new builds, 9x14 bathrooms are typically organized around plumbing efficiency and resale expectations.

Most production builders repeat a few predictable layout patterns because they simplify construction.

Common new‑construction layouts include:

1. Linear layout — vanity along one wall, shower and toilet opposite.
2. L‑zone layout — shower at the back corner with vanity along the long wall.
3. Split‑zone layout — vanity near entry, wet zone deeper in the room.

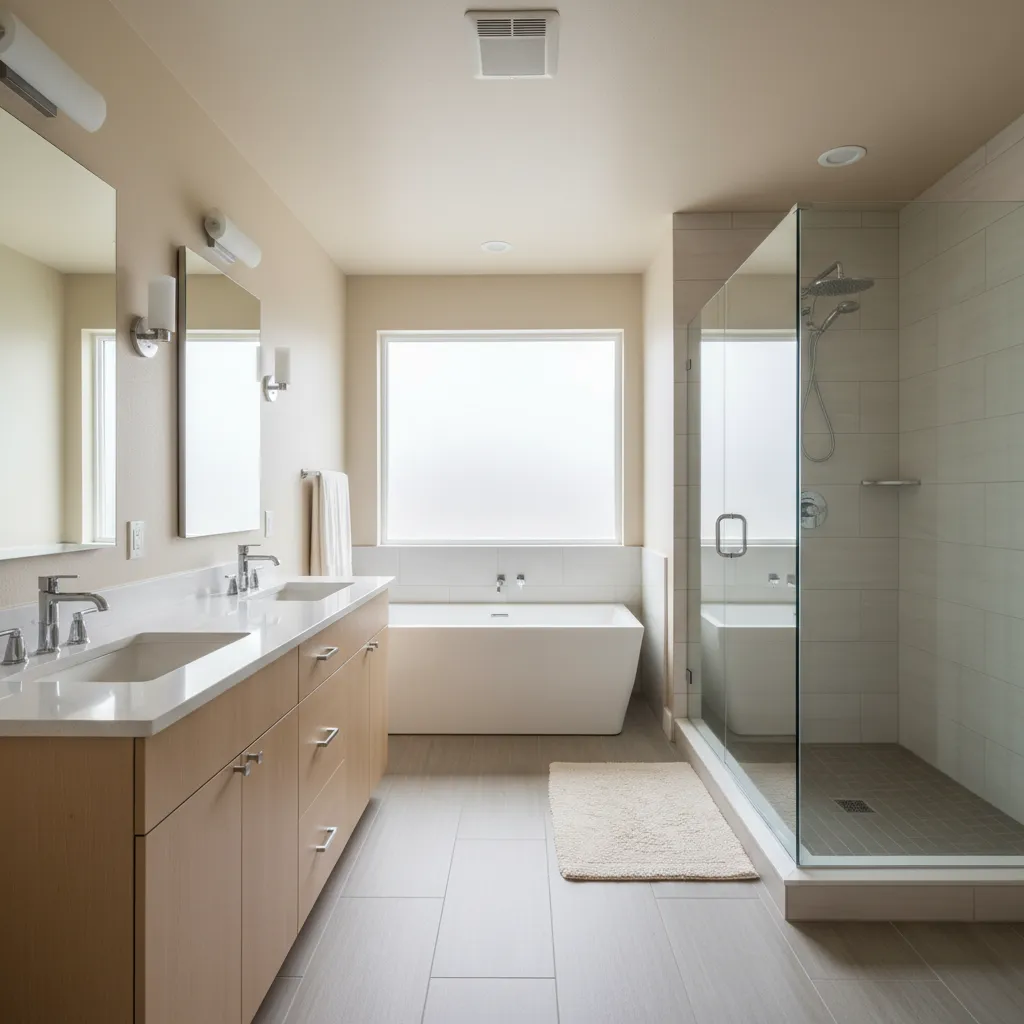

In several suburban projects I worked on, builders preferred the split‑zone approach because it improves morning traffic flow. One partner can use the vanity while the other showers without congestion.

For homeowners exploring layouts visually, tools that allow experimenting with

save pin

interactive 3D bathroom floor plan layouts before construction often reveal circulation issues long before framing begins.

Remodeling Older Homes to a 9x14 Master Bath

Key Insight: Many remodels intentionally expand bathrooms to approximately 9x14 because it solves layout limitations in older homes.

Homes built in the 1970s–1990s often had master bathrooms closer to 5x8 or 6x10. These spaces rarely support modern expectations like double vanities or large showers.

Contractors frequently reach the 9x14 target by:

1. Absorbing adjacent walk‑in closets
2. Borrowing space from oversized bedrooms
3. Reconfiguring hallway storage areas

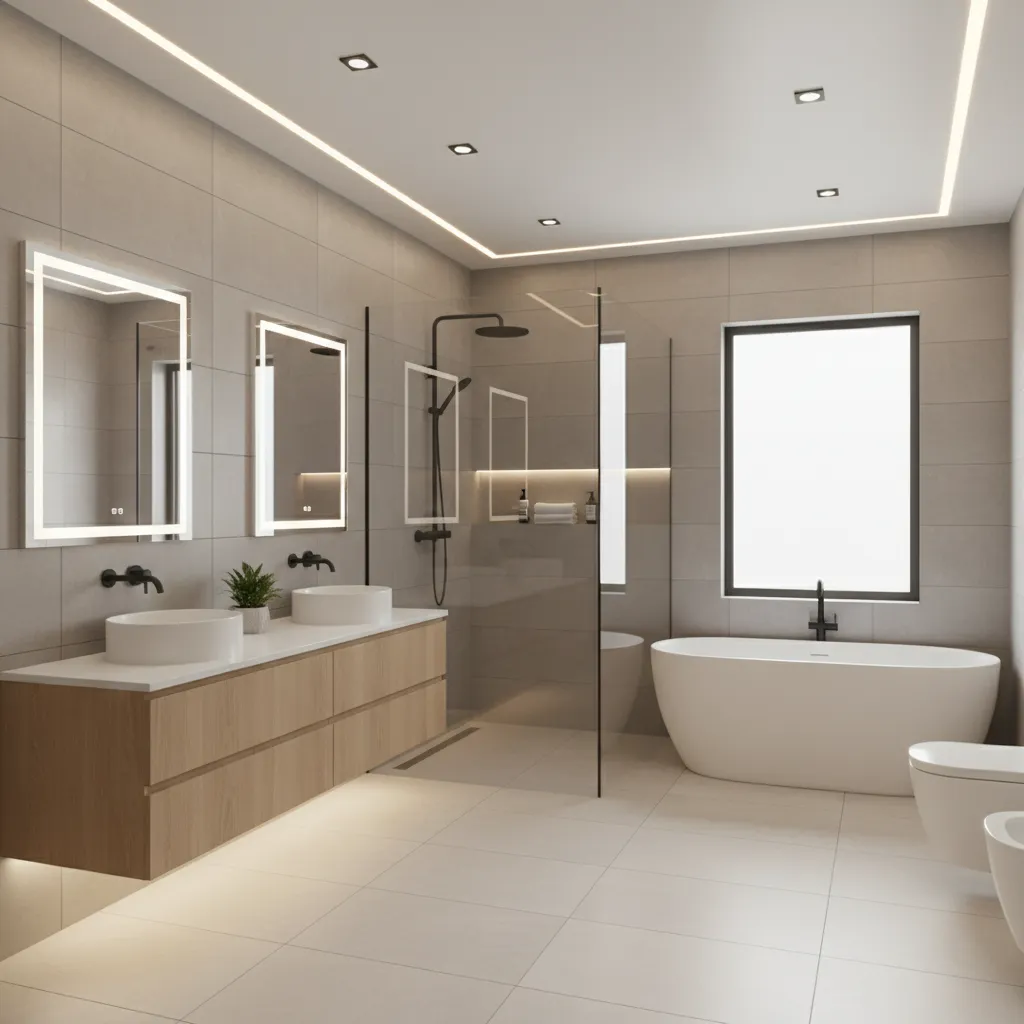

One renovation project in Pasadena expanded a cramped 6x9 bathroom into a 9x14 footprint by shifting a closet wall only three feet. That small change allowed:

save pin

1. A 72‑inch double vanity
2. A frameless glass shower
3. A private toilet alcove

The surprising part? The bedroom still felt large because the layout became more efficient.

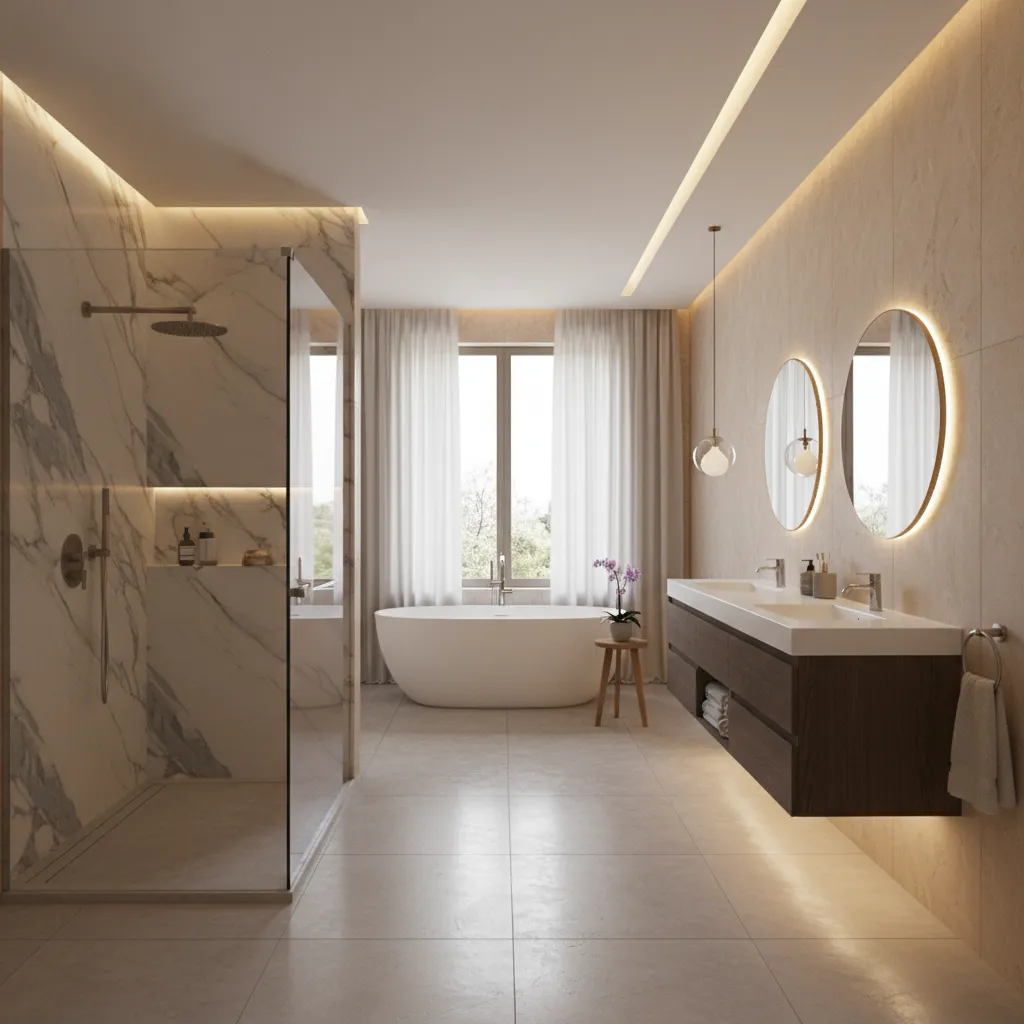

Luxury Design Features in 9x14 Bathrooms

Key Insight: A 9x14 bathroom can support luxury features if designers prioritize the right elements.

Many homeowners assume luxury bathrooms require 200+ square feet. In reality, thoughtful layout decisions make a bigger difference than size.

Features that work well inside a 9x14 layout:

1. Frameless glass walk‑in showers
2. Floating double vanities
3. Wall‑mounted toilets
4. Heated flooring
5. Recessed storage niches

Design trick many people overlook: wall‑mounted fixtures create visual space by exposing more floor area.

Another overlooked factor is lighting. Layered lighting—task lighting at the vanity plus indirect LED strips—can make a compact bathroom feel far larger.

Answer Box

A 9x14 master bathroom layout works well because it balances functionality and space efficiency. With smart zoning, the footprint comfortably fits a double vanity, walk‑in shower, and private toilet area without requiring excessive square footage.

Builder and Designer Layout Preferences

Key Insight: Designers prioritize circulation flow, while builders prioritize plumbing efficiency.

This difference explains why many production bathrooms look similar.

Builder priorities:

1. Short plumbing runs
2. Shared wet walls
3. Lower construction cost

Designer priorities:

1. Clear traffic flow
2. Visual balance
3. Storage integration

The best projects reconcile both perspectives early in the design process. Visual planning tools that allow homeowners to generate realistic bathroom design concepts before remodeling help bridge this gap between aesthetics and construction practicality.

Lessons From Real Bathroom Projects

Key Insight: The biggest mistakes in 9x14 bathrooms usually come from poor zoning—not lack of space.

Across dozens of projects, several patterns appear repeatedly.

Common layout mistakes:

1. Oversized tubs that dominate the room
2. Vanities placed too close to shower entrances
3. Poor lighting around mirrors
4. Insufficient storage planning

Designers who treat the bathroom like a sequence of functional zones—entry, vanity, wet area, and privacy zone—consistently produce better layouts.

save pin

Final Summary

1. 9x14 bathrooms balance comfort and construction efficiency.
2. This size supports double vanities and walk‑in showers.
3. Remodels often expand older bathrooms to this footprint.
4. Smart zoning matters more than square footage.
5. Lighting and wall‑mounted fixtures enhance spatial perception.

FAQ

Is 9x14 a good size for a master bathroom?

Yes. A 9x14 master bathroom layout fits a double vanity, walk‑in shower, and toilet area comfortably while maintaining good circulation space.

What fits inside a 9x14 master bathroom?

Typical layouts include a double vanity, large shower, toilet alcove, and sometimes a freestanding tub depending on the configuration.

Is a 9x14 bathroom considered large?

It’s considered medium‑large. It’s larger than older master bathrooms but smaller than luxury spa‑style bathrooms exceeding 200 square feet.

Can you fit a tub and shower in a 9x14 master bathroom?

Yes, but careful planning is required. Many designers combine a freestanding tub with a glass shower to save space.

What is the most common 9x14 master bathroom layout?

The most common layout places a double vanity along one wall with a shower and toilet area toward the back of the room.

Do builders commonly use 9x14 bathrooms?

Yes. Many builders consider it a practical standard because it fits modern features without increasing home construction costs dramatically.

How much does it cost to remodel a 9x14 master bathroom?

Costs vary widely, but many remodels range from $15,000 to $40,000 depending on finishes, plumbing relocation, and structural changes.

What layout mistakes should I avoid in a 9x14 master bathroom?

Avoid blocking walkways with oversized tubs, placing vanities too close to showers, and neglecting storage planning.
