How Architects Design 2000 Sq Ft Houses: Industry Standards and Elevation Practices: A practical look at how professionals plan layouts, elevations, and structural balance in mid‑size residential architecture.

Direct Answer

Architects design a 2000 sq ft house by balancing spatial efficiency, structural logic, building codes, and visual proportion. The process typically starts with functional zoning and circulation planning, followed by structural layout, facade composition, and elevation refinement. A well‑designed 2000 sq ft home prioritizes livability, natural light, and long‑term architectural balance rather than simply filling the available square footage.

Quick Takeaways

1. Professional house design starts with circulation and zoning before aesthetics.
2. Most 2000 sq ft homes follow proven room size ranges used in residential architecture.
3. Elevation design is driven by proportion, roofline balance, and material hierarchy.
4. Structural grids and building codes strongly shape architectural decisions.
5. Timeless elevations rely more on proportion than decoration.

Introduction

Designing a 2000 sq ft house sounds straightforward, but in practice it's one of the most nuanced scales in residential architecture. I've worked on dozens of mid‑size homes over the past decade, and this size consistently presents the same challenge: homeowners want the feel of a large home, but the efficiency of a compact one.

The way architects approach a 2000 sq ft layout is very different from how most homeowners imagine the process. It doesn't start with picking a pretty facade or copying a floor plan from Pinterest. Instead, it starts with circulation flow, structural logic, and how spaces connect to each other.

Many clients are surprised when I show them early layout sketches created with tools similar to this interactive workflow designers use to visualize residential floor layouts. At this stage, we are not thinking about colors or furniture yet—we are solving movement, light, and spatial balance.

In this article, I'll walk through the real industry process architects use when designing a 2000 sq ft house, from layout planning to elevation design and the subtle decisions that separate an average home from a well‑composed one.

save pin

Typical Architectural Process for Residential Design

Key Insight: Architects design homes through a structured workflow that moves from spatial logic to structural feasibility and finally to aesthetic refinement.

Homeowners often think architects start with the exterior look. In reality, the facade usually comes much later. The process begins with functional planning.

In most professional residential projects, the workflow follows these stages:

1. Client brief and lifestyle analysis — family size, routines, privacy needs

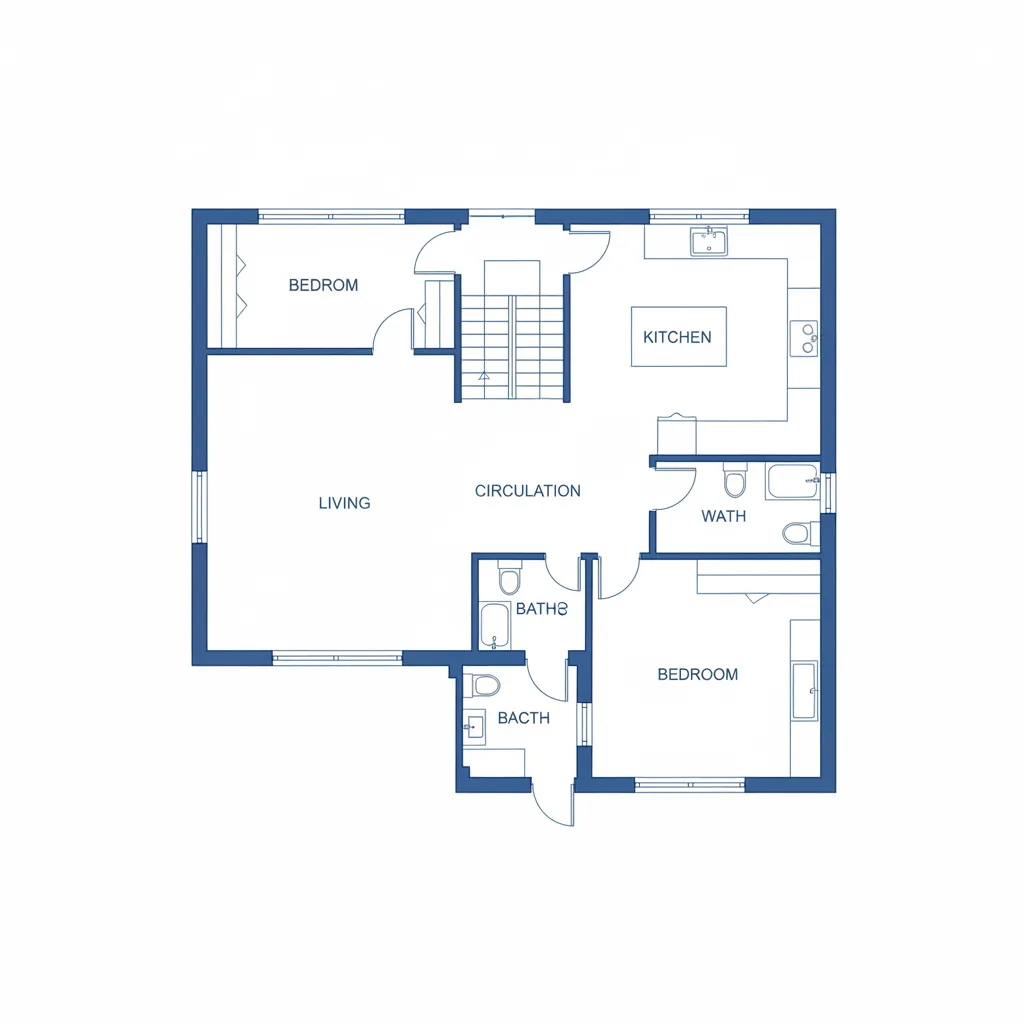

2. Zoning diagram — separating public, private, and service areas
3. Preliminary floor plan — circulation paths and room proportions
4. Structural grid alignment — aligning walls, beams, and columns
5. Elevation concept — defining massing and visual hierarchy
6. Material and facade refinement

According to the American Institute of Architects (AIA), the early schematic design stage determines up to 70% of a building's long‑term performance and functionality. That's why experienced architects spend significant time refining the plan before touching the exterior.

Industry Space Standards for 2000 Sq Ft Homes

Key Insight: Most well‑designed 2000 sq ft homes follow surprisingly consistent room size ranges used across the industry.

Over years of residential projects, I've noticed that successful mid‑size homes rarely reinvent the wheel. Instead, they rely on proven spatial proportions that balance comfort and efficiency.

Typical space allocation in a 2000 sq ft house:

1. Living room: 220–300 sq ft
2. Kitchen: 140–200 sq ft
3. Dining area: 120–180 sq ft
4. Primary bedroom: 180–240 sq ft
5. Secondary bedrooms: 120–160 sq ft
6. Bathrooms: 40–70 sq ft

A common mistake is oversizing certain rooms—especially living areas—which often results in awkward leftover spaces elsewhere.

When we test these layouts using tools similar to this digital floor plan creation workflow many designers rely on, inefficient plans become obvious immediately. Circulation paths get longer, furniture placement becomes harder, and natural light distribution suffers.

save pin

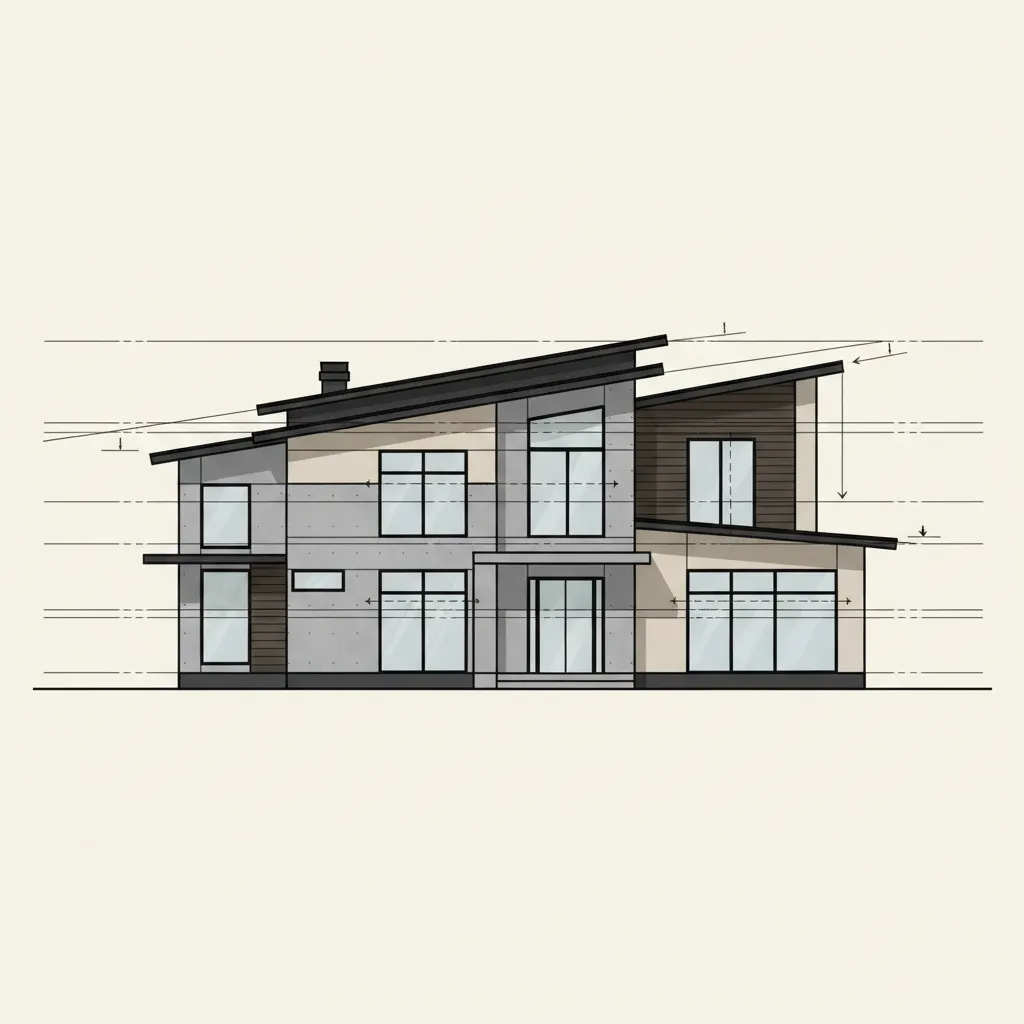

How Architects Plan House Elevations

Key Insight: Good elevations are built from architectural proportion and massing—not decorative elements.

In my experience, the biggest misconception about elevation design is that it's mainly about style. In reality, elevation quality comes from geometry and proportion.

Architects usually analyze elevation using three main components:

1. Massing composition — how different volumes stack and intersect
2. Roofline hierarchy — creating visual balance across the facade
3. Opening rhythm — consistent spacing of windows and doors

A well‑composed elevation often follows a visual rule architects call "base‑middle‑top hierarchy":

1. Base: grounding elements such as stone, brick, or plinth
2. Middle: primary wall surfaces and window patterns
3. Top: roof forms, cornices, or parapets

This layered structure is one reason classic architectural styles remain visually pleasing for decades.

save pin

Balancing Structural Requirements and Aesthetics

Key Insight: The most elegant home elevations usually come from structural simplicity rather than visual complexity.

Many homeowners request dramatic facades with multiple projections, but these often create hidden structural costs.

Key structural considerations that shape elevation design:

1. Column grid alignment
2. Beam spans and load paths
3. Roof slope requirements
4. Foundation distribution

For example, when exterior projections exceed structural grid lines, engineers must add transfer beams or cantilevers. These additions increase both construction complexity and cost.

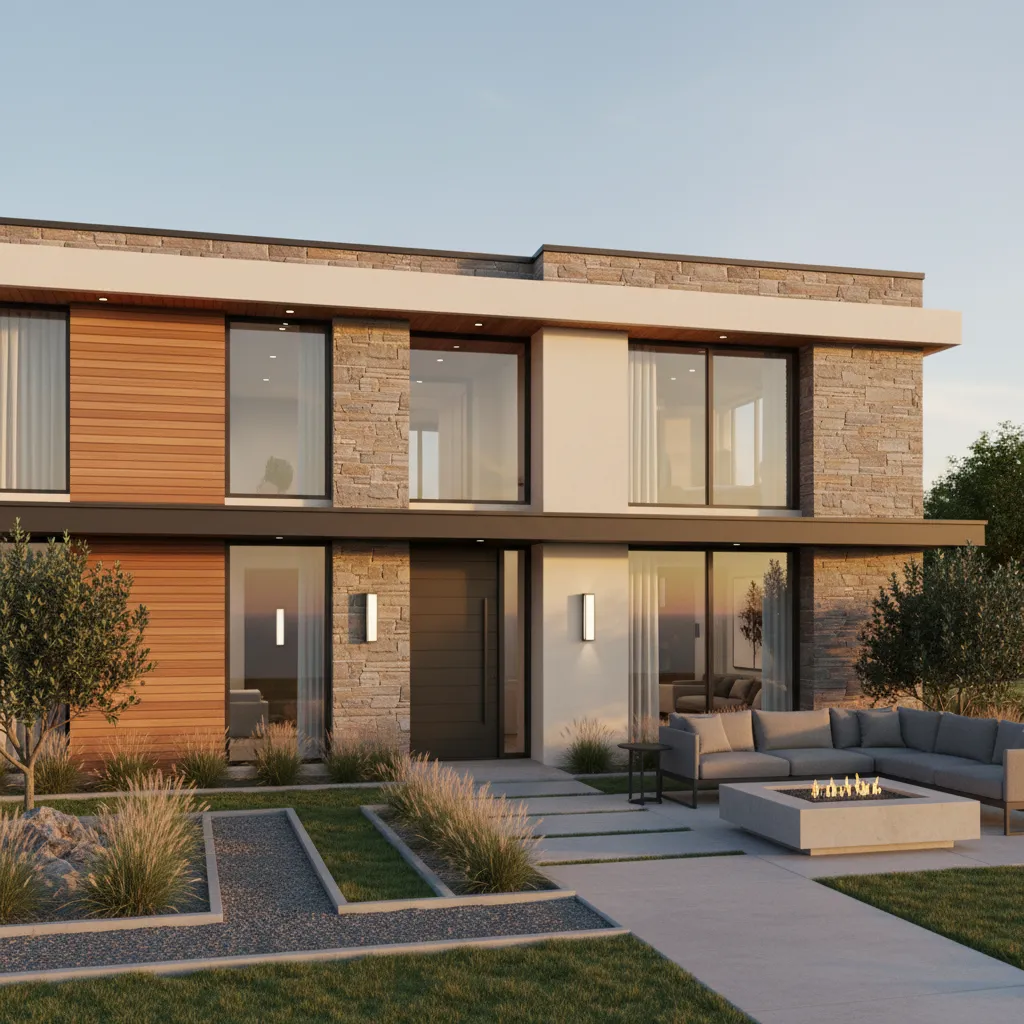

When architects evaluate facade concepts, we often preview them through renderings similar to this high‑quality residential visualization process used in modern design workflows. It allows both designers and homeowners to test proportion, shadows, and materials before construction begins.

save pin

Building Codes and Practical Design Constraints

Key Insight: Building regulations quietly shape many architectural decisions long before aesthetic choices are finalized.

In residential design, codes affect everything from window placement to stair geometry.

Some of the most influential constraints include:

1. Minimum room sizes
2. Setback requirements from property lines
3. Stair riser and tread standards
4. Emergency egress window dimensions
5. Height limits and floor‑area ratio rules

Ignoring these factors early often leads to expensive redesigns later. Experienced architects incorporate code compliance during the schematic stage rather than treating it as a final checklist.

Answer Box

The best 2000 sq ft house designs follow a clear professional logic: plan the layout first, align it with structural grids, then develop elevations based on proportion and massing. Decoration comes last, not first.

Professional Tips for Achieving a Timeless Elevation

Key Insight: Timeless architecture depends more on proportion, material restraint, and consistency than trend‑driven styling.

After working on many residential projects, a few principles consistently produce better elevations.

1. Limit facade materials to three primary finishes
2. Align window heads and sill heights across floors
3. Avoid excessive facade projections
4. Maintain consistent roof pitch
5. Use shadow lines to create depth

Ironically, the most expensive‑looking homes are often the simplest. Clean geometry, balanced windows, and thoughtful material contrast age far better than heavily decorated facades.

Final Summary

1. Architects design layouts before focusing on elevation aesthetics.
2. Room size standards help maintain balance in 2000 sq ft homes.
3. Elevation quality comes from proportion and massing.
4. Structural grids strongly influence architectural form.
5. Timeless homes prioritize simplicity over decoration.

FAQ

1. How long does it take an architect to design a 2000 sq ft house?

Typically 4–12 weeks depending on complexity, client revisions, and local approval requirements.

2. Is 2000 sq ft considered a medium size house?

Yes. In most residential markets, 1800–2400 sq ft is considered a mid‑size family home.

3. How many bedrooms usually fit in a 2000 sq ft house?

Most layouts comfortably include 3–4 bedrooms along with living, dining, and kitchen areas.

4. What affects house elevation design the most?

Structural layout, roof form, window rhythm, and material selection influence elevations more than decorative details.

5. What is the biggest mistake in mid‑size house planning?

Oversizing one room—usually the living room—which disrupts overall spatial balance.

6. Do architects design elevations before floor plans?

No. Floor plans and structural layouts almost always come first.

7. What software do architects use to visualize house elevations?

Many use 3D visualization tools that simulate lighting, materials, and realistic residential renderings.

8. Are architectural standards important for a 2000 sq ft house?

Yes. Following established 2000 sq ft house architecture guidelines helps maintain livability, structural efficiency, and visual balance.

References

1. American Institute of Architects – Residential Design Guidelines
2. International Residential Code (IRC)
3. Architectural Graphic Standards, Ramsey & Sleeper
