How Builders and Designers Approach 16x40 Tiny House Floor Plans: Professional layout strategies, structural decisions, and cost factors behind real 16x40 tiny house builds.

Direct Answer

Builders approach 16x40 tiny house floor plans by balancing structural efficiency, zoning limits, and livability within a long, narrow footprint. Most professional layouts organize the home into three functional zones—living, service, and sleeping—to keep plumbing simple and circulation clear.

Because the structure is 640 square feet and often trailer-based, designers prioritize load distribution, modular construction methods, and multi‑use furniture to maximize usable space.

Quick Takeaways

1. Builders favor 16x40 layouts because the size balances livable square footage with transport and zoning flexibility.
2. Professional layouts typically divide the plan into three zones to simplify plumbing and circulation.
3. Structural reinforcement is critical in long, narrow homes to prevent floor deflection.
4. Prefab models reduce build time, but custom layouts allow better optimization for full‑time living.
5. Kitchen and bathroom placement often determines overall construction cost.

Introduction

After working on dozens of compact residential projects over the past decade, I've noticed something interesting about the 16x40 tiny house floor plan. It's one of the few tiny‑home sizes where designers can actually create something that feels like a small apartment rather than a compromise.

But that doesn't happen automatically. Builders approach these homes very differently from the way DIY planners often do. Structural span, plumbing efficiency, trailer limits, and zoning regulations all influence the layout long before furniture placement is even considered.

When clients start exploring layouts, I usually suggest reviewing a few interactive tiny home layout planning examples used by designers. Seeing how circulation and zones work in three dimensions helps explain why certain layouts appear repeatedly in professional builds.

In this guide, I'll walk through how builders and designers actually approach 16x40 layouts—from structural framing decisions to zoning constraints and cost drivers that rarely show up in typical floor‑plan galleries.

save pin

Why 16x40 Is a Popular Tiny House Size for Builders

Key Insight: A 16x40 footprint hits a rare sweet spot where a tiny house can include full residential functions without becoming structurally inefficient.

At 640 square feet, a 16x40 layout is large enough to support a real bedroom, full kitchen, and comfortable living space. Builders often compare it to a small studio apartment in terms of usable area.

From a construction standpoint, the rectangular proportion also simplifies framing and roof structure.

1. Long walls allow predictable stud spacing and easier shear reinforcement
2. Roof trusses can span the 16‑foot width efficiently
3. Mechanical systems can run along a central utility corridor
4. Furniture placement works naturally with the elongated footprint

In projects I've consulted on, clients moving from a 10‑foot‑wide tiny house often report that the extra width dramatically improves circulation and furniture flexibility.

Structural Considerations for Long Narrow Homes

Key Insight: The biggest engineering challenge in a 16x40 tiny house isn't the width—it's preventing structural flex along the 40‑foot length.

Long structures are more vulnerable to deflection, especially when built on trailers or lightweight foundations.

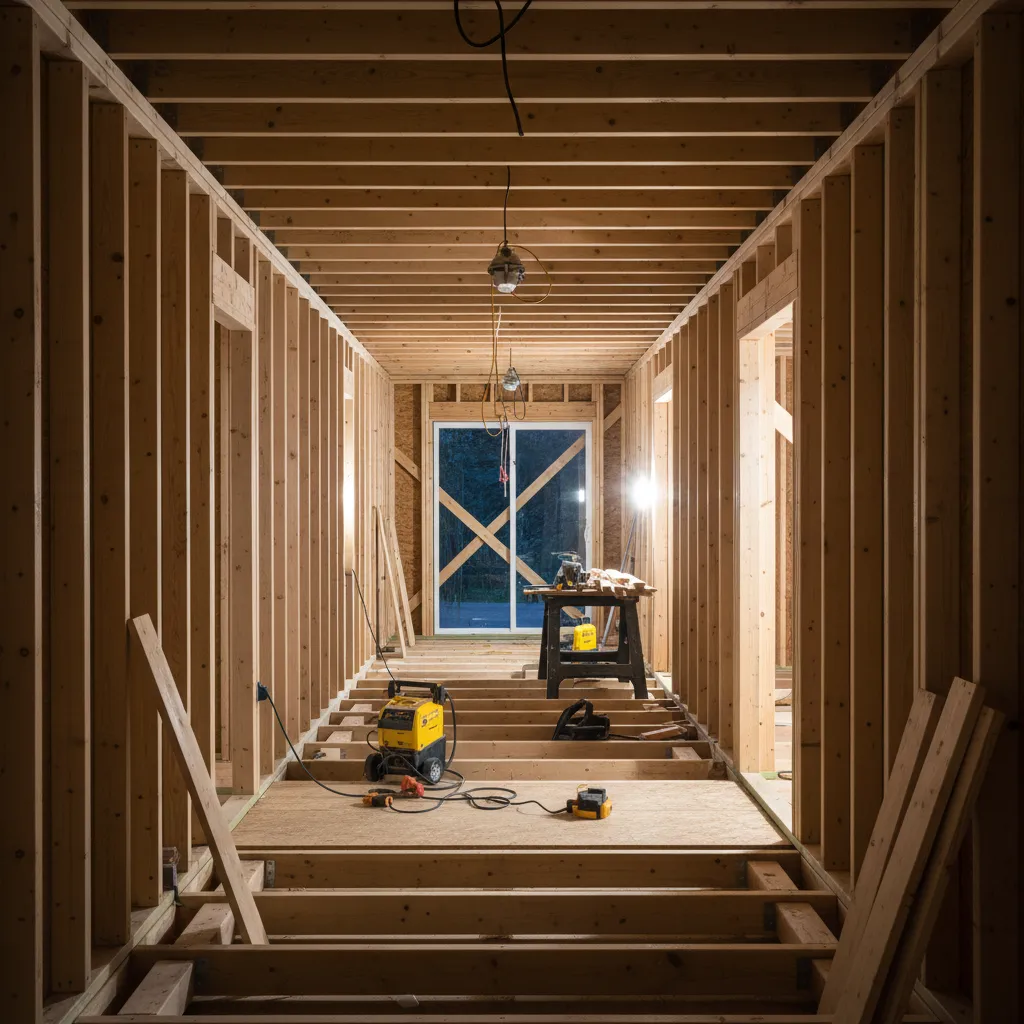

Professional builders typically address this with:

1. Engineered floor joists or laminated beams
2. Strategic shear walls near bathrooms and kitchens
3. Continuous load paths from roof to chassis
4. Reinforced rim joists along the perimeter

One mistake I often see in amateur layouts is placing all heavy appliances on one end of the home. Builders usually distribute weight—refrigerator, water heater, and washer—to maintain structural balance.

save pin

Professional Layout Planning Methods

Key Insight: Builders rarely design tiny homes room‑by‑room—they design them by functional zones.

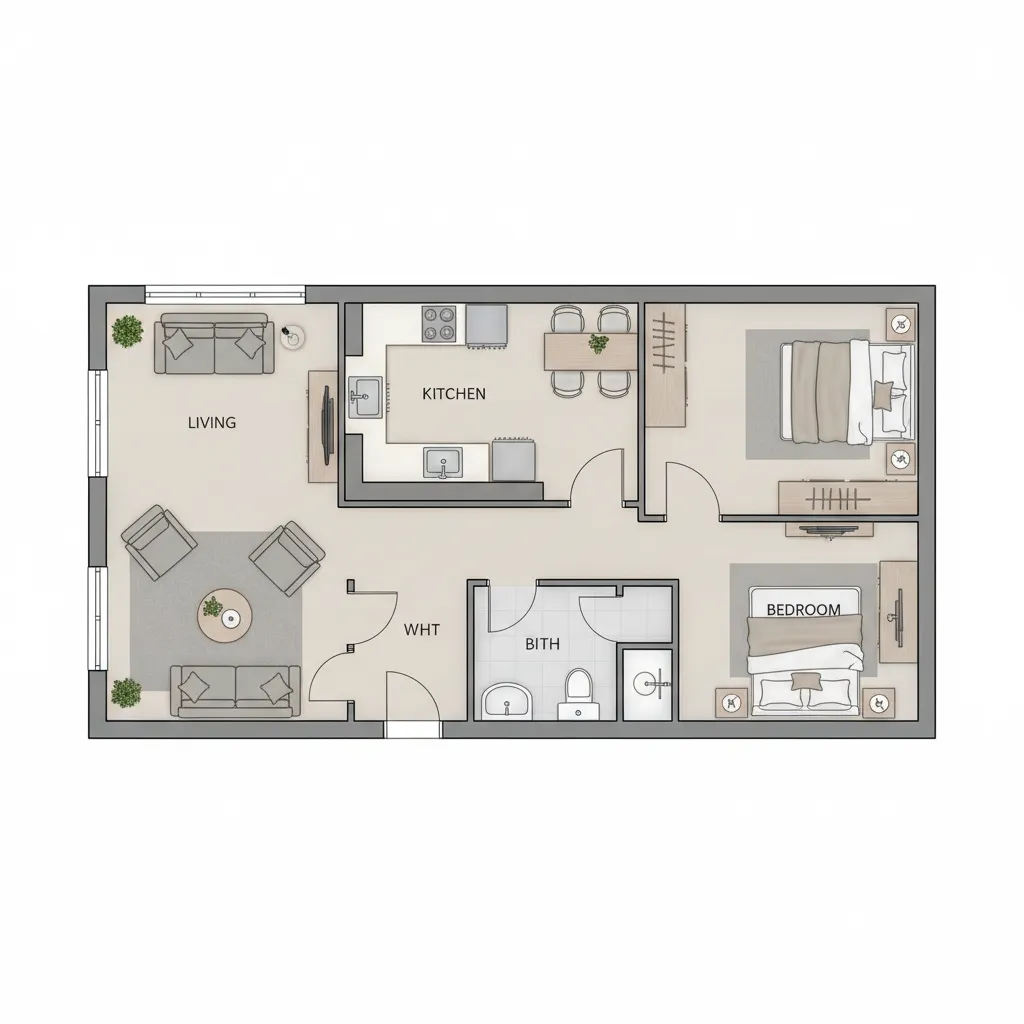

Most successful 16x40 layouts follow a three‑zone system:

1. Public Zone: living room and entry area
2. Service Zone: kitchen, bathroom, mechanical systems
3. Private Zone: bedroom or sleeping loft

This zoning strategy simplifies plumbing and electrical runs while creating natural transitions between spaces.

Designers increasingly use digital planning tools early in the process. For example, many professionals start with a smart floor layout generator for early‑stage space planningto test furniture flow and clearances before final construction drawings.

The benefit is speed: dozens of layout variations can be tested before committing to a structural plan.

save pin

Zoning and Permit Considerations for 16x40 Homes

Key Insight: Zoning regulations often influence a 16x40 tiny house floor plan more than design preferences do.

Depending on the region, a 640‑square‑foot dwelling might be classified as:

1. An accessory dwelling unit (ADU)
2. A mobile tiny home
3. A park model RV
4. A small primary residence

Each category comes with different requirements for:

1. Ceiling height
2. Emergency egress windows
3. Bathroom ventilation
4. Foundation type

In several California projects I've reviewed, permit approval required moving the bedroom closer to an exterior wall simply to meet egress window rules.

Prefab vs Custom 16x40 Tiny Houses

Key Insight: Prefabricated 16x40 homes save time, but custom layouts typically deliver better long‑term livability.

Both approaches have advantages.

Prefab advantages

1. Predictable construction timeline
2. Lower design costs
3. Factory‑controlled quality

Custom build advantages

1. Optimized layout for lifestyle
2. Flexible kitchen and storage design
3. Better site‑specific orientation

One hidden trade‑off many buyers overlook: prefab layouts often compress the bathroom and kitchen into the center of the house to simplify plumbing in factory builds.

Custom plans can distribute these spaces more naturally along the floor plan.

Answer Box

Professional builders design 16x40 tiny houses by prioritizing structural stability, zoning compliance, and efficient utility placement. Successful layouts typically divide the home into functional zones and centralize plumbing to reduce construction complexity.

Cost Drivers in 16x40 Tiny House Construction

Key Insight: In most 16x40 tiny house projects, layout decisions—not square footage—drive construction cost.

The most expensive elements are mechanical and service areas.

1. Kitchen cabinetry and appliances
2. Bathroom plumbing and waterproofing
3. HVAC and insulation systems
4. Windows and exterior doors

A layout with multiple plumbing walls can increase labor costs significantly. That's why builders often align the kitchen sink, shower, and water heater along a shared utility wall.

If you're exploring design options, reviewing a collection of real tiny home layout concepts used during planningcan reveal how professionals cluster these systems efficiently.

save pin

Final Summary

1. 16x40 layouts offer enough space for full residential functions within a compact footprint.
2. Structural reinforcement is essential for long narrow tiny homes.
3. Professional layouts organize the home into public, service, and private zones.
4. Zoning and permit rules often reshape the final floor plan.
5. Kitchen and bathroom placement drives most construction costs.

FAQ

Is a 16x40 tiny house considered a full home?

A 16x40 tiny house is about 640 square feet, which many jurisdictions classify as a small house or ADU rather than a micro‑home.

How many rooms fit in a 16x40 tiny house floor plan?

Most 16x40 tiny house floor plans include a living room, full kitchen, bathroom, and one bedroom. Some layouts add a loft or office nook.

Do builders recommend open layouts for 16x40 homes?

Yes. Open living and kitchen areas help maintain natural light and improve circulation in a long narrow floor plan.

What foundation is best for a 16x40 tiny house?

Common options include trailer bases, pier foundations, or concrete slabs depending on zoning and mobility requirements.

How much does a 16x40 tiny house cost to build?

Costs vary widely, but most professionally built 16x40 homes fall between $60,000 and $120,000 depending on materials and customization.

Is a prefab 16x40 tiny house cheaper than custom?

Prefab homes typically cost less upfront, but custom layouts often deliver better long‑term usability.

What is the biggest design mistake in tiny house layouts?

Placing plumbing fixtures on opposite ends of the house increases construction complexity and cost.

Can a 16x40 tiny house floor plan support full‑time living?

Yes. Many full‑time residents choose 16x40 layouts because the space allows for normal furniture sizes and better storage.
