Direct Answer

Modern hospital floor plans are designed around patient flow, clinical efficiency, and safety. Departments such as emergency, imaging, surgery, and inpatient wards are strategically arranged to minimize transport time, reduce congestion, and support rapid treatment. Healthcare architects follow strict operational and safety principles to ensure hospitals function smoothly during both routine care and emergencies.

Quick Takeaways

1. Hospital layouts prioritize patient flow and staff efficiency.
2. Emergency departments are placed for rapid ambulance and public access.
3. Imaging and surgical units are often centrally located to reduce patient transport time.
4. Modern hospital architecture focuses heavily on safety, accessibility, and infection control.
5. Department placement often reflects decades of operational research in healthcare design.

Introduction

When people first look at hospital floor plans, the layout can feel confusing. Why is imaging next to surgery? Why are emergency departments often on the ground level? And why are some departments placed in the middle of the building while others sit on the edges?

After working on healthcare-related interior planning projects and studying hospital architecture standards, I’ve learned that these layouts are rarely random. Modern hospital floor plans are built around one central idea: movement. Every hallway, elevator bank, and department placement affects how patients, doctors, nurses, and equipment move through the building.

One interesting comparison comes from studying how other complex buildings organize circulation and spatial efficiency. For example, reviewing examples of detailed 3D building layouts used to visualize complex facility planninghighlights how critical flow planning becomes when dozens of functions must coexist in one structure.

In this article, I’ll break down the architectural logic behind hospital layouts—why departments are arranged in specific ways, how patient flow shapes design, and how these principles appear in real facilities like St. Joseph Hospital.

save pin

Key Principles of Modern Hospital Architecture

Key Insight: Modern hospital architecture is built around operational efficiency, safety, and rapid clinical response.

Unlike residential or office buildings, hospitals operate 24/7 with life‑critical activities happening simultaneously. Architects therefore design layouts that reduce travel distances, separate patient types, and support clinical teams working under pressure.

Across most modern healthcare facilities in the United States, architects follow several core principles:

1. Zoning by function — diagnostic, treatment, and recovery areas are grouped logically.
2. Vertical stacking — related departments are placed on adjacent floors.
3. Separate circulation paths — patients, staff, supplies, and waste often move through different routes.
4. Visibility and supervision — nurse stations positioned to monitor multiple rooms.
5. Scalability — buildings designed to allow future expansion.

The American Institute of Architects and the Facility Guidelines Institute both emphasize these principles in healthcare facility design standards. Hospitals that ignore flow efficiency often experience longer treatment times and operational bottlenecks.

How Patient Flow Shapes Hospital Layouts

Key Insight: Patient flow is the single most important factor influencing hospital floor plans.

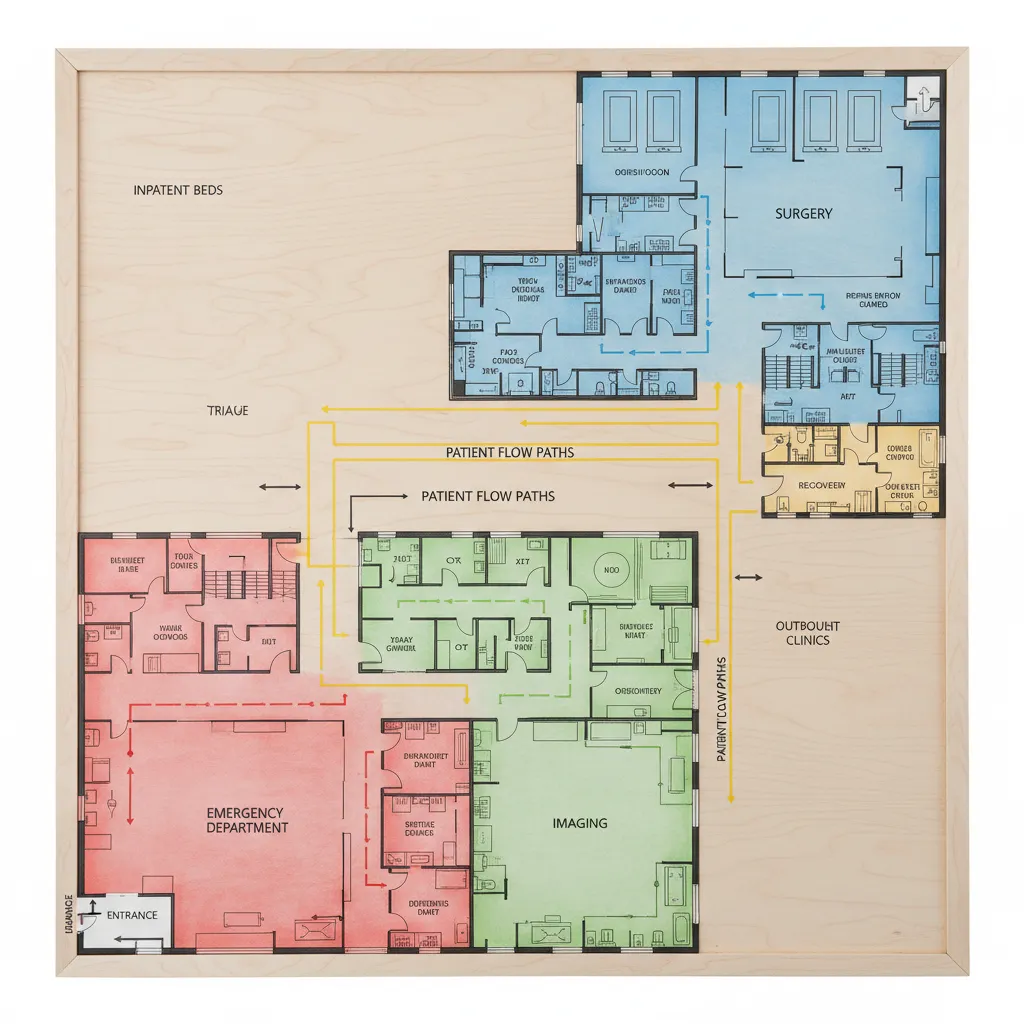

Think of a hospital like a transportation network. Patients arrive through different entry points—ambulance, walk‑in emergency, scheduled surgery, outpatient visits—and each pathway requires different spatial planning.

A well-designed hospital floor plan typically separates several types of movement:

1. Emergency arrivals
2. Scheduled outpatient visits
3. Inpatient transfers between departments
4. Staff movement and supply logistics
5. Visitor circulation

One mistake people make when analyzing hospital layouts is assuming proximity alone determines placement. In reality, architects study traffic volume and treatment sequences. For instance, imaging needs to serve emergency, surgical, and inpatient departments simultaneously.

When designers map these movement patterns visually—similar to how planners analyze circulation in interactive room layout simulations that test how people move through interior spaces—they can quickly identify congestion points and optimize department placement.

save pin

Emergency Department Placement Strategies

Key Insight: Emergency departments are almost always located at ground level with direct ambulance access and fast routes to imaging and surgery.

Emergency medicine operates on minutes, sometimes seconds. That urgency shapes the physical placement of the entire department.

Typical emergency department placement strategies include:

1. Ground‑floor location for rapid ambulance entry.
2. Dedicated ambulance bays separated from public entrances.
3. Direct corridors to imaging for CT scans and trauma diagnosis.
4. Fast elevator access to surgery or ICU.

Trauma centers in particular often cluster three departments tightly together: emergency, imaging, and operating rooms. This triad reduces the time between arrival, diagnosis, and surgical intervention.

Healthcare planners often call this the "golden hour" design philosophy—ensuring the building supports rapid trauma treatment.

Why Imaging and Surgery Are Often Centrally Located

Key Insight: Imaging and surgical departments are positioned centrally because they serve multiple areas simultaneously.

Unlike specialized departments, imaging is used by nearly every medical discipline: emergency medicine, oncology, orthopedics, cardiology, and inpatient care.

Because of this, architects often place imaging in a central location or on a floor shared with surgery.

This arrangement provides several operational benefits:

1. Short transport distances for emergency cases
2. Quick pre‑surgical diagnostic imaging
3. Efficient access for inpatient wards
4. Shared equipment infrastructure

Another hidden reason is infrastructure. MRI and CT scanners require heavy shielding, vibration control, and large mechanical systems. Central placement allows engineers to concentrate structural reinforcement and technical systems.

save pin

Safety and Accessibility in Hospital Design

Key Insight: Safety regulations and accessibility standards shape hospital layouts as much as medical workflow.

Hospital design in the United States must follow strict regulatory frameworks, including ADA accessibility standards, fire safety codes, and infection control guidelines.

These rules influence many layout decisions:

1. Minimum corridor widths for stretchers and equipment
2. Isolation rooms positioned near entrances
3. Multiple evacuation routes
4. Hand‑washing and sanitation stations
5. Barrier‑free access for patients with mobility limitations

Architects also design "clean" and "dirty" pathways to prevent contamination. Surgical suites, for example, typically have controlled entry points and separate sterile supply routes.

Answer Box

Hospital floor plans are designed primarily around patient flow, emergency response time, and clinical efficiency. Strategic placement of departments such as imaging, surgery, and emergency care ensures faster diagnosis, safer treatment, and smoother hospital operations.

How These Principles Apply to St. Joseph Hospital

Key Insight: The layout of St. Joseph Hospital reflects common modern hospital architecture strategies.

Facilities like St. Joseph Hospital typically demonstrate the design patterns discussed above:

1. Emergency departments positioned with ambulance access
2. Imaging located close to trauma and surgery
3. Patient wards stacked vertically above treatment floors
4. Central circulation corridors connecting high‑traffic departments

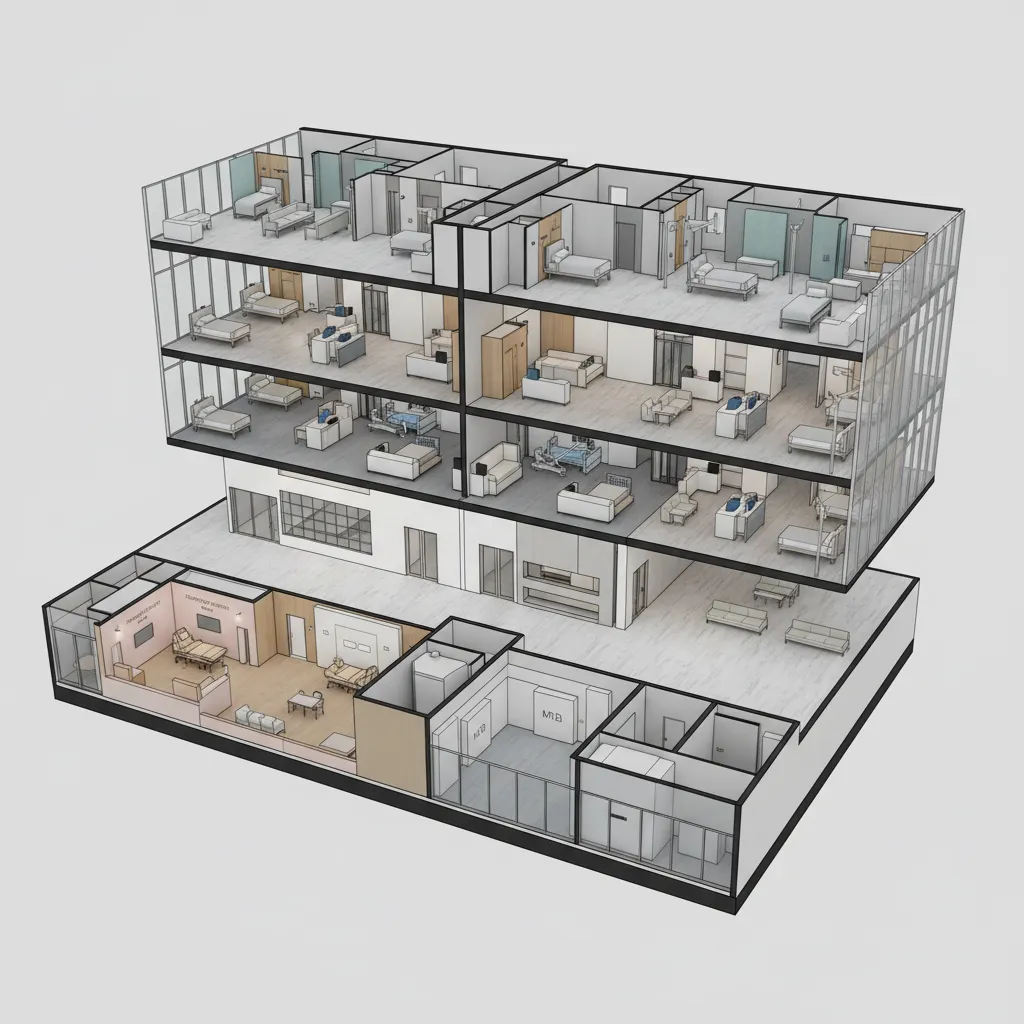

When analyzing real healthcare facilities, visualizing department placement can be easier through spatial planning models similar to tools that demonstrate how large facilities organize complex floor plans. These visual models highlight how architectural decisions support medical workflow.

save pin

Final Summary

1. Hospital floor plans prioritize patient flow and treatment efficiency.
2. Emergency departments are designed for rapid ambulance and trauma access.
3. Imaging and surgery sit centrally to serve multiple departments.
4. Safety regulations strongly influence healthcare architecture.
5. Real hospitals like St. Joseph follow these widely used design principles.

FAQ

Why are hospital departments arranged by floor?

Departments are stacked vertically to keep related functions close together. For example, surgery may sit below ICU floors so critical patients can be transferred quickly.

How are modern hospital floor plans designed?

Modern hospital floor plans are designed using patient flow analysis, clinical workflow mapping, and strict healthcare architecture standards.

Why is the emergency department usually on the ground floor?

Ground‑level placement allows fast ambulance access and quick entry for walk‑in emergencies.

Why are imaging departments near emergency rooms?

Emergency patients often need CT or MRI scans immediately, so proximity reduces treatment delays.

What are the main principles of hospital architecture layout?

Key principles include patient flow efficiency, safety compliance, departmental zoning, and reduced transport time between critical services.

How do architects design healthcare facility patient flow?

Architects analyze how patients, staff, equipment, and supplies move through the building and design corridors and department placement accordingly.

What standards guide modern hospital design in the USA?

Standards from the Facility Guidelines Institute, ADA accessibility rules, and fire safety codes heavily influence hospital architecture.

Are all hospital floor plans similar?

Many hospitals share similar structural principles, but layouts vary based on size, specialty services, and expansion history.
