Introduction

Designing a kitchen sink vent system might look simple on paper, but after working on residential projects for more than a decade, I can tell you the details matter far more than homeowners expect. Professional plumbers approach kitchen sink vent design as a pressure management system, not just a pipe that goes through the roof.

The biggest mistake I see in renovation projects is treating venting as an afterthought. Once cabinets, appliances, and countertops are fixed in place, routing a proper vent becomes difficult and expensive. That is why professionals typically plan the entire drainage layout early using a 3D layout planning method that visualizes plumbing routes before construction. It helps identify where vertical vent stacks can run without structural conflicts.

In this guide, I’ll walk through how professional plumbers actually design kitchen sink vent systems, including the code principles, planning tools, and real installation lessons that rarely show up in DIY tutorials.

save pin

Professional Plumbing Principles Behind Sink Venting

Key Insight: Every professional kitchen sink vent design is built around one core principle: protecting the trap seal from pressure imbalance.

The P‑trap under a sink holds a small amount of water that blocks sewer gases. Without proper venting, draining water creates negative pressure that can siphon this water out of the trap.

Professional plumbers design vent systems specifically to stabilize that pressure. The vent pipe allows air to enter the drain system so water flows smoothly without disturbing the trap.

Key pressure problems plumbers prevent:

1. Siphoning that empties the trap
2. Back pressure causing slow drainage
3. Gurgling sounds from nearby fixtures
4. Odor leaks from dry traps

According to the International Plumbing Code (IPC), venting is required for nearly every fixture because drainage systems depend on balanced air pressure. Professional plumbers treat vent pipes as part of the drainage network, not an optional add‑on.

How Plumbing Codes Influence Kitchen Sink Vent Design

Key Insight: Most vent layouts are determined by plumbing code limits on trap‑to‑vent distance.

Professional kitchen sink vent design is rarely based on preference. Instead, it’s largely dictated by building codes such as the IPC or Uniform Plumbing Code (UPC). These codes define how far a trap arm can travel before it must connect to a vent.

Typical code constraints plumbers follow:

1. Maximum trap arm length depending on pipe diameter
2. Minimum vent pipe diameter (often 1.5" or larger)
3. Vent pipes must rise vertically before horizontal offsets
4. Roof vent terminations must extend above the roofline

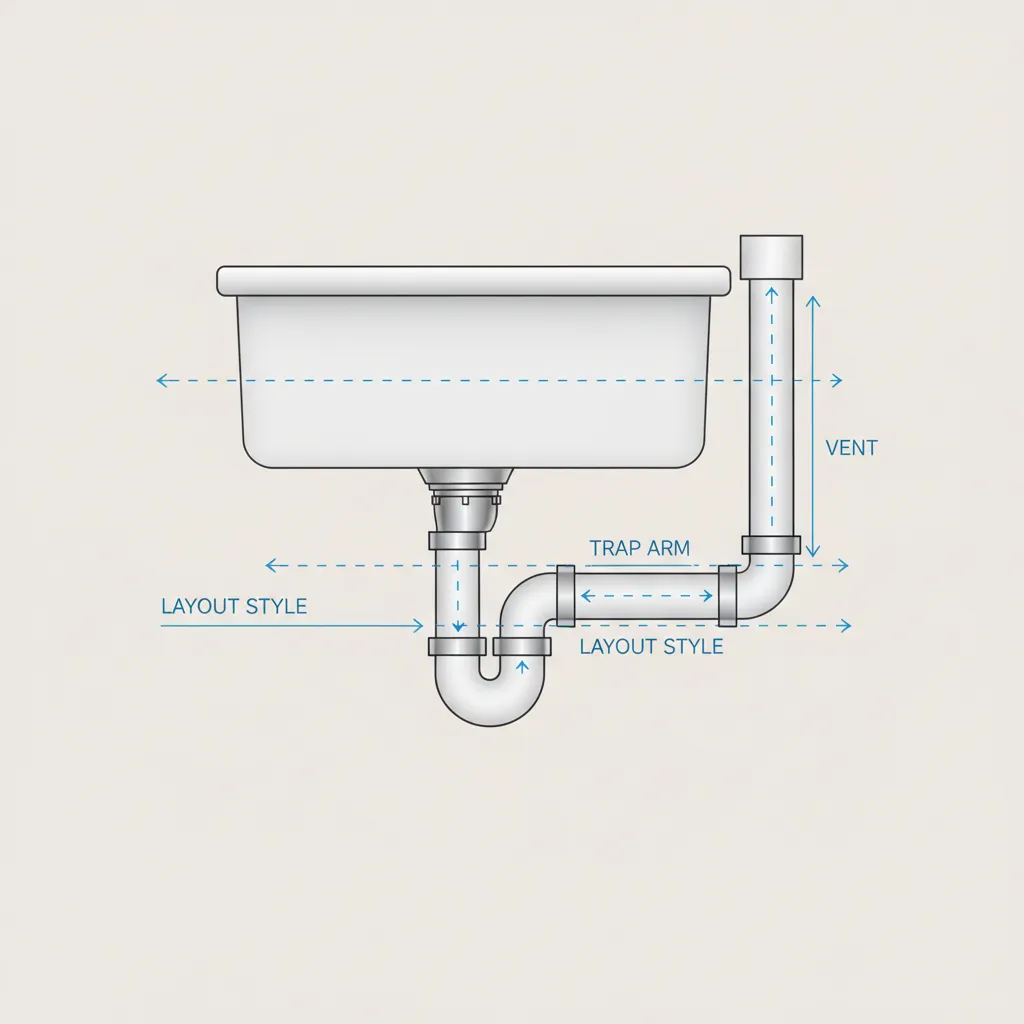

For example, a 1.5‑inch trap arm typically has a maximum distance of around 3–6 feet before a vent is required depending on jurisdiction.

One overlooked issue is cabinet depth. Modern deep sinks can push the trap arm further from the wall, which means the vent connection must be planned earlier in the framing stage.

save pin

Common Venting Configurations Used by Plumbers

Key Insight: Professionals choose the vent configuration based on kitchen layout constraints, not convenience.

Over the years I’ve seen three venting configurations dominate residential kitchen plumbing. Each exists because different layouts create different structural limitations.

1. Standard vertical vent (most common)

1. Vent pipe rises inside the wall
2. Connects to the main vent stack
3. Continues through the roof

2. Wet venting

1. Multiple fixtures share a vent line
2. Often used when sinks and dishwashers connect nearby
3. Allowed only in specific configurations by code

3. Island loop vent

1. Used when sinks are placed in kitchen islands
2. Vent loops upward under the counter before returning to the drain
3. Avoids roof vent routing in open floor plans

In large renovations or new builds, professionals often simulate fixture placement using a kitchen layout planning workflow that maps plumbing zones early. This reduces the chance of needing complex island vent solutions later.

save pin

Inspection Requirements for Roof Vent Installations

Key Insight: Roof vent installations must satisfy both plumbing code and roofing integrity requirements.

Many homeowners assume the vent pipe itself is the complicated part. In reality, passing inspection often depends on how the roof penetration is handled.

Inspectors typically check:

1. Vent pipe diameter and material
2. Roof flashing installation
3. Minimum height above roofline
4. Proper slope of horizontal vent runs
5. Distance from windows or air intakes

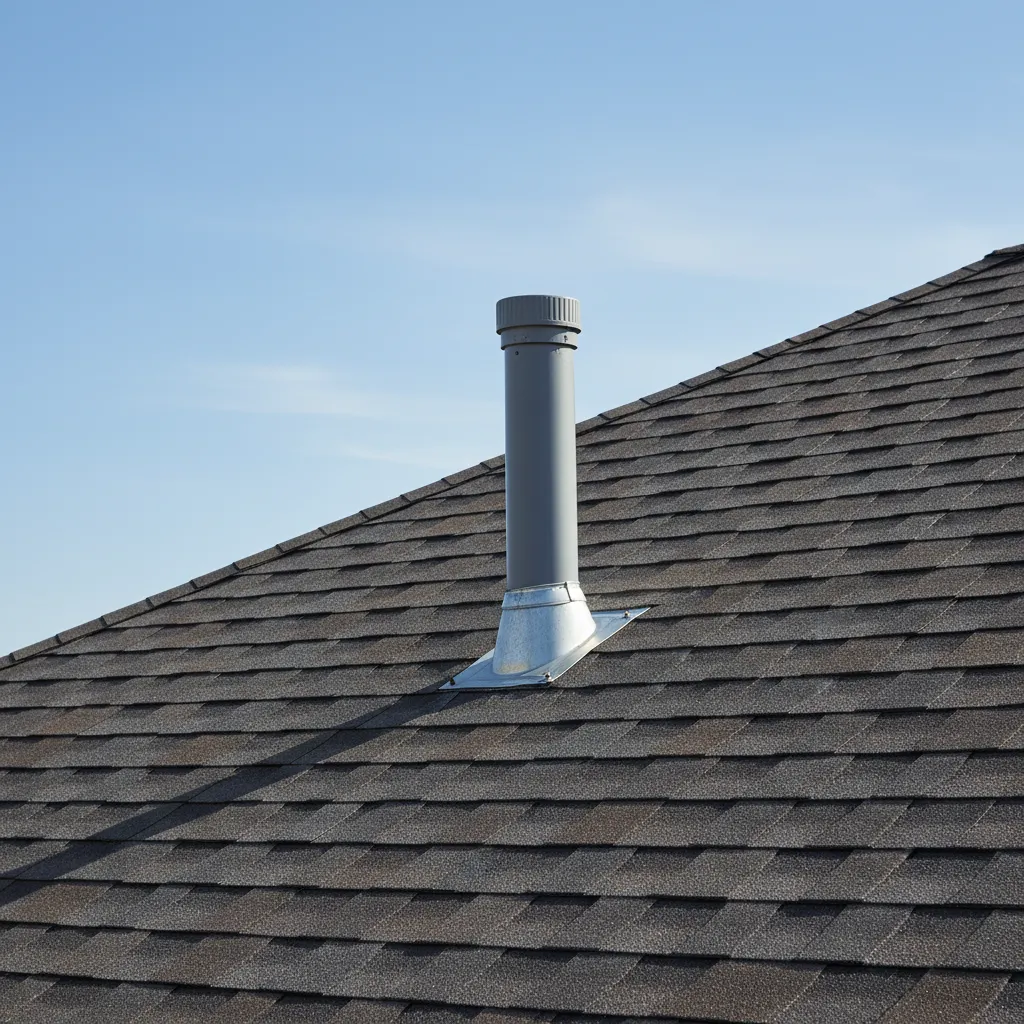

The IPC generally requires vent terminals to extend at least 6 inches above the roof, though snowy regions often require more.

Roof leaks are another hidden risk. Experienced plumbers coordinate with roofers to install proper flashing collars rather than simply sealing gaps with caulk.

Tools and Planning Methods Used by Professionals

Key Insight: Professional vent pipe planning usually begins with spatial modeling rather than manual sketches.

Years ago plumbers relied heavily on field adjustments. Today many contractors review plumbing routes digitally before installation begins.

Common planning tools used today:

1. 3D floor planning software
2. Building Information Modeling (BIM)
3. Digital pipe route visualization
4. Fixture layout simulations

Even smaller contractors increasingly review layouts using tools that allow them to map out a complete kitchen floor plan before plumbing installation. When vent stacks, cabinets, and appliances are visible in one model, conflicts become obvious long before construction begins.

save pin

Lessons from Real Plumbing Installations

Key Insight: The most expensive venting mistakes usually happen during remodeling, not new construction.

After reviewing dozens of renovation projects, several recurring problems show up again and again.

Common mistakes professionals often correct:

1. Vent pipes placed too far from the trap
2. Horizontal vent runs that slope incorrectly
3. Improvised air admittance valves used where roof vents are required
4. Cabinet installations blocking vent routing

A particularly common scenario occurs when homeowners install deeper farmhouse sinks. The plumbing shifts forward, reducing the allowable trap arm length and suddenly putting the vent connection out of compliance.

Professional plumbers solve this by relocating the vent tee inside the wall or redesigning the trap arm path entirely.

Answer Box

Professional kitchen sink vent design focuses on maintaining air balance within the drainage system. By following plumbing codes, selecting the right vent configuration, and planning pipe routes early, plumbers prevent slow drains, trap siphoning, and inspection failures.

Final Summary

1. Kitchen sink vent design protects trap seals and stabilizes drainage pressure.
2. Plumbing codes dictate vent distances, pipe sizes, and layout rules.
3. Standard wall vents, wet vents, and island loop vents solve different layouts.
4. Roof vent installation quality is critical for inspections and leak prevention.
5. Early layout planning dramatically reduces plumbing complications.

FAQ

1. Why does a kitchen sink need a vent pipe?

A vent pipe allows air into the plumbing system, preventing negative pressure that can siphon water from the P‑trap and cause odors or slow drainage.

2. How far can a kitchen sink be from the vent?

It depends on pipe size and local code, but many systems allow about 3–6 feet between the trap and the vent connection.

3. Can a kitchen sink share a vent with another fixture?

Yes. Wet venting allows fixtures to share vent lines when installed according to plumbing code requirements.

4. What is an island loop vent?

An island loop vent is a special configuration used when a kitchen sink is installed in an island without a nearby wall for a vertical vent.

5. Do all kitchen sink vents go through the roof?

Most traditional systems terminate through the roof, although some jurisdictions allow air admittance valves in specific cases.

6. What happens if a kitchen sink is not vented properly?

Improper kitchen sink vent design can cause gurgling sounds, slow drainage, sewer odors, and trap seal failure.

7. Can homeowners install their own vent pipes?

It is possible, but vent installations must meet plumbing codes and often require inspections, making professional installation safer.

8. What size vent pipe is used for kitchen sinks?

Most kitchen sink vent systems use 1.5‑inch or 2‑inch pipes depending on local plumbing codes.
