How to Calculate the Right BTU for a 1200 Sq Ft Mobile Home: A practical sizing guide to avoid underpowered AC units or wasting money on oversized cooling systems

Direct Answer

A 1200 sq ft mobile home typically needs between 24,000 and 30,000 BTU of cooling capacity, depending on insulation quality, sun exposure, ceiling height, and the number of occupants. Most manufactured homes fall close to 24,000 BTU (2 tons), but poorly insulated or sun‑exposed homes may require closer to 30,000 BTU.

The safest approach is to start with the standard square‑foot formula, then adjust for heat gain factors unique to mobile homes.

Quick Takeaways

1. A 1200 sq ft mobile home usually requires 24,000–30,000 BTU.
2. Insulation and sun exposure can shift cooling needs by up to 20%.
3. Oversized AC units cool faster but often create humidity problems.
4. Mobile homes typically gain heat faster than site‑built houses.
5. Always adjust BTU estimates for occupants, windows, and ceiling height.

Introduction

One of the most common mistakes I see when homeowners buy an air conditioner for a mobile home is choosing the wrong size. After working on residential projects for more than a decade—including quite a few manufactured home renovations—I’ve noticed that cooling calculations for mobile homes are often oversimplified.

People Google a quick formula, multiply square footage, and assume the number is correct. But a 1200 sq ft mobile home doesn’t behave thermally the same way as a 1200 sq ft traditional house. The wall construction, roof insulation, and window exposure can change cooling demand dramatically.

If you're planning a layout upgrade or evaluating airflow while designing interiors, it also helps to visualize how rooms connect. I often sketch zones using a simple floor plan layout creator for mapping room airflow and furniture placementbefore finalizing HVAC decisions.

In this guide, I’ll break down the real‑world method professionals use to estimate the correct BTU for a 1200 sq ft mobile home—plus the hidden factors most online calculators ignore.

save pin

Why Proper BTU Sizing Matters for Mobile Homes

Key Insight: Incorrect AC sizing is the fastest way to waste money and still feel uncomfortable.

Many homeowners assume bigger is better when choosing an air conditioner. In reality, oversizing can create just as many problems as undersizing.

Mobile homes are particularly sensitive because their thermal mass is lower. Walls heat up quickly and lose cool air faster.

Common Problems from Wrong BTU Sizing

1. Too Small: AC runs constantly but never reaches the set temperature.
2. Too Large: Short cycling leads to humidity and uneven cooling.
3. Poor airflow balance: Certain rooms stay warm while others overcool.
4. Higher electricity bills: inefficient compressor cycling.

According to the U.S. Department of Energy, improperly sized HVAC systems can reduce efficiency by more than 30%.

In my own projects, the worst cases are oversized systems installed “just to be safe.” The home cools quickly—but humidity stays trapped, making the space feel clammy.

Standard BTU Estimates for 1200 Sq Ft Spaces

Key Insight: The baseline formula gives a starting point—but it should never be the final answer.

The widely used rule is:

20 BTU per square foot

For a 1200 sq ft home:

1. 1200 × 20 = 24,000 BTU

This translates roughly to:

1. 24,000 BTU AC unit
2. or a 2‑ton cooling system

Typical Cooling Estimates

1. 1000 sq ft → ~20,000 BTU
2. 1200 sq ft → ~24,000 BTU
3. 1400 sq ft → ~28,000 BTU

However, this rule assumes average insulation and 8‑foot ceilings—conditions that many mobile homes don't perfectly match.

When I evaluate real projects, I almost always adjust this number by ±10–20%.

Factors That Change Cooling Requirements

Key Insight: Square footage is only half the calculation—heat gain determines the rest.

Mobile homes can vary widely depending on construction year and upgrades. Older manufactured homes often have thinner insulation layers and single‑pane windows.

Important Heat Gain Factors

1. Number of occupants – each person adds about 400 BTU.
2. Kitchen heat – cooking appliances increase cooling demand.
3. Large windows – sunlight dramatically increases heat gain.
4. Roof insulation quality – a major factor in manufactured homes.
5. Climate zone – southern states may require +15–20% BTU.

When redesigning interior layouts, airflow between rooms can also change cooling performance. Mapping circulation paths using a visual room planning tool for arranging walls, vents, and furniturehelps identify hot spots before installing new equipment.

save pin

Sun Exposure, Insulation, and Ceiling Height

Key Insight: These three elements can shift your BTU requirement by thousands.

In practice, these are the variables I adjust first during HVAC planning.

Adjustment Guidelines

1. Very sunny home: add 10% BTU
2. Heavy shade: subtract 10%
3. Poor insulation: add 15–20%
4. High ceilings (9–10 ft): add 10%
5. Energy‑efficient windows: subtract 5–10%

Example Calculation

1. Base requirement: 24,000 BTU
2. Sunny location: +10%
3. Poor roof insulation: +15%

Adjusted requirement:

~30,000 BTU cooling capacity

This explains why two homes with the same square footage may need completely different AC sizes.

BTU Chart for Mobile Home Cooling

Key Insight: A quick BTU chart helps narrow the range before final adjustments.

Mobile Home AC Size Guide

1. 600 sq ft → 12,000 BTU
2. 800 sq ft → 16,000 BTU
3. 1000 sq ft → 20,000 BTU
4. 1200 sq ft → 24,000 BTU
5. 1400 sq ft → 28,000 BTU
6. 1600 sq ft → 32,000 BTU

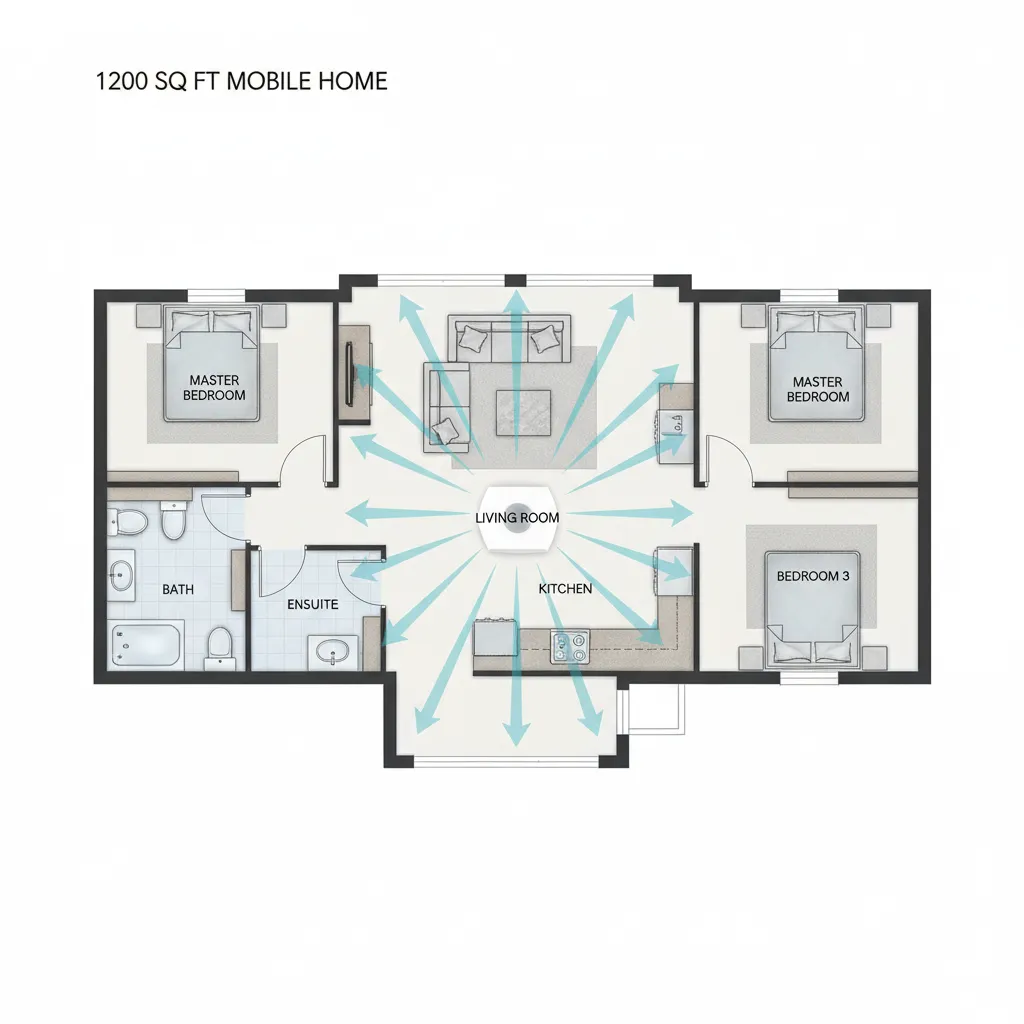

One overlooked factor is layout complexity. Long narrow mobile homes often have airflow challenges between rooms.

When planning duct routes or mini‑split placement, I usually sketch zones using a 3D layout visualization for testing airflow zones and room proportions. It’s a simple way to identify rooms that may require additional vents or a second indoor unit.

save pin

Choosing an AC Unit After Calculating BTU

Key Insight: Once BTU is calculated, the system type matters just as much as the number.

Different cooling systems deliver the same BTU in very different ways.

Common AC Options for 1200 Sq Ft Mobile Homes

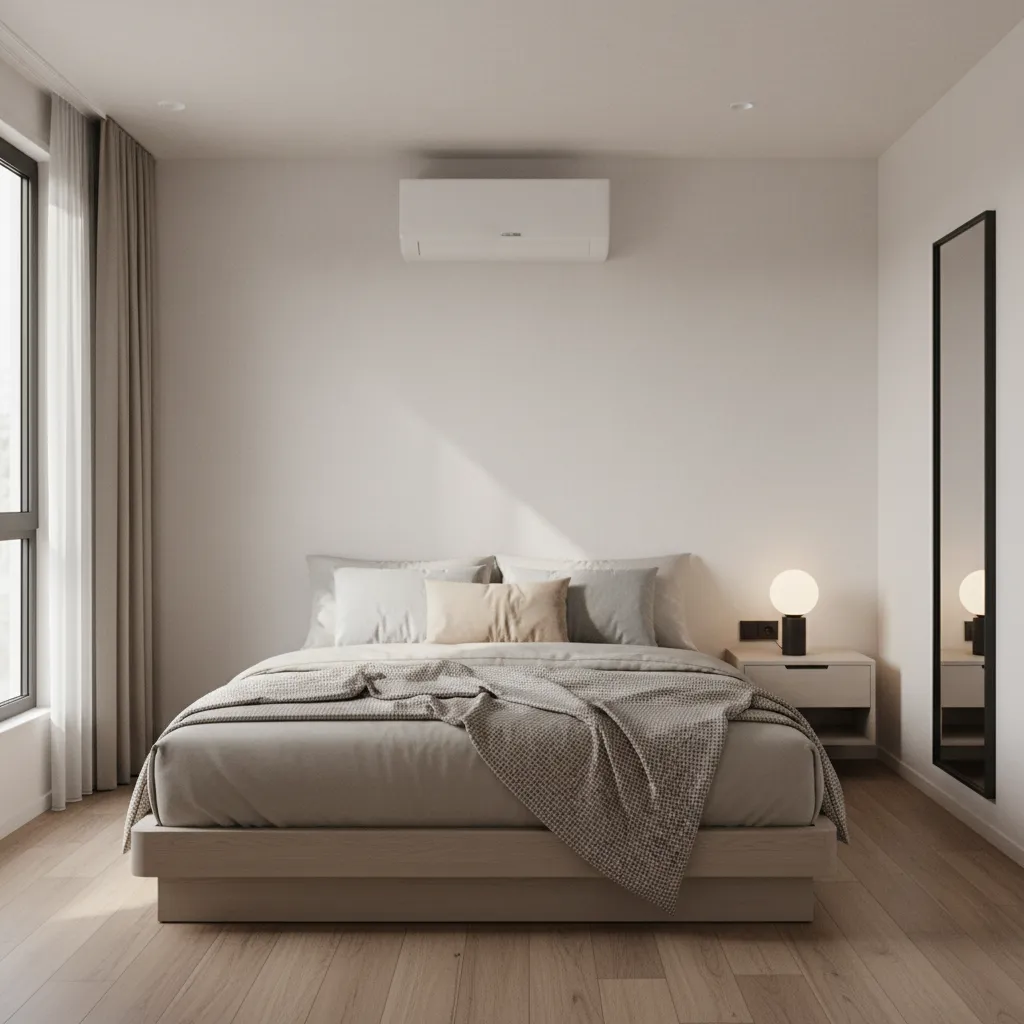

1. Mini‑split systems – efficient and flexible for segmented layouts.
2. Central AC – ideal if ductwork already exists.
3. Window units – budget solution but less efficient.
4. Packaged units – common in manufactured housing communities.

Typical Recommendation

1. 24,000 BTU mini split for well‑insulated homes
2. 30,000 BTU system for hot climates or poor insulation

Answer Box

For most homes, the BTU needed for a 1200 sq ft mobile home falls between 24,000 and 30,000 BTU. Start with the 20 BTU per square foot rule, then adjust for insulation, sun exposure, occupants, and ceiling height.

Final Summary

1. Most 1200 sq ft mobile homes need around 24,000 BTU.
2. Sun exposure and insulation can increase demand by 20%.
3. Oversized systems often cause humidity and short cycling.
4. Layout and airflow affect real‑world cooling performance.
5. Always adjust the base formula using environmental factors.

FAQ

How many BTU are needed for a 1200 sq ft mobile home?

Most homes require between 24,000 and 30,000 BTU depending on insulation, climate, and sun exposure.

Is 24000 BTU enough for a 1200 sq ft house?

Yes, in well‑insulated homes with average sun exposure. Older manufactured homes may require closer to 30,000 BTU.

What size AC for a 1200 sq ft mobile home?

A 2‑ton system (24,000 BTU) is typical, though hotter climates may need a 2.5‑ton system.

Do mobile homes need more BTU than regular houses?

Often yes. Manufactured homes sometimes have thinner insulation and more heat gain.

Can an oversized AC cause problems?

Yes. Oversized units cool too quickly and fail to remove humidity, causing discomfort.

Does ceiling height affect AC sizing?

Yes. Higher ceilings increase air volume and require additional cooling capacity.

How do I calculate BTU for air conditioning?

Multiply square footage by 20 BTU, then adjust for sun exposure, insulation, occupants, and appliances.

Is a mini split good for a 1200 sq ft mobile home?

Yes. Mini splits are efficient and work well for the segmented layouts common in manufactured homes.

References

1. U.S. Department of Energy – Residential HVAC sizing guidelines
2. ENERGY STAR – Air conditioner sizing recommendations
3. ACCA Manual J load calculation standards
