How to Choose the Right Magnetic Cabinet Door Catch: A practical guide to selecting the correct magnetic cabinet catch based on door weight, cabinet material, and real‑world installation conditions.

Direct Answer

The right magnetic cabinet door catch depends on three main factors: door weight, required holding force, and mounting style. Light cabinet doors typically need small plastic magnetic catches, while heavier wood or pantry doors require stronger metal catches with higher holding force. Matching magnet strength and installation style to the cabinet structure prevents doors from drifting open or slamming shut.

Quick Takeaways

1. Heavier cabinet doors require higher holding force magnetic catches.
2. Metal magnetic catches typically last longer than plastic models.
3. Door material affects how strong the magnetic catch should be.
4. Improper mounting style is a common reason cabinet catches fail early.
5. Testing door alignment before installing a catch prevents most performance issues.

Introduction

Choosing the right magnetic cabinet door catch sounds simple—until you install the wrong one and your cabinet doors slowly creep open every few hours. I have seen this happen in dozens of kitchen and built‑in cabinet projects over the past decade. The catch technically works, but it simply doesn't have enough holding force for the door weight or hinge tension.

A magnetic cabinet door catch is a small hardware detail, yet it directly affects how premium a cabinet feels in daily use. When it’s correctly chosen, the door closes smoothly and stays shut. When it’s wrong, the cabinet feels cheap and unreliable.

In modern cabinetry planning, designers often test door swing and clearance digitally before selecting hardware. If you want to visualize cabinet spacing and door movement during planning, this guide on planning cabinet layouts with a detailed 3D room layout toolshows how professionals evaluate spacing before installation.

In this guide, I’ll walk through how professionals actually select magnetic cabinet catches—from magnet strength to mounting style—plus a few common mistakes that most buying guides completely overlook.

save pin

Key Factors When Selecting a Magnetic Cabinet Catch

Key Insight: The performance of a magnetic cabinet catch depends more on door weight and alignment than on magnet size alone.

Most people assume a larger magnet automatically means better performance. In practice, that’s not always true. I’ve installed oversized catches on lightweight cabinet doors that ended up causing a different problem—the door required too much force to open.

Instead, professionals evaluate four variables before selecting the catch.

1. Door weight – Solid wood or MDF doors require stronger magnets.
2. Door size – Wider doors create more leverage against the catch.
3. Hinge tension – Soft‑close hinges sometimes push doors slightly open.
4. Cabinet alignment – Misaligned doors reduce magnetic contact.

Hidden design issue: hinge spring tension is often stronger than the magnet. That’s why cabinet doors sometimes pop open after installation even though the catch appears strong enough.

Professional installers often test this by temporarily taping the catch plate in place before final installation.

Understanding Magnet Strength and Holding Force

Key Insight: Holding force ratings determine whether the cabinet door stays closed under hinge pressure and daily use.

Magnetic catches are typically rated by holding force, usually measured in pounds or kilograms. Unfortunately, many inexpensive catches don’t list this clearly.

From experience, these ranges generally work well:

1. 2–4 lb holding force – small bathroom or medicine cabinet doors
2. 4–8 lb holding force – standard kitchen cabinet doors
3. 8–14 lb holding force – large pantry or tall storage doors
4. 14+ lb holding force – heavy wood or commercial cabinetry

Industry manufacturers such as Sugatsune and Häfele often publish holding force specifications for their hardware, which makes selection far easier than guessing based on magnet size.

A mistake I see frequently: installing a weak magnetic catch on a tall cabinet door. The longer the door, the more leverage it creates when the hinge pushes outward.

save pin

Choosing the Right Size and Mounting Style

Key Insight: Mounting style often matters more than magnet strength for long‑term reliability.

Magnetic cabinet catches typically come in three installation styles:

1. Surface‑mounted catches – screwed directly to the cabinet frame
2. Recessed catches – installed inside drilled holes for a hidden look
3. Double magnet catches – two magnets for larger doors

Surface mounts are the most forgiving and easiest to adjust. Recessed models look cleaner but require precise drilling and alignment.

In high‑end kitchen projects, I usually recommend recessed catches only when cabinet manufacturing is precise enough to maintain perfect alignment.

If you’re planning cabinet spacing and clearances for multiple doors, visualizing door swing inside a complete room planning layout before installing cabinetry can reveal potential alignment conflicts early.

Matching the Catch to Door Weight and Cabinet Material

Key Insight: Cabinet material changes how effectively magnets hold the strike plate.

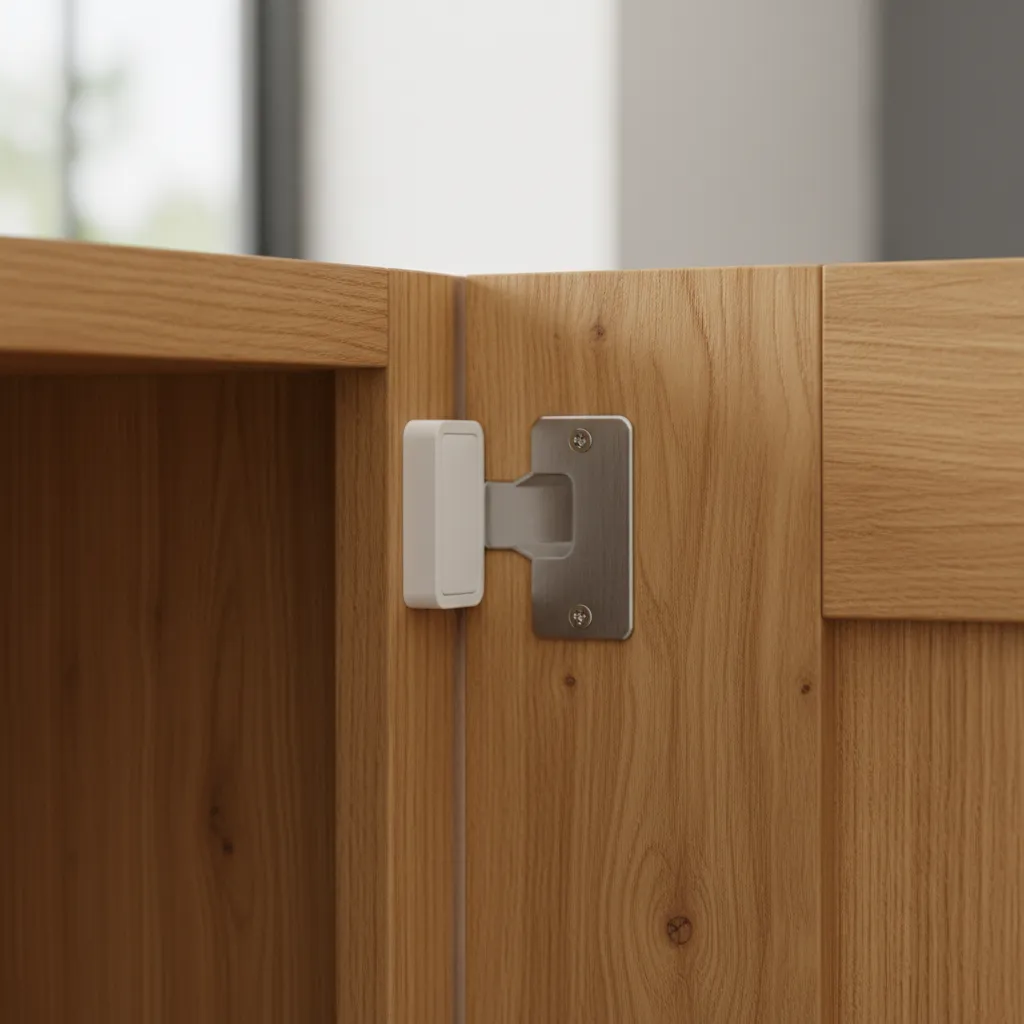

Magnetic catches rely on a metal strike plate attached to the door. However, different cabinet materials affect installation strength.

Here’s what professionals usually consider:

1. Solid wood cabinets – screws hold securely and allow stronger catches
2. MDF or particleboard – moderate holding force recommended
3. Laminate cabinets – careful pilot drilling required
4. Glass or aluminum frame doors – special mounting plates often needed

Hidden cost most guides ignore: weak cabinet material can cause screws to loosen over time. In those situations, a slightly larger catch with longer screws performs better than simply choosing a stronger magnet.

save pin

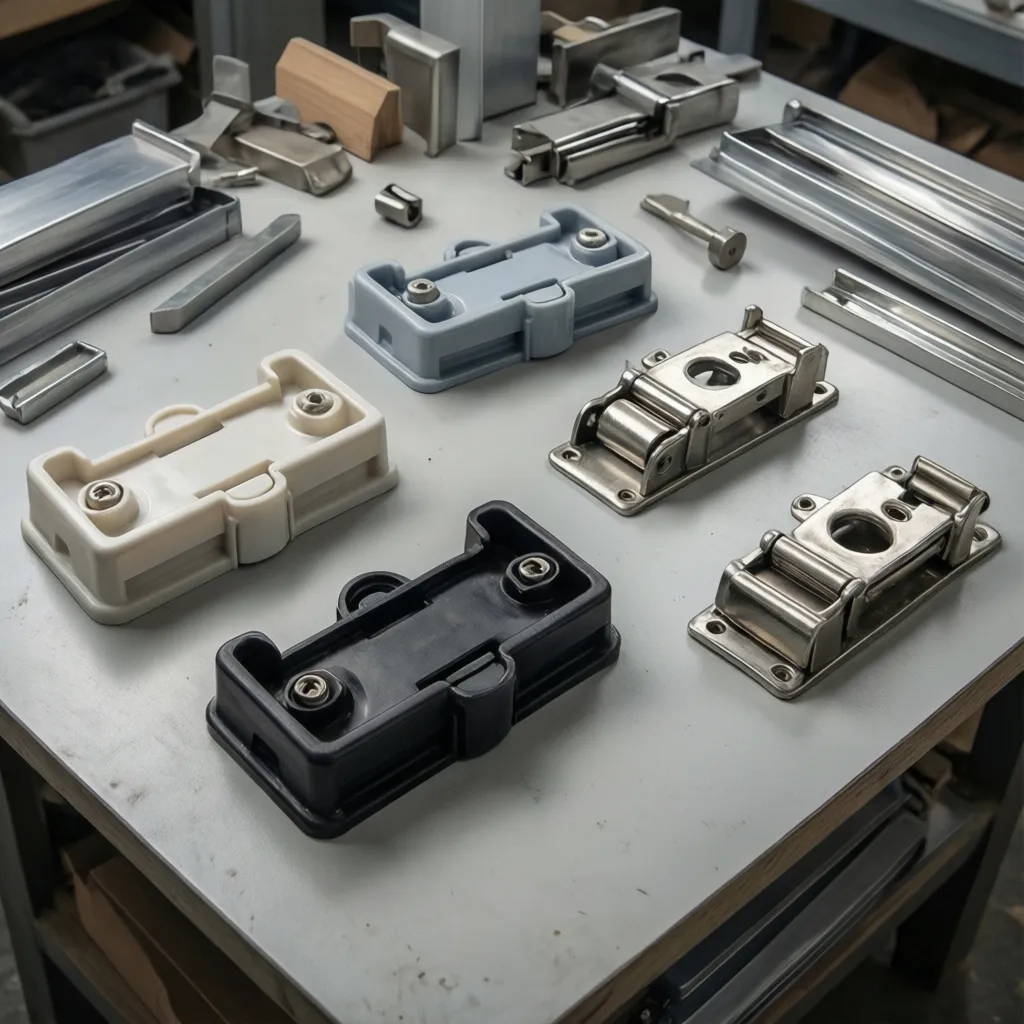

Comparing Plastic vs Metal Magnetic Catches

Key Insight: Metal magnetic catches last significantly longer in high‑use kitchens.

Both plastic and metal catches are widely used, but they behave differently over time.

Plastic magnetic catches

1. Lower cost
2. Common in basic cabinets
3. Can crack after years of tension

Metal magnetic catches

1. Higher durability
2. Better for heavy doors
3. Often stronger magnets

In residential design projects I usually reserve plastic catches for lightweight bathroom cabinets or closets. Kitchens and pantries benefit from metal catches because those doors are opened dozens of times every day.

Answer Box

The best magnetic cabinet door catch balances holding force, mounting style, and cabinet material compatibility. Heavier doors require stronger magnets and more durable housings, while lightweight cabinets perform best with smaller catches that prevent excessive resistance.

Checklist for Selecting the Best Magnetic Catch

Key Insight: A quick evaluation checklist prevents most cabinet catch installation problems.

Before purchasing magnetic cabinet hardware, I recommend checking these items:

1. Measure cabinet door width and thickness
2. Estimate door weight (solid wood vs MDF)
3. Check hinge type and closing tension
4. Confirm cabinet frame thickness for screw depth
5. Choose plastic or metal housing based on use frequency
6. Select appropriate holding force rating

When planning cabinetry layouts that include multiple door types, designers often visualize the final installation using interactive interior design visualization for cabinetry planning to avoid clearance or alignment mistakes.

Final Summary

1. Door weight determines the required magnetic holding force.
2. Mounting style affects long‑term reliability.
3. Metal catches outperform plastic in high‑traffic kitchens.
4. Cabinet material influences screw stability and durability.
5. Testing alignment before installation prevents door drift.

FAQ

1. What strength magnetic cabinet catch should I use?

Most kitchen cabinets work best with 4–8 lb holding force magnetic catches. Heavier pantry doors may require 8–14 lb models.

2. Are metal magnetic cabinet catches better than plastic?

Yes for high‑use cabinets. Metal magnetic cabinet catches resist cracking and provide stronger holding force over time.

3. Can a magnetic cabinet catch hold heavy wood doors?

Yes, but choose high holding force models and secure them with longer screws into solid wood cabinet frames.

4. Why do cabinet doors pop open after installing a magnetic catch?

Soft‑close hinges sometimes push the door outward. The magnetic catch may not have enough holding force to counter the hinge tension.

5. How long do magnetic cabinet catches last?

Quality catches can last 10–20 years depending on usage frequency and cabinet door weight.

6. Can I install a magnetic catch without drilling?

Some adhesive versions exist, but screw‑mounted catches are far more reliable for long‑term use.

7. Do modern kitchen cabinets still use magnetic catches?

Many modern cabinets rely on soft‑close hinges instead, but magnetic catches are still common in utility cabinets and pantry doors.

8. How do I know if my magnetic cabinet catch is too weak?

If the cabinet door slowly opens by itself or doesn’t stay fully closed, the catch likely lacks sufficient holding force.

References

Häfele Cabinet Hardware Technical Guide

Sugatsune Architectural Hardware Catalog

Kitchen Cabinet Manufacturers Association (KCMA)
