How to Decide the Right Level of Detail for a Railway Station 3D Model: A practical framework for choosing the correct modeling depth for visualization, simulation, and real‑time platforms

Direct Answer

The right level of detail for a railway station 3D model depends entirely on how the model will be used. Visualization projects require high architectural detail and materials, while simulation or real‑time platforms prioritize simplified geometry and optimized assets. The best approach is planning multiple Levels of Detail (LOD) so the same station model can balance visual realism and performance across different uses.

Quick Takeaways

1. High-detail models are ideal for marketing visuals but often unnecessary for operational simulations.
2. Large railway stations benefit from multiple LOD layers rather than a single heavy model.
3. Performance problems usually come from excessive geometry in repeated assets like seats, signage, and rail equipment.
4. Planning LOD early prevents costly remodeling later in the project.
5. Different platforms—games, BIM, visualization—require different polygon budgets.

Introduction

One of the most common questions I hear when teams start building a railway station 3D model is surprisingly simple: how detailed should the model actually be? After working on large architectural visualization projects for more than a decade, I’ve seen teams spend weeks modeling details that never appear on screen—and other teams oversimplify models so much that the station loses realism.

Railway stations are especially tricky because they combine massive architectural structures with hundreds of repeating assets—platform seating, ticket gates, signage, lighting systems, retail kiosks, and mechanical infrastructure. Without a clear LOD strategy, the model quickly becomes too heavy for visualization software or real‑time environments.

In projects similar to those you might see in a complete architectural 3D floor planning workflow, the smartest approach is deciding the level of detail before modeling begins. This article walks through the practical framework I use when planning complex station models—from cinematic renders to operational simulations.

save pin

Understanding Levels of Detail in Large Architectural Models

Key Insight: Level of Detail (LOD) is not just about reducing polygons—it’s about controlling visual information based on viewing distance and project goals.

In large architectural scenes like railway terminals, a single model often contains thousands of elements. Instead of modeling everything at maximum detail, professionals create several LOD stages.

Typical LOD structure used in transportation infrastructure:

1. LOD 100: Basic massing and structure
2. LOD 200: Architectural layout with simplified assets
3. LOD 300: Accurate geometry for visualization
4. LOD 400: Detailed assets such as signage, rails, fixtures
5. LOD 500: Engineering-level detail for documentation

The mistake many teams make is jumping directly to LOD 400 across the entire station. In practice, only about 10–20% of the model area actually needs that level of complexity.

Industry workflows from firms using Autodesk and Unreal Engine pipelines commonly combine multiple LOD layers within the same environment, ensuring that distant structures remain lightweight while focal areas maintain realism.

When High Detail Is Necessary for Railway Stations

Key Insight: High detail should be reserved for areas where users focus their attention.

In real projects, visual emphasis zones determine modeling depth. For a railway station, these zones usually include:

1. Main station hall
2. Ticketing and security areas
3. Retail or commercial spaces
4. Platform entrances
5. Architectural landmarks such as domes or façades

Elements that benefit from high detail include:

save pin

1. Lighting fixtures
2. Glass curtain walls
3. Signage systems
4. Escalators and elevators
5. Wayfinding elements

But here’s a counterintuitive observation from real projects: platform seating, rail tracks, and mechanical equipment often consume the most polygons while contributing very little to perceived realism. Optimizing these repeated elements can reduce scene weight dramatically.

Balancing Accuracy and Performance

Key Insight: The goal is believable realism—not geometric perfection.

In large transportation hubs, the biggest performance problems rarely come from architecture itself. They come from repetition: hundreds of chairs, railings, advertisement panels, and lights.

A simple optimization strategy includes:

1. Use instancing for repeated assets
2. Create simplified geometry for background platforms
3. Replace complex rail geometry with texture maps
4. Limit high‑resolution materials to focal zones

Teams planning large environments—similar to those used in a high‑quality architectural rendering workflow—often discover that smart material usage improves realism more than adding polygons.

Another hidden cost many teams underestimate is iteration speed. A lighter model loads faster, renders faster, and allows designers to experiment more freely.

Different LOD Strategies for Visualization vs Simulation

Key Insight: Visualization models prioritize aesthetics, while simulation models prioritize computational efficiency.

The required LOD varies significantly depending on the project type.

Comparison of typical requirements:

1. Architectural Visualization
2. Focus: realism, materials, lighting
3. Higher polygon count acceptable
4. Detailed textures and materials
5. Game or Real‑Time Environments
6. Focus: frame rate and interactivity
7. Aggressive LOD switching required
8. Low‑poly assets preferred
9. Operational Simulation
10. Focus: passenger movement and spatial analysis
11. Simplified geometry
12. Minimal decorative detail

Many studios now design station models using modular systems that can adapt to different outputs. A model built for planning might later be used for interactive navigation or public presentations.

Choosing Detail Based on Platform or Output

Key Insight:The output platform ultimately defines your acceptable model complexity.

Different platforms tolerate very different polygon budgets:

save pin

1. Offline rendering: extremely high detail possible
2. Web-based viewers: moderate complexity
3. Game engines: strict polygon limits
4. Urban simulation tools: simplified geometry

For example, a station designed for interactive layout exploration—similar to workflows seen in a digital room and space planning environment—must prioritize smooth navigation and loading speed.

This often means baking lighting into textures, reducing mesh complexity, and using LOD switching for distant objects.

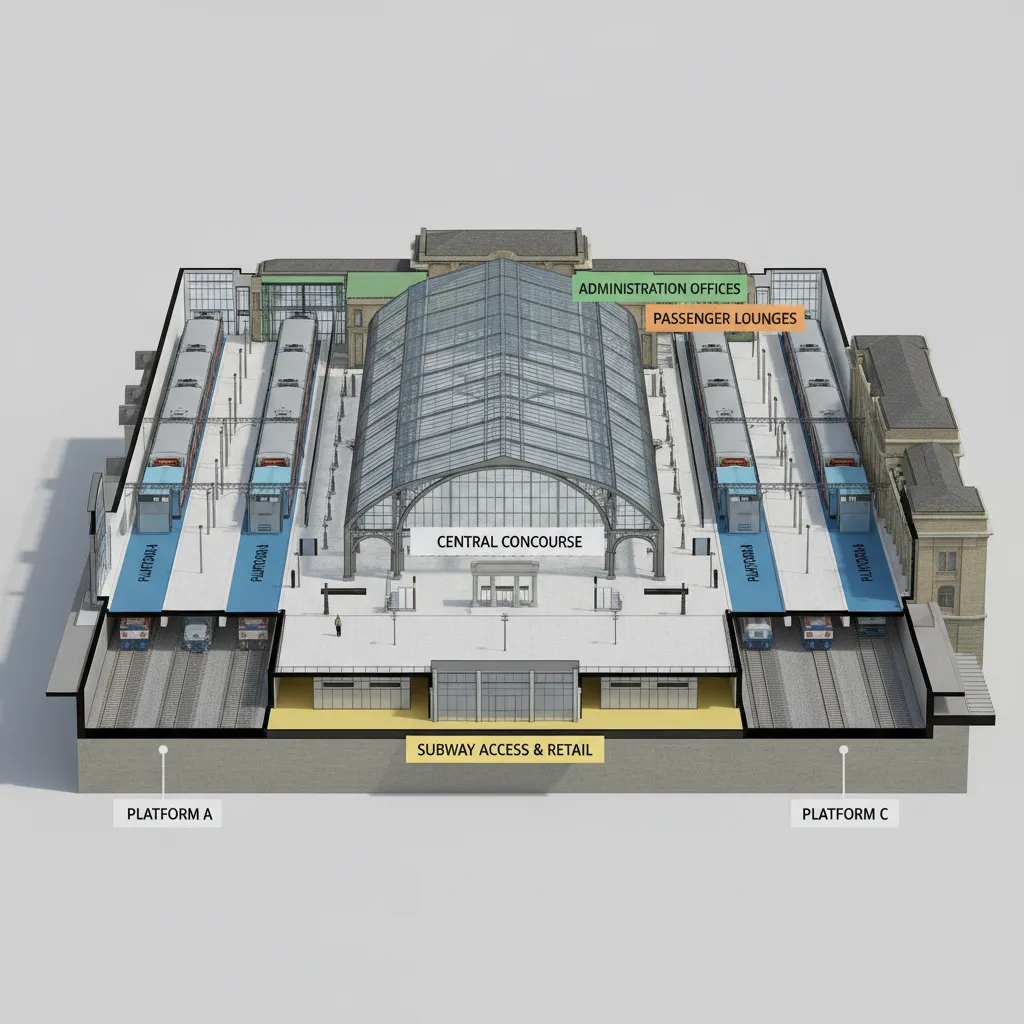

Example LOD Strategy for the Chennai Railway Station Model

Key Insight:Dividing a station into functional zones is the most effective way to manage detail.

A practical LOD plan for a large station such as Chennai Central might look like this:

save pin

1. Zone 1 – Landmark Architecture
2. Full architectural detail, accurate materials, detailed lighting
3. Zone 2 – Passenger Circulation Areas
4. Medium detail, simplified furniture assets
5. Zone 3 – Platforms and Rail Infrastructure
6. Low to medium detail, optimized repeating elements
7. Zone 4 – Distant Structures
8. Low-poly massing models with simple textures

This zoning approach allows designers to maintain visual credibility where it matters while keeping the entire scene manageable.

Answer Box

The correct level of detail for a railway station 3D model depends on the model’s purpose. Visualization requires detailed materials and focal assets, while simulation and real‑time environments demand simplified geometry. Planning multiple LOD layers is the most reliable strategy for balancing realism and performance.

Final Summary

1. Level of detail should be determined by the final use of the model.
2. Only focal areas of a railway station require high geometric detail.
3. Repeated assets often cause the biggest performance issues.
4. Multiple LOD layers create flexible models for different platforms.
5. Planning detail levels early saves significant production time.

FAQ

How detailed should a railway station 3D model be?

It depends on the purpose. Visualization models may include high‑resolution materials and geometry, while simulation models often use simplified forms to maintain performance.

What is LOD in architecture 3D models?

LOD (Level of Detail) describes how much geometric and visual information a model contains. Higher LOD means more detail but also heavier computational requirements.

Why are large station models difficult to optimize?

Railway stations include massive structures and hundreds of repeated objects. Without optimization, these repeated assets quickly increase polygon counts.

What causes performance issues in large 3D scenes?

Excessive geometry, high‑resolution textures, and repeated objects such as seats and lights often cause slow performance.

Can one railway station model serve multiple purposes?

Yes. With a proper LOD strategy, the same base model can be adapted for rendering, simulation, and interactive environments.

What is the best LOD strategy for railway station models?

Divide the station into zones and apply different detail levels to each area based on user focus and visibility.

Do simulation models require realistic materials?

Usually not. Simulations prioritize geometry and spatial relationships rather than detailed textures.

Is LOD planning important before modeling begins?

Absolutely. Planning LOD early prevents heavy models and reduces the need for time‑consuming optimization later.
