How to Fix Weak Airflow in a 6-Inch HVAC Duct System: A practical troubleshooting guide to diagnose low airflow in small-room vents and restore proper air delivery

Direct Answer

Weak airflow in a 6‑inch HVAC duct usually happens because of excessive duct length, sharp bends, dirty filters, closed dampers, or an undersized duct for the room’s airflow demand. The fix starts with checking restrictions and measuring airflow before deciding whether to rebalance, clean, or add another duct run.

In most residential systems, a properly installed 6‑inch duct should deliver roughly 70–110 CFM. If you’re far below that range, something in the system is restricting airflow.

Quick Takeaways

1. A 6‑inch duct typically supports about 70–110 CFM under normal residential static pressure.
2. Most weak airflow issues come from restrictions, not the duct size itself.
3. Too many bends or long flexible duct runs can cut airflow by more than 30%.
4. Measuring static pressure often reveals hidden airflow problems.
5. Adding an additional branch duct is sometimes more effective than enlarging the existing one.

Introduction

Weak airflow from a ceiling or wall vent is one of the most common complaints I hear when reviewing HVAC layouts for small rooms. And interestingly, the issue often shows up in systems that technically look correct on paper—especially when using a 6‑inch HVAC duct.

After working on dozens of residential remodels and layout optimizations, I’ve noticed that airflow problems rarely come from a single mistake. Instead, they’re usually the result of several small issues stacking together: a slightly long duct run, a couple of tight bends, maybe a restrictive grille or a dirty filter.

Another overlooked factor is the room layout itself. Poor placement of vents or furniture can create the illusion of weak airflow even when the duct is performing normally. When planning spaces, I often recommend visualizing air paths early in the design process using tools like a visual room layout planner for airflow and furniture placementto avoid these hidden conflicts.

This guide walks through the real troubleshooting steps HVAC technicians and designers use to diagnose weak airflow in a 6‑inch duct system—starting with the simplest checks and moving toward more technical solutions.

save pin

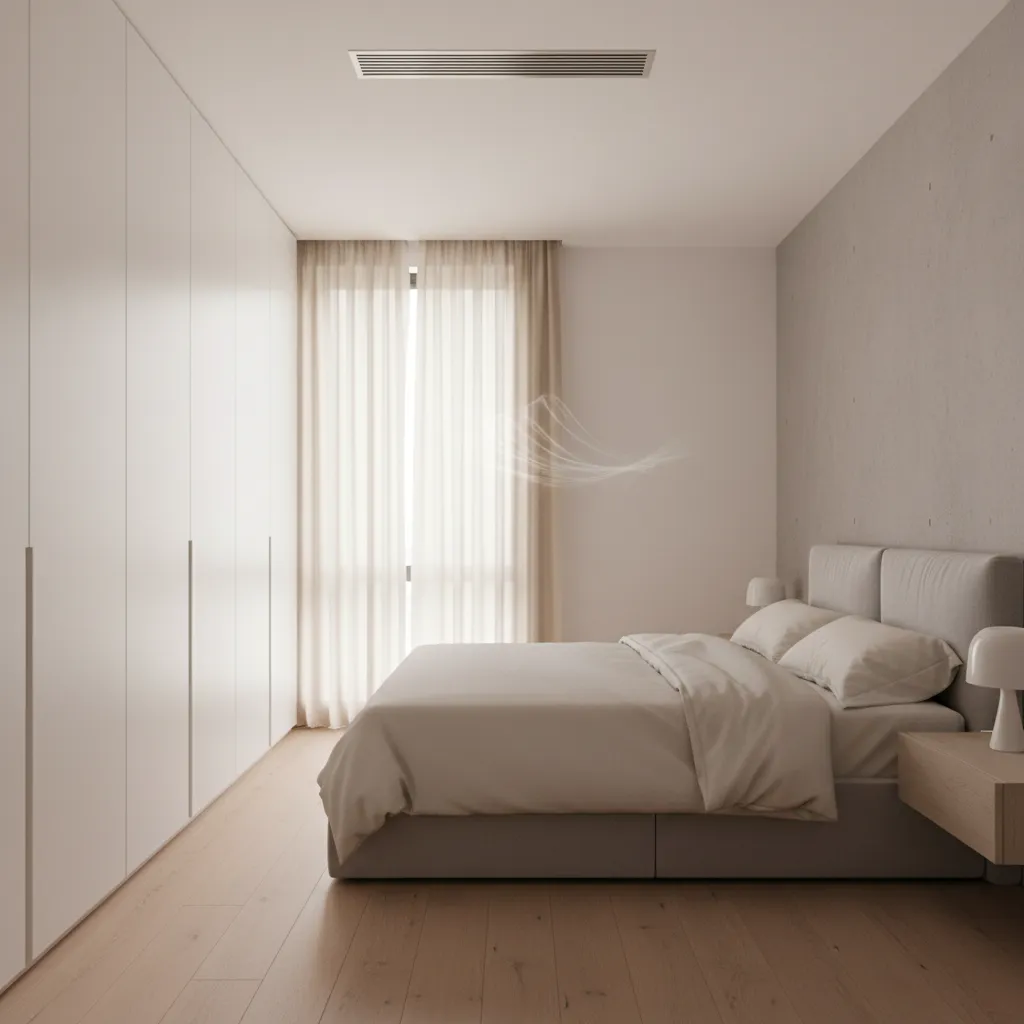

Common Signs of Weak Airflow in a Small Room

Key Insight: Weak airflow usually reveals itself through comfort problems long before homeowners notice the vent itself.

In most homes, airflow issues show up as uneven temperatures rather than obvious mechanical problems. A bedroom might feel stuffy in summer, or a home office might take much longer to heat in winter.

Typical symptoms include:

1. Room temperature 3–5°F different from nearby rooms
2. Very little air movement from the vent
3. Long HVAC run times without reaching the thermostat setpoint
4. Whistling or air noise at the grille
5. One vent noticeably weaker than others on the same system

In my experience, the “quiet vent problem” is especially telling. If the supply register makes almost no sound while others are active, airflow is likely being restricted somewhere upstream.

Check If a 6-Inch Duct Is Undersized or Blocked

Key Insight: A 6‑inch duct works well for many small rooms, but only if the airflow requirement matches its capacity.

Most HVAC design charts estimate airflow capacity like this:

1. 5-inch duct: ~40–60 CFM
2. 6-inch duct: ~70–110 CFM
3. 7-inch duct: ~110–160 CFM

If a room requires more than about 100 CFM, a single 6‑inch duct may struggle, especially if the run is long.

Before assuming the duct is undersized, check for blockages:

1. Crushed flexible duct
2. Disconnected insulation liner
3. Construction debris inside the duct
4. Closed balancing dampers

I’ve opened ducts during remodels and found drywall pieces, insulation scraps, and even plastic packaging blocking airflow. It happens more often than people expect.

save pin

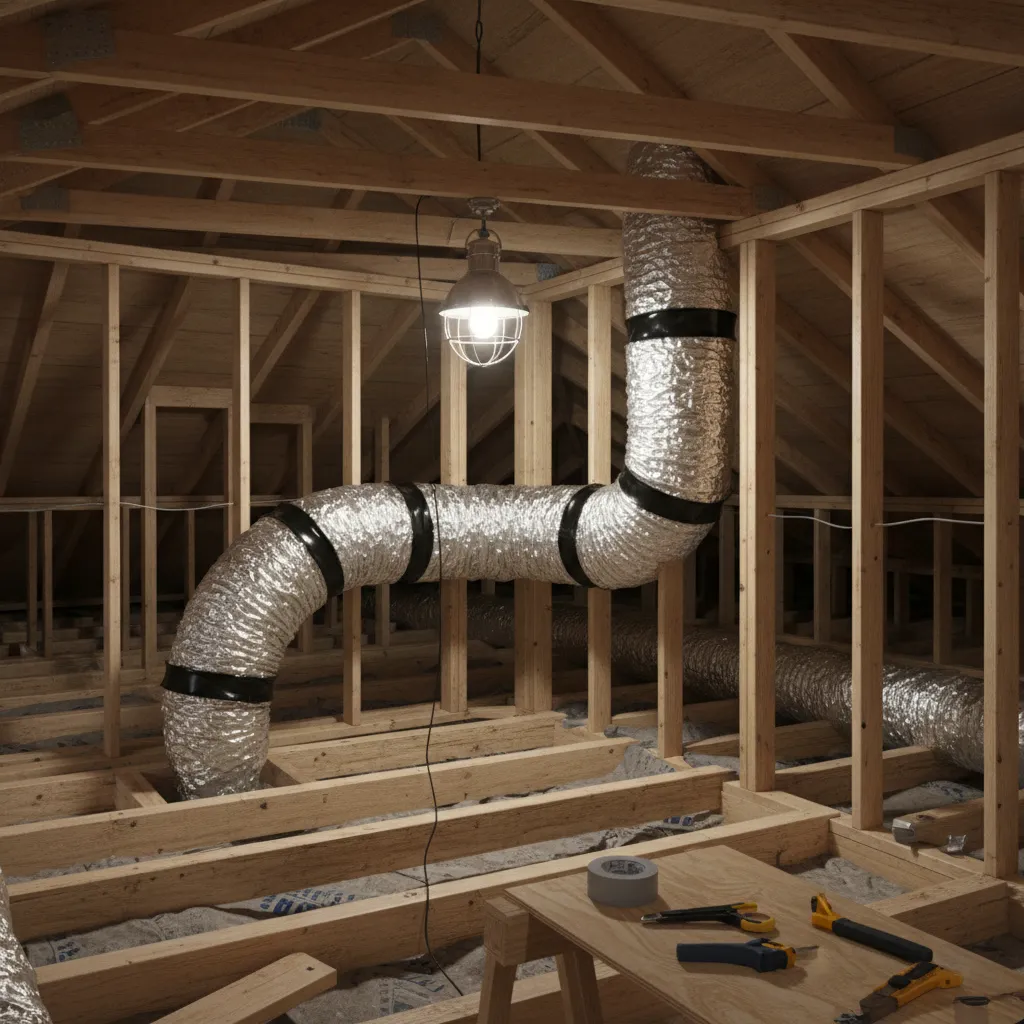

Inspecting Dampers, Filters, and Duct Bends

Key Insight: Airflow resistance increases dramatically with each restriction in the duct path.

Three components cause the majority of airflow losses in residential systems.

1. Dirty filters

1. Clogged filters increase static pressure.
2. High-MERV filters can reduce airflow in systems not designed for them.

2. Balancing dampers

1. Some branches may be partially closed to redirect airflow.
2. If misadjusted, a damper can choke a single room.

3. Duct bends

1. Each sharp bend adds friction loss.
2. Flexible ducts often sag, creating extra resistance.

HVAC studies from ASHRAE show that a single tight 90‑degree bend can reduce airflow efficiency significantly, especially in small-diameter ducts.

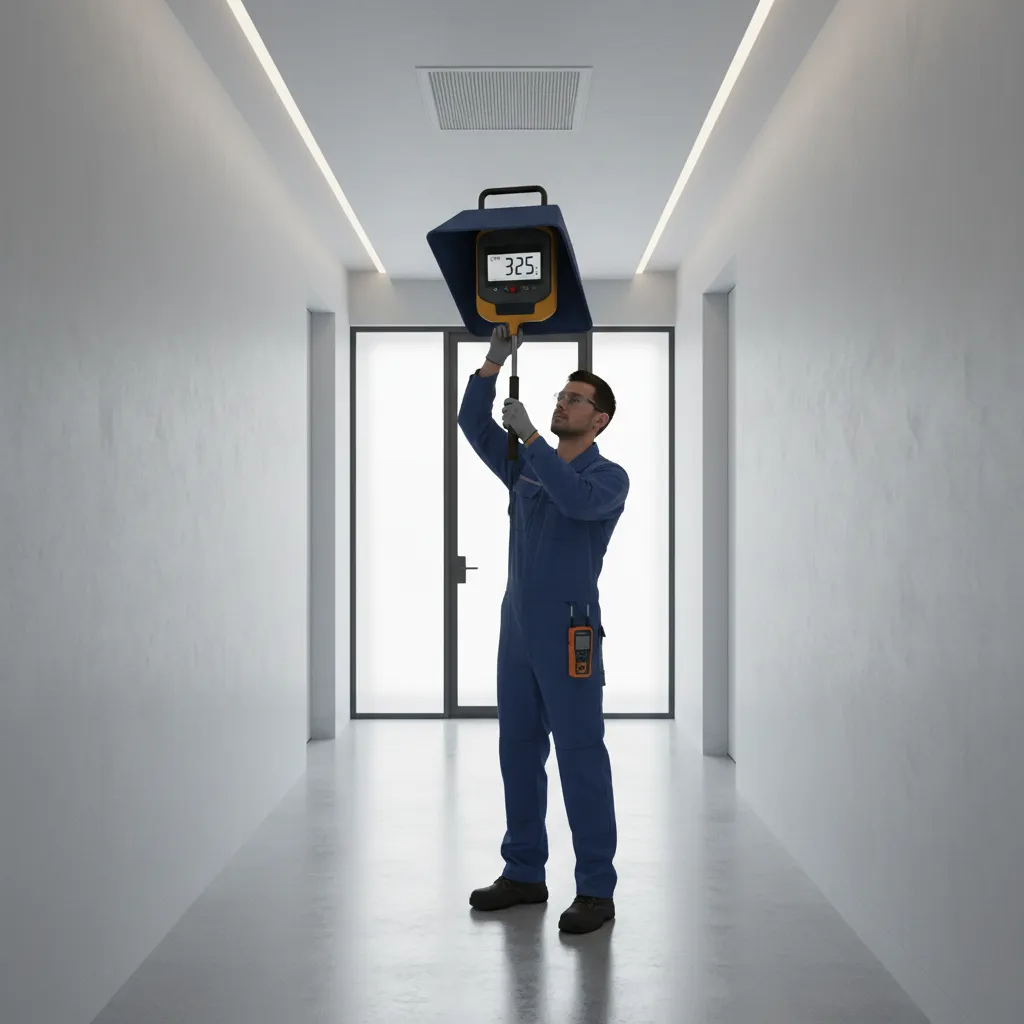

Measuring Actual Airflow and Static Pressure

Key Insight: Guessing airflow rarely solves the problem—measurement does.

Professionals diagnose weak airflow using two main measurements.

Airflow (CFM)

1. Measured using a flow hood or anemometer at the vent
2. Typical bedroom requirement: 80–120 CFM

Static pressure

1. Measured with a manometer
2. Most residential systems operate around 0.5 in. w.c.

If static pressure is high while airflow is low, the system likely has restrictions somewhere in the duct network.

When mapping airflow problems across multiple rooms, I sometimes recreate the layout digitally using a 3D floor layout visualization for planning vent placement. Seeing duct paths relative to room geometry often reveals design issues that aren’t obvious on paper.

save pin

Quick Fixes for Improving Air Delivery

Key Insight: Many airflow issues can be improved without replacing the duct.

Try these fixes before considering major modifications.

Simple airflow improvements

1. Replace or clean the air filter
2. Open balancing dampers fully
3. Straighten flexible duct runs
4. Seal small duct leaks with mastic
5. Upgrade restrictive vent grilles

One trick I’ve seen work repeatedly is shortening excess flexible duct. Installers often leave extra slack, which increases friction loss.

Answer Box

The most common cause of weak airflow in a 6‑inch HVAC duct is resistance from long runs, tight bends, or dirty filters rather than the duct diameter itself. Systematic inspection and airflow measurement typically identify the restriction quickly.

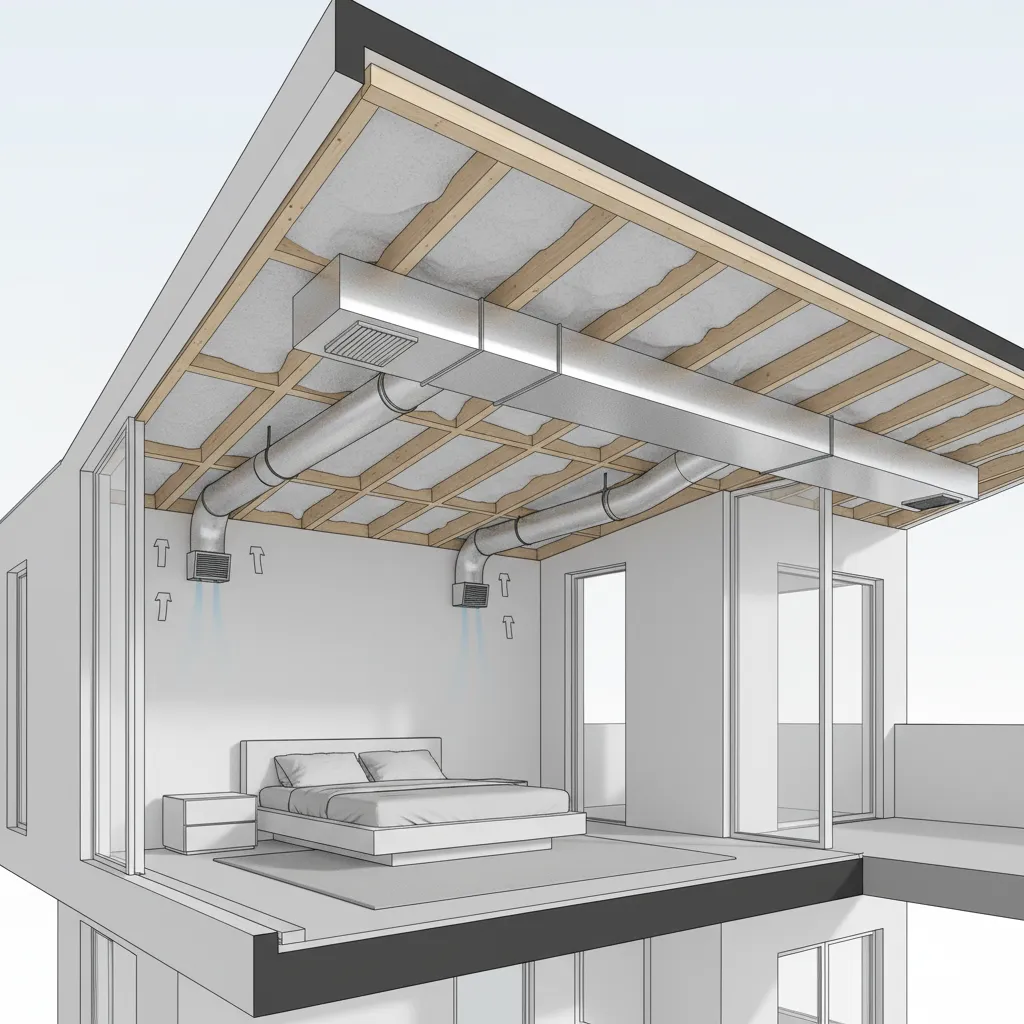

When to Upgrade or Add Additional Duct Runs

Key Insight: If airflow demand exceeds duct capacity, adding another supply line is usually better than enlarging the existing one.

Situations where upgrades make sense:

1. Room larger than 150–180 sq ft
2. Long duct runs exceeding 25–30 feet
3. Multiple sharp bends in the path
4. High heat load from windows or electronics

Adding a second branch duct can double airflow without increasing static pressure.

When redesigning airflow distribution, planning the room layout early with a simple floor plan creator for testing vent and furniture placementhelps avoid airflow obstructions and ensures vents remain effective.

save pin

Final Summary

1. A 6‑inch HVAC duct should normally deliver around 70–110 CFM.
2. Restrictions like bends, filters, and dampers cause most airflow problems.
3. Measure airflow and static pressure before changing duct size.
4. Straightening flexible ducts often improves airflow immediately.
5. Adding another duct run is the best fix when airflow demand exceeds capacity.

FAQ

Why is airflow weak in one room but strong elsewhere?

The branch duct may be longer, more restrictive, or partially closed by a damper compared with other rooms.

How much airflow should a 6 inch HVAC duct provide?

Most residential systems deliver about 70–110 CFM through a properly installed 6 inch HVAC duct.

Can too many bends reduce airflow?

Yes. Each tight bend increases friction loss and can significantly reduce airflow in small ducts.

Does a dirty air filter affect duct airflow?

Absolutely. A clogged filter increases system static pressure and reduces airflow throughout the duct system.

How do I measure airflow from a vent?

Professionals use a flow hood or anemometer to measure CFM at the supply register.

Is a 6 inch duct big enough for a bedroom?

Often yes, but larger rooms or long duct runs may require multiple supply ducts.

What is the fastest way to improve airflow in a bedroom vent?

Check the filter, open dampers fully, and inspect the duct for kinks or crushed sections.

When should I replace a duct instead of fixing it?

If the duct is undersized for the required airflow or severely damaged, replacement or adding another run may be necessary.

References

1. ASHRAE Fundamentals Handbook – Air Distribution Principles
2. ACCA Manual D – Residential Duct System Design
3. U.S. Department of Energy – Residential HVAC Distribution Systems
